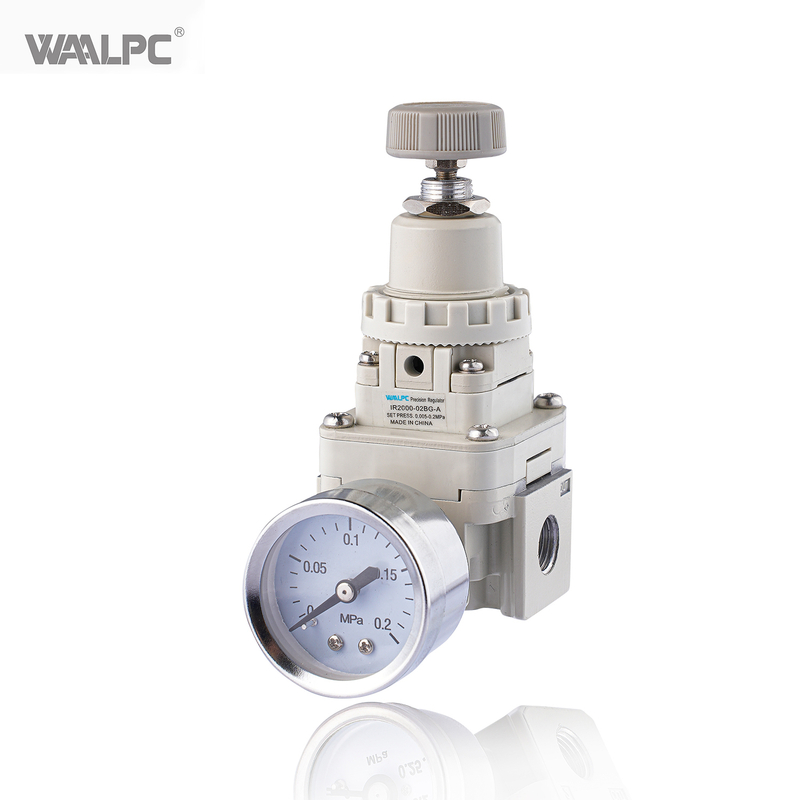

IR2000-02A 1/4′′ NPT SMC Pneumatic Precision Air Pressure Valve Gauge Regulating Valve for Industrial

WAAL 1/8′ ′ IR1000-A NPT Pneumatic Precision Air Pressure Valve Gauge Regulating Valve for Industrial

Automation Pneumatic Precision Equipment Air Pressure Valve Pressure Gauge Regulating Valve


Size:	IR1000-A IR2000-A IR3000-A
Availability:

The main function of the precision regulator is to accurately control the pressure and ensure that the system pressure remains at a stable and safe level.
They use high-precision sensors and actuators to automatically adjust the regulator opening according to changes in system pressure, thereby stabilizing the system pressure.

Model:
IR2000-A
Brand:
WAALPC

Product Description

Product Advantages

Precision air pressure valve

1. High-precision control: The IR1000-01B Precision Pressure Reducing Valve is capable of tension control and contact pressure control with setting sensitivity within 0.2% F.S. and repeatability within ±0.5% F.S. The IR1000-01B Precision Pressure Reducing Valve is capable of tension control and contact pressure control with setting sensitivity within 0.2% F.S. and repeatability within ±0.5% F.S.

2. Wide Pressure Setting Range: A wide pressure setting range is provided, with the IR1000/2000 series having a setting range of 0.005 to 0.2 MPa and the IR3000 series having a setting range of 0.01 to 0.2 MPa.

3. Lightweight design: Compared with its predecessor, the weight is reduced by a maximum of about 27%, while air consumption is reduced by a maximum of about 90%.

4. Easy to install and maintain: Compact design with 1/8-inch pipe diameter and Rc threads for easy installation and maintenance. 5.

5. Bracketed design: Annex B indicates that the pressure reducing valve is bracketed for easy installation and fixing.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Model	Basic Type (Knob Type)
	IR10□0- A	IR20□0-A	IR30□0-A
Fluid	Air
Pressure Resistance	1.5MPa
Max. Supply Pressure	1.0MPa
Min Supply Pressure Note 1	Setting pressure +0.05MPa		Setting pressure +0.1MPa
Setting Pressure Range	IR1000-A:0.005~0.2Mpa IR1010-A:0.01~0.4Mpa IR1020-A:0.01~0.8Mpa	IR2000-A:0.005~0.2Mpa IR2010-A:0.01~0.4Mpa IR2020-A:0.01~0.8Mpa	IR3000-A:0.01~0.2Mpa IR3010-A:0.01~0.4Mpa IR3020-A:0.01~0.8Mpa
Setting Sensitivity	Within 0.2% of F.S.
Repeatability Note 2	Within ± 0.5% of F.S.
Air Consumption Note 3	Less than 1 L/min (ANR)
Tube Diameter	1/8	1/4	1/4,3/8,1/2
Pressure Gauge Connecting Diameter	1/8(2 points)
Environment Temperature and Fluid Temperature Note 4	5~60℃ (No Frozen)
Weight (kg) Note 5	0.13	0.23	0.47

Note 1: When there is no flow on the output side.

Note 2: Conditions for time change, temperature characteristics, and other characteristics are not included.

Note 3: Measurement conditions: Supply pressure 1.0MPa, pressure setting 0.2MPa.

Note 4: When equipped with a digital pressure switch, the temperature is -5 to 50°C.

Note 5: Without accessories.

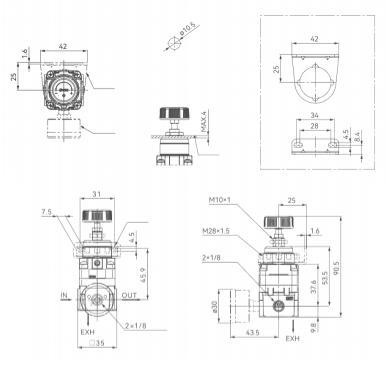

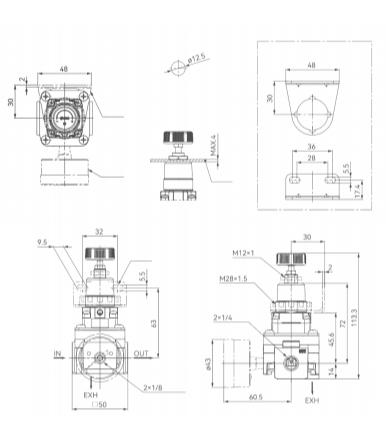

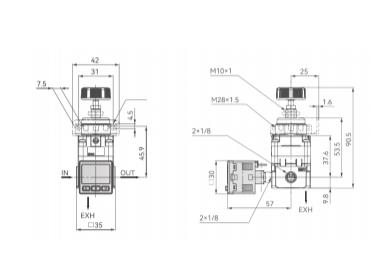

DIMENSIONS

Precision air pressure valve

Specification Download

Precision Regulators-1000A.pdf
