Fv-320 Stainless Steel Foot Pedal Valve Self-Closing 3/4" Thread for Industrial Wash Bay & Food Processing


Availability:

Quantity:



Inquiry Add to Basket

Foot Pedal Valves provide intuitive, hands-free control for pneumatic activation, enhancing operator productivity and safety. Pressure Control Valves are critical for system stability, safety, and performance, ensuring precise pressure delivery and protection against over-pressurization. Together, they form fundamental parts of reliable and efficient pneumatic power systems.

Model:
FV320
Brand:
WAALPC
Code:
8481804090

Product Description

1. Aluminum pedal, direct acting design, stable and reliable;

2. If the commutation holding time is long, the locking type can be selected;

3. The locking mechanism is stable and reliable, and the unlocking is light and fast. But due to structural size limitations, it cannot withstand frequent strong impacts;

4. Can choose to use high-strength plastic protective cover.

Technical Parameters

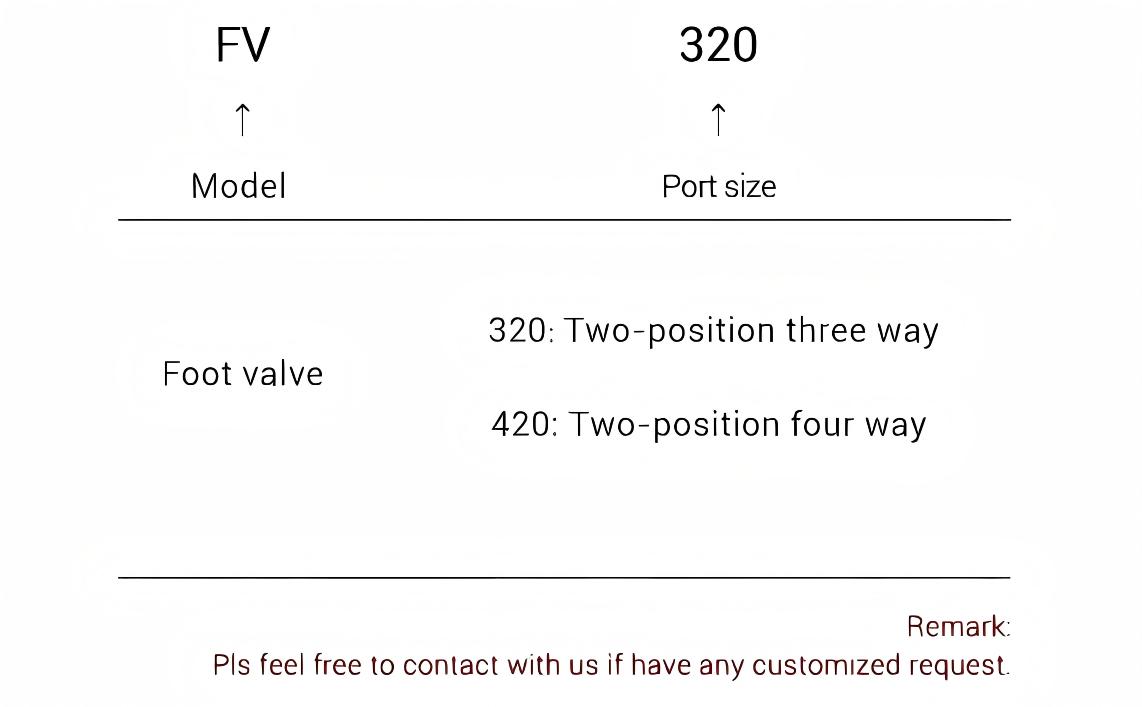

ORDERING CODE

SPECIFICATION

Model	FV320	FV420
Working medium	Air filtered by 40 microns
Number of positions	2 position 3 way	2 position 4 way
Port size	Inlet=outlet=G1/4"Air-out=G1/8"
Action mode	Direct acting type
Operating pressure	0~0.8MPa
Operating temperature	1.5MPa(215psi)
Operating Temperature	0~60℃

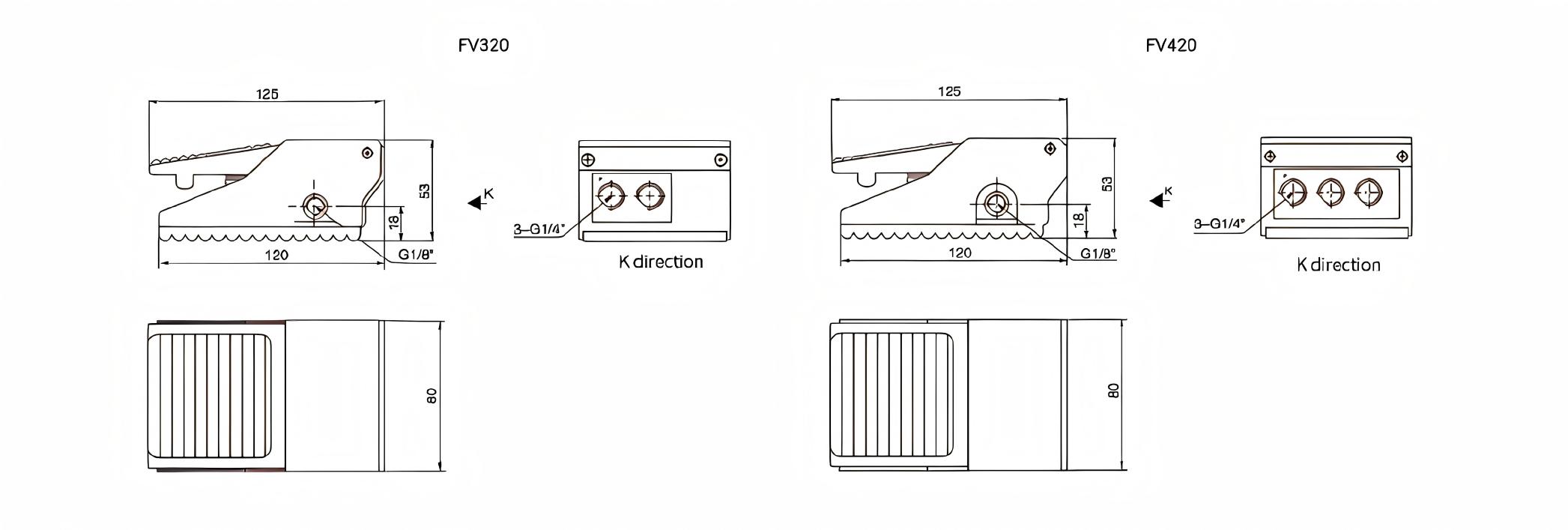

OVERALLDIMENSION&STRUCTURE

FV Foot Petal Valve

Specification Download

FV Foot Petal Valve.png
