High Quality Low Price Foot Pedal Valve in Automatic Machines Air Pneumatic Manual Valve Pressure Control Valve

High Quality Low Price Foot Pedal Valve in Automatic Machines Air Pneumatic Manual Valve Pressure Control Valve


Availability:

Quantity:



Inquiry Add to Basket

Foot Pedal Valves provide intuitive, hands-free control for pneumatic activation, enhancing operator productivity and safety. Pressure Control Valves are critical for system stability, safety, and performance, ensuring precise pressure delivery and protection against over-pressurization. Together, they form fundamental parts of reliable and efficient pneumatic power systems.

Model:
3F210
Brand:
WAALPC
Code:
8481804090

Product Description

1. Direct action normally closed type;

2. The 3Fseries features aluminum pedals; The 3FM series is a plastic pedal with a linear and horizontal structure, compact and small in size;

3. If the commutation holding time is long, the locking type can be selected;

4. The locking mechanism is stable and reliable, and the unlocking is light and fast; But due to structural size limitations, it cannot withstand frequent strongimpacts.

Technical Parameters

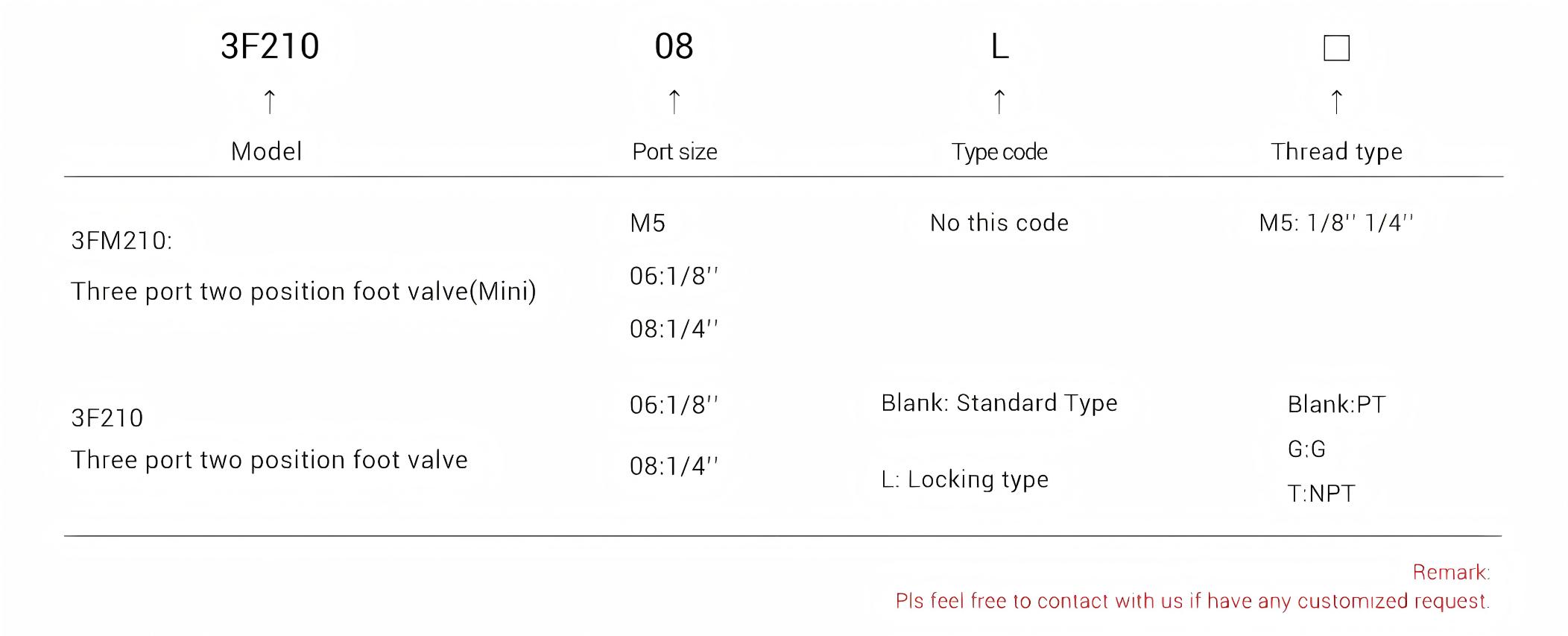

ORDERING CODE

SPECIFICATION

Model	3FM210-M5	3F210-06	3FM210-06	3F210-08	3FM210-08
Working medium	Air (to be filtered by 40μm filter element)
Acting mode	Foot controlled direct acting normally closed type
Port size	M5	PT1/8	PT1/8	PT1/4	PT1/4
Number of positions	3 port 2 position
Operating pressure	0~1.0MPa(0~145psi)
Proof pressure	1.5MPa(215psi)
Operating Temperature	-20~70°℃
Material of body	3FM:Plastics 3F:Aluminum alloy
Lubrication	Not required

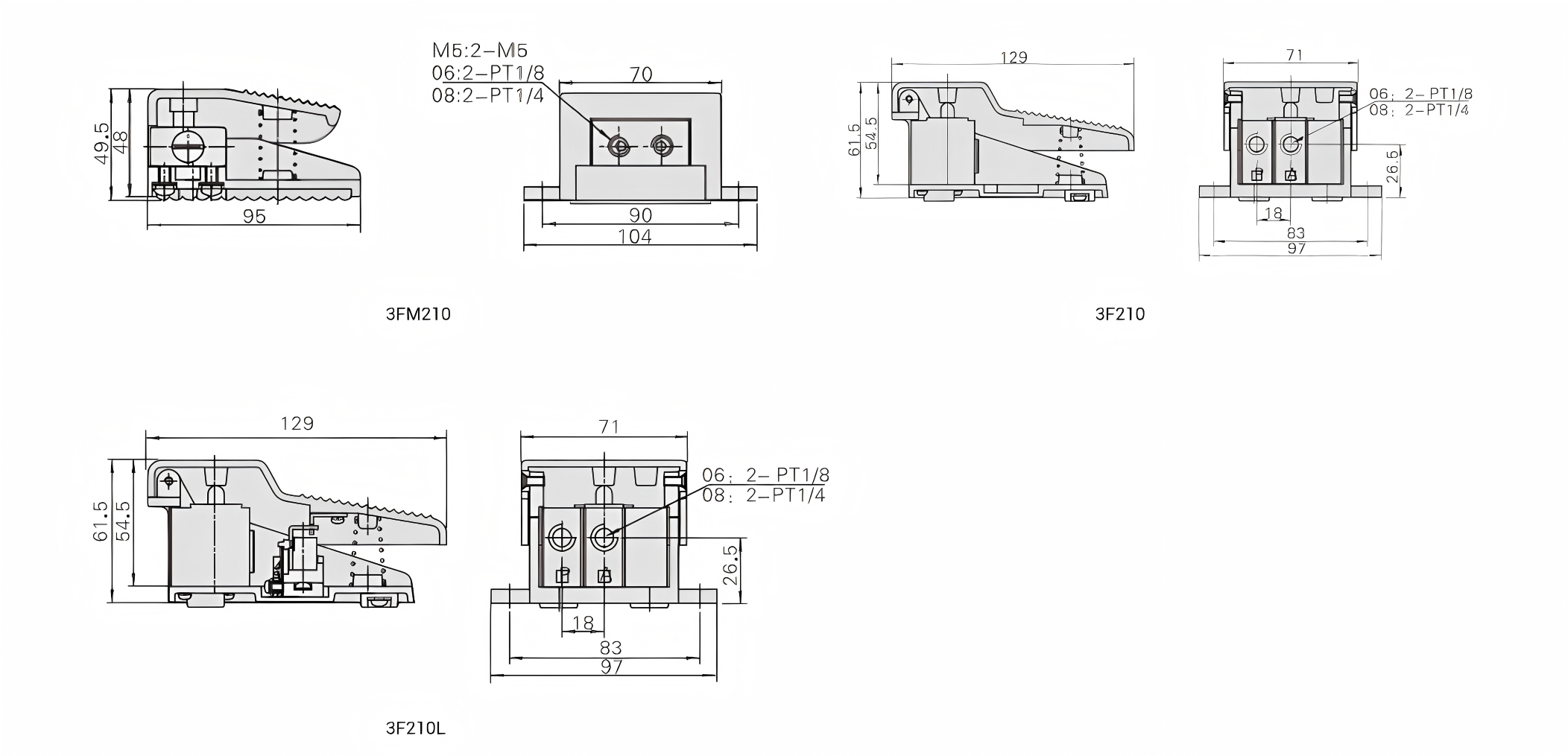

OVERALLDIMENSION&STRUCTURE

Foot Petal Valve

Specification Download

3F210 Foot Petal Valve.png
