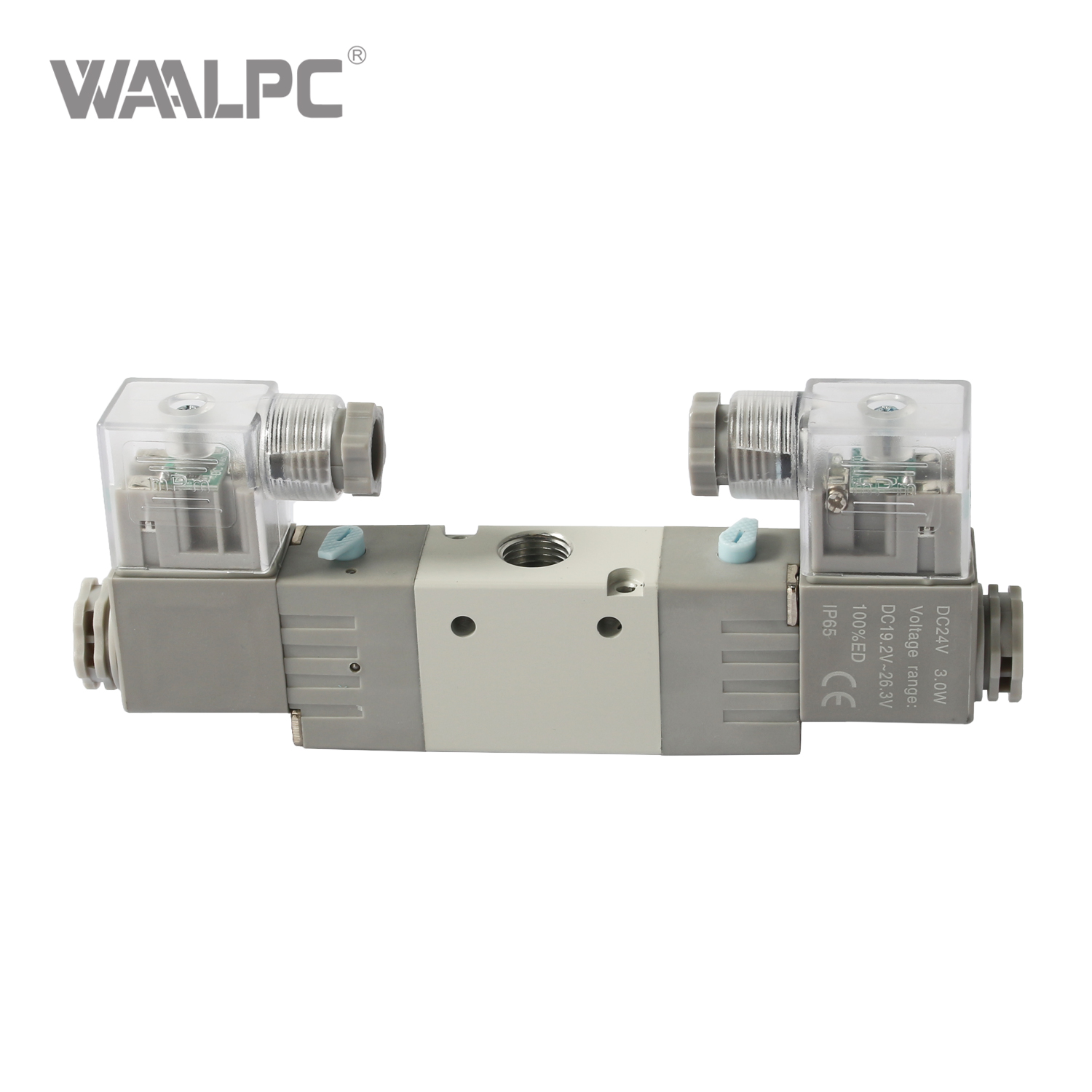

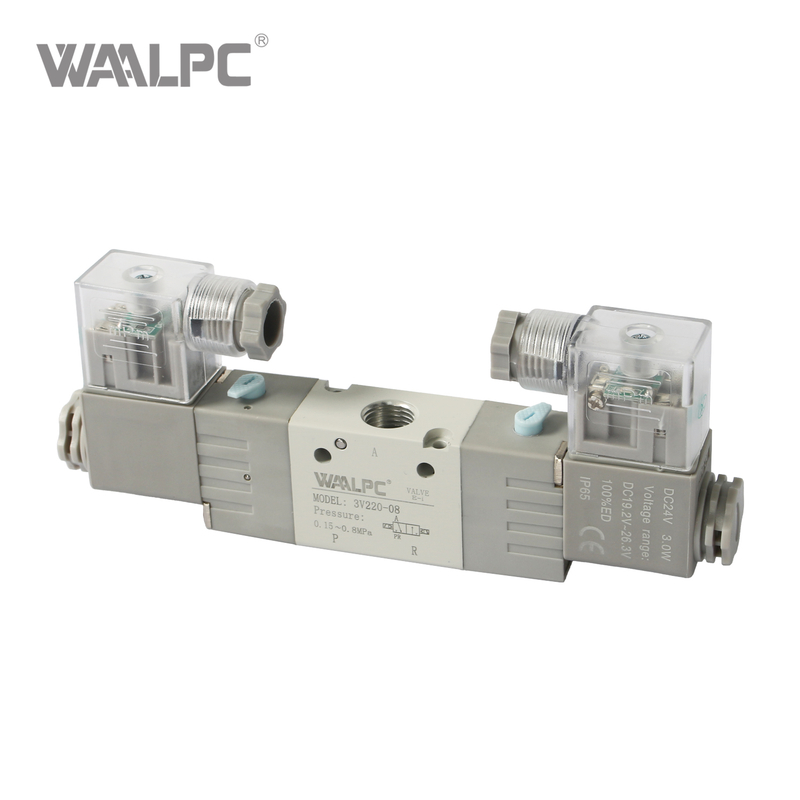

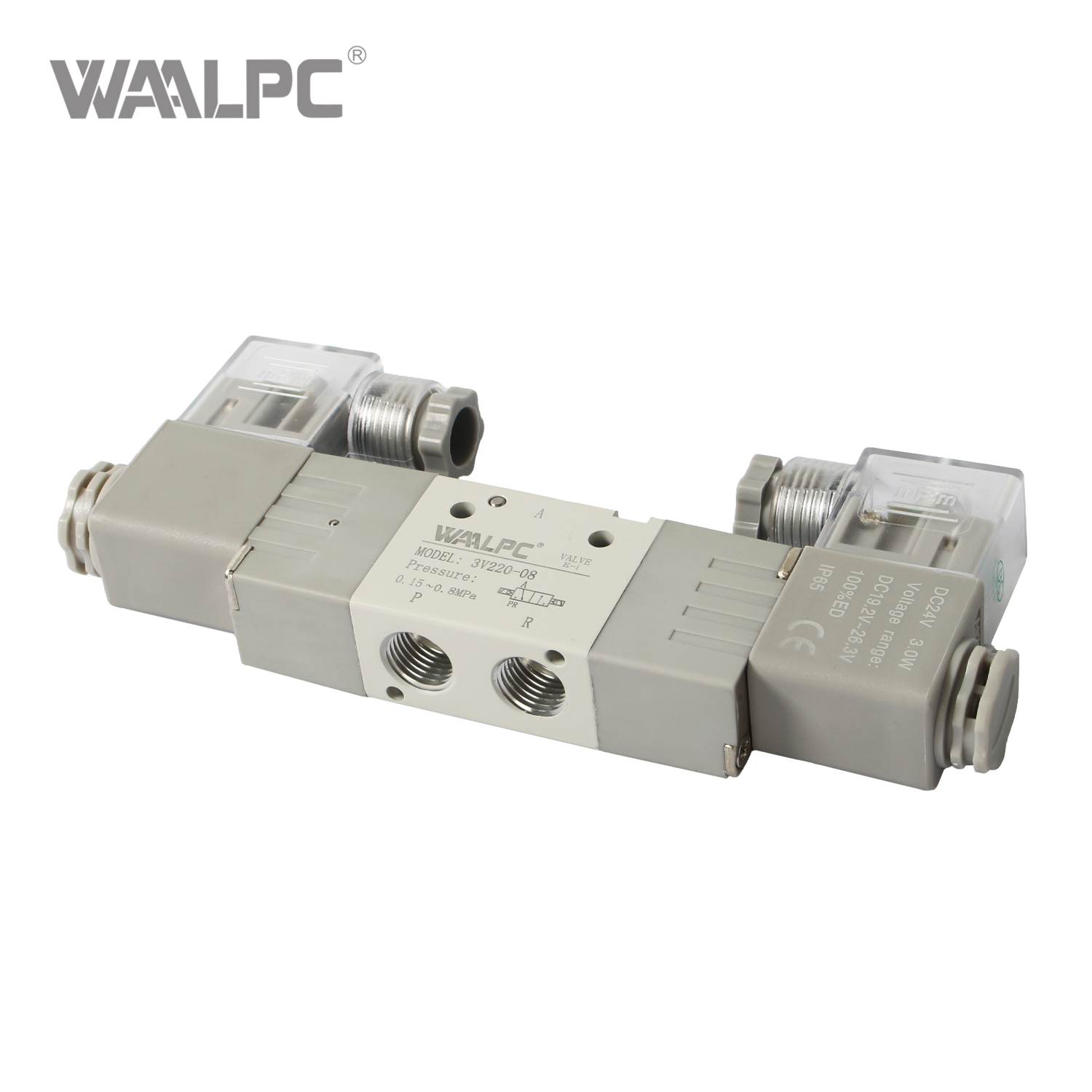

Compact 3V220 3-Way Universal Solenoid Valve 220V AC for Automation & Pneumatics

Compact 3V220 3-Way Universal Solenoid Valve 220V AC for Automation & Pneumatics


Availability:

Quantity:



Inquiry Add to Basket

The 3V Series Solenoid Valve offers highly reliable, direct-acting solenoid valves in an exceptionally compact design. Available in 2-way, 2-position Normally Closed (NC) configuration with port sizes ranging from 1/8" to 1/2" NPT. Featuring low power consumption coils (12V DC, 24V DC/AC, 110V AC, 220V AC options), fast response times, and dependable shut-off, the 3V Series is engineered for performance in automation systems, medical equipment, analytical instrumentation, packaging machinery, beverage dispensing, and various industrial OEM applications.

Model:
3V220
Brand:
WAALPC
Code:
8481202090

Product Description

1. Pilot-oriented mode:lnternal pilot or external pilot

2. Structure in sliding column mode:good tightness and sensitive reaction

3. Double control solenoid valves have memory function

4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life

5. No need to add oil for lubrication

6. It is available to form integrated valve group with the base to save installation space

7. Affliated manual devices are equipped to facilitate installation and debugging

8. Several standard voltage grades are optional

Technical Parameters

DATA SHEET

Model	3V210-06	3V220-06	3V210-08	3V220-08
Fluid	Air(to be filtered by 40um filter element)
Acting	Internal pilot or external pilot
Port size [Note1]	In=Out=G1/8		In=Out=G1/4
Orifice size(Cv)	3V210-08, 3V220-08: 17.0mm2(Cv=1.0)
Valve type	3 port 2 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70°℃
Material of body	Aluminum alloy
Lubrication [Note2]	Not required

[Note1]PT thread and NPT thread are available

[Note2]Once lubricated air is used,continue with same medium to optimise valve life span.Lubricants like ISO VG32 or equivalent are recommended

[Note3]Equivalent orifice Sand Cv are all calculated from the flow rate data

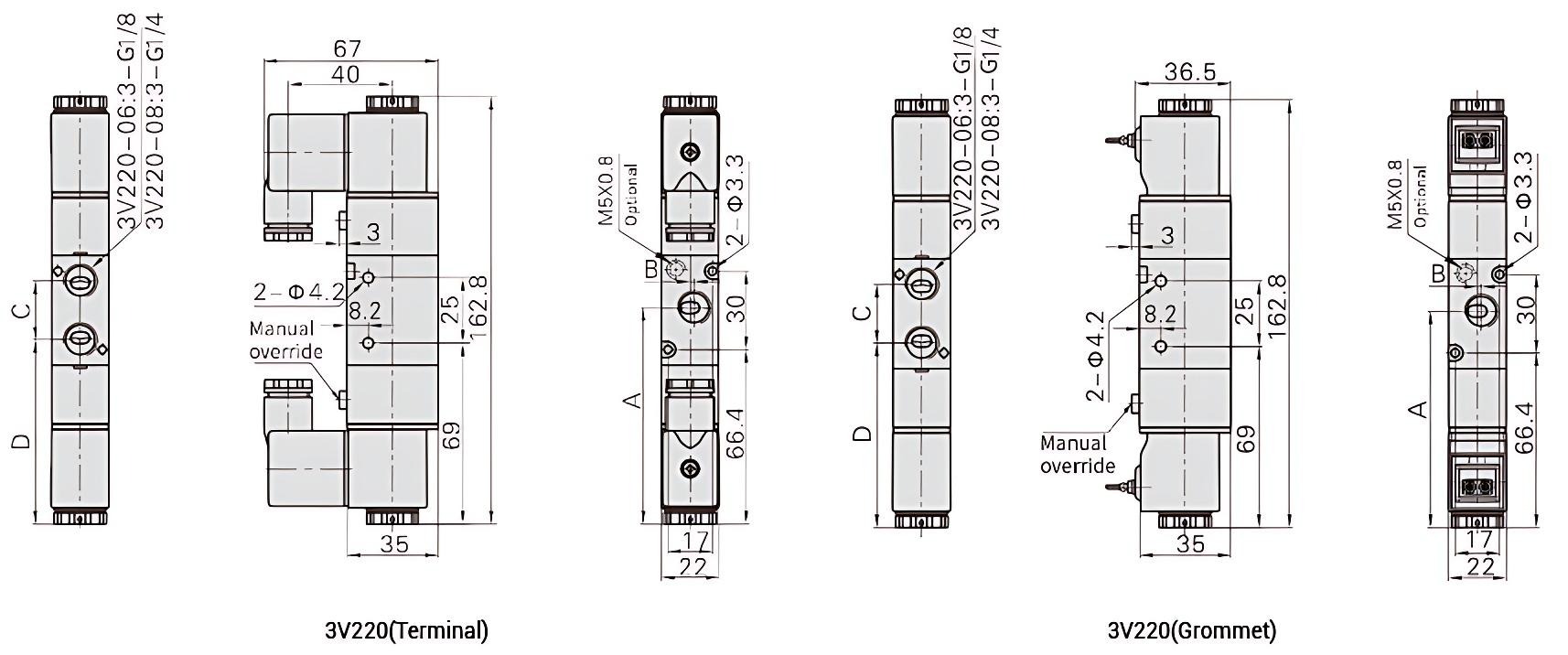

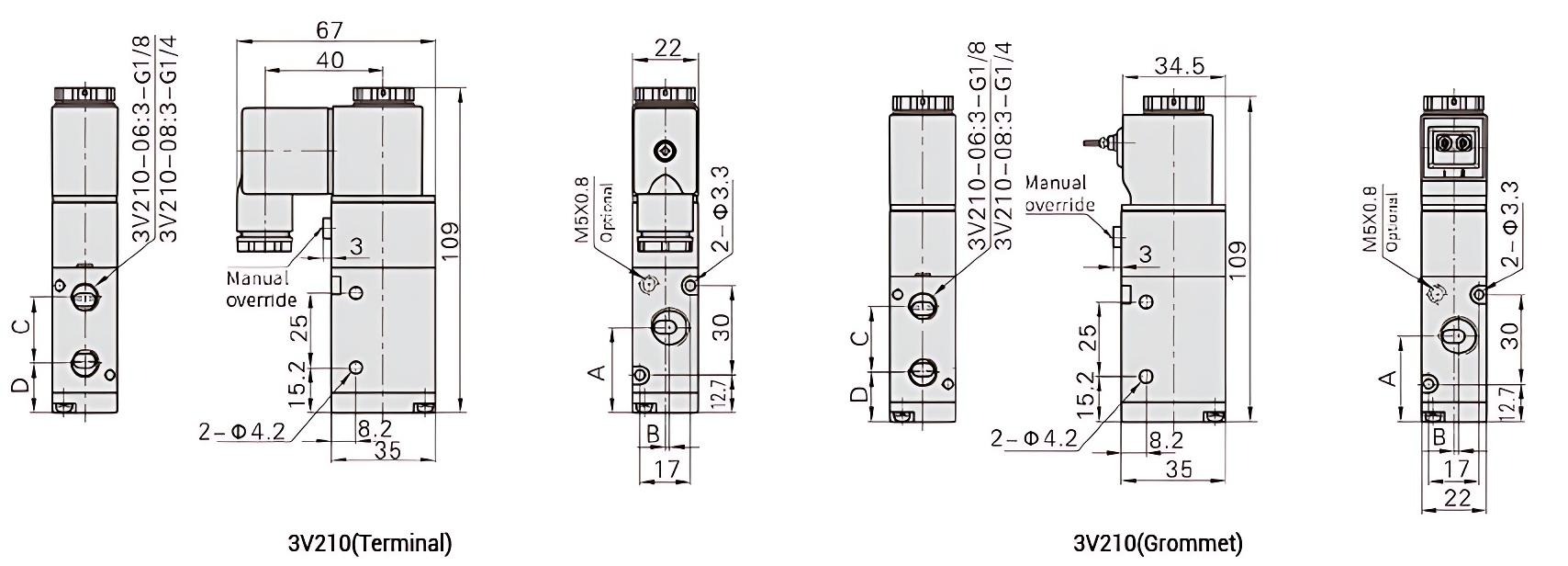

STRUCTURE&DIMENSION(MM)

3V Solenoid valve

3V Series solenoid valve

Specification Download

3V200 Solenoid Valve.png
