HV Series Hand Rotary Valve: Complete Guide To HV-02, HV-04 & HV-200B Manual Pneumatic Control Valves

Introduction

In pneumatic systems, reliable manual control is essential for machine setup, maintenance operations, emergency stops, and applications where automated control is either unnecessary or impractical. The HV Series hand rotary valve — commonly known as a hand-operated directional control valve — provides a simple, cost-effective solution for manually controlling the flow direction of compressed air to pneumatic actuators.

This guide provides a comprehensive overview of the HV Series hand rotary valves, covering models HV-02, HV-04, and HV-200B. We will explore their working principles, technical specifications, structural features, application scenarios, installation guidelines, and selection considerations.

1. What Is a Hand Rotary Valve?

A hand rotary valve is a manually operated directional control valve that uses a handle or lever to rotate an internal spool, redirecting compressed air flow to different ports. Unlike solenoid valves that require electrical signals, hand rotary valves are operated entirely by human effort — making them ideal for applications where electricity is unavailable, where explosion-proof requirements exist, or where simple, reliable manual control is preferred.

The HV Series belongs to the direct-acting type, meaning the manual force applied to the handle directly moves the valve spool without the need for pilot pressure.

Key Advantages of Hand Rotary Valves

• No power required — operates purely by manual force

• Simple and intuitive — visual handle position indicates flow direction

• Reliable and durable — fewer components than solenoid valves, lower failure rate

• Cost-effective — lower initial cost and virtually no ongoing maintenance

• Explosion-proof — no electrical components, safe for hazardous environments

2. HV Series Product Overview

The HV Series hand rotary valve family includes a range of models designed to meet different flow capacity and port size requirements. The most common models are HV-02, HV-03, HV-04, and HV-200B.

2.1 Model Nomenclature

The model designation follows a systematic coding structure:

2.2 Technical Specifications

The table below summarizes the key technical parameters for the HV Series hand rotary valves:

Note: Some variations of the HV Series may have slightly different specifications depending on the manufacturer. The above data represents typical values for standard models.

2.3 HV-200B Model Details

The HV-200B is a specialized variant within the HV Series. Its model designation provides important information about its configuration:

The HV-200B is a two-position, four-way valve, meaning it has two operating positions and four ports (one inlet, two outlets, one exhaust). The "B" configuration indicates side-mounted inlet/outlet ports with bottom exhaust.

3. Working Principle

3.1 Basic Operating Principle

The hand rotary valve operates on the principle of spool rotation. When the operator rotates the handle, the spool inside the valve body turns, aligning different grooves and channels with the valve body ports. This changes the flow path of the compressed air, directing it to different outlets.

In a two-position, four-way configuration (such as the HV-200B):

• Position 1: Inlet (P) connects to outlet A; outlet B connects to exhaust (R)

• Position 2: Inlet (P) connects to outlet B; outlet A connects to exhaust (R)

This allows the valve to control the extension and retraction of a double-acting cylinder with a simple 90° or 180° rotation of the handle.

3.2 Three-Position Configuration (HV-02/03/04)

The HV-02/03/04 models are typically three-position, four-way valves. In addition to the two working positions (extend and retract), they have a center position that can be configured in one of three ways:

The center position allows the actuator to be stopped, held, or released depending on the system requirements.

3.3 Direct-Acting Mechanism

HV Series valves are direct-acting — the manual force applied to the handle is transmitted directly to the spool without any amplification. This design offers several advantages:

• Simple and reliable construction

• Immediate response to operator input

• No pilot pressure required

• Consistent performance regardless of supply pressure fluctuations

4. Structural Features

4.1 Body Construction

The HV Series valve body is manufactured from aluminum die-casting, offering:

• Lightweight yet robust construction

• Excellent corrosion resistance

• Good thermal conductivity for heat dissipation

• Dimensional stability under varying temperatures

4.2 Sealing System

Seals are made from NBR (nitrile rubber), which provides:

• Excellent resistance to compressed air and light oils

• Good abrasion resistance for long service life

• Stable performance across the operating temperature range (-10°C to 60°C)

4.3 Spool Design

The spool features precision-ground grooves that align with the valve body ports. Key design features include:

• Large effective flow area — minimizes pressure drop across the valve

• Smooth rotation — light operating effort with positive detent feel

• Accurate positioning — detent mechanism holds the spool securely in each position

4.4 Mounting Options

HV Series valves offer two mounting configurations:

5. Performance Characteristics

5.1 Flow Capacity

The flow capacity of HV Series valves varies by model:

The effective flow area directly correlates with the valve's ability to drive actuators at speed. Larger flow rates allow faster cylinder actuation.

5.2 Pressure Ratings

5.3 Temperature Range

HV Series valves operate reliably in -10°C to 60°C ambient temperatures. For extreme temperature applications, special seal materials may be required.

5.4 Lubrication

HV Series valves do not require lubrication. The spool is designed to operate with the natural lubricity of filtered compressed air. If lubrication is used in the system, it will not harm the valve, but it is not necessary for normal operation.

6. Application Scenarios

HV Series hand rotary valves are widely used across numerous industries:

6.1 Industrial Automation

• Machine tools — manual control of clamping, positioning, and tool changing

• Assembly lines — manual override and setup operations

• Packaging machinery — directional control for grippers and pushers

• Textile machinery — manual control of thread tensioning and fabric handling

6.2 Manufacturing

• Fixture control — manual clamping and unclamping of workpieces

• Jig positioning — directional control for locating pins and stops

• Test equipment — manual air supply switching for functional testing

6.3 Special Environments

• Explosion-proof areas — no electrical components, safe in hazardous locations

• Remote locations — no power supply required

• Maintenance operations — manual override for system testing and troubleshooting

6.4 Specific Industries

7. Installation Guidelines

7.1 Pre-Installation Checks

Before installing an HV Series hand rotary valve:

1. Verify the model — confirm port size, flow rating, and configuration match your requirements

2. Check the air supply — ensure air is filtered to 40μm or better

3. Inspect the valve — check for any shipping damage

4. Prepare the mounting location — ensure adequate clearance for handle operation

7.2 Installation Steps

1. Mount the valve — using either panel mount or body mount configuration

2. Connect the piping — follow the port markings (P = inlet, A/B = outlets, R = exhaust)

3. Apply thread sealant — use PTFE tape on male threads only, leaving the first thread bare to prevent debris entry

4. Tighten connections — do not overtighten; use appropriate torque for the port size

5. Test operation — rotate the handle through all positions to verify smooth operation and correct flow direction

7.3 Port Identification

Standard port marking for HV Series valves:

Important: Connect piping according to the flow direction marked on the valve body. Reverse connection will prevent proper operation.

8. Maintenance and Troubleshooting

8.1 Routine Maintenance

8.2 Troubleshooting Guide

8.3 Service Life Considerations

HV Series valves are designed for long service life with minimal maintenance. Factors that affect service life include:

• Air quality — clean, dry, filtered air extends seal life

• Operating frequency — higher cycling rates accelerate wear

• Ambient conditions — temperature extremes and contaminants reduce life

• Operating pressure — operating within rated pressure range prevents damage

9. Selection Guide

9.1 Selection Criteria

When selecting an HV Series hand rotary valve, consider the following factors:

9.2 Sizing Example

Application: Controlling a double-acting cylinder with 50 mm bore, 100 mm stroke, requiring full extension in 0.5 seconds.

• Estimated flow requirement: ~400 L/min at 0.6 MPa

• Recommended model: HV-03 (800 L/min capacity) or HV-04 (1200 L/min capacity) for margin

• Recommended port size: G3/8 or G1/2 to match cylinder port size

9.3 When to Use HV-200B vs. HV-02/04

10. Safety and Usage Precautions

10.1 Important Safety Rules

10.2 Prohibited Applications

HV Series hand rotary valves should not be used for:

• ❌ Corrosive or reactive gases (special materials required)

• ❌ High-temperature applications above 60°C without special seals

• ❌ Applications requiring frequent automated cycling (use solenoid valves instead)

• ❌ Applications where remote or automated control is required

10.3 Recommended Upstream Components

For optimal performance and service life, install the following upstream of the hand rotary valve:

1. Air filter (40μm or better) — removes solid particles and water

2. Pressure regulator — maintains stable supply pressure

3. Drain valve — removes condensate from the system

Conclusion

The HV Series hand rotary valve family — including HV-02, HV-04, and HV-200B — offers reliable, cost-effective manual directional control for pneumatic systems across a wide range of industries. With their direct-acting design, aluminum die-cast construction, NBR seals, and flow capacities from 500 to 1200 L/min, these valves provide a simple solution for applications where manual control is preferred or required.

Key takeaways:

• HV-02 (G1/4, 500 L/min) — ideal for small cylinders and light-duty applications

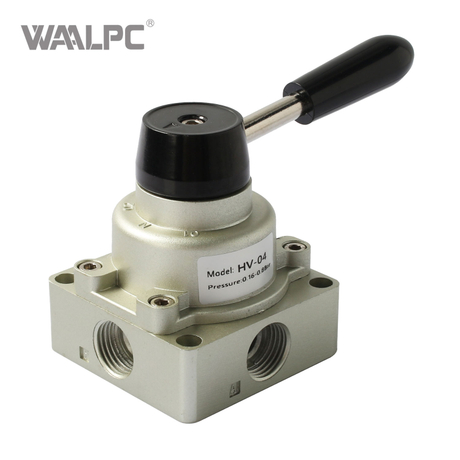

• HV-04 (G1/2, 1200 L/min) — suited for large cylinders and high-flow requirements

• HV-200B (G1/4, 2-position 4-way) — specialized side-port configuration for compact installations

By selecting the correct model for your application, following proper installation procedures, and performing routine maintenance, HV Series hand rotary valves will provide years of reliable service.

For more information about WAALPC HV Series hand rotary valves or to discuss your specific application requirements, please contact our technical sales team or visit www.waalpc.com.
