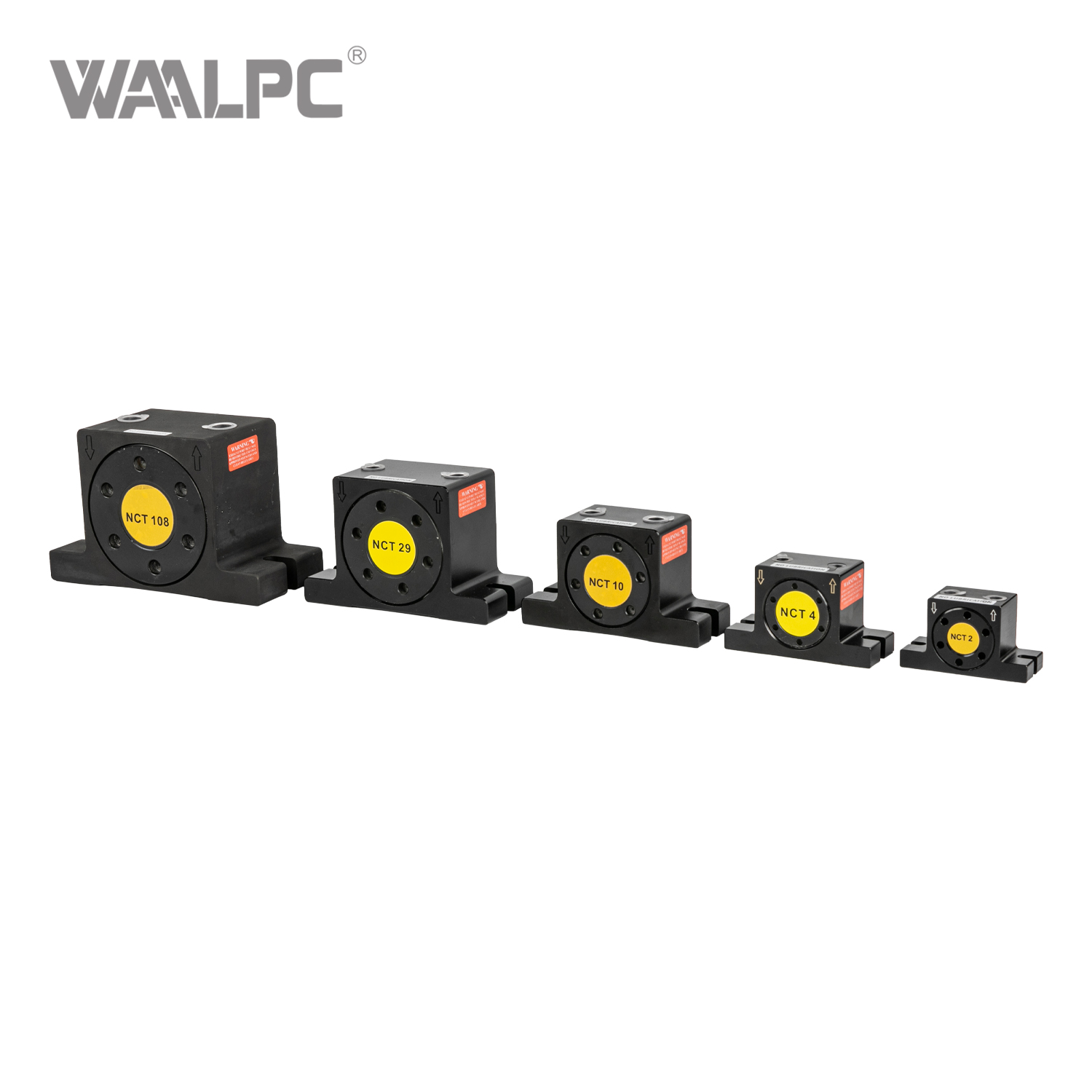

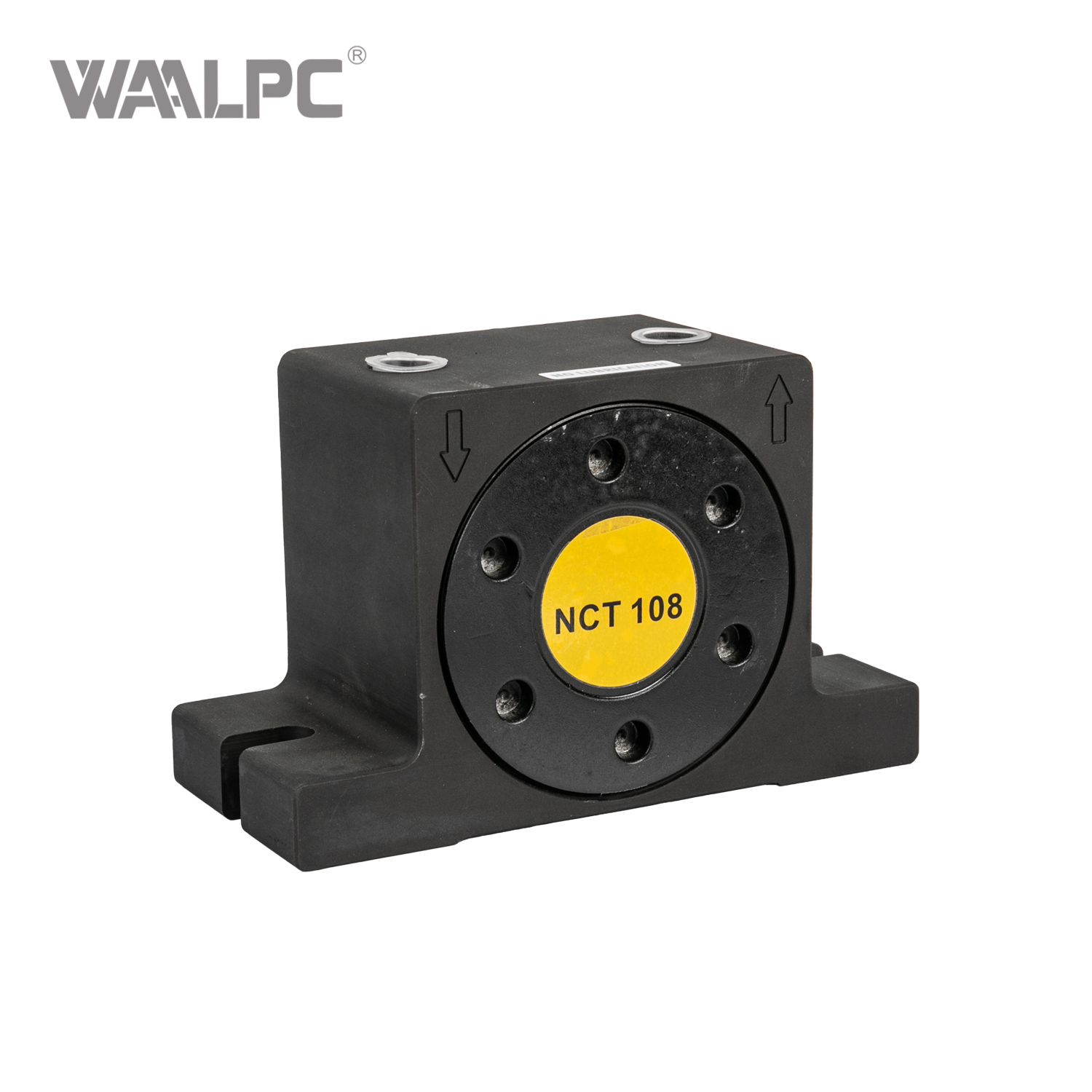

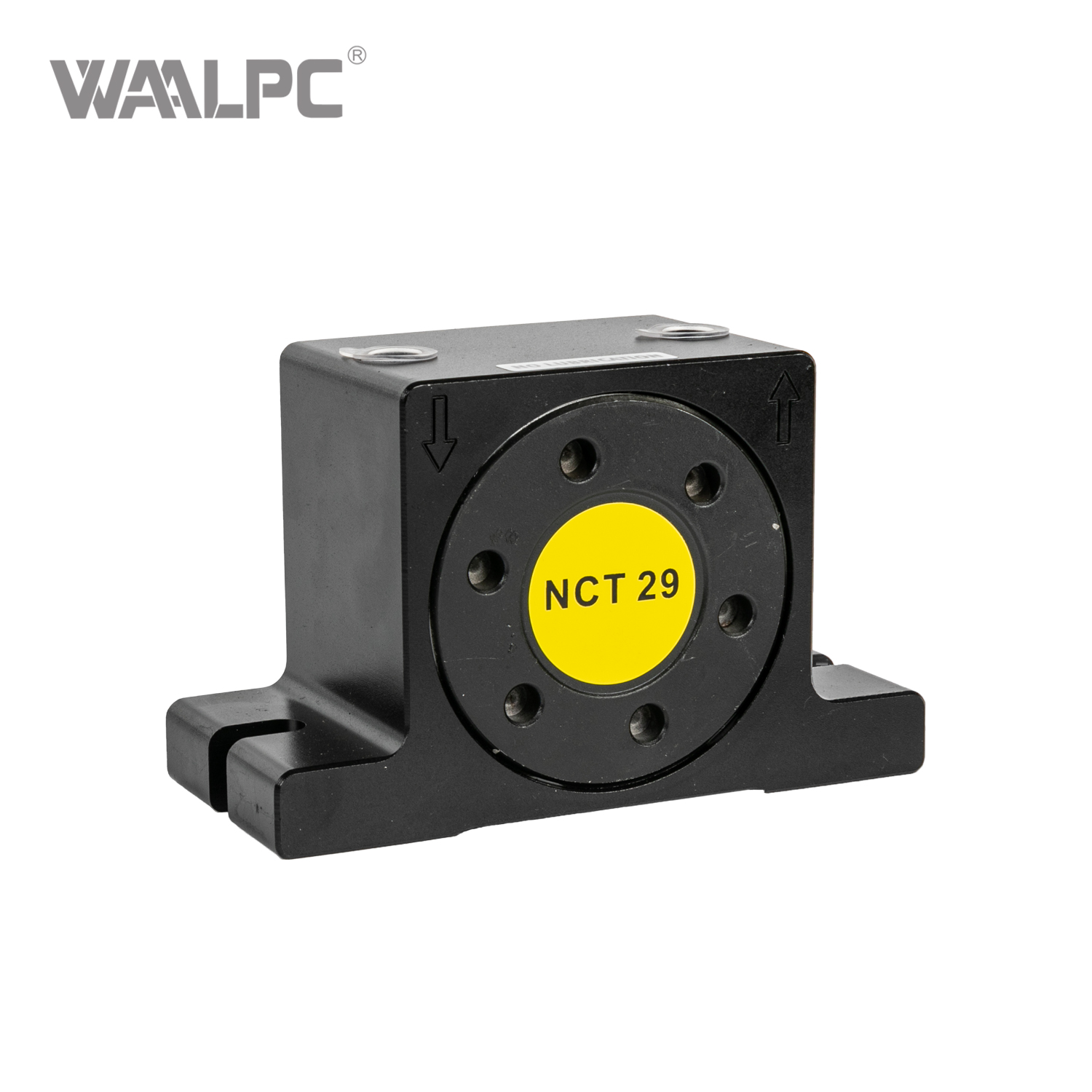

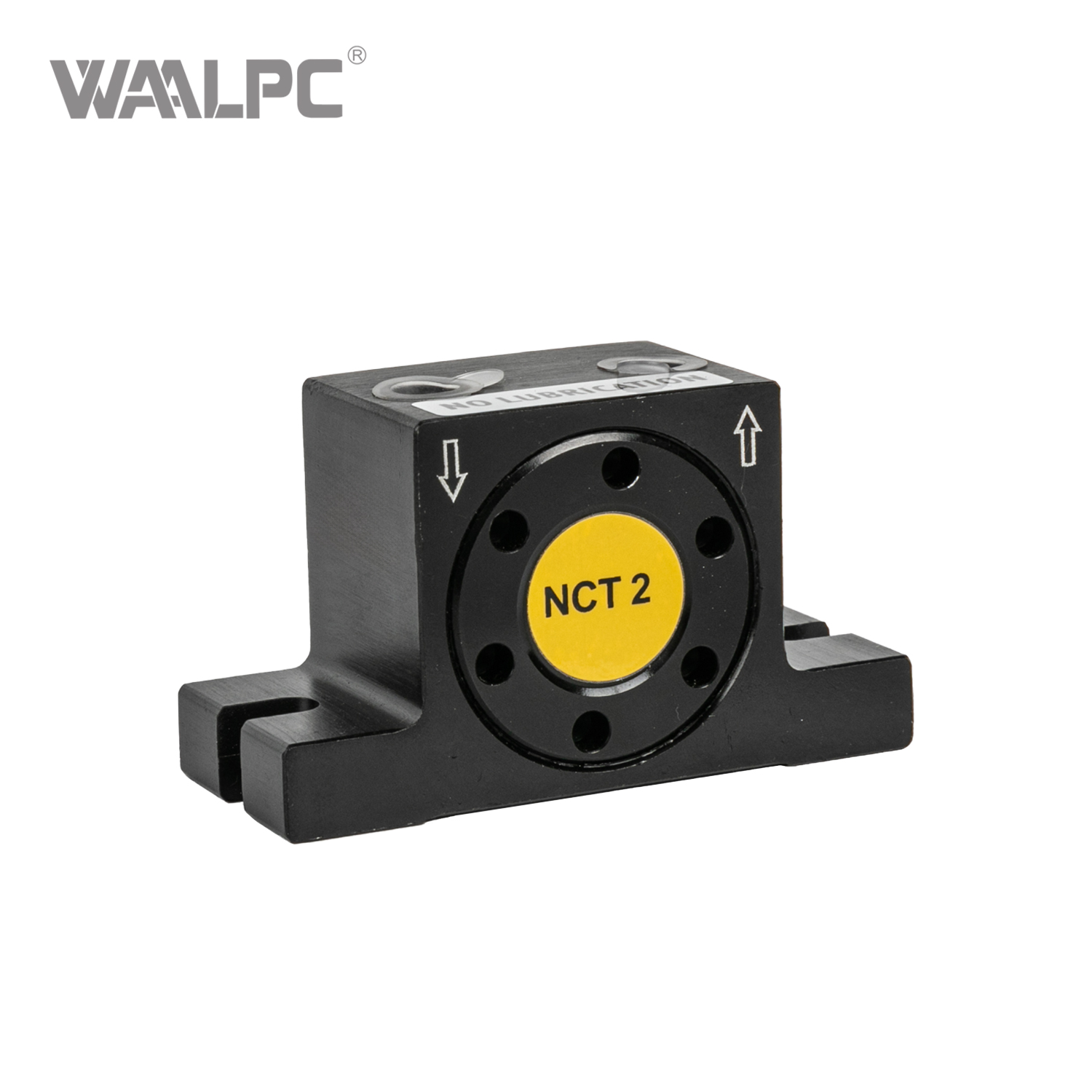

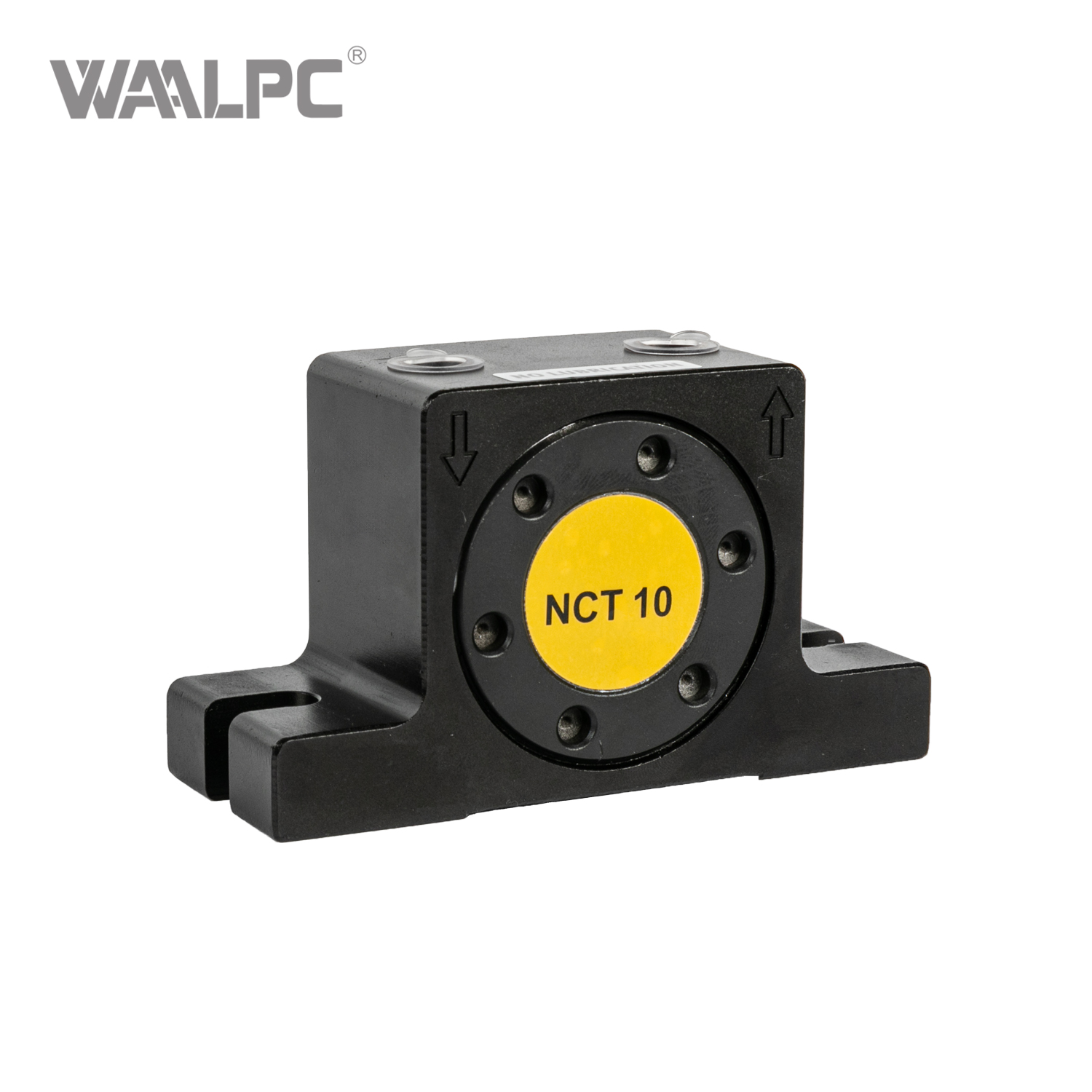

NCT Series Pneumatic Turbine Vibrator


Availability:

Quantity:



Inquiry Add to Basket

NCT Series Pneumatic Turbine Vibrators – maintenance-free, high-frequency rotary vibrators for silo emptying, chute conveying, and bulk material flow aid. ATEX and stainless steel options available.

Model:
NCT-2
Brand:
WAALPC
Code:
8501109990

Product Description

Maintenance-Free Design: Equipped with permanently lubricated rolling bearings and seals, eliminating the need for regular lubrication and reducing downtime .
Continuously Adjustable Performance: Both the frequency and centrifugal force can be continuously adjusted by varying the operating pressure (2–6 bar), allowing for flexible tuning to suit different applications .
High Frequency & Low Noise: Delivers powerful, high-frequency vibration while maintaining a low noise level and low air consumption.
High IP Protection: Robust sealing protects against dust and moisture ingress, ensuring reliable operation in harsh environments.

Technical Parameters

SPECIFICATION

Type	Unbalance(cmkg)	Nominal frequency(min^-1)			Centrifugal force(N)			AIr consumption(L/min)	Noise level[dB(A)]
Type	Unbalance(cmkg)	2bar	4bar	6bar	2bar	4bar	6bar	2bar - 6bar	2bar - 6bar
NCT1	0,006	29.100	38.820	45.460	288	513	703	19 - 45	68 - 83
NCT2	0,012	21.360	29.520	34.000	311	594	787	20 - 48	66 - 81
NCT3	0,016	26.940	34.900	39.700	637	1.069	1.383	28 - 75	63 - 77
NCT4	0,023	21.470	26.920	30.380	597	915	1.165	31 - 73	62 - 76
NCT4i	0,046	14.020	18.560	21.000	496	869	1.112	31 - 75	61 - 73
NCT5	0,049	22.740	27.840	30.940	1.389	2.082	2.572	93 - 284	74 - 90
NCT10	0,096	16.940	20.680	22.980	1.511	2.251	2.780	92 - 287	66 - 78
NCT10i	0,192	12.200	14.680	16.420	1.567	2.269	2.839	93 - 286	63 - 77
NCT15	0,160	15.740	20.060	22.700	2.174	3.530	4.521	215 - 461	72 - 84
NCT29	0,282	11.920	14.760	16.740	2.197	3.369	4.334	216 - 461	66 - 78
NCT29i	0,282	11.920	14.760	16.740	2.197	3.369	4.334	213 - 463	63 - 77
NCT55	0,545	11.000	13.980	15.760	3.618	5.845	7.426	386 - 918	77 - 85
NCT108	1,081	8.280	10.420	11.720	4.067	6.441	8.152	379 - 911	73 - 84
NCT108i	2,161	4.900	6.860	83.000	2.860	5.590	7.591	392 - 927	66 - 77
NCT126	1,262	6.060	8.280	9.400	2.591	4.760	6.124	653 - 1.707	71 - 83
NCT250	2,502	5.500	7.020	7.800	4.152	6.761	8.348	655 - 1.710	71 - 82
NCT250i	5,000	-	5.100	5.620	-	7.131	8.659	1.222* - 1.732	70 - 74

[Note]The data in this table was taken from a Kistler 3-axis dynamometer on a heavy-duty experimental platform. When the installation rigidity is poor, the frequency and force values will decrease.

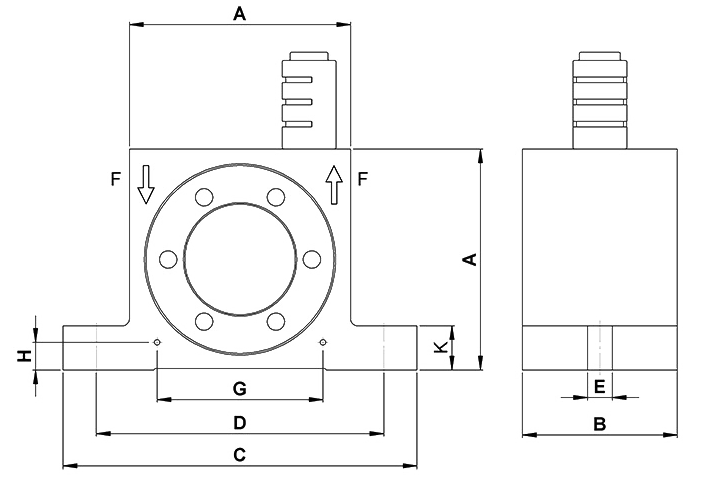

OVERALLDIMENSION&STRUCTURE

NCT vibrator

Type	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F	G*(mm)	H*(mm)	K(mm)	Weight(kg)
NCT1	40	27	70	56	6,5	G1/8	30	5,5	10	0,165
NCT2	40	27	70	56	6,5	G1/8	30	5,5	10	0,162
NCT3	50	32	86	68	7	G1/8	40	7	12	0,230
NCT4	50	32	86	68	7	G1/8	40	7	12	0,240
NCT4i	50	32	86	68	7	G1/8	40	7	12	0,250
NCT5	65	43	113	90	9	G1/4	50	9	16	0,550
NCT10	65	43	113	90	9	G1/4	50	9	16	0,570
NCT10i	65	43	113	90	9	G1/4	50	9	16	0,610
NCT15	80	56	128	104	9	G1/4	60	10	16	1,045
NCT29	80	56	128	104	9	G1/4	60	10	16	1,090
NCT29i	80	56	128	104	9	G1/4	60	10	16	1,180
NCT55	100	73	160	130	13	G3/8	80	12	20	2,125
NCT108	100	73	160	130	13	G3/8	80	12	20	2,250
NCT108i	100	73	160	130	13	G3/8	80	12	20	2,500
NCT126	120	86	194	152	17	G3/8	100	13	25	3,585
NCT250	120	86	194	152	17	G3/8	100	13	25	3,820
NCT250i	120	86	194	152	17	G3/8	100	13	25	4,290

Specification Download

NCT turbine vibrator.pdf
