High-Efficiency Self-Cleaning Filters for Industrial Water Treatment 99.9% Particle Removal Low Pressure Drop HDAF20-02 1/4‘’

High-Efficiency Self-Cleaning Filters for Industrial Water Treatment 99.9% Particle Removal Low Pressure Drop HDAF 1/4‘’


Availability:

Quantity:



Inquiry Add to Basket

The HDAF Series is a premium line of industrial filters engineered for precision, durability, and efficiency in critical air and fluid filtration applications. Designed to meet the highest international standards, these filters deliver exceptional particle removal, low pressure drop, and long service life, making them ideal for demanding environments in manufacturing, healthcare, energy, and more.

Model:
HDAF20-02
Brand:
WAALPC
Code:
8421399090

Product Description

1. Adopting modular design, it has a nice appearance, compact structure, and good shock resistance;

2. The cover is made of transparent material with good visibility, and the interior of the cup can be visually confirmed 360 degrees.

Technical Parameters

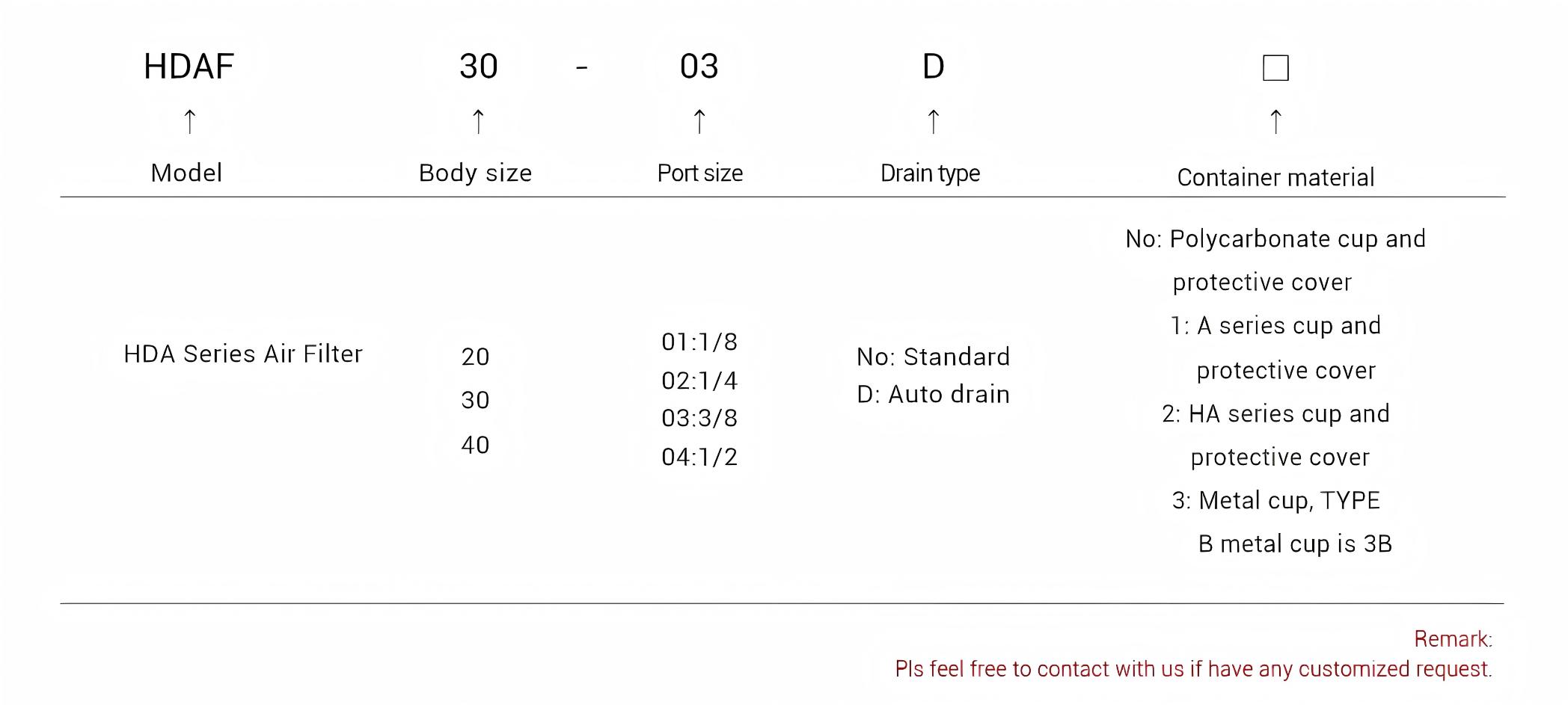

ORDERING CODE

DATA SHEET

Model	HDAF20-01	HDAF20-02	HDAF30-02	HDAF30-03	HDAF40-03	HDAF40-04
Port Size	1/8	1/4	1/4	3/8	3/8	1/2
Highest Working Pressure	1.0MPa
Working Medium	Compressed air
Ambient and Fluid Temperature	5~60℃
Minimum Working Pressure	0.15MPa
Installation Method	Pipe installation or bracket installation
Installation Position	Vertical±5°
Filter Precision	25um(5um、5um available)
Filter Element Material	Brass(PE available)
Container Material	Polycarbonate
Protective Cover	No		Polycarbonate
Drain Function	Manual drain		Air shutoff drain(auto drain available)

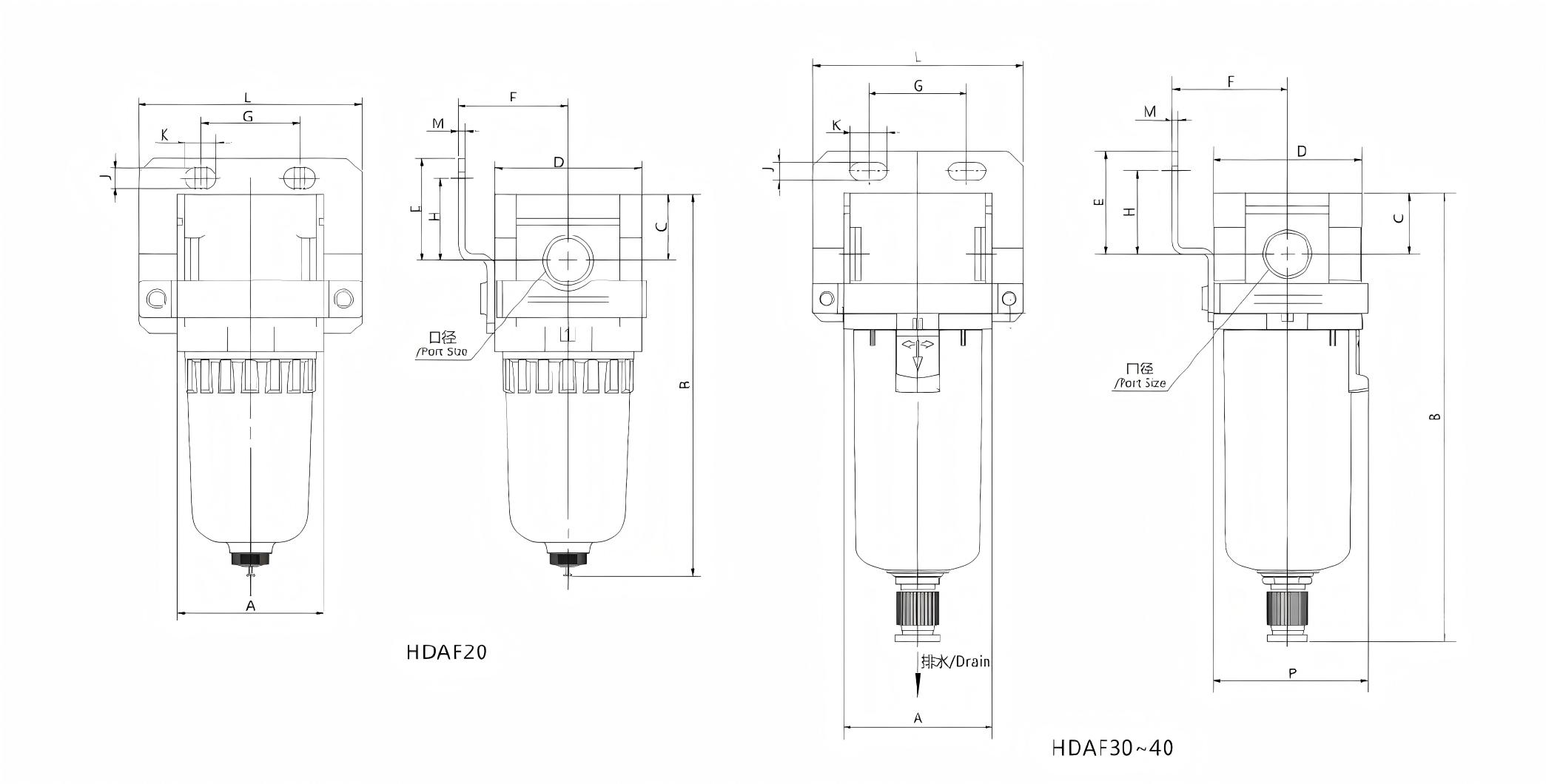

STRUCTURE

HDA Series

Model	Port Size	A	B	C	D	E	F	G	H	J	K	L	M	P
HDAF20	1/8, 1/4	40	104	18	40	28	30	27	22.5	5.4	8.4	61	2
HDAF30	1/4, 3/8	53	160	21.5	53	36.5	41	35	29.5	6.5	13	75	2	55
HDAF40	3/8, 1/2	70	192	25.5	70	39	50	52	30	8.5	12.5	92	2	73

Specification Download
