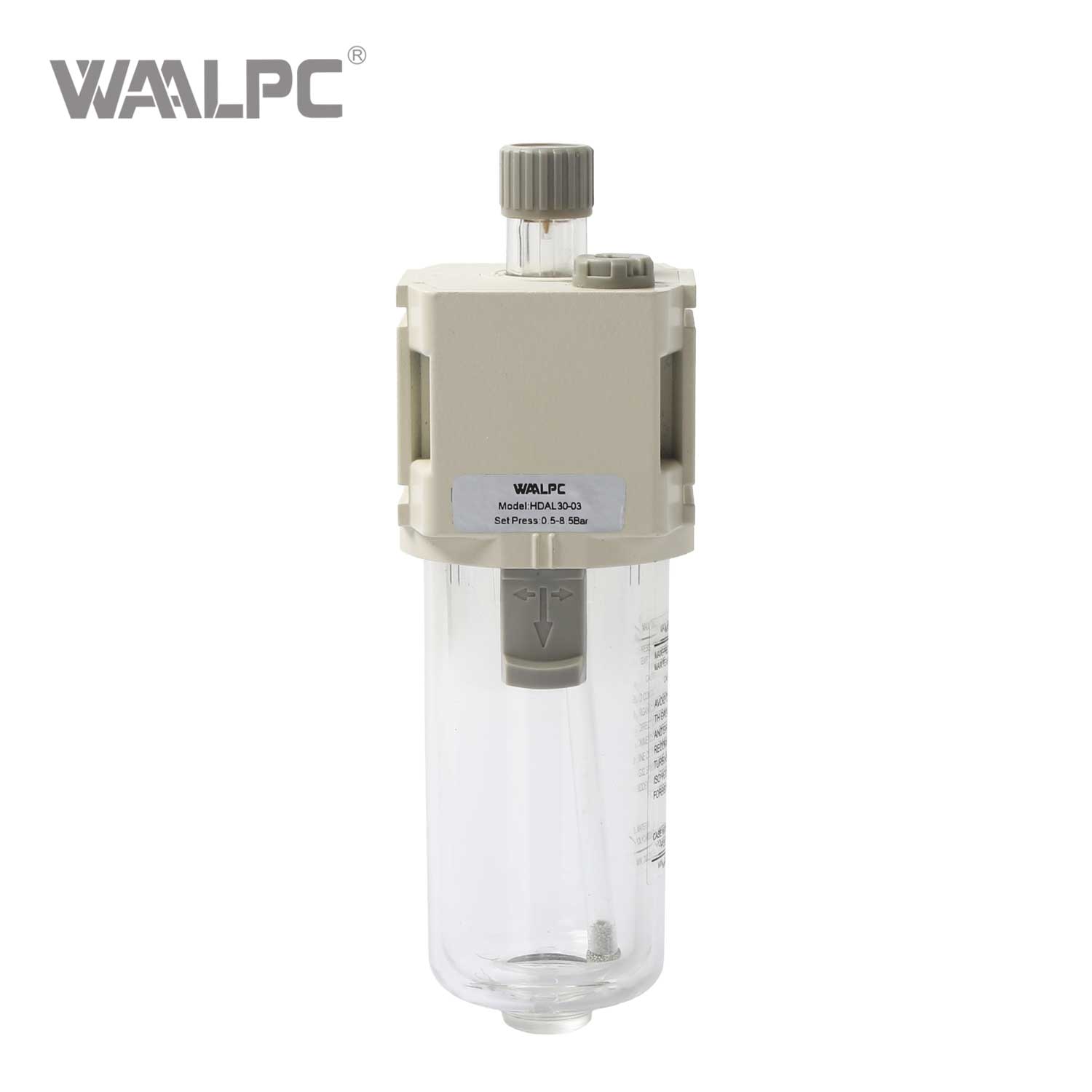

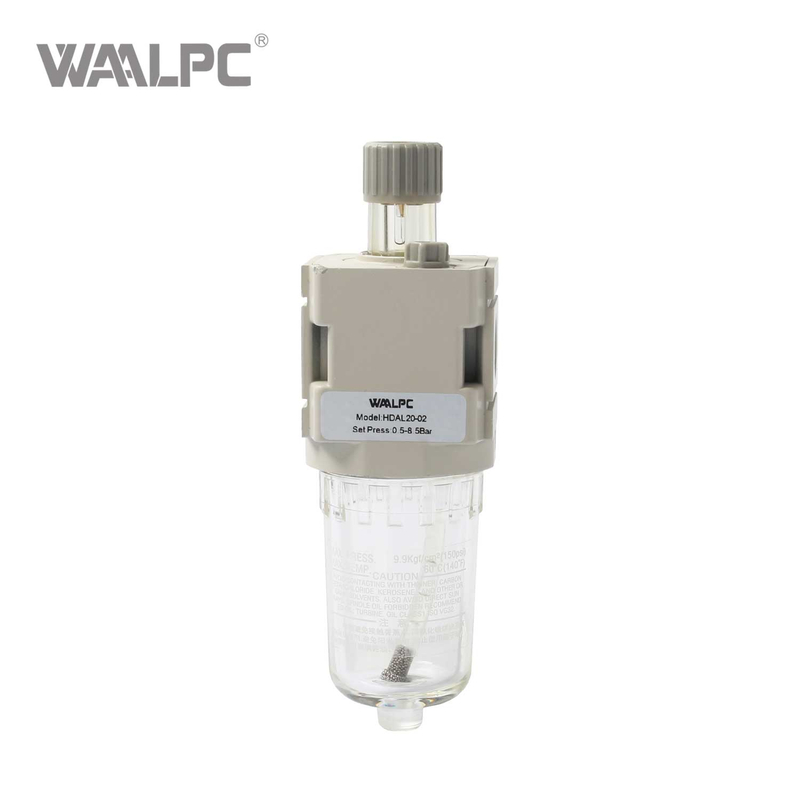

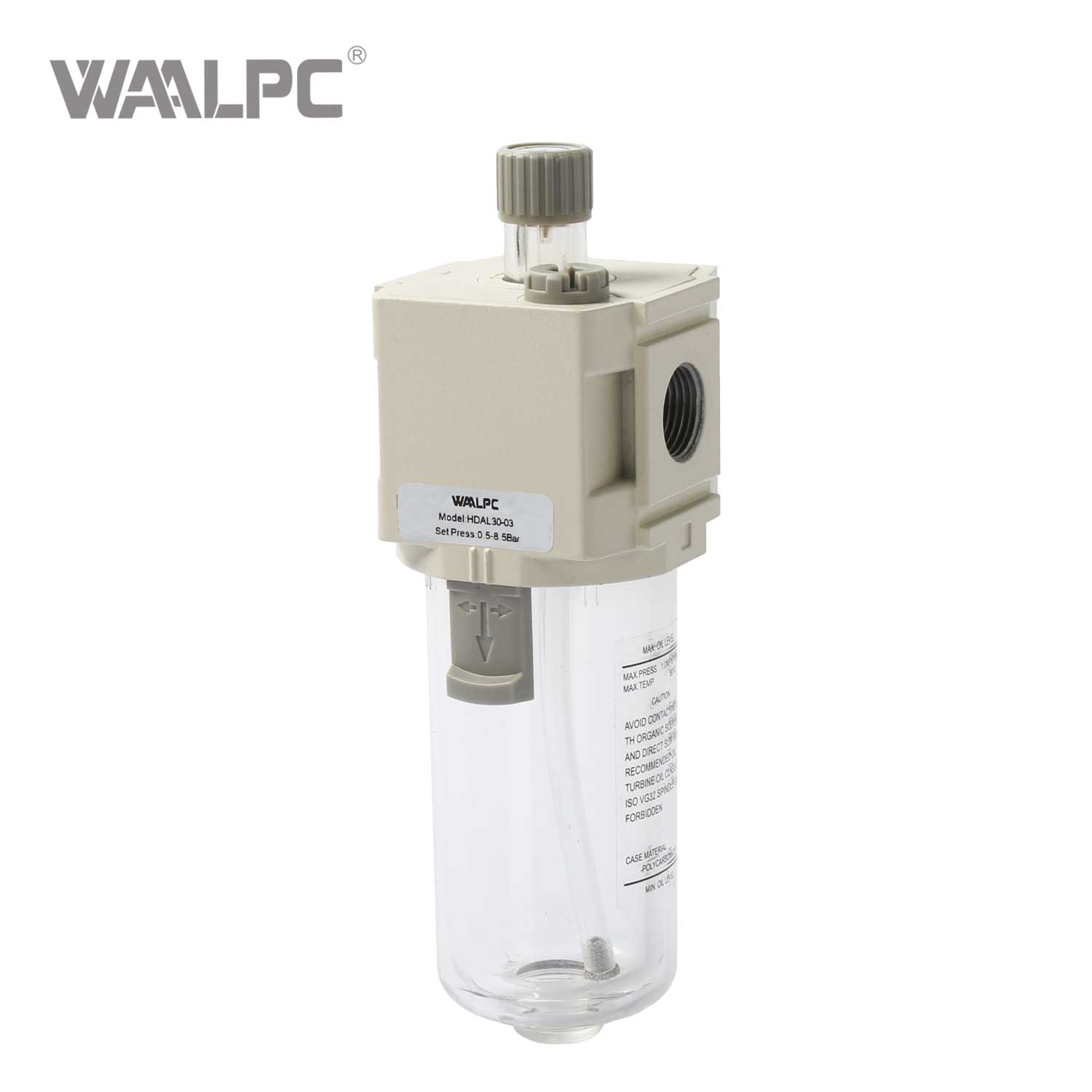

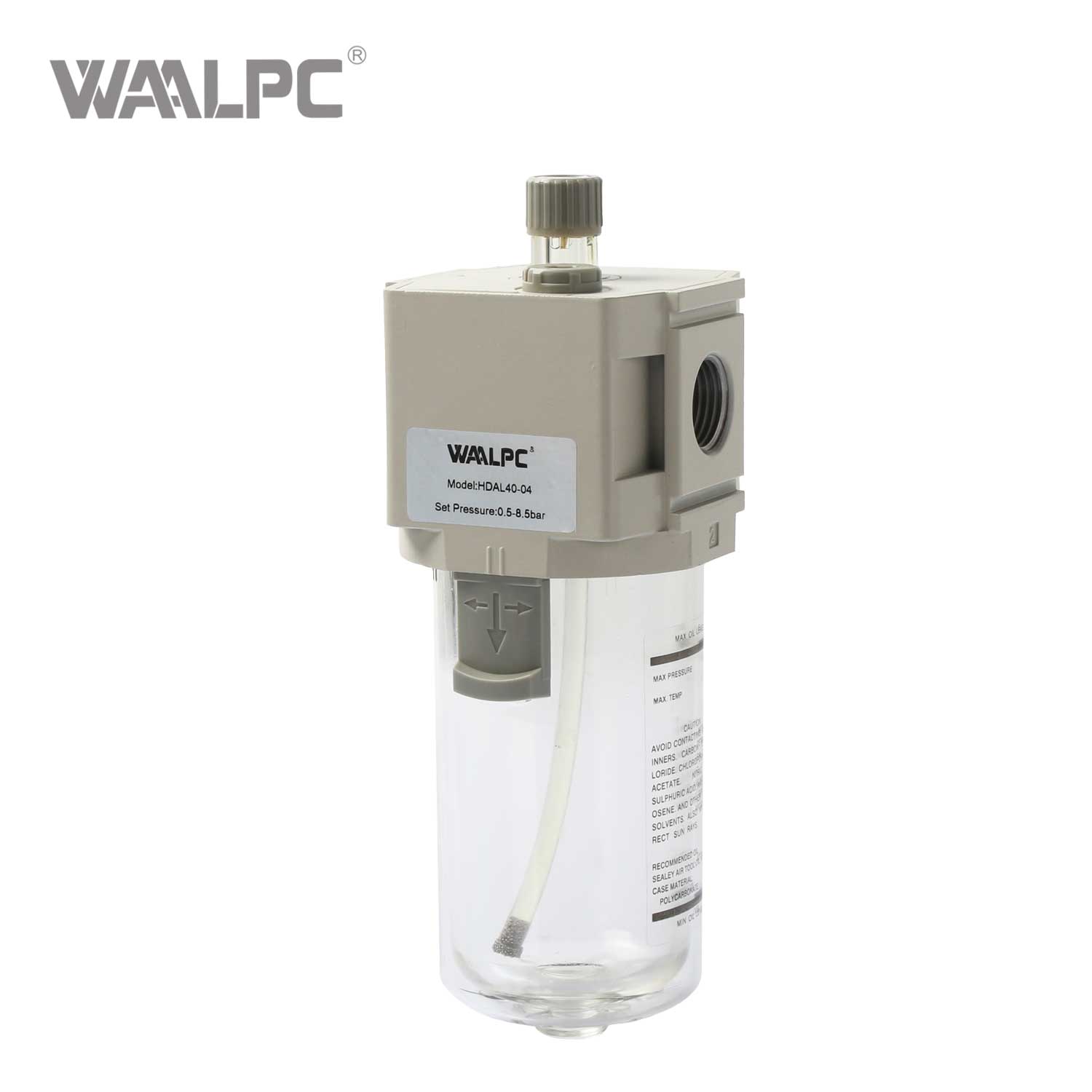

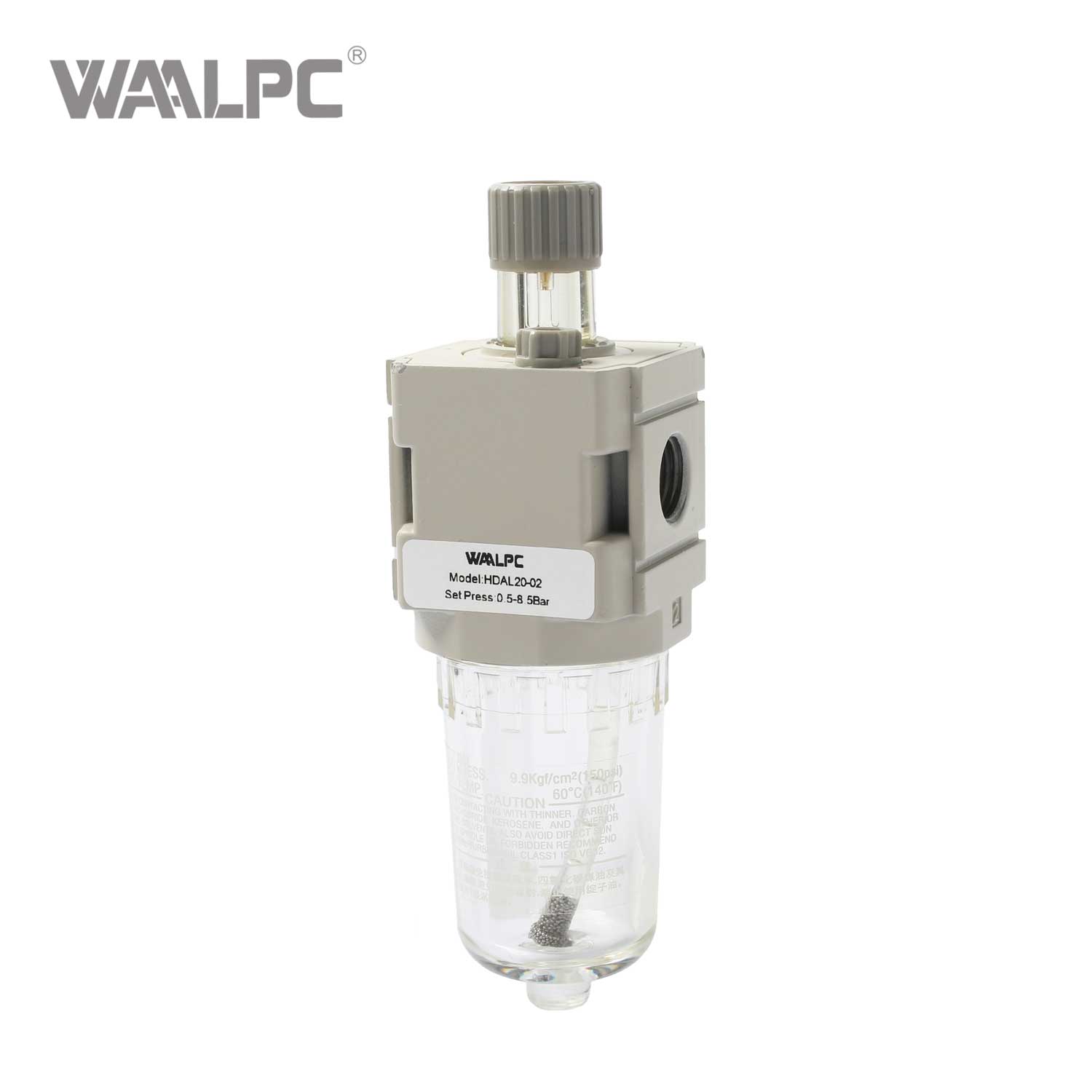

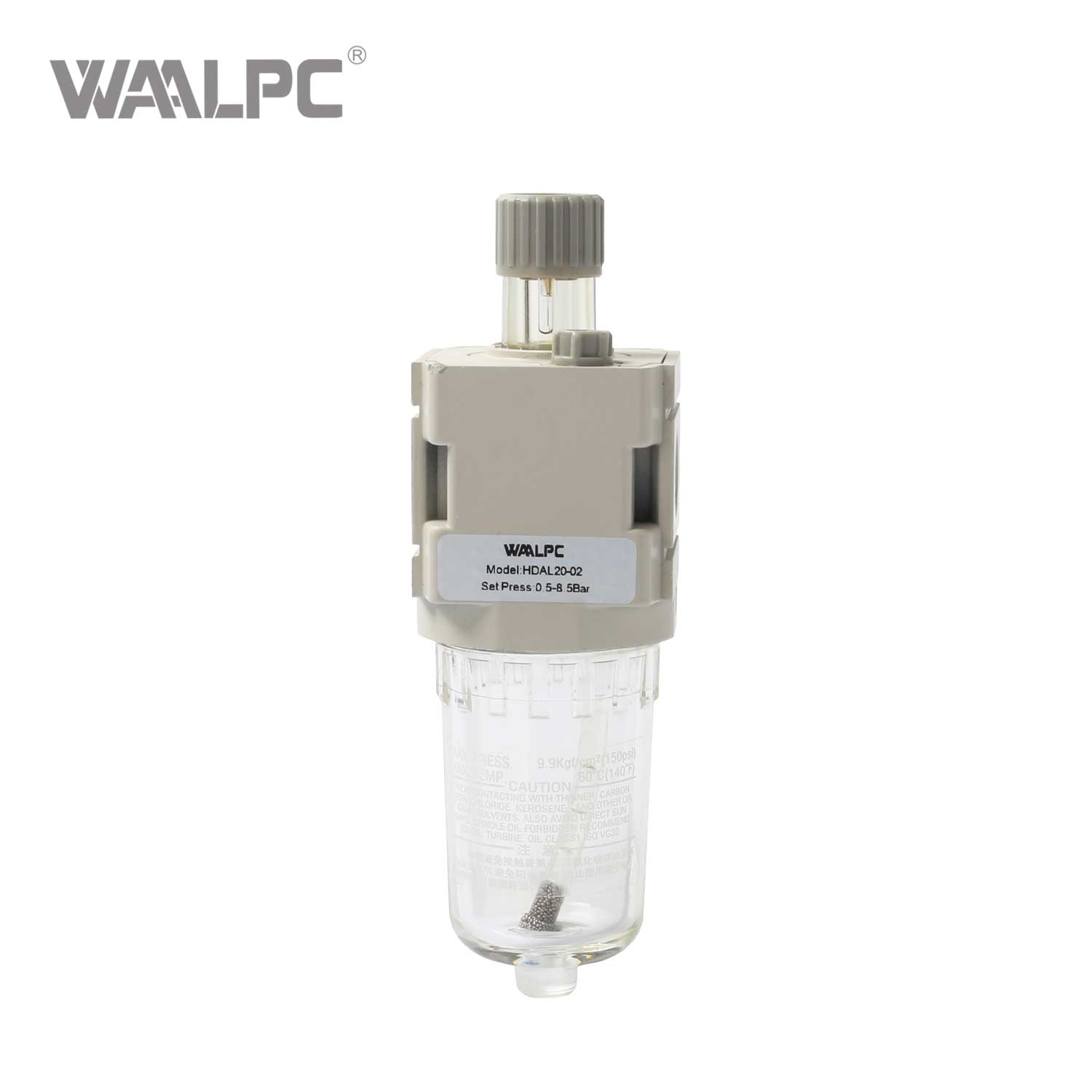

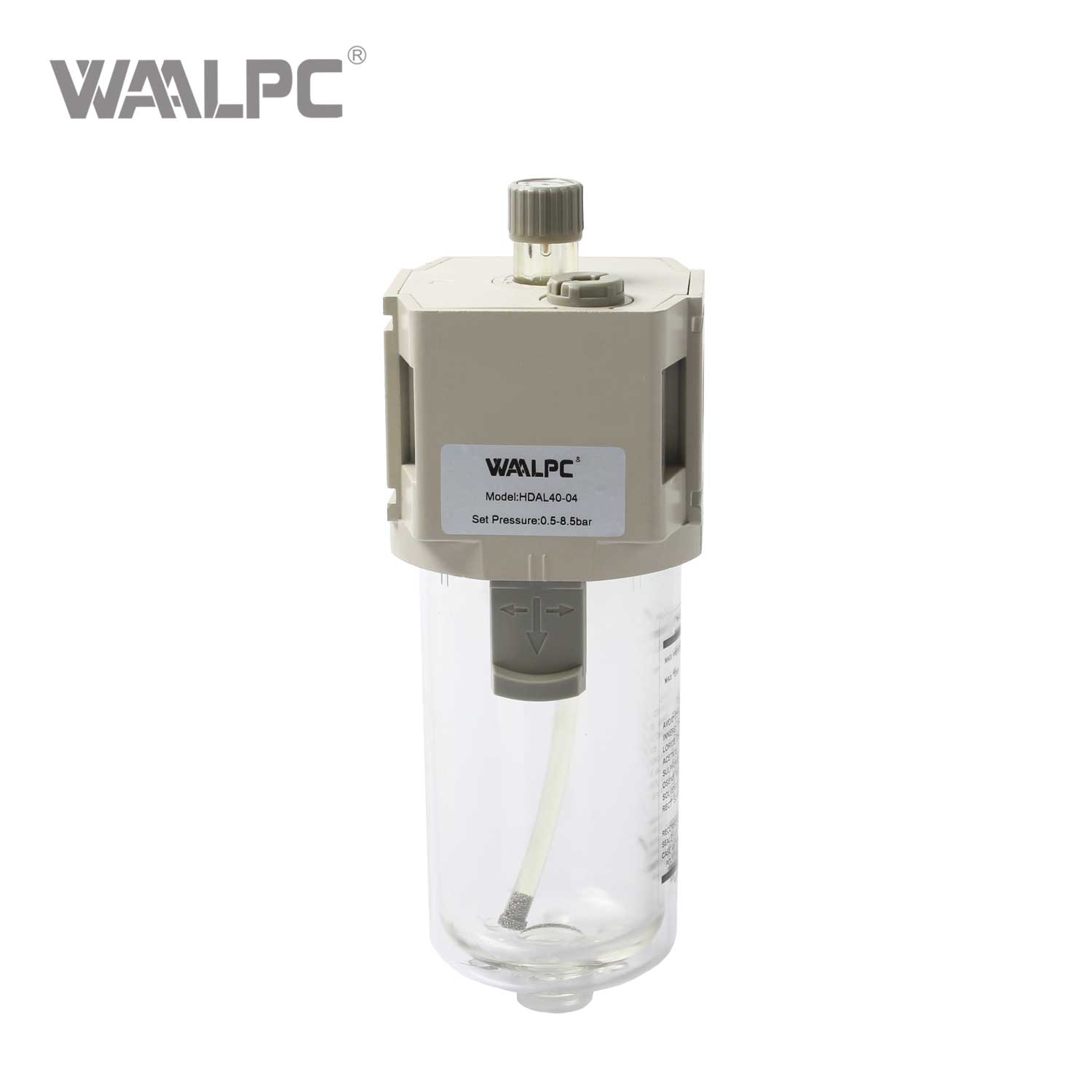

Oil Mist Lubricator HDAL Series 1/4'' 1.0MPa Precise Lubrication for Industrial Pneumatic Systems 40L/min

Oil Mist Lubricator HDAL Series 1/4'' 1.0MPa Precise Lubrication for Industrial Pneumatic Systems 40L/min


Availability:

Quantity:



Inquiry Add to Basket

The HDAL Series Pneumatic Oil Mist Lubricator offers precise, efficient lubrication for compressed air systems. As an integral part of FRL (Filter-Regulator-Lubricator) units or as a standalone device, HDAL ensures smooth operation of pneumatic tools, cylinders, and valves, reducing wear and tear in industrial applications.

Model:
HDAL20-02
Brand:
WAALPC
Code:
8421399090

Product Description

1.Adopting modular design,it has a nice appearance, compact structure, and good shock resistance;

2.The cover is made of transparent material with good visibility, and the interior of the cup can be visually confirmed 360 degrees;

3.Using a handle for adjustment, the adjustment of oil drop volume is easier and more sensitive;

4.HDAL30~40 can refuel continuously in working condition.

Technical Parameters

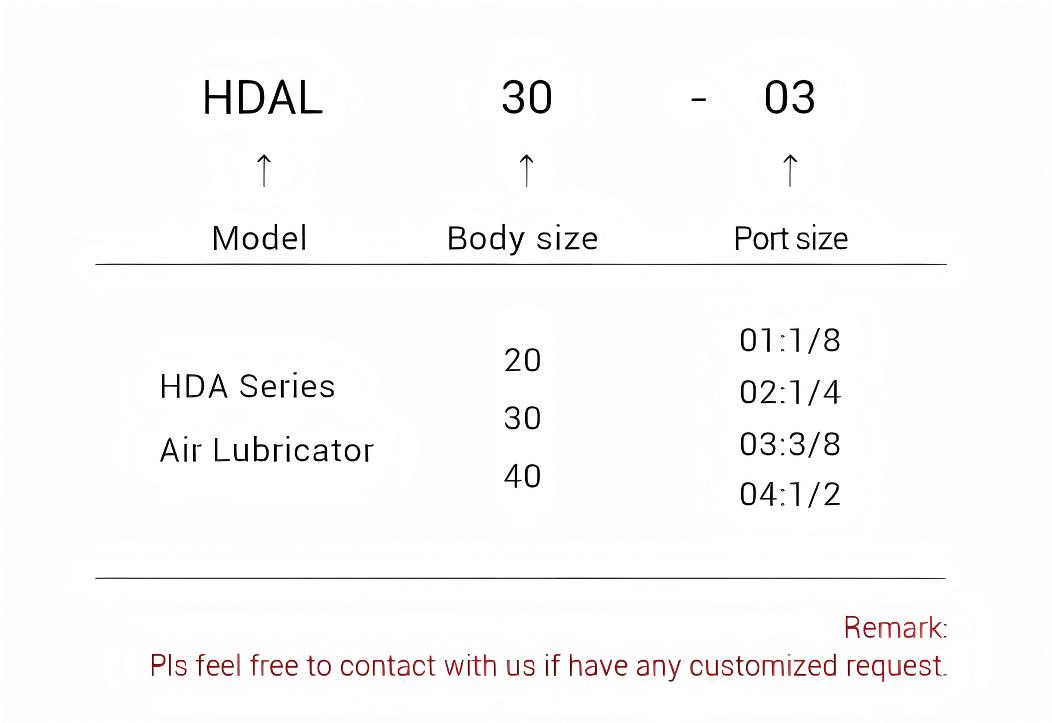

ORDERING CODE

DATA SHEET

Model	HDAL20-01	HDAL20-02	HDAL30-02	HDAL30-03	HDAL40-03	HDAL40-04
PortSize	1/8	1/4	1/4	3/8	3/8	1/2
Highest Working Pressure	1.0MPa
Working Medium	Compressed air
Ambient and Fluid Temperature	5~60℃
Installation Method	Pipe installation or bracket installation
Installation Position	Vertical±5°
Minimum Oil Mist Flow Rate	15L/min		40L/min		50L/min
Recommended Oil Use	Turbine No.1oil (ISOVG32)
Container Material	Polycarbonate
Protective Cover	No		Polycarbonate

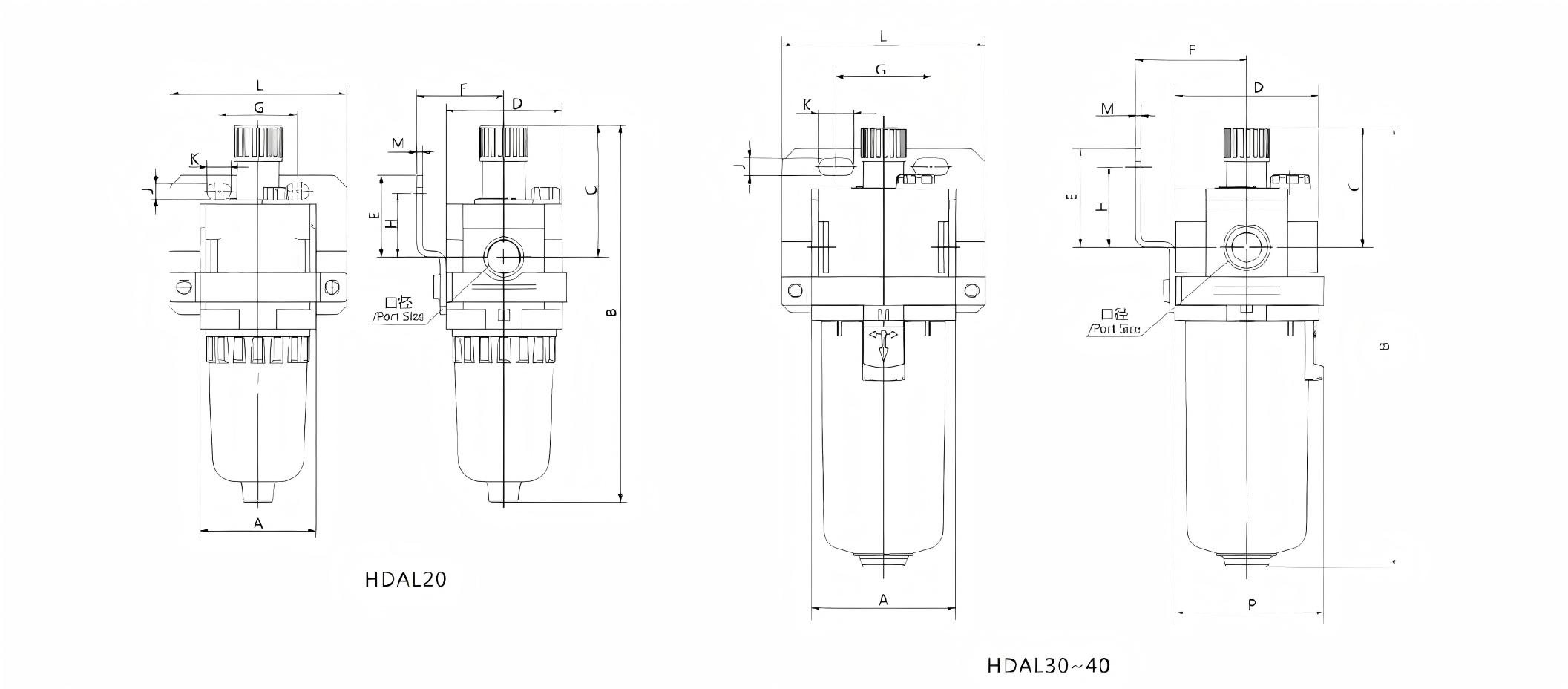

STRUCTURE

HDAL Lubricator

Model	Port Size	A	B	C	D	E	F	G	H	J	K	L	M	P
HDAL20	1/8, 1/4	40	130	45.5	40	28	30	27	22.5	5.4	8.4	61	2
HDAL30	1/4, 3/8	53	163	45	53	36.5	41	35	29.5	6.5	13	75	2	55
HDAL40	3/8, 1/2	70	196	52	70	39	50	52	30	8.5	12.5	92	2	73
