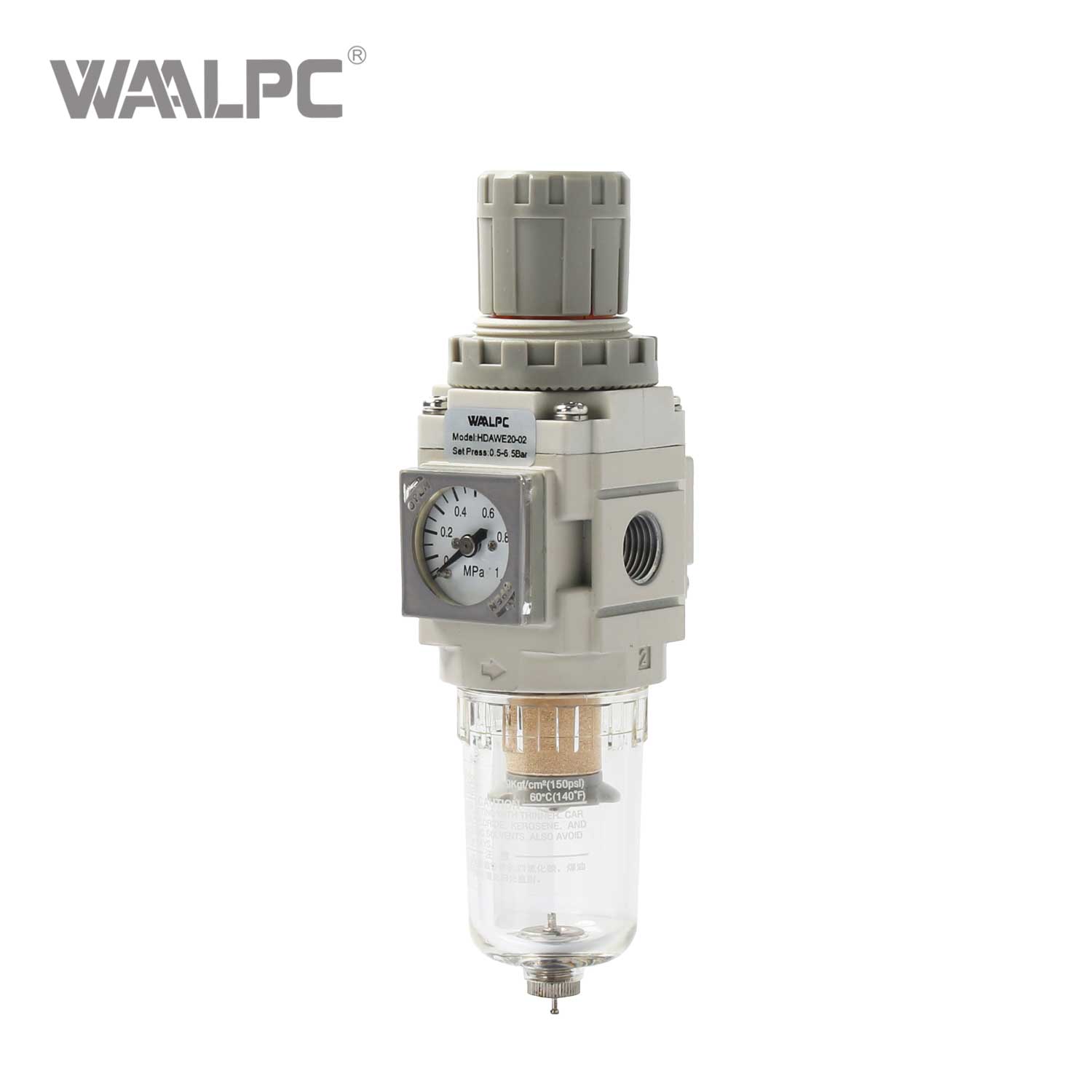

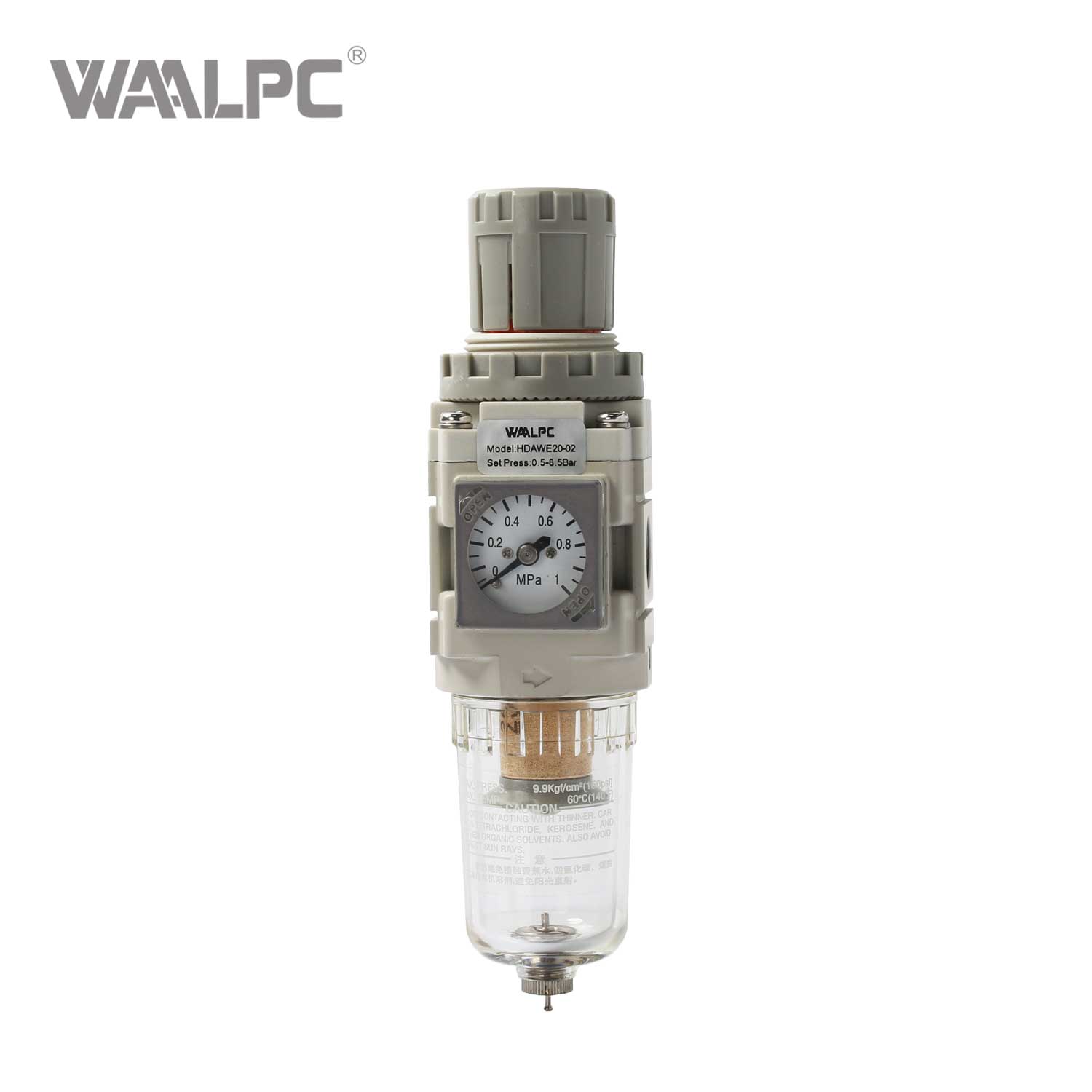

Modular Filter Pressure Regulator HDAW20-02 1/4‘’ Quick Installation for Air Preparation Kits

Modular Filter Pressure Regulator HDAW20-02 1/4'' Quick Installation for Air Preparation Kits


Availability:

Quantity:



Inquiry Add to Basket

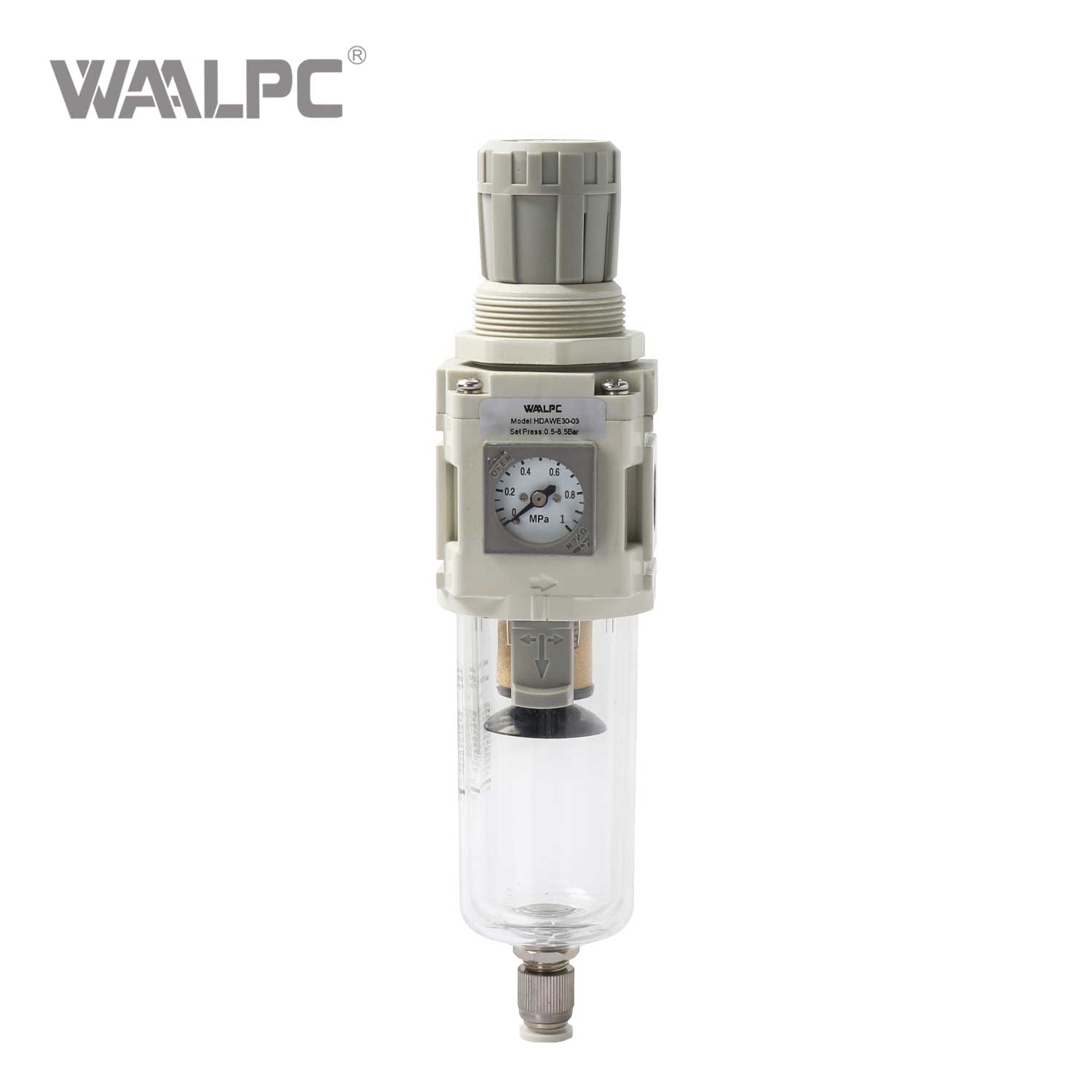

Engineered for precision and durability, the HDAW Series is a high-performance air filter pressure regulator designed to deliver clean, regulated compressed air for demanding industrial applications. As a core component of modern FRL (Filter-Regulator-Lubricator) systems, HDAW combines innovative filtration technology with intelligent pressure control, setting a new standard for reliability and efficiency in pneumatic systems.

Model:
HDAWE20-02
Brand:
WAALPC
Code:
8421399090

Product Description

1. Adopting modular design, it has a nice appearance, compact structure, and good shock resistance;

2. The cover is made of transparent material with good visibility, and the interior of the cup can be visually confirmed 360 degrees.

Technical Parameters

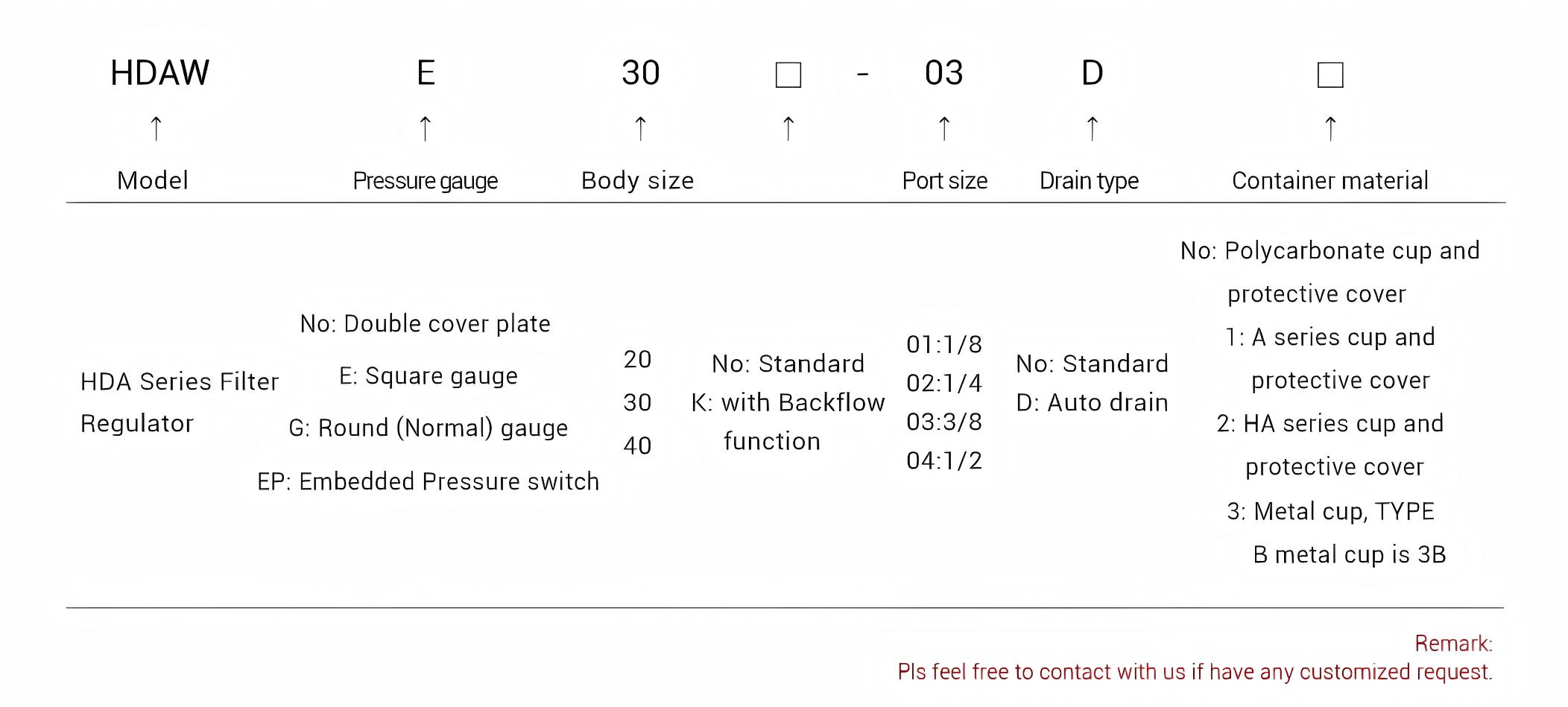

ORDERING CODE

DATA SHEET

Model	HDAW20-01	HDAW20-02	HDAW30-02	HDAW30-03	HDAW40-03	HDAW40-04
Port Size	1/8	1/4	1/4	3/8	3/8	1/2
Highest Working Pressure	1.0MPa
Working Medium	Compressed air
Ambient and Fluid Temperature	5~60℃
Pressure Regulating Range	0.05~0.85MPa
Installation Method	Pipe installation or bracket installation
Installation Position	Vertical±5°
Filter Precision	25um(5um 40um available)
Filter Element Material	Brass(PE available)
Container Material	Polycarbonate
Protective Cover	No		Polycarbonate
Drain Function	Manual drain		Air shutoff drain(auto drain available)

STRUCTURE

HDA Series

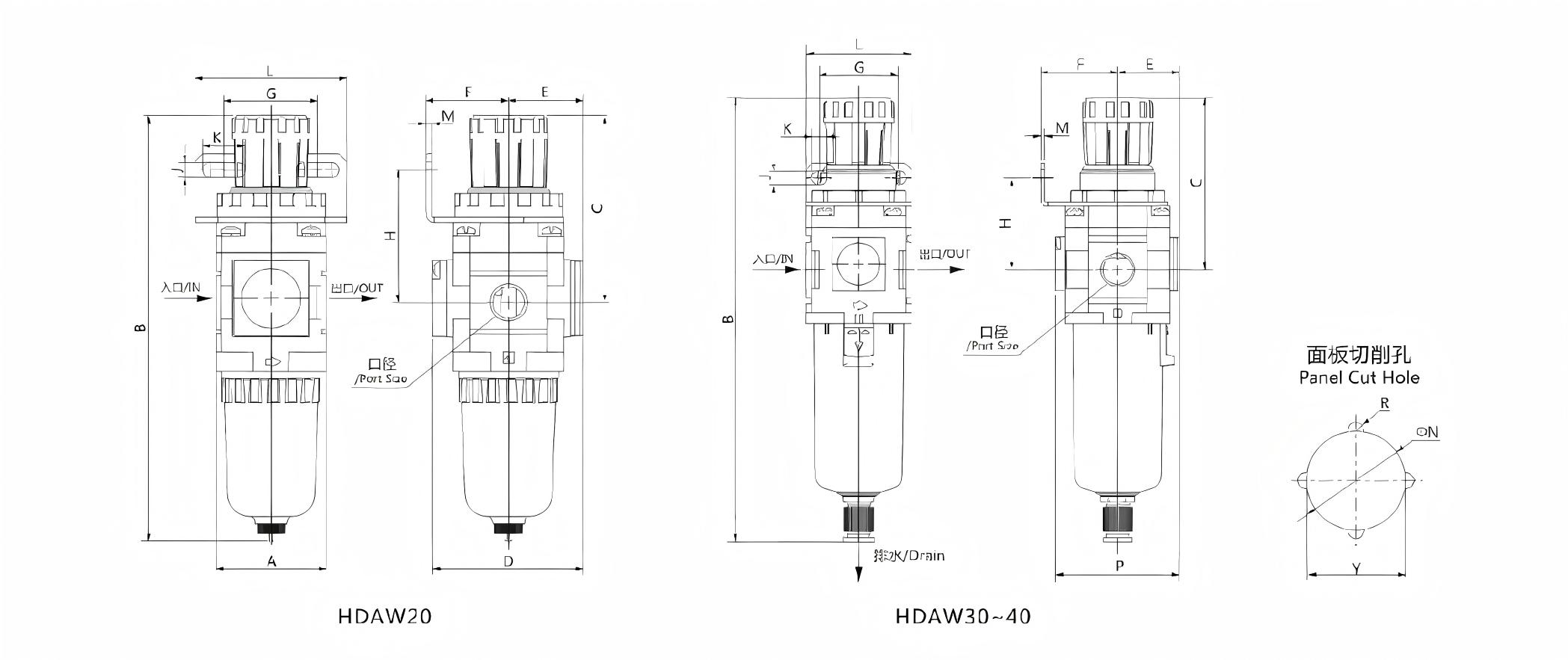

Model	Port Size	A	B	C	D	E	F	G	H	J	K	L	M	N	Y	R
HDAW20	1/8, 1/4	40	157	70.5	54.5	27	30	34	48	5.4	15.4	55	2	305	29.8	2.6
HDAW30	1/4, 3/8	53	231	91	62.5	31.5	39	40	46.5	6.5	8	53	2	38.5	38	3
HDAW40	1/8, 1/2	70	264	100	80.5	40	49.5	54	56.7	8.5	10.5	70	2	42.5	42	3

Specification Download


Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
