High-Performance HDAR20-02 Regulator Stable Pressure Output for Industrial Air Preparation

High-Performance HDAR20-02 Regulator Stable Pressure Output for Industrial Air Preparation


Availability:

Quantity:



Inquiry Add to Basket

The HDAR Series Air Pressure Regulator delivers precise, stable pressure control to ensure optimal operation of downstream equipment. As a standalone component or part of FRL (Filter-Regulator-Lubricator) units, HDARE combines advanced regulation technology with rugged construction, setting the standard for reliability in compressed air systems.

Model:
HDARE20-02
Brand:
WAALPC
Code:
8481100090

Product Description

Adopting modular design, it has a nice appearance, compact structure, and good shock resistance.

Technical Parameters

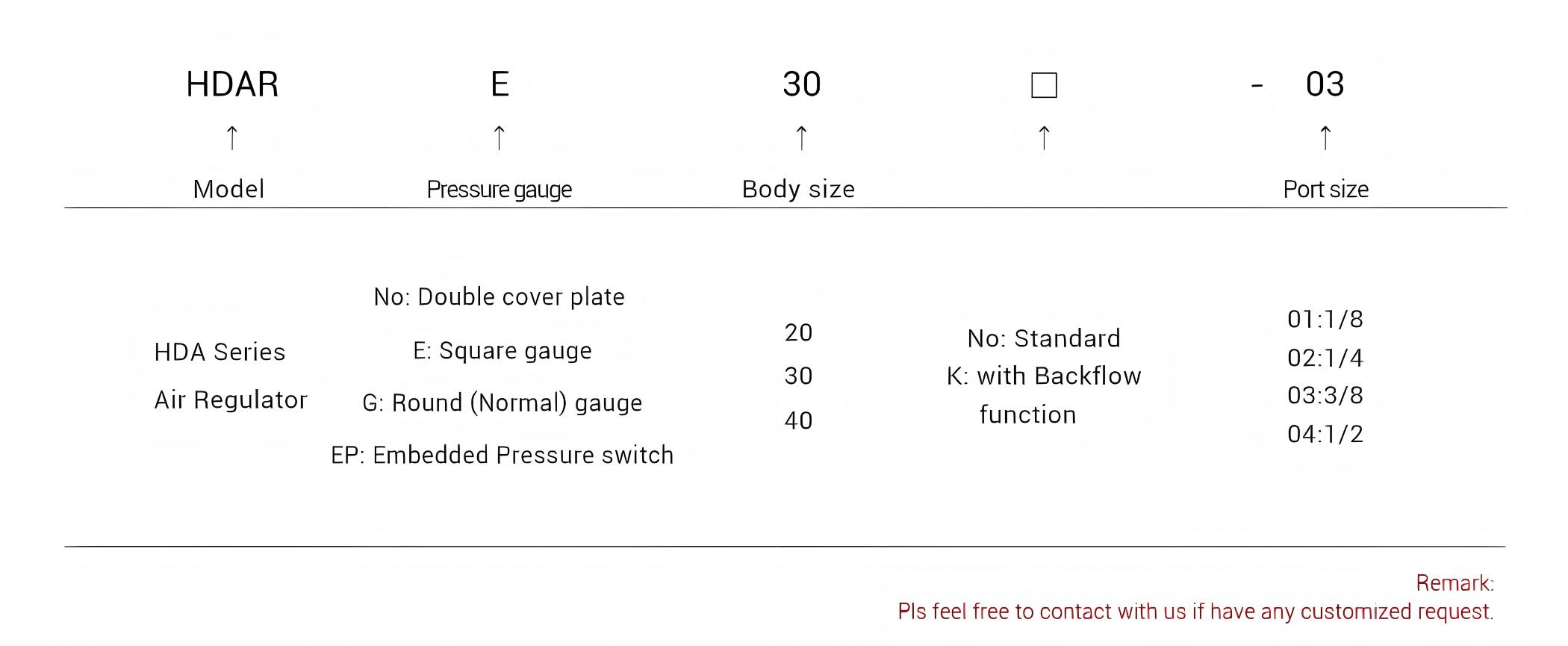

ODERING CODE

DATA SHEET

Model	HDAR20-01	HDAR20-02	HDAR30-02	HDAR30-03	HDAR40-03	HDAR40-04
Port Size	1/8	1/4	1/4	3/8	3/8	1/2
Highest Working Pressure	1.0MPa
Working Medium	Compressed air
Ambient and Fluid Temperature	5~60℃
Installation Method	Pipe installation or bracket installation
Installation Position	Vertical±5°
Pressure Regulating Range	0.05~0.85MPa
Valve Type	With overflow

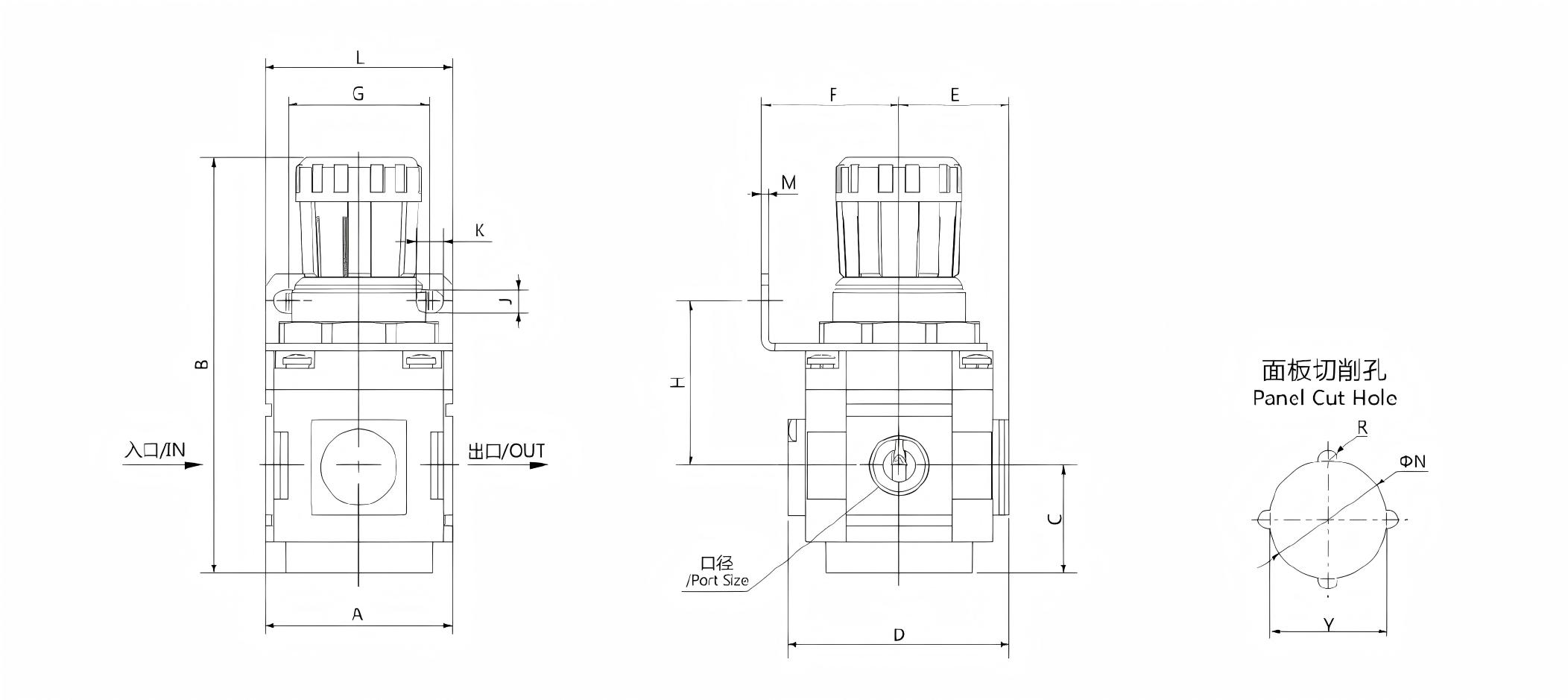

STRUCTURE

HDAR Series

Model	Port Size	A	B	C	D	E	F	G	H	J	K	L	M	N	Y	R
HDAR20	1/8, 1/4	40	95.5	25	54.5	27	30	34	48	5.4	15.4	55	2	30.5	29.8	2.6
HDAR30	1/4, 3/8	53	122	30.5	62.5	31.5	39	40	46.5	6.5	8	53	2	38.5	38	3
HDAR40	3/8, 1/2	70	133	33	80.5	40	49.5	54	56.7	8.5	10.5	70	2	42.5	42	3

Specification Download
