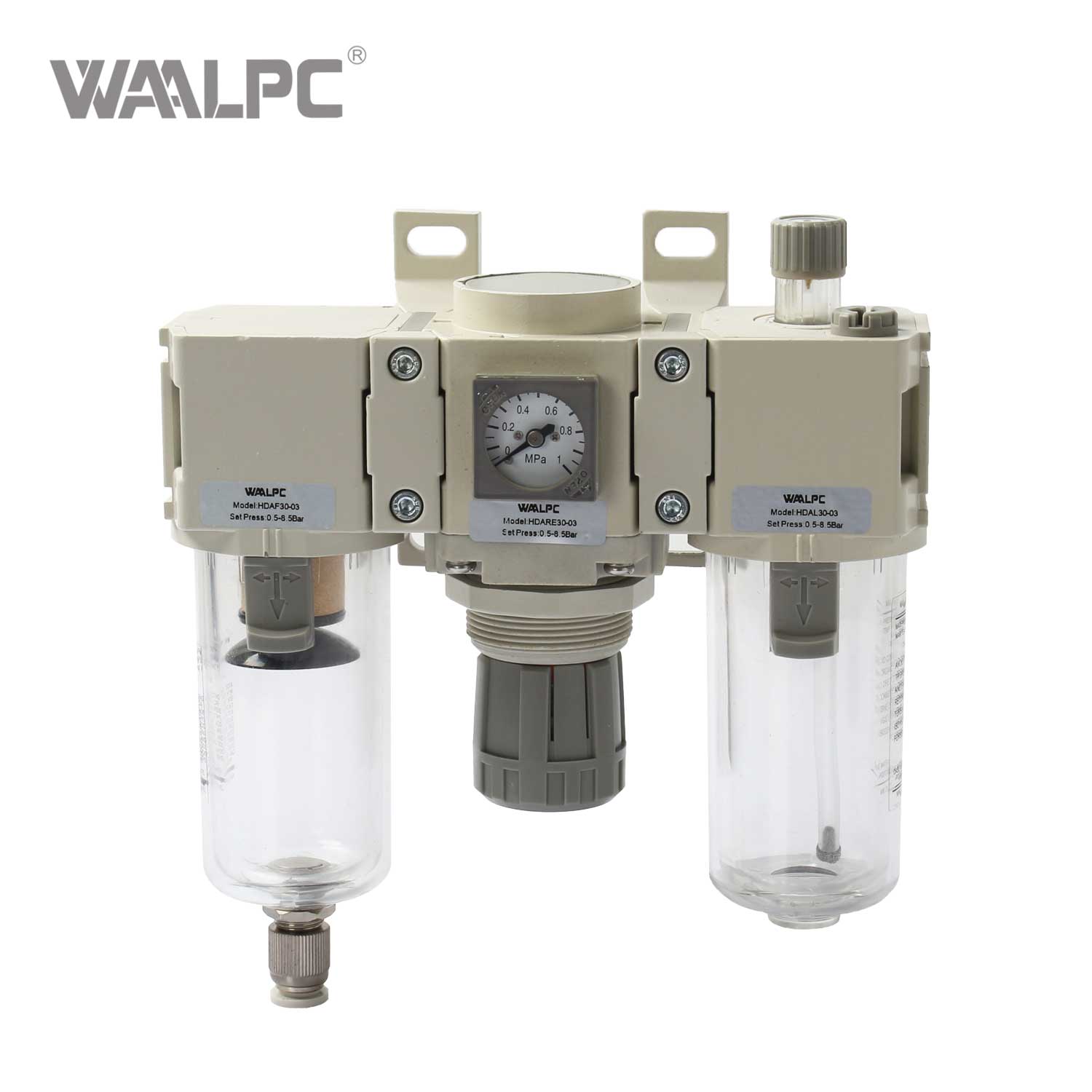

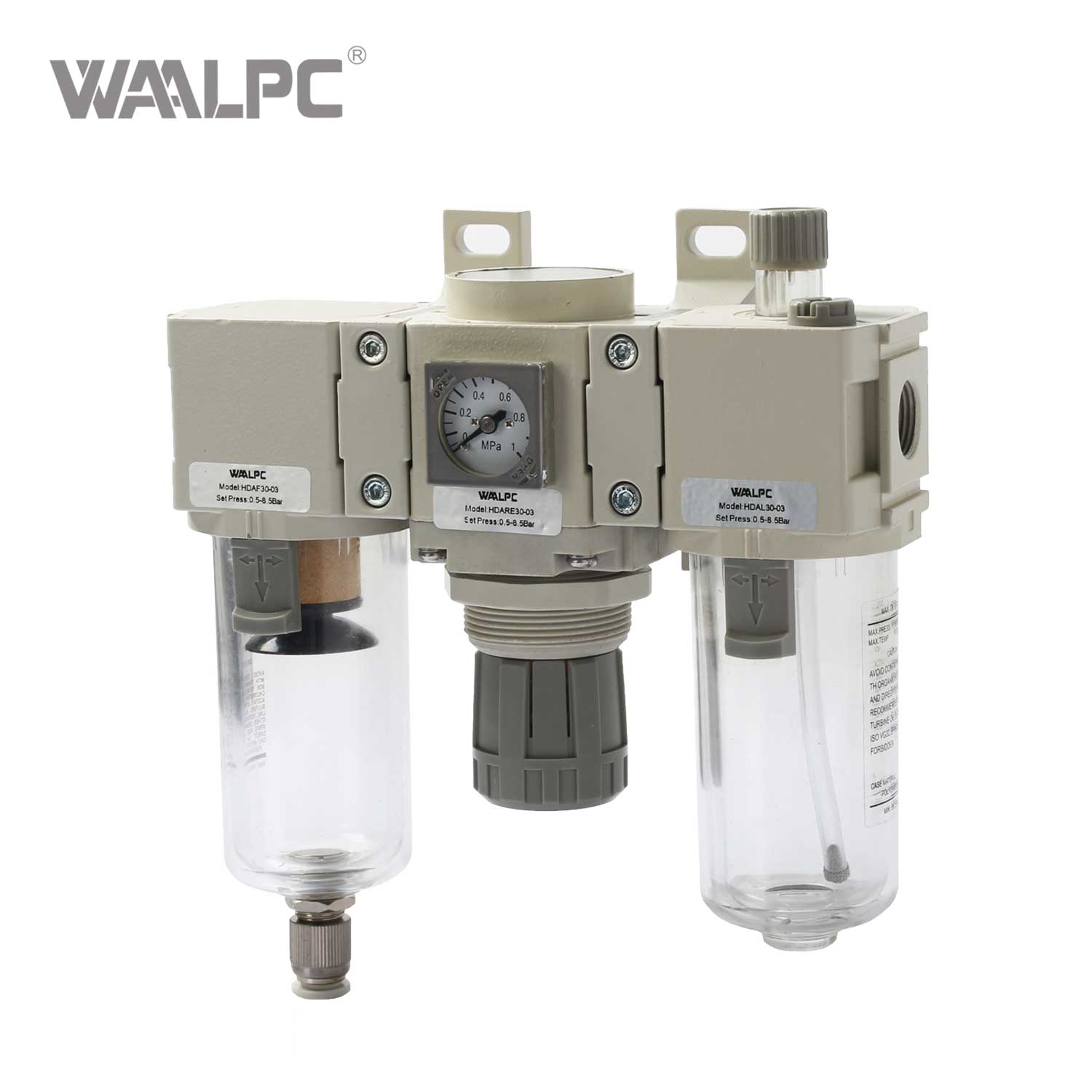

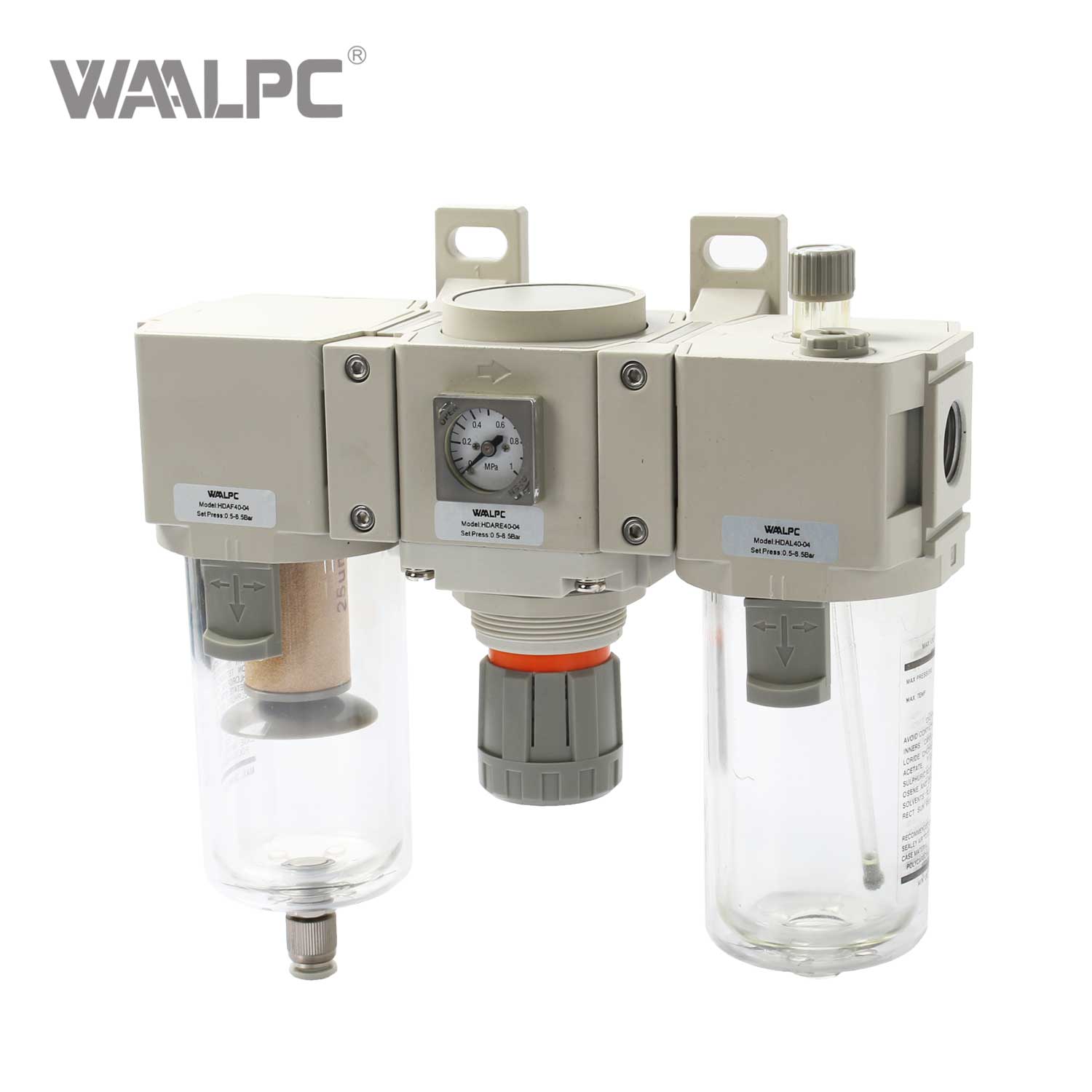

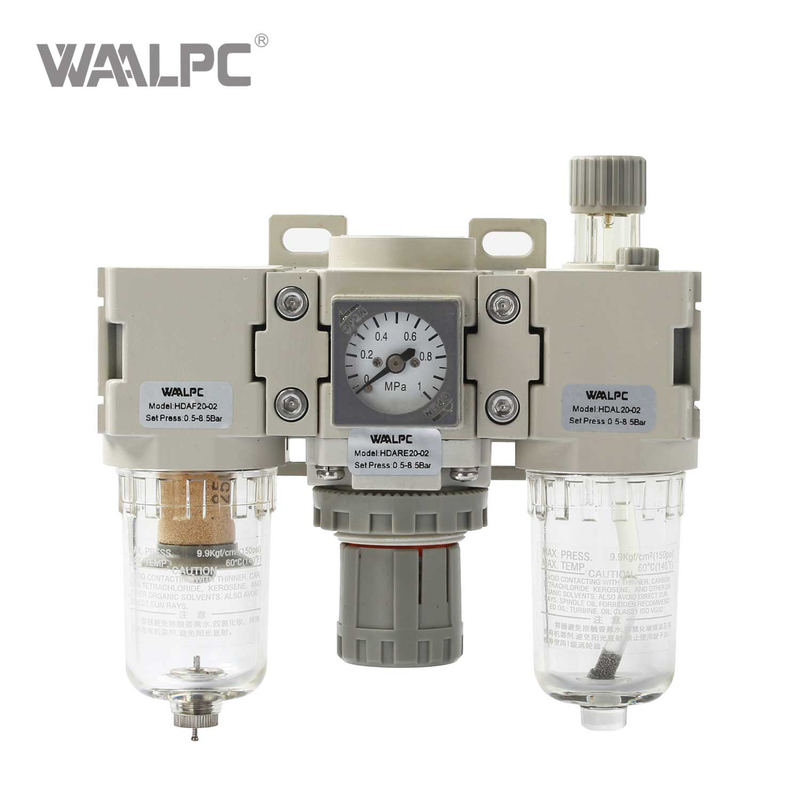

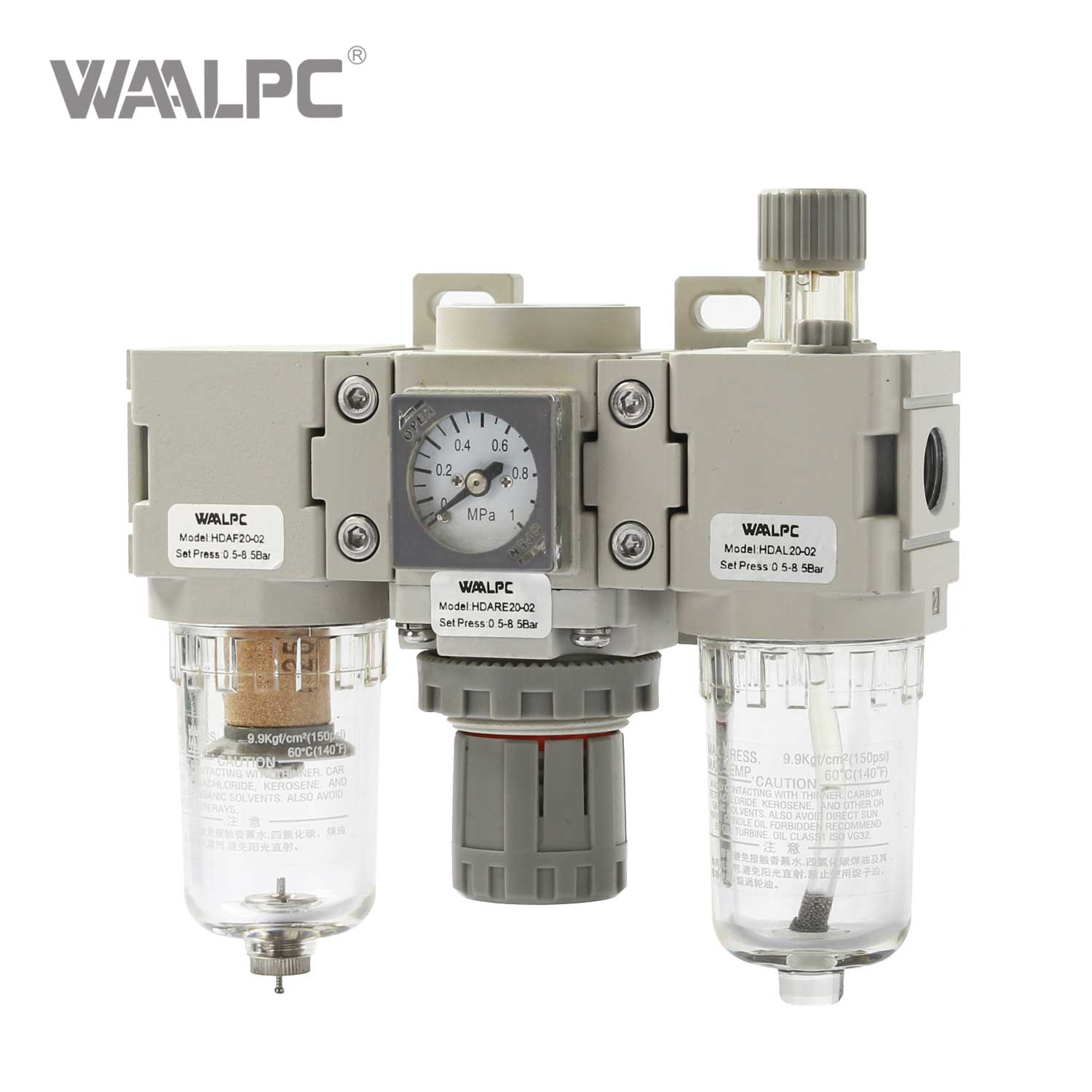

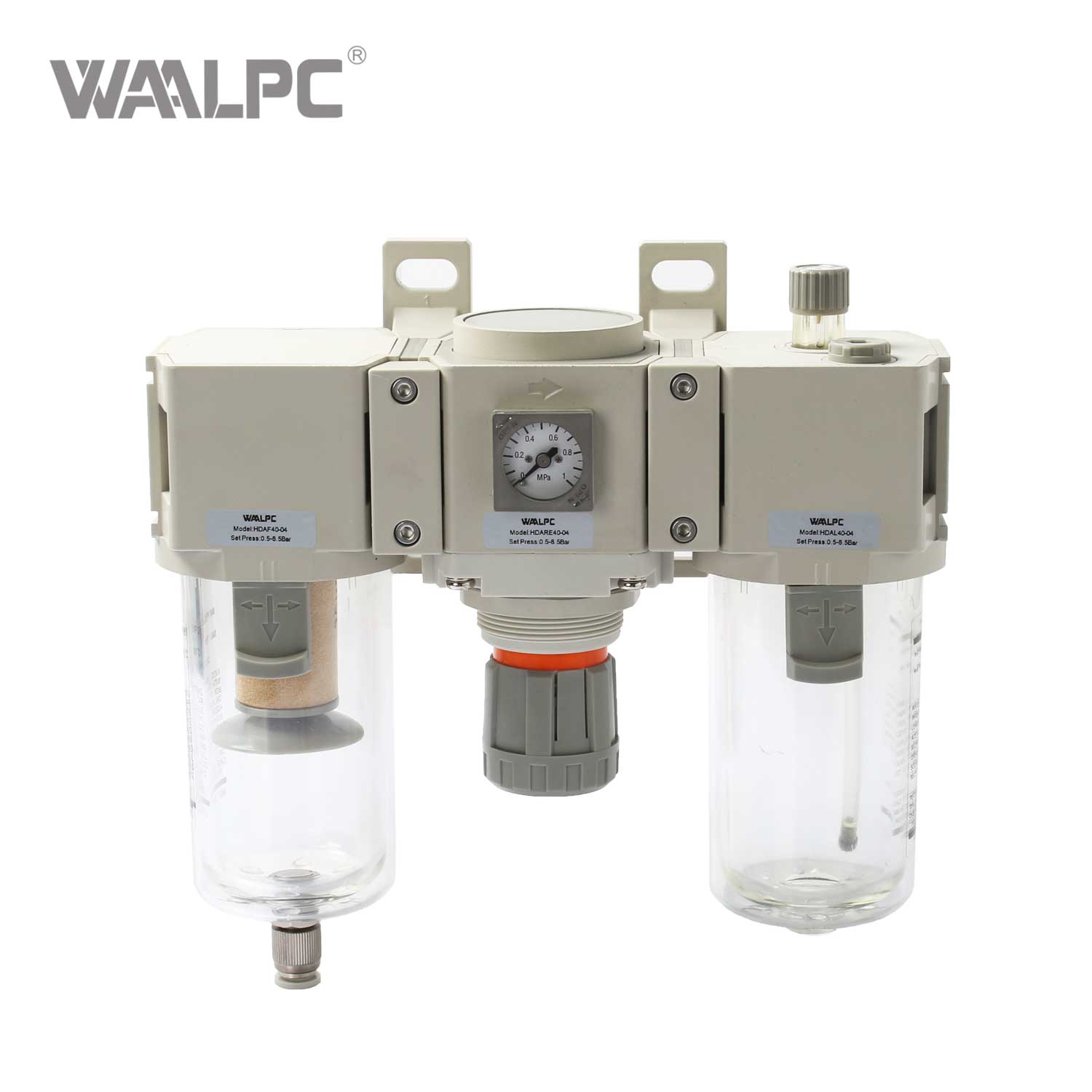

HDAC Series FRL Combination Units are advanced pneumatic solutions integrating Filter, Regulator, and Lubricator into a single compact unit, designed to deliver clean, stable, and lubricated compressed air for industrial applications.

Model:
HDACE20-02
Brand:
WAALPC
Code:
8421399090

Product Description

1. 3-in-1 Integrated Design for Maximum Efficiency

Space-Saving Innovation: Combines filter, regulator, and lubricator into a single compact unit, reducing installation space by 30% compared to separate components—ideal for tight automation setups, CNC machines, and modular production lines.

Plug-&-Play Modularity: Standardized interfaces (G/NPT threads, quick-connect fittings) enable seamless integration into new or existing systems, with optional mounting brackets for horizontal/vertical installation.

2. Triple Functionality for Complete Air Treatment

High-Precision Filtration:

Removes 99.9% of particles ≥5μm (ISO 8573-1:2010 class 2-4-2 compliant), protecting valves, cylinders, and sensitive instruments from dust, water, and oil mist.

Replaceable filter element (5μm/40μm options) with tool-free changeout to minimize downtime.

Technical Parameters

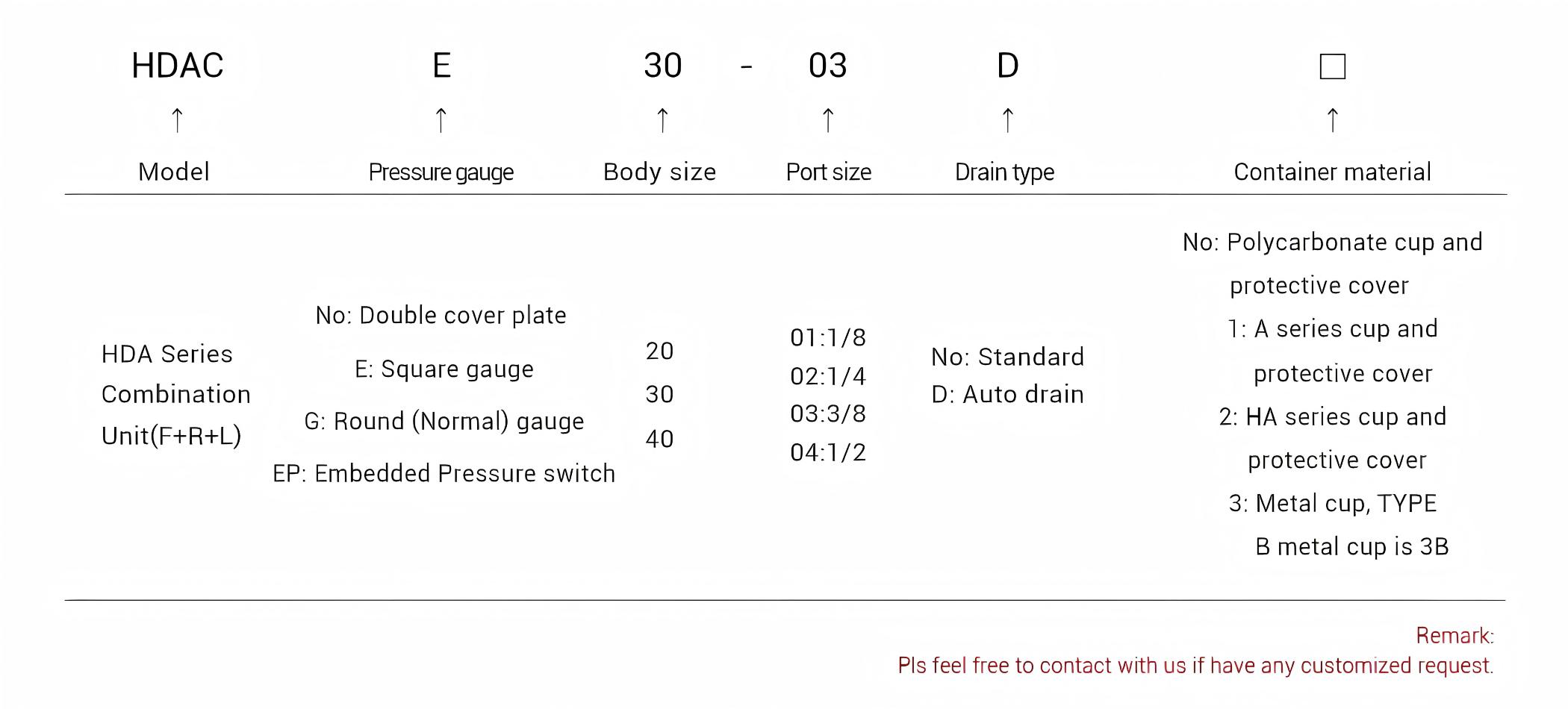

ORDERING CODE

DATA SHEET

Model	HDAC20-01	HDAC20-02	HDAC30-02	HDAC30-03	HDAC40-03	HDAC40-04
Port Size	1/8	1/4	1/4	3/8	3/8	1/2
Highest Working Pressure	1.0MPa
Working Medium	Compressed air
Ambient and Fluid Temperature	5~60℃
Installation Method	Pipe installation or bracket installation
Installation Position	Vertical±5°
Minimum Oil Mist Flow Rate	15L/min		40L/min		50L/min
Recommended Oil Use	Turbine No.1oil (ISOVG32)
Container Material	Polycarbonate
Protective Cover	No		Polycarbonate

STRUCTURE

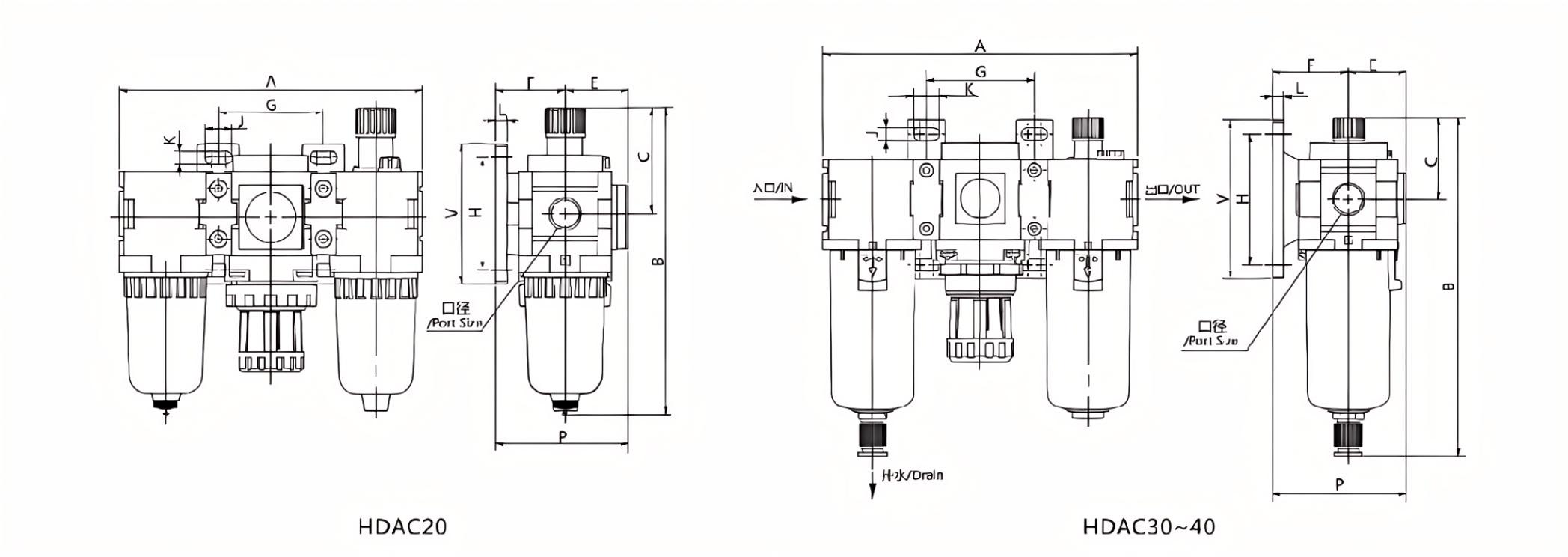

HDAC 3 Combination

Model	Port Size	A	B	C	E	F	G	H	J	K	L	P	V
HDAC20	1/8, 1/4	130	132	46	27	30	45	48	5.5	11.5	5	57	60
HDAC30	1/4, 3/8	169	185	45	31.5	41	58	70	7	14	6	72.5	85
HDAC40	3/8, 1/2	220	217	52	40	50	75	80	9	18	7	90	100
