High Flow Air Line Lubricator Large Oil Mist Capacity Industrial Grade Pneumatic Lubrication System

High Flow Air Line Lubricator Large Oil Mist Capacity Industrial Grade Pneumatic Lubrication System


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

The Oil Lubricator AL Series are precision-engineered components designed for efficient lubrication in pneumatic systems. It atomizes oil into fine droplets, ensuring optimal lubrication of air-driven tools, cylinders, valves, and actuators, while maintaining smooth operation and extending equipment lifespan.

Applications:
Pneumatic tools (grinders, drills, impact wrenches).
Automated production lines.
CNC machinery and robotic systems.
Industrial air compressors and actuators.

Model:

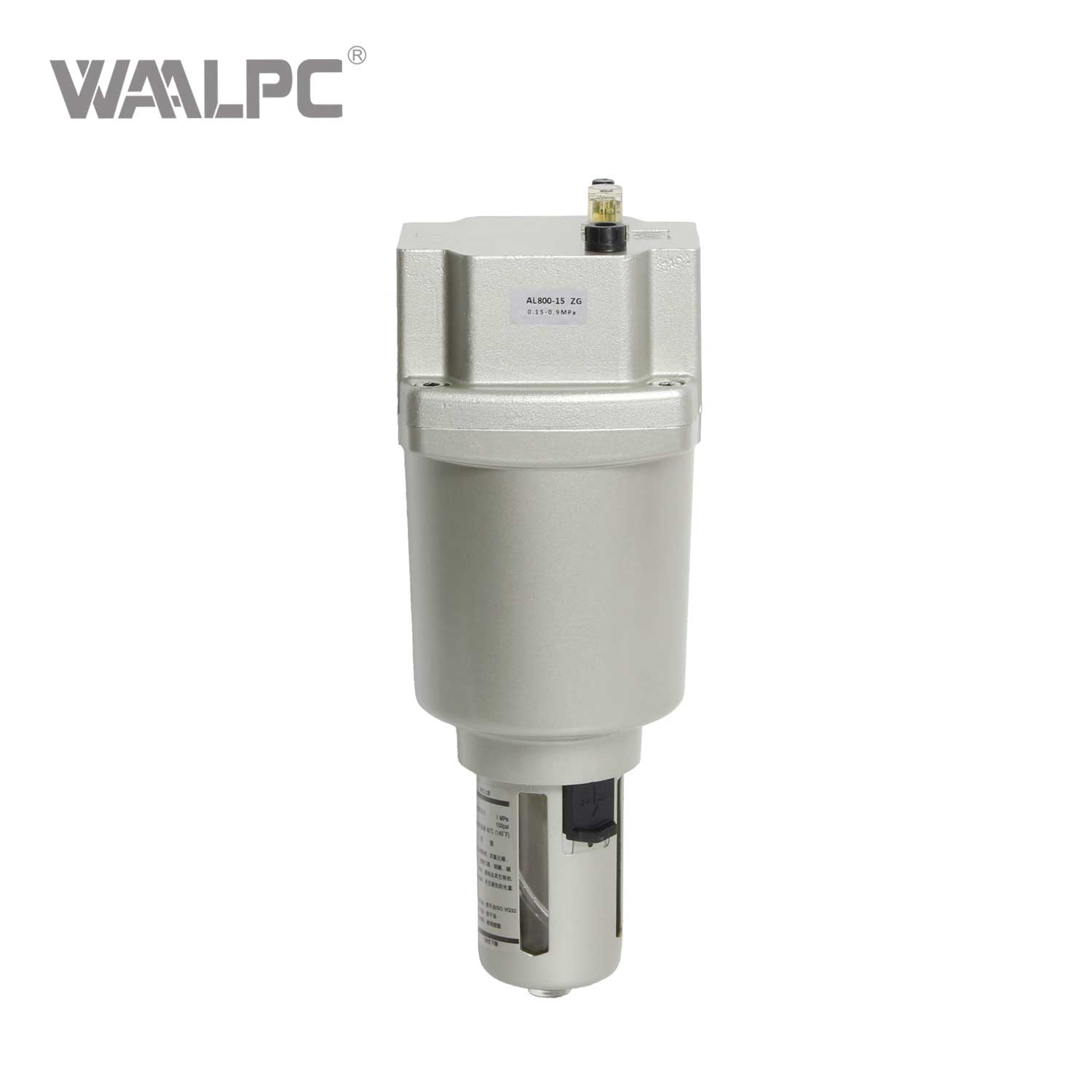

AL800-15
Brand:
WAALPC
Code:
8421299090

Product Description

The Oil Lubricator Advantages

Oil Lubricator

1. Precision Lubrication Control

Adjustable oil feed mechanism ensures optimal droplet size for consistent lubrication, reducing wear on pneumatic components.

2. High Efficiency & Energy Savings

Generates a fine, uniform oil mist for maximum coverage with minimal oil consumption, lowering operational costs.

3. Easy Maintenance & Visibility

Transparent oil bowl allows quick visual inspection of oil levels, simplifying refills and reducing downtime.

4. Reduced Downtime

Extends equipment lifespan by preventing dry operation and minimizing friction-related failures.

The Oil Lubricator Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Air Lubricator

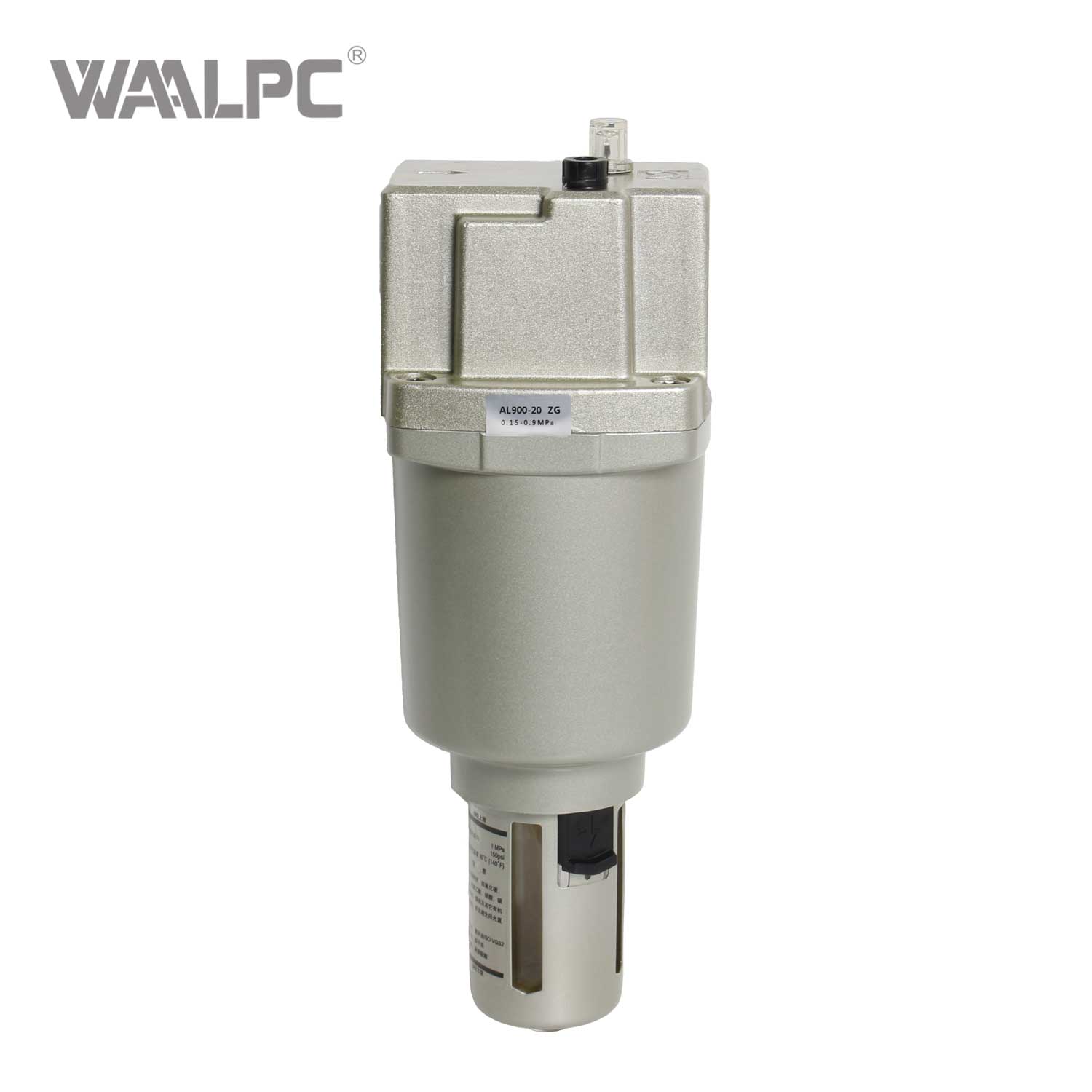

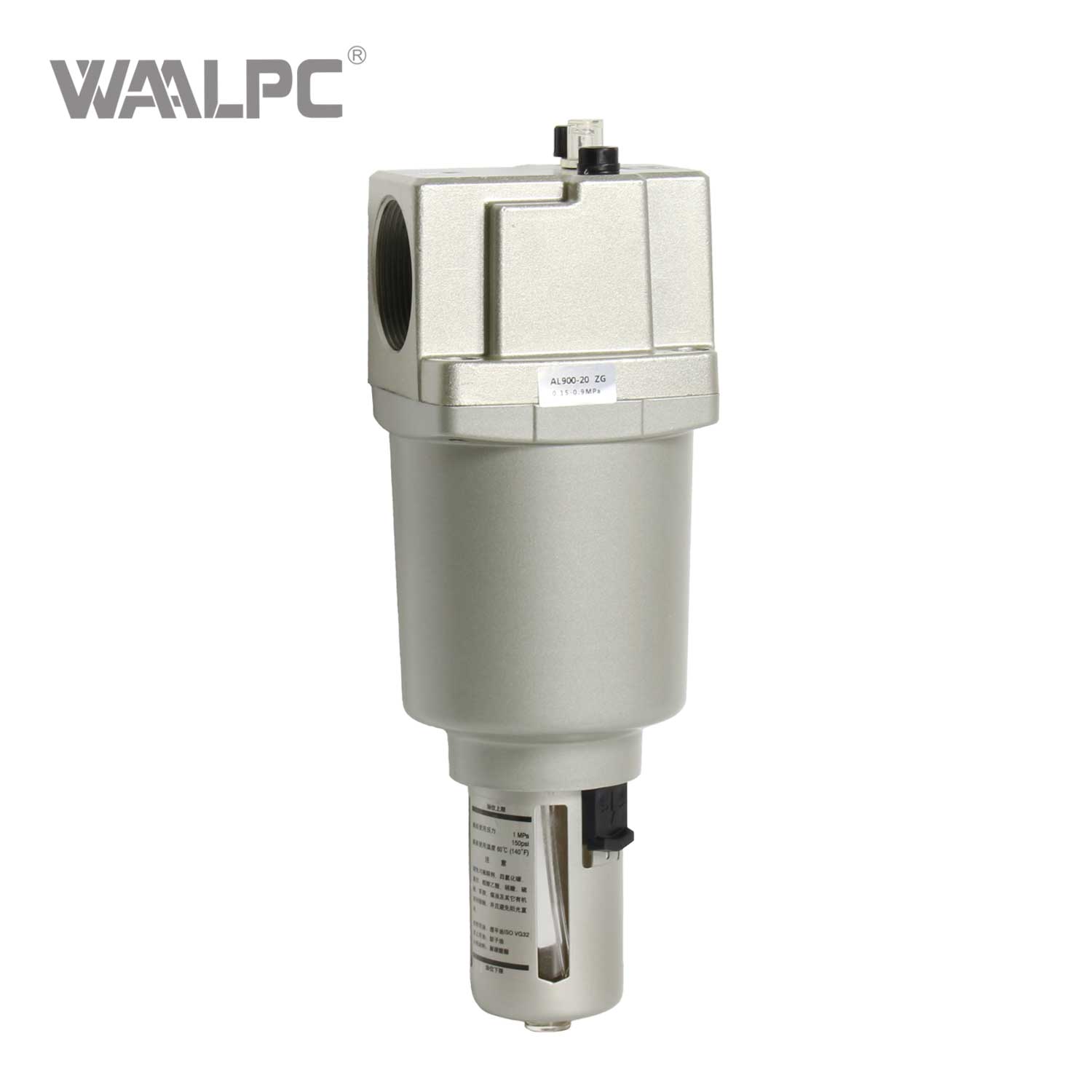

Model	AL800-15	AL900-20
Port Size	G1½	G2
Working medium	Air
Max. Operating Pressure	1.0Mpa
Pressure Resistance	1.5MPa
Operating temperature range	-5~60℃ (No freezing)
Recommended Lubricant	Turbine oil Class 1, ISO VG32
Bowl Material	Polycarbonate
Bowl Capacity (cm³)	380(capacity between levels 350)
Min. Operating Flow (L/Min)	650	1800
Weight	1560g	1780g

STRUCTURE

Oil Lubricator

DIMENSION(MM)

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D
AL800-15	G1½	120.5	318	47	91
AL900-20	G2	120.5	338	58	91
