JSG Series 5/2 Way Pneumatic Solenoid Valve, Pilot Operated Directional Control Valve


Availability:

Quantity:



Inquiry Add to Basket

JSG series 5/2 pilot pneumatic solenoid valves are directional control valves used to actuate pneumatic cylinders in automated machinery, featuring quick response, stable switching and reliable sealing performance.

Model:
JSG
Brand:
WAALPC
Code:
8481804090

Product Description

5/2 way pilot operated structure, designed to control pneumatic cylinders
Fast switching response, stable operation under high-frequency cyclic work
Optimized sealing structure, low air leakage rate
Built-in manual override button for convenient field test and maintenance
IP65 protection grade, dustproof for ordinary industrial workshop conditions
Multiple coil voltage selections: DC24V, AC220V
Compact body, simple installation and easy wiring

Technical Parameters

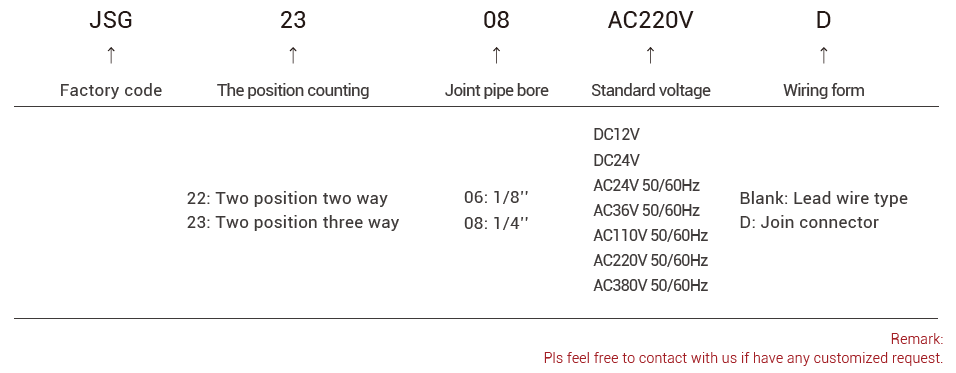

ORDERING CODE

Solenoid valve

SPECIFICATION

Model	JSG22-06		JSG22-08		JSG23-06	JSG23-08
Working Medium	Air, Water, Oil
Aperture of Flow Rate(mm)	1.6	2.4	3.2	4.0	1.6
Joint Pipe Bore	1/8''		1/4''		1/8''	1/4''
Working Pressure Range	0~15kgf/cm²	0~10kgf/cm²	0~7kgf/cm²	0~5kgf/cm²	0~9kgf/cm²
Voltage Range	±10%
Materialof Oil Seal	NBR, EPDM, VITON
Weight(kg)	0.401		0.411		0.45	0.432

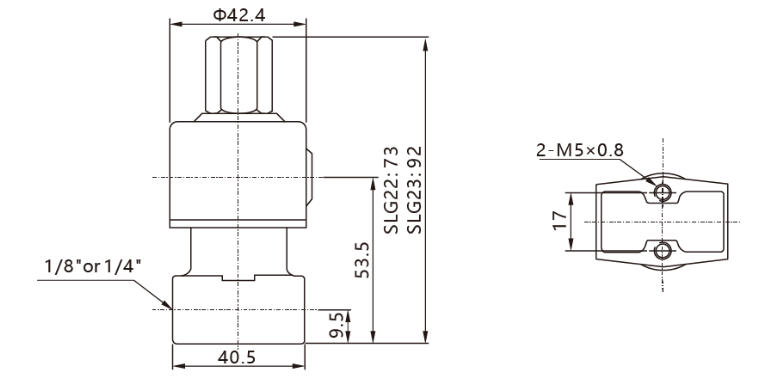

OVERALLDIMENSION&STRUCTURE

Brass Solenoid valve

Specification Download

JSG Series Solenoid Valve.pdf
