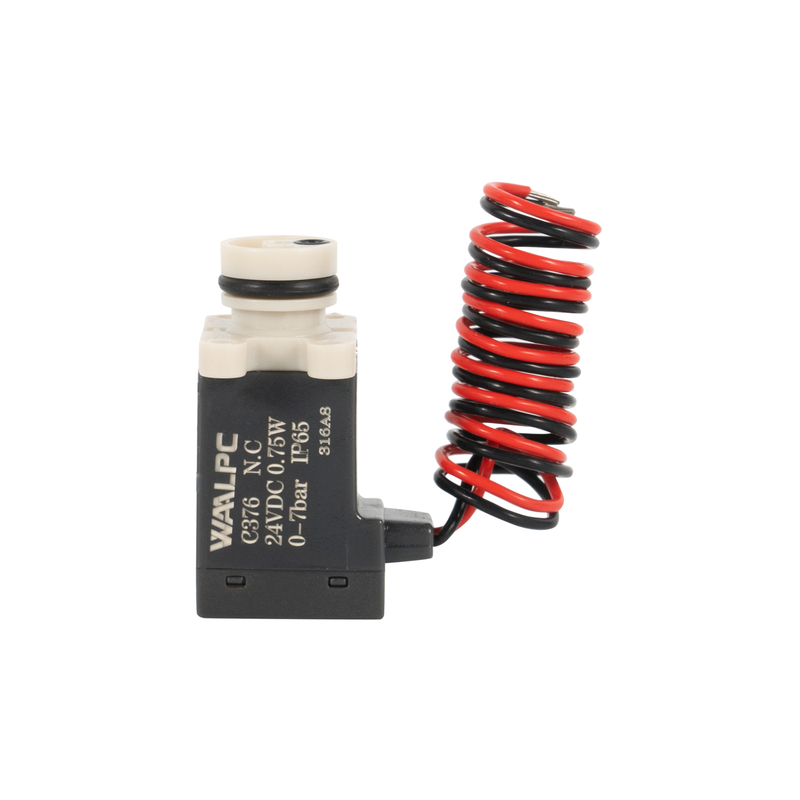

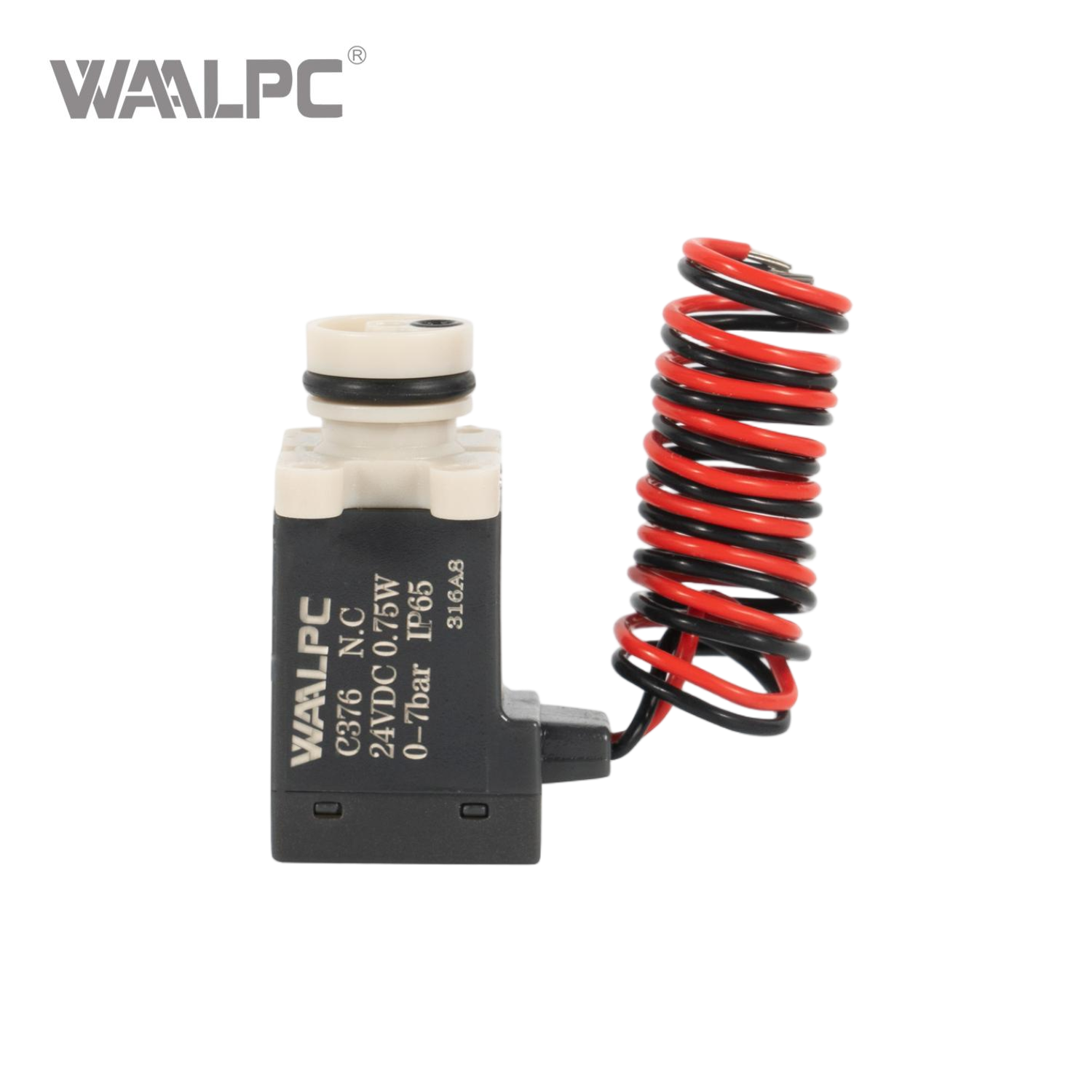

Mini10mm Solenoid Valve Direct Wire for LONATI Socks Knitting Machines 376-4XA-L 2/2 Way GRACO (NC) 0.75W

376-4SP 2/2 way TOYOTA 10mm (NC) 1W Mini Solenoid Valve 180° degree for Oxygen concentrator machine DC6V/12V/24V 240V 110V

371-C4SP Lonati D4840090 Type 10mm normally closed (NC) Mini Solenoid Valve for Sock Knitting Machine DC6V/12V/24V

Mini10mm Solenoid Valve Direct Wire for LONATI Socks Knitting Machines 376-4XA-L 2/2 Way GRACO (NC) 0.75W


Socket connection method:	Z: 90 right angle type S: 180° horizontal type X: direct lead type
Availability:

Quantity:



Inquiry Add to Basket

10mm Direct Acting Solenoid Valve 376 Series
Solenoid valves are widely used in fluidic systems to control the flow of fluids.
By using solenoid actuation, these valves can be conveniently controlled by simple electrical switches, even in remote locations.

Model:
376-4XA-L
Brand:
WAALPC
Code:
8481804090

Product Description

1. Pilot-oriented mode: Internal pilot or external pilot.

2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Double control solenoid valves have memory function.
4. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5. No need to add oil for lubrication.
6. Affiliated manual devices are equipped to facilitate installation and debugging.
7. Several standard voltage grades are optional.
8. Integrate with the manifold to save installation space.
9. Direct-acting miniature solenoid valves can be mounted with a plate connection or used directly with a single valve seat.
10. It can control the operation of single-acting cylinders with high frequency, and can also be used as pilot valves for high-flow valves.
11. There are a variety of power and diameter to meet different requirements, can be combined into a vacuum, vacuum destruction unit, normally closed (NC) and normally open (NO) two functions.

12. Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Technical Parameters

ORDERING CODE

376 - 4 X 口 A 口- L

① ② ③ ④ ⑤ ⑥ ⑦

Note: When the item is "blank", it will be omitted automatically, as stated above: 376-4XA-L

Symbol	Content
①	376 series
② Voltage	2: DC12V, 4: DC24V, 6: DC6V, 3: AC110V, 5: AC220V
③ Connection Method	X: direct lead type, Z: 90 right angle type, S: 180 horizontal type
④ Circuit Board Type	Blank: wireless circuit board, P: with two-way indicator, G: with light with over voltage protection circuit, J: with energy-saving module
⑤ Wiring Length	Blank: no wiring, A: cable length 125mm, B: cable length 300mm, C: special requirements
⑥ Plug Type	Blank: no plug, 1: A1, 2: A2, 3: A3, 4: A4, 5: A5, 6: A6, 7: A7, 8: A8, 9: A9
⑦ Coil Power	Blank: 0.75W, L: 1W, H: 0.3W (with energy-saving module), T: Special power

DATA SHEET

Valve Position Function	Two-position two-way, Two-position three-way	Operating Pressure	0-0.7Mpa (0.8mm diameter), -100kpa-0.3Mpa (1.5mm, 2.0mm diameter)
Operating Method	Cut-off	Medium and Ambient Temperature	-5 ℃- 50 ℃ (but not frozen)
Installation Method	Free installation	Working Medium	Filtered compressed air (grade of filtration) or inert gas
Orifice Size	0.6mm	Response Time	Open <8ms, close<10ms
Nominal Flow	14L/min (at 6bar)	Manual Device
Voltage	DC6V, DC12V, DC24V, AC110V, AC220V	Work Cycle	100% continuous operation
Voltage Tolerance	±10%	Electrical Connections	Socket or direct lead
Power Consumption	0.75W, 1W, 0.3W(with energy-saving module type)	IP Level	IP50, IP65(direct lead type)

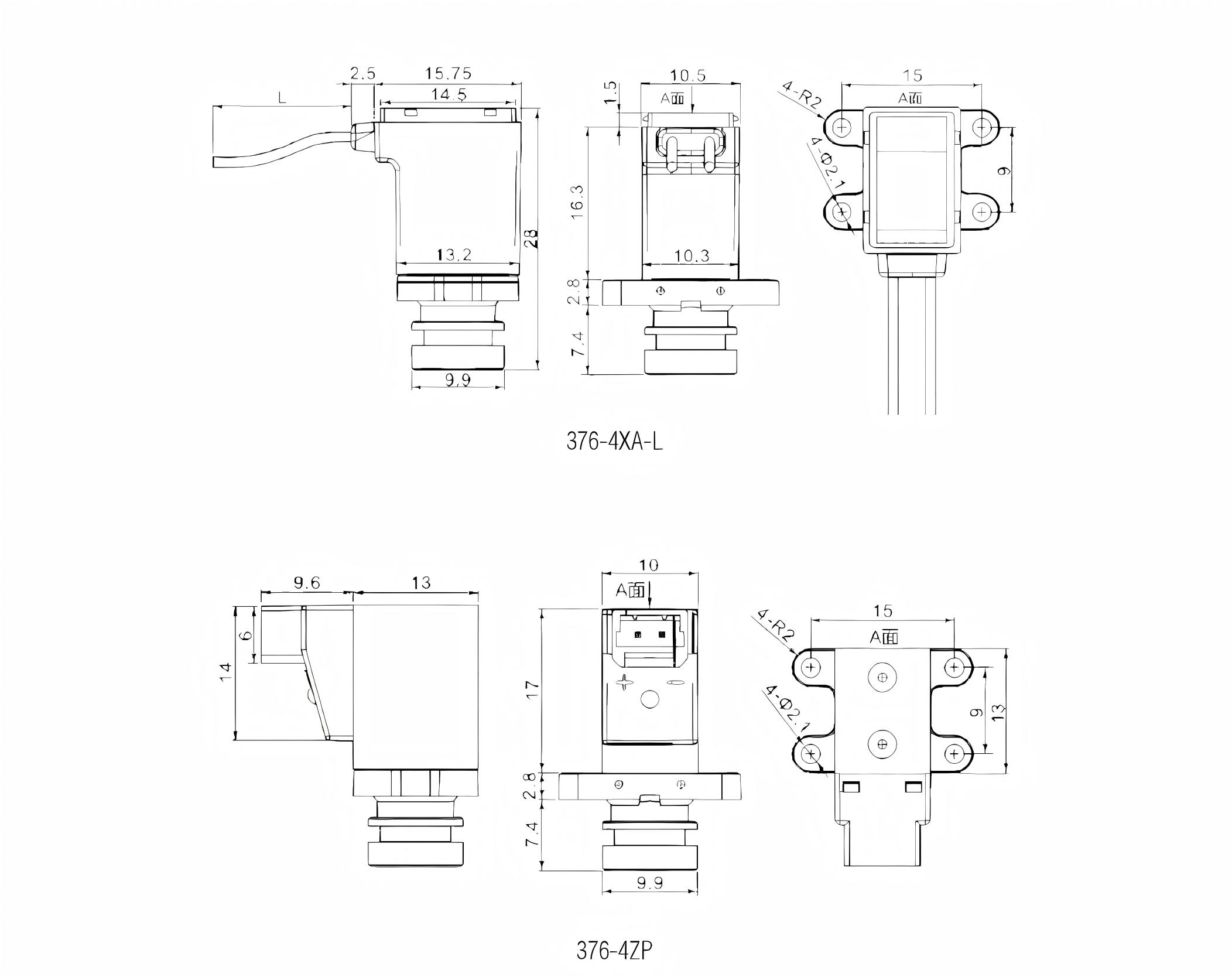

STRUCTURE

376 solenoid valve

Specification Download

Solenoid Valve -331~378 series.pdf
