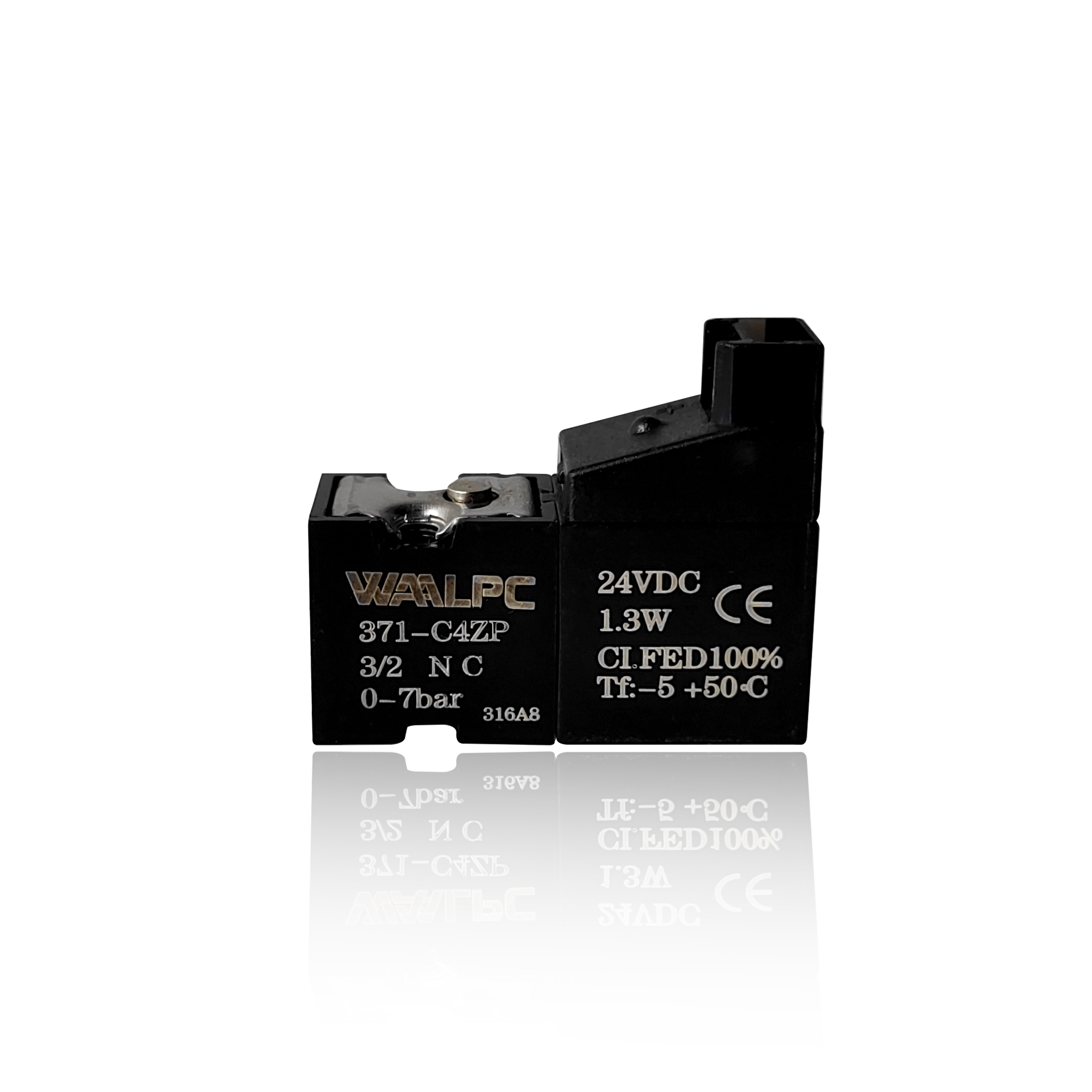

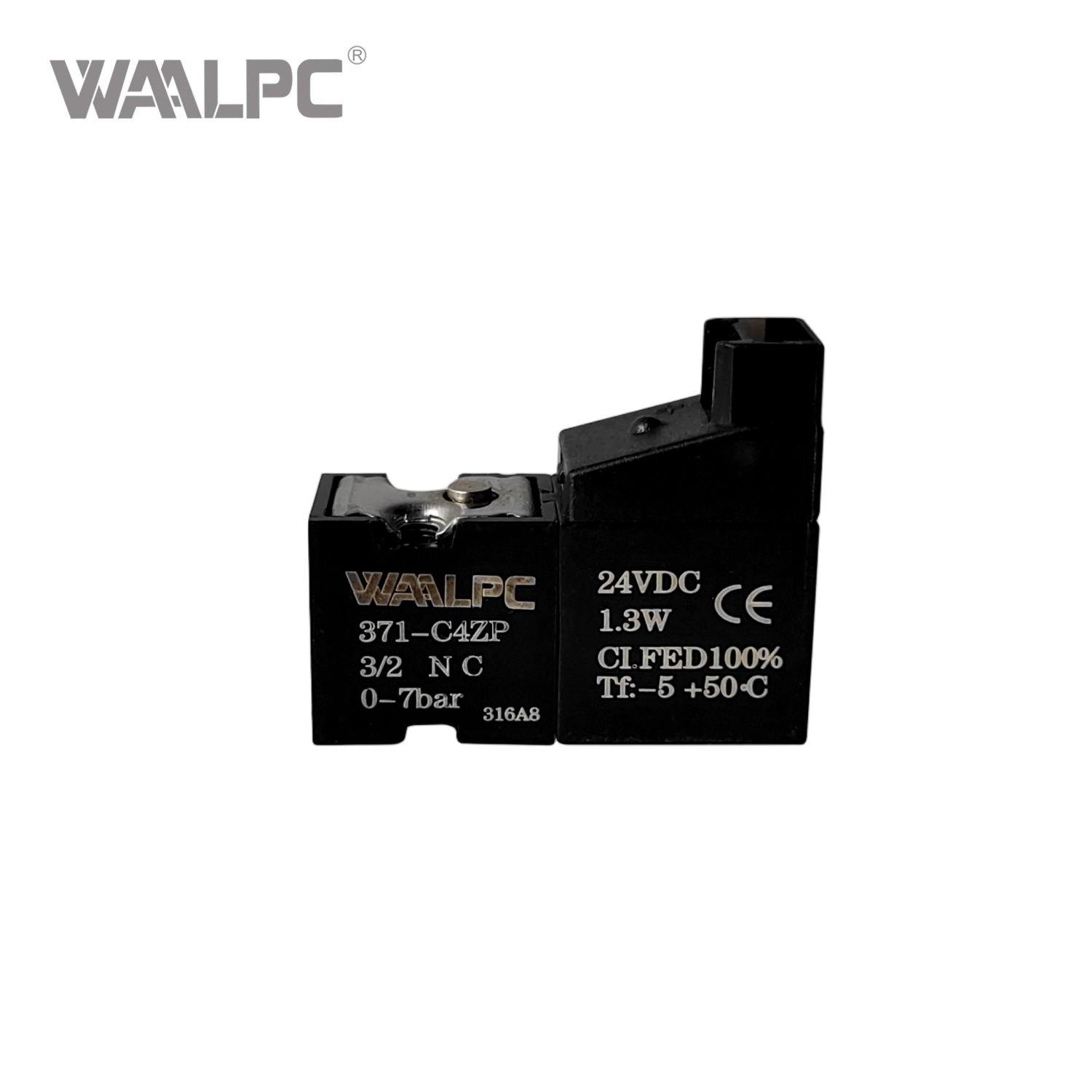

Mini10mm Solenoid Valve 371-C4ZP Sangiacomo Type Normally Closed (NC) for Respirators, Oxygen Generators


Socket connection method:	Z: 90° right Angle Type S: 180° horizontal type X: direct lead type
Availability:

Quantity:



Inquiry Add to Basket

10mm Direct Acting Solenoid Valve 371 Series
Solenoid valves are widely used in fluidic systems to control the flow of fluids.
By using solenoid actuation, these valves can be conveniently controlled by simple electrical switches, even in remote locations.
Solenoid valves offer fast and reliable switching, long service life, high reliability, low control power and a compact design, making them the ideal choice for many flow(air or liquid) precise control applications.
WAAL offers 10mm miniature solenoid valves in many designs and different powers, so as to fit the installations where limited space and high frequency working are required.

It is widely used in the textile industry, sock knitting machines, respirators, oxygen generators, medical industry & electronic industry and so on. It has the advantages of compact structure and taking little space,conventient installation,sensitiveness,stable performance,and so on. Moreover,it is protected by two potents.

Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Model:
371-C4ZP
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

371-C4ZP solenoid valve

1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Affiliated manual devices are equipped to facilitate installation and debugging.
7.Several standard voltage grades are optional.
8.Integrate with the manifold to save installation space.
9.direct-acting miniature solenoid valves can be mounted with a plate connection or used directly with a single valve seat.
10.It can control the operation of single-acting cylinders with high frequency, and can also be used as pilot valves for high-flow valves.
11.There are a variety of power and diameter to meet different requirements, can be combined into a vacuum, vacuum destruction unit, normally closed (NC) and normally open (NO) two functions.

12. Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

ORDERING CODE

371- C 4 Z P 口口- 口 D

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Symbol	Content
①	371 series
② Function	C: normally closed (NC), O: normally open (NO)
③ Voltage	4: DC24V, 2: DC12V,6: DC6V, T: special voltage
④ Socket connection method	Z: 90°right angle type, S: 180°horizontal type, X: direct lead type
⑤ Circuit board type	P: with two-way indicator light, G: with light with over voltage protection circuit, Blank: without circuit board
⑥ Wiring length	Blank: no wiring, A: wiring length 125mm, B: wiring length 300mm, C: special requirements
⑦ Plug type	Blank: no plug, 1: A1, 2: A2, 3: A3, 4: A4, 5: A5, 6: A6, 7: A7, 8: A8, 9: A9
⑧ Exhaust or Exhaust Type	Blank: two-hole self-exhaust, F: three-hole valve plate exhaust,A: exhaust at the button, B: exhaust from the air nozzle at the button
⑨ Length Type	Blank: standard length, D: non-standard and short (length 26.7mm)

DATA SHEET

Valve Position Function

Two-position three-way, normally closed

(NC) or normally open (NO)

Operating Pressure

0-6bar(NO), 0-7bar(NC), 0-10bar(NC or NO)

Working Way

Cut-off

Medium and Ambient Temperature

-5 ℃ - 50 ℃(but not frozen)

Installation Method

Free installation

Working Medium

Filtered compressed air (grade of

filtration meets IS08573-15.4.4)

or inert gas

Orifice Size

0.7mm

Response Time

Open <10ms, close <12ms

Nominal Flow

19L/min (0.7 orifice size, at 6Bar)

Manual Device

Press-button manual switch

Voltage

DC6V , DC12V , DC24V (or other

voltage)

Working Cycle

100% continuous operation

Voltage Tolerance

10%

Electrical Connection

Socket or direct lead

Power consumption

1.3W

IP Level

IP50, IP65 (direct lead type)

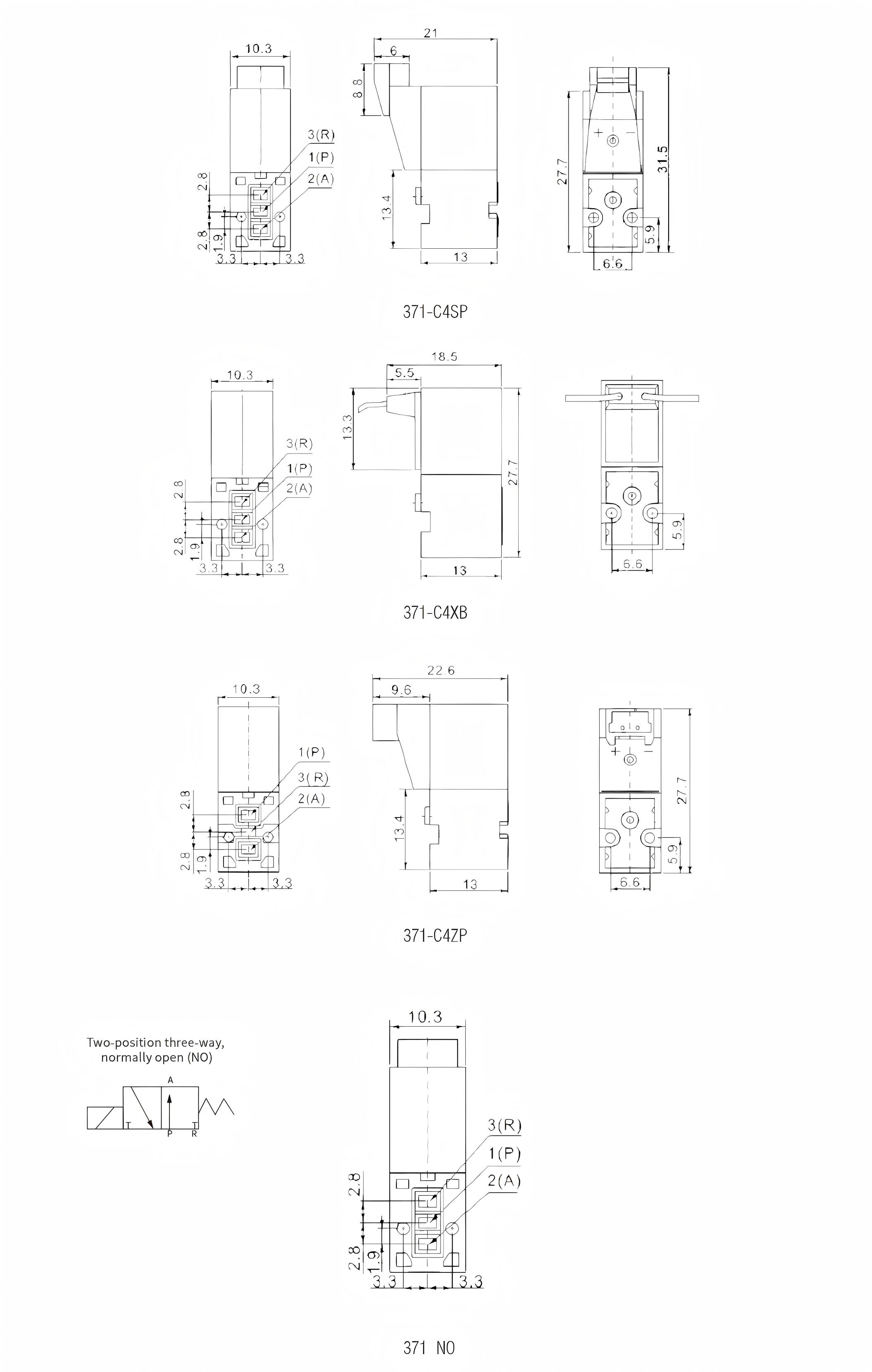

STRUCTURE

371-C4ZP solenod valve-size

Specification Download

Solenoid Valve -331~378 series.pdf
