One-Touch Fittings, Operable From Vacuum To 100kPa, Multiple Body Shapes & Material Options SMC Type

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

Ordering Code

SPECIFICATIONS

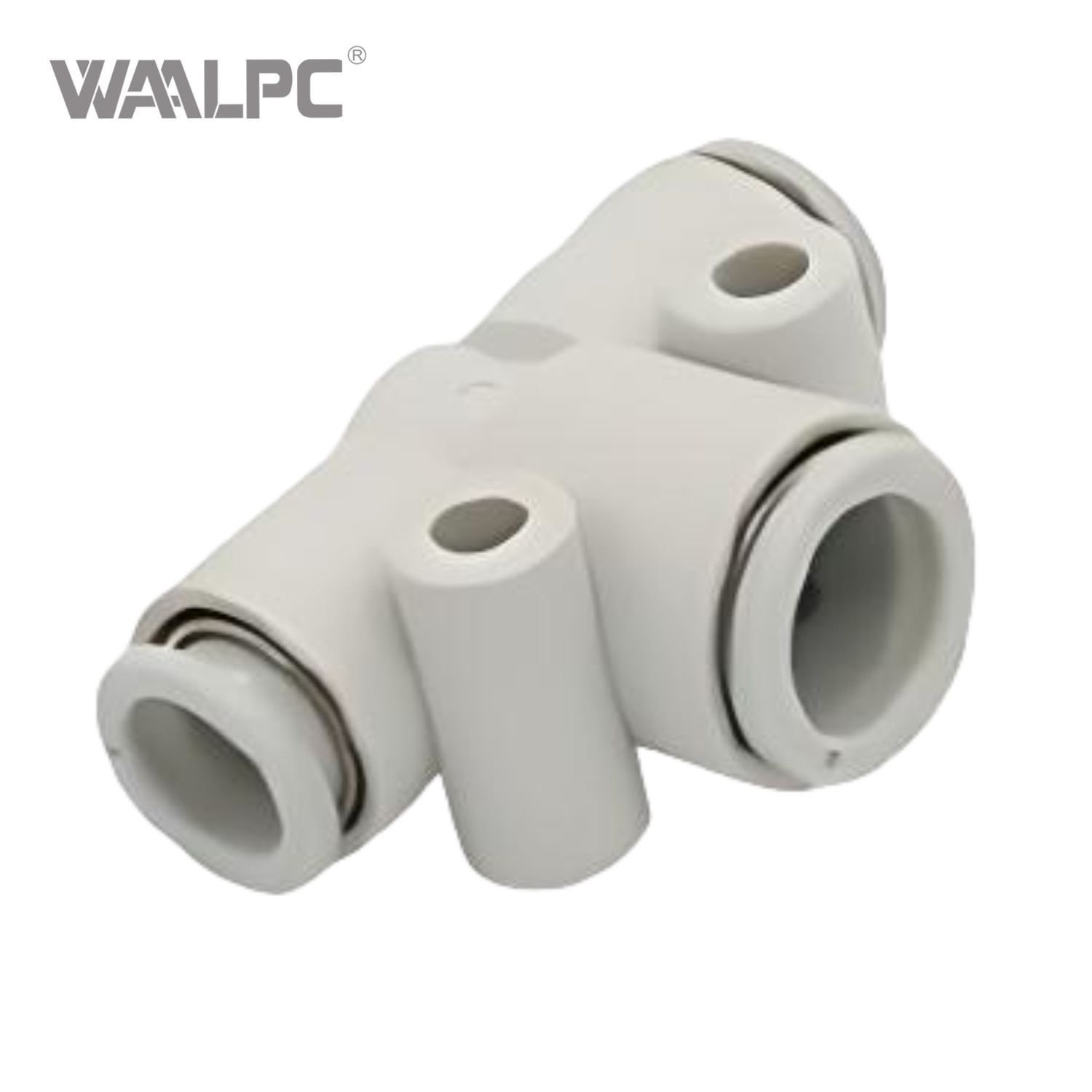

Differential T-connector: Y-KQ2T

Suitable for the outer diameter of the pipe (mm)		ΦD1	ΦD2	L1	L2	L3	M1	M2	Q1	Q2	ΦO	ΦN	Weight (g)
a	b
Φ3.2	Φ4	8.8	7.4	15	15.3	18.5	13.3	13.3	5.4	5.8	6	3.2	5.1
Φ4	Φ6	10.7	8.8	15.2	16.2	19.3	13.3	13.3	5.7	6.8	6	3.2	6.5
Φ6	Φ8	13.6	10.7	16.9	17.3	22.3	14.2	13.3	7.3	8.4	8	4.2	5.3
Φ8	Φ10	16.2	13.6	20.1	19.1	26.9	15.6	14.2	8.4	9.6	8	4.2	8.3
Φ10	Φ12	19	16.2	22.1	21.6	30.2	17	15.6	9.6	10.7	8	4.2	12.2
Φ12	Φ16	23.8	19	26.6	25	35.9	20.6	17	10.7	13.4	8	4.2	20.1

Differential T-connector: Y-KQ2T

Suitable for the outer diameter of the pipe (mm)		ΦD1	ΦD2	L1	L2	L3	M1	M2	Q1	Q2	ΦO	ΦN	Weight (g)
a	b
Φ6	Φ4	10.7	10.7	16.2	16.2	21.5	13.3	13.3	6.8	5.7	6	3.2	3.5
Φ8	Φ6	13.6	13.6	18.1	18.1	23.8	13.3	14.2	8.4	7.3	8	4.2	6
Φ10	Φ8	16.2	16.2	20.7	20.7	28.7	14.2	15.6	9.6	8.4	8	4.2	9.5
Φ12	Φ10	19	19	23	23	32.7	15.6	17	10.7	9.6	8	4.2	13.4

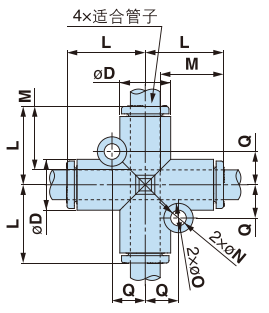

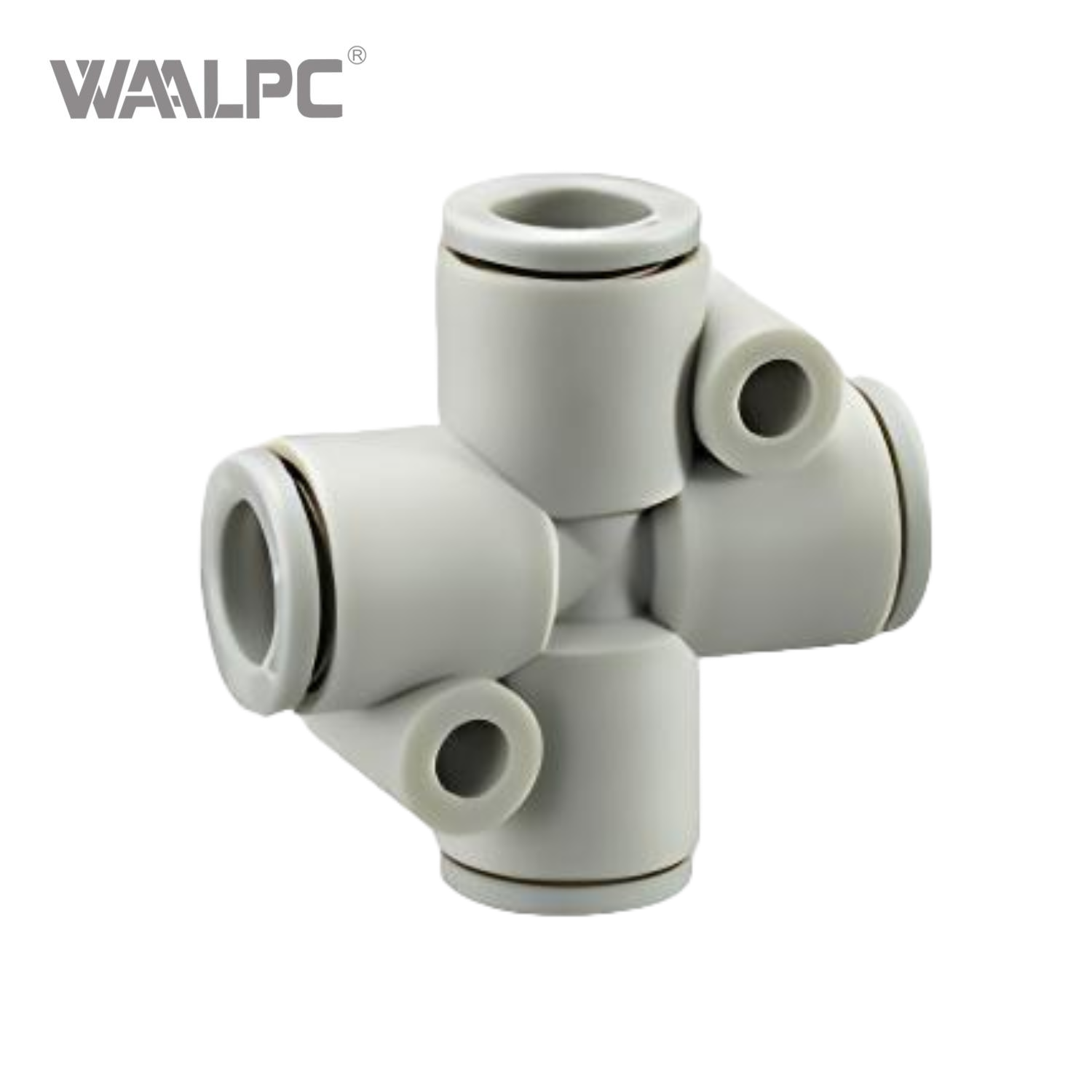

Cross-shaped pipe: Y-KQ2TW

Suitable for the outer diameter of the pipe (mm)	ΦD	L	Q	M	ΦO	ΦN	Weight (g)
Φ4	8.8	15.2	5.7	13.3	6	3.2	3.5
Φ6	10.7	16.1	6.8	13.3	6	3.2	4.9
Φ8	13.6	18.1	8.4	14.2	8	4.2	8.5
Φ10	16.2	20.9	9.6	15.6	8	4.2	12.7
Φ12	19	23.2	10.7	17	8	4.2	18.4

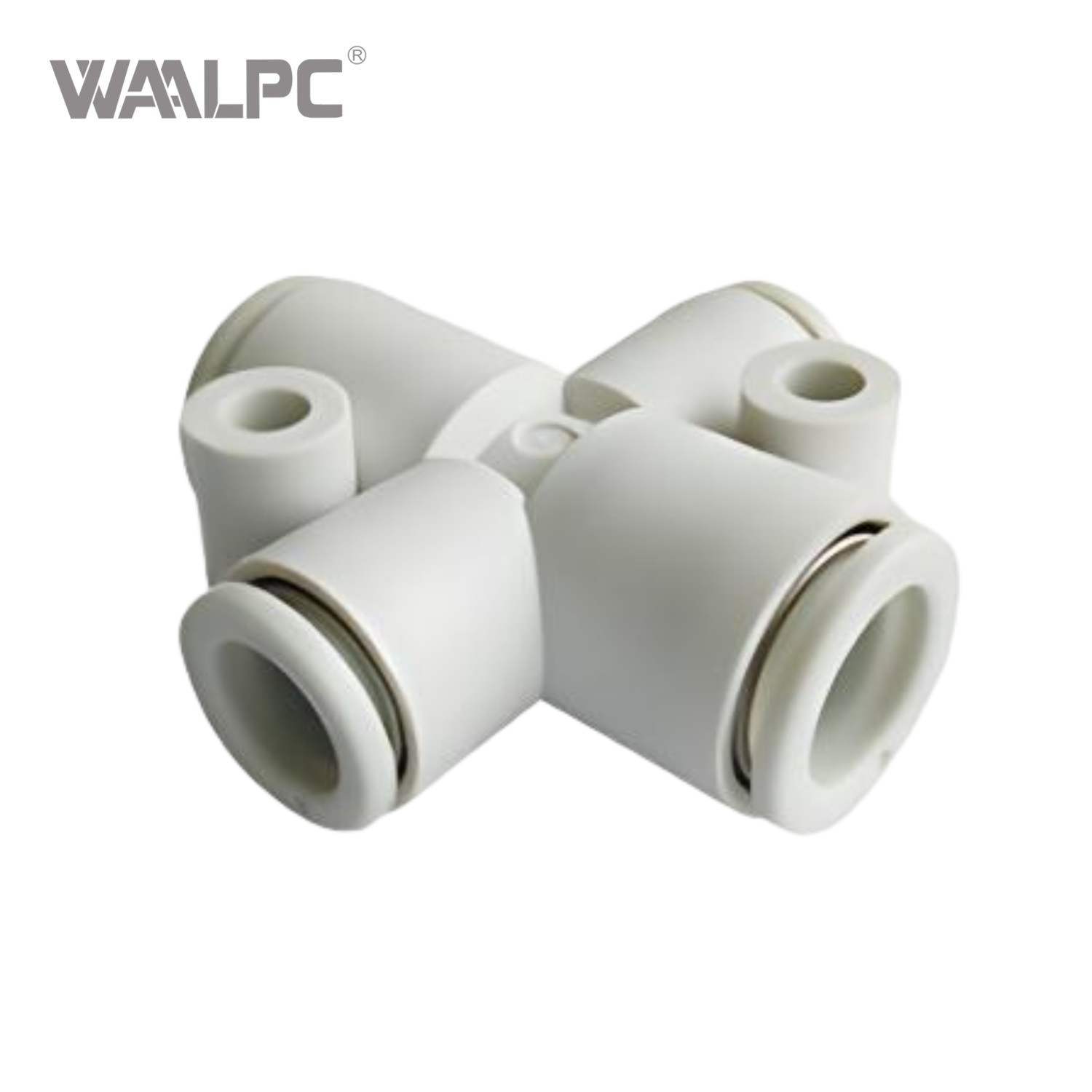

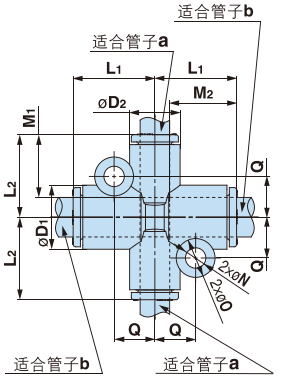

Cross-shaped pipe with different diameters: Y-KQ2TX

Suitable for the outer diameter of the pipe (mm)		ΦD1	ΦD2	L1	L2	Q	M1	M2	ΦO	ΦN	Weight (g)
a	b
Φ6	Φ8	13.6	13.6	18.1	18.1	8.4	13.3	14.2	8	4.2	7.1
Φ8	Φ10	16.2	16.2	20.9	20.9	9.6	14.2	15.6	8	4.2	10.9
Φ10	Φ12	19	19	23.2	23.2	10.7	15.6	17	8	4.2	15.9

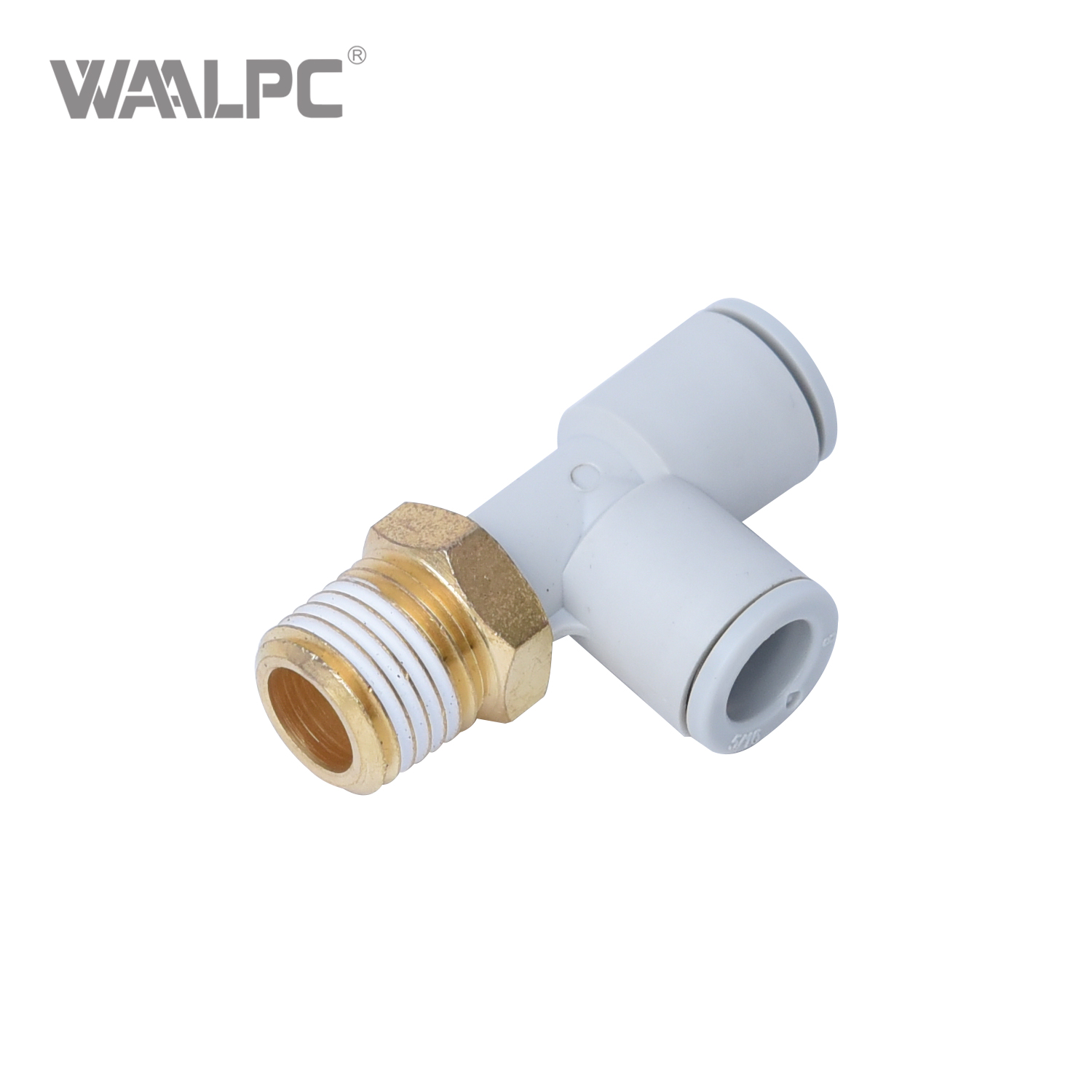

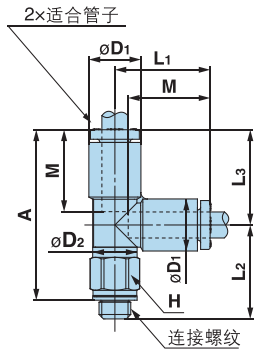

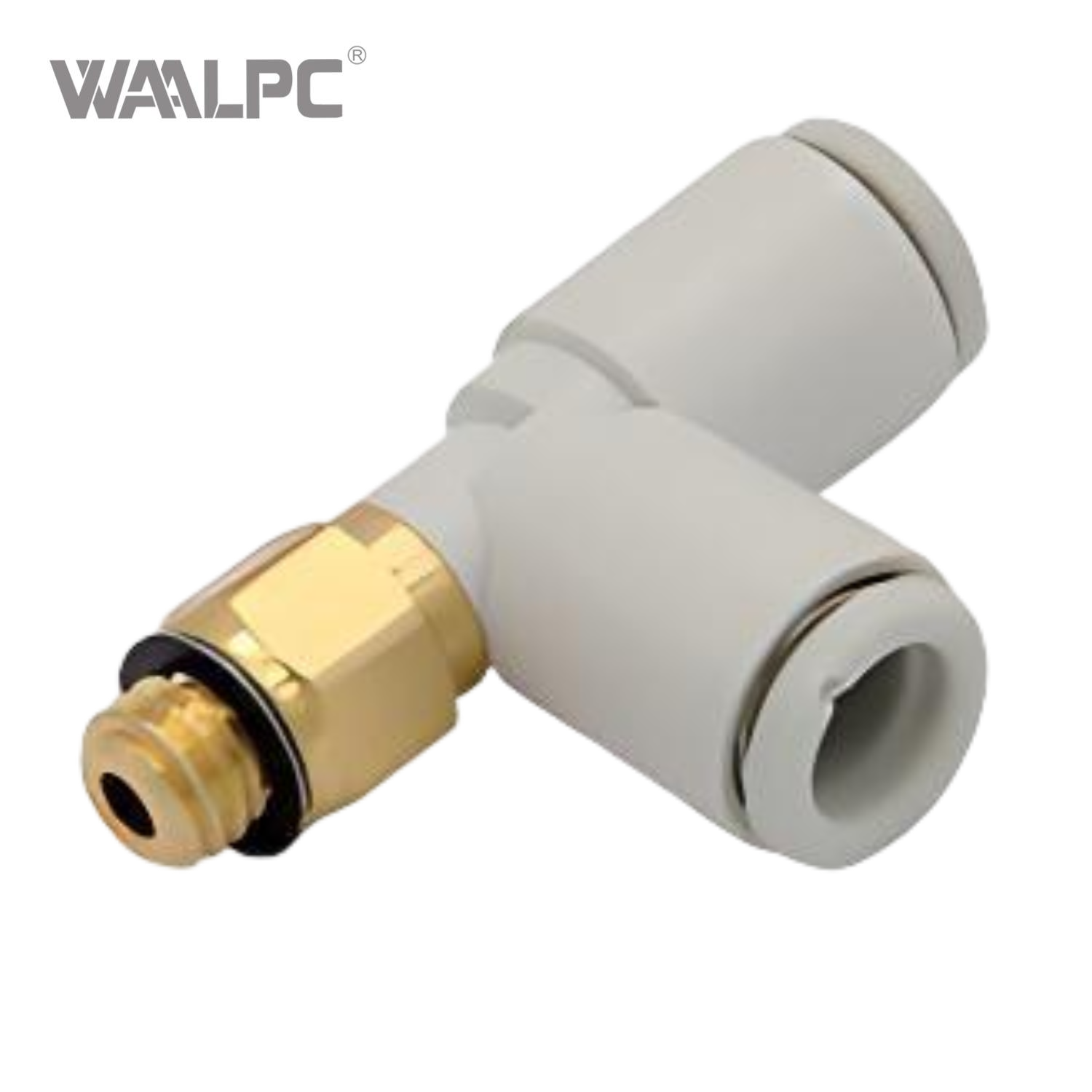

Auxiliary T-joint: Y-KQ2Y(Sealing gasket)

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	L3	A	M	Weight (g)
Φ2	M3x0.5	5.5	6.1	5.5	12.9	12.5	12.9	22.9	11.9	2
	M5x0.8	7	6.1	5.5	12.9	13	12.9	23.4	11.9	3.1
Φ3.2	M3x0.5	7	7.4	7	15.3	13.8	15.3	26.6	13.3	3.1
	M5x0.8	7	7.4	7	15.3	14.3	15.3	26.6	13.3	3.5
Φ4	M3x0.5	7	8.8	7	15.3	14.3	15.3	27.3	13.3	3.4
	M5x0.8	7	8.8	7	15.3	15	15.3	27.3	13.3	3.9
	M6x1.0	8	8.8	7	15.3	16	15.3	27.3	13.3	4.9
Φ6	M5x0.8	7	10.7	7	16.3	16.7	16.3	30	13.3	4.6
	M6x1.0	8	10.7	7	16.3	16.7	16.3	30	13.3	5.7

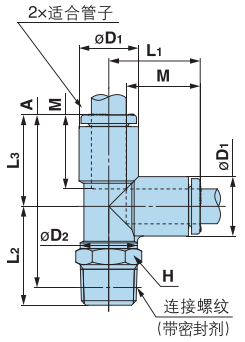

Auxiliary T-joint: Y-KQ2Y(Sealant)

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	L3	A	M	Weight (g)
Φ3.2	1/8	10	7.4	10	14.9	16.6	14.9	28.5	13.3	5.3
	1/4	14	7.4	10	14.9	20.8	14.9	31.4	13.3	14.7
Φ4	1/8	10	8.8	10	15.3	16.3	15.3	28.4	13.3	5.6
	1/4	14	8.8	10	15.3	20.5	15.3	32.3	13.3	15
Φ6	1/8	10	10.7	10	16.3	18	16.3	30.5	13.3	6.2
	1/4	14	10.7	10	16.3	22.2	16.3	34.4	13.3	15.8
	3/8	17	10.7	10	16.3	23.7	16.3	35.3	13.3	27.5
Φ8	1/8	10	13.6	10	18.3	18.5	18.3	33.8	14.2	8
	1/4	14	13.6	12	18.3	25.1	18.3	38.9	14.2	19.5
	3/8	17	13.6	12	18.3	25.6	18.3	38.6	14.2	26.5
Φ10	1/8	12	16.2	12	21.1	23.9	20.6	41.1	15.6	14
	1/4	17	16.2	17	20.6	28.6	20.6	44.6	15.6	24.5
	3/8	17	16.2	17	20.6	29.5	20.6	45.1	15.6	25
	1/2	22	16.2	17	20.6	32.9	20.6	47.8	15.6	47.4
Φ12	1/4	17	19	17	23.1	30.1	23.1	48.3	17	27.6
	3/8	17	19	17	23.1	31	23.1	48.8	17	28.2
	1/2	22	19	17	23.1	34.4	23.1	51.5	17	50.7
Φ16	1/4	17	23.8	17	28.6	32.6	28.6	56.5	20.6	36
	3/8	22	23.8	21	28.6	35.4	28.6	58.9	20.6	48.3
	1/2	22	23.8	21	28.6	34.1	28.6	56.3	20.6	52
