SMC Type One-touch Fittings KQ2 Pneumatic Fittings & Accessories Connector Right Angle L Type Elbow Pneumatic Components Pipe Fitting

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

ORDERING CODE

SPECIFICATIONS

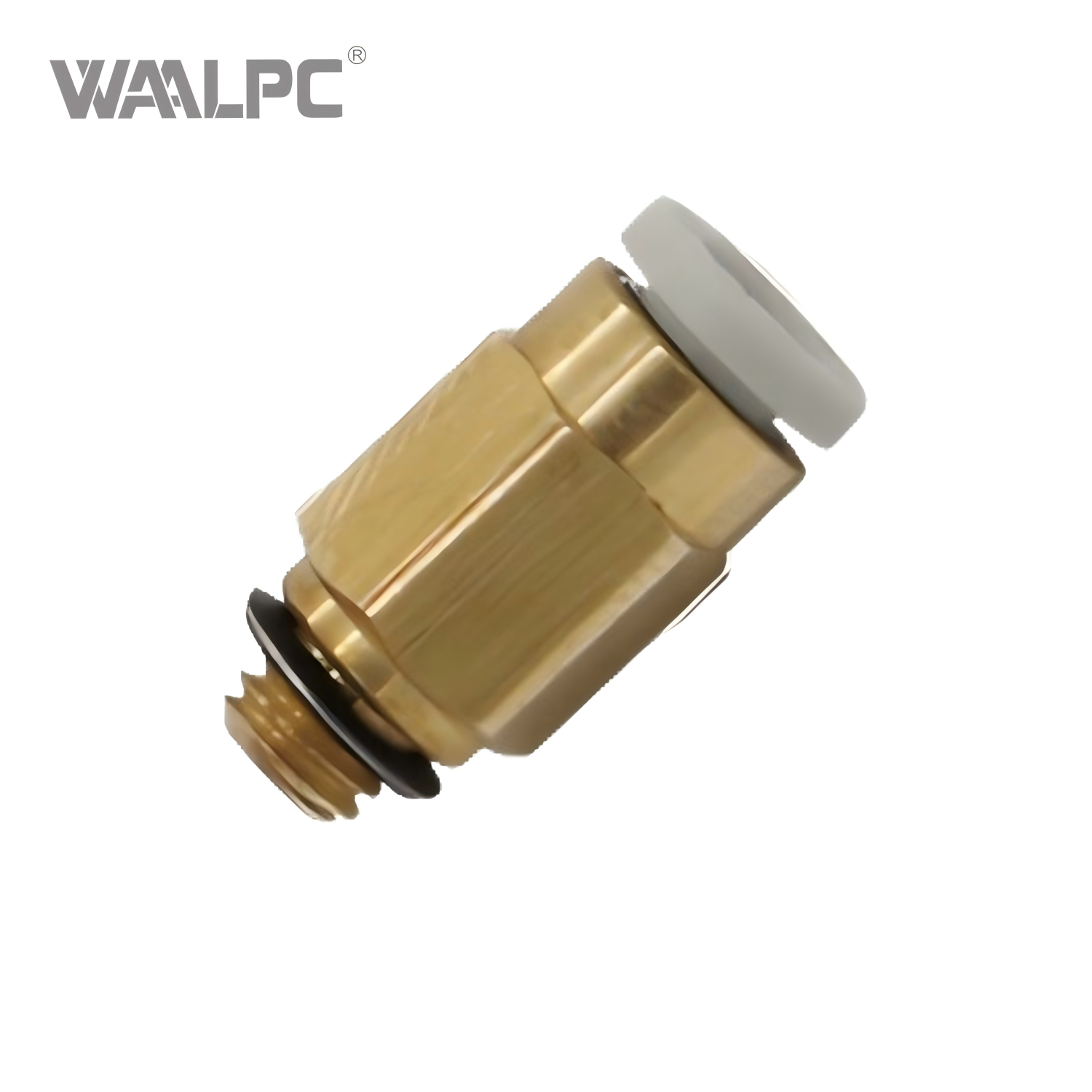

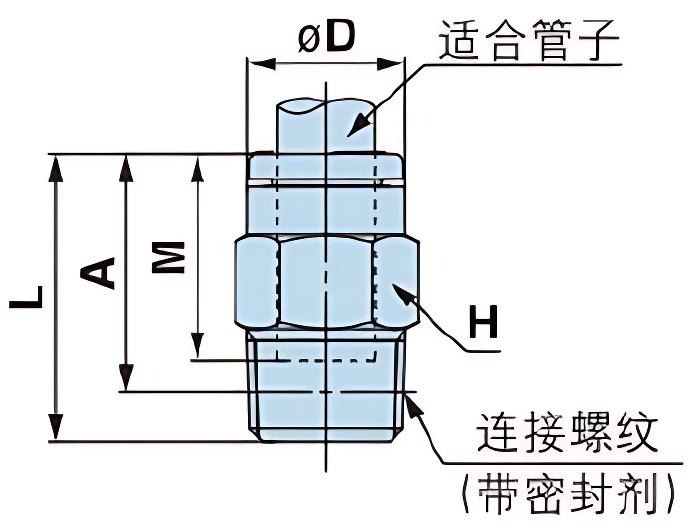

Straight-through connector: Y-KQ2H

Suitable for the outer diameter of the pipe (mm)	Connection thread (M)	H (Hexagonal opposite sides)	ΦD	L	A	M	Weight
Φ2	M3x0.5	7	5.6	15.6	13	11.9	1.5
	M5x0.8	7	5.6	13.8	10.8	11.9	2
Φ3.2	M3x0.5	7	6.8	17	14.4	13.3	0.4
	M5x0.8	7	6.8	17.3	14.3	13.3	2.7
Φ4	M3x0.5	8	7.9	17.3	14.8	13.3	2.9
	M5x0.8	8	7.9	17.8	14.8	13.3	3.3
	M6x1.0	8	7.9	18.8	14.8	13.3	3.6
Φ6	M5x0.8	10	9.8	18.1	15.1	13.3	4.1
	M6x1.0	10	9.8	19.1	15.1	13.3	4.4

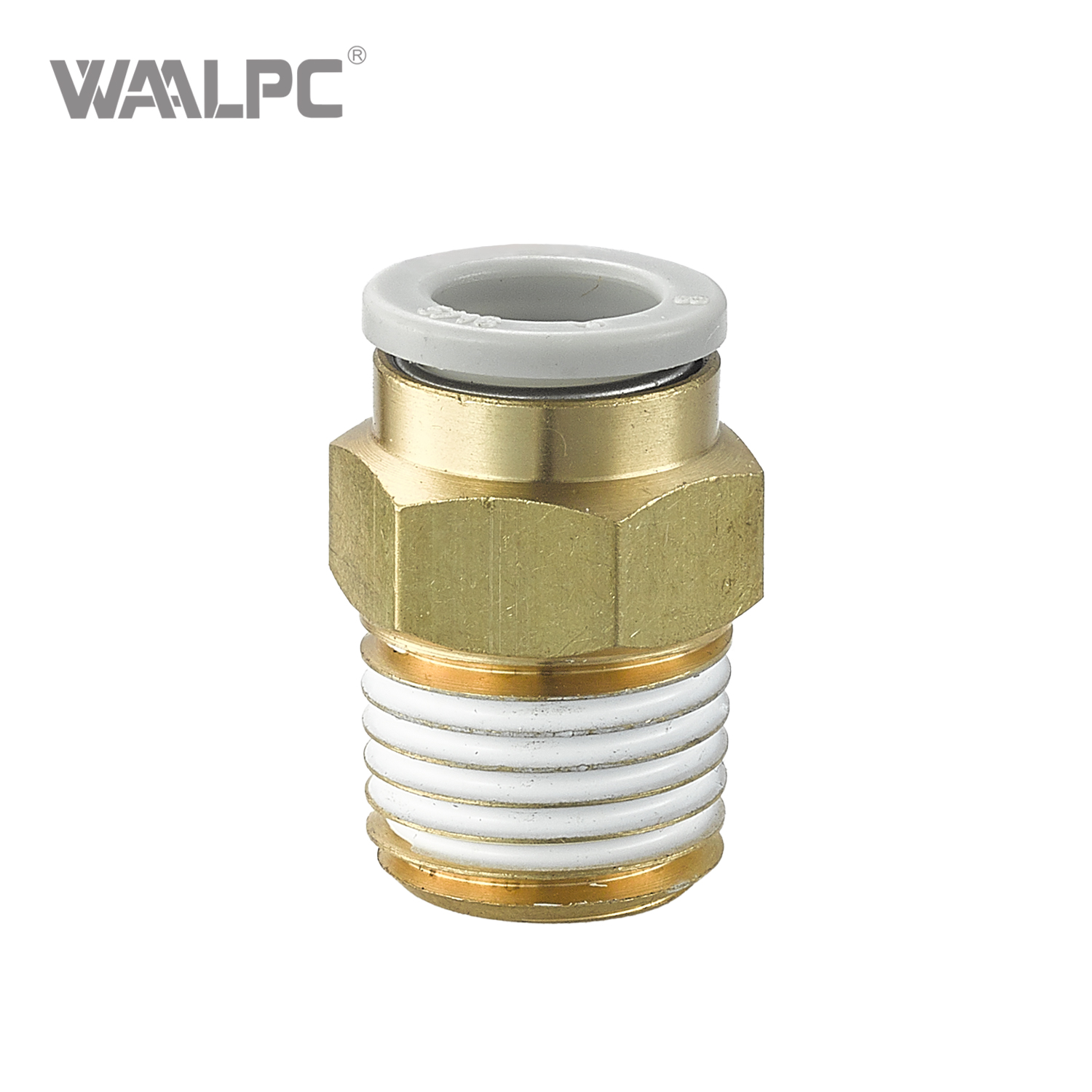

Straight-through connector: Y-KQ2H

Suitable for the outer diameter of the pipe (mm)	Connection thread (M)	H (Hexagonal opposite sides)	ΦD	L	A	M	Weight (g)
Φ3.2	1/8	10	6.8	14	10.9	13.3	6
	1/4	14	6.8	16.7	12	13.3	15.3
Φ4	1/8	10	7.9	14.3	11.2	13.3	5.6
	1/4	14	7.9	16.7	12	13.3	14.6
Φ6	1/8	10	9.8	18.6	15.3	13.3	5.8
	1/4	14	9.8	16.8	12	13.3	12.5
	3/8	17	9.8	18.1	13	13.3	24.5
Φ8	1/8	14	12.4	22.6	19.4	14.2	11.9
	1/4	14	12.4	21.9	17.3	14.2	13.9
	3/8	17	12.4	18.1	13	14.2	21
Φ10	1/8	17	14.8	24.3	20.7	15.6	16.9
	1/4	17	14.8	27.6	22.6	15.6	22.1
	3/8	17	14.8	23.6	18.4	15.6	22.5
	1/2	22	14.8	22.6	15.9	15.6	44.7
Φ12	1/4	19	17.3	29.1	24	17	24.3
	3/8	19	17.3	26.5	20.8	17	25.2
	1/2	22	17.3	22.6	15.9	17	37.7
Φ16	1/4	24	22	32.5	27.8	20.6	37.4
	3/8	24	22	33.1	28	20.6	42.4
	1/2	24	22	32.1	25.7	20.6	44.6

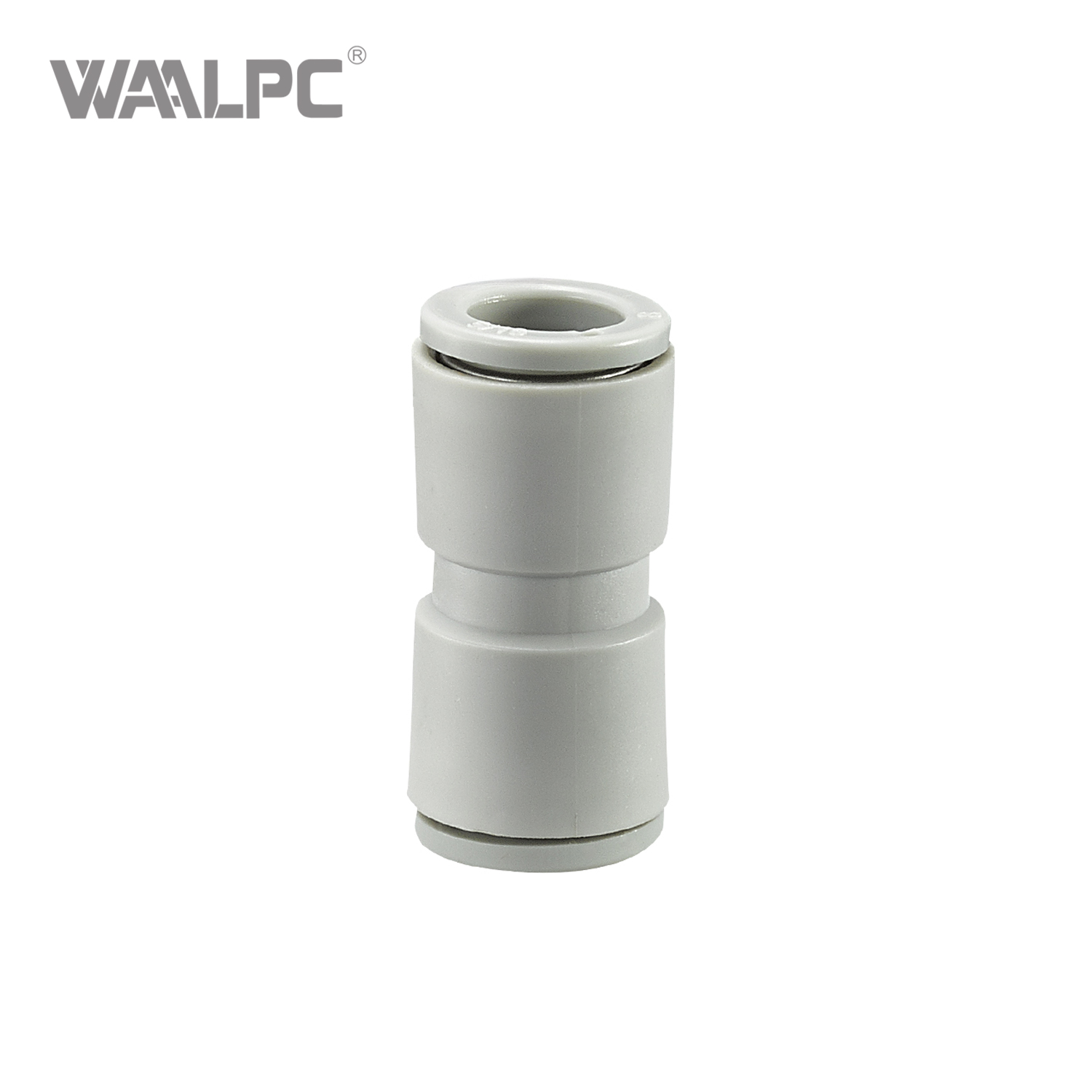

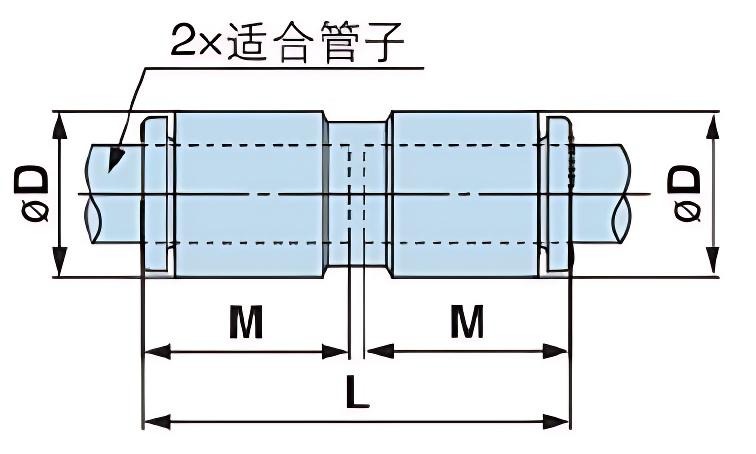

Straight-through connector: Y-KQ2H

Suitable for the outer diameter of the pipe	ΦD	L	M	Weight (g)
Φ2	6.1	24.8	11.9	0.8
Φ3.2	7.4	27.6	13.3	2.7
Φ4	8.8	27.4	13.3	3.2
Φ6	10.7	27.4	13.3	4.2
Φ8	13.6	29.3	14.2	3.7
Φ10	16.2	32.4	15.6	5.5
Φ12	19	35	17	8.2
Φ16	23.8	42.2	20.6	15.2

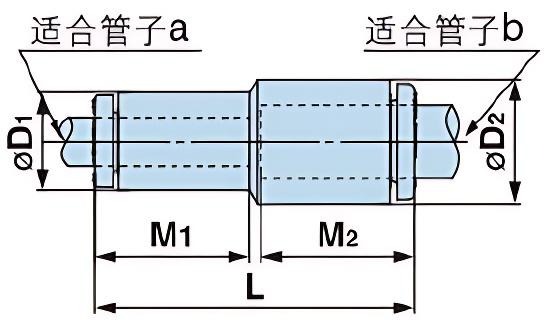

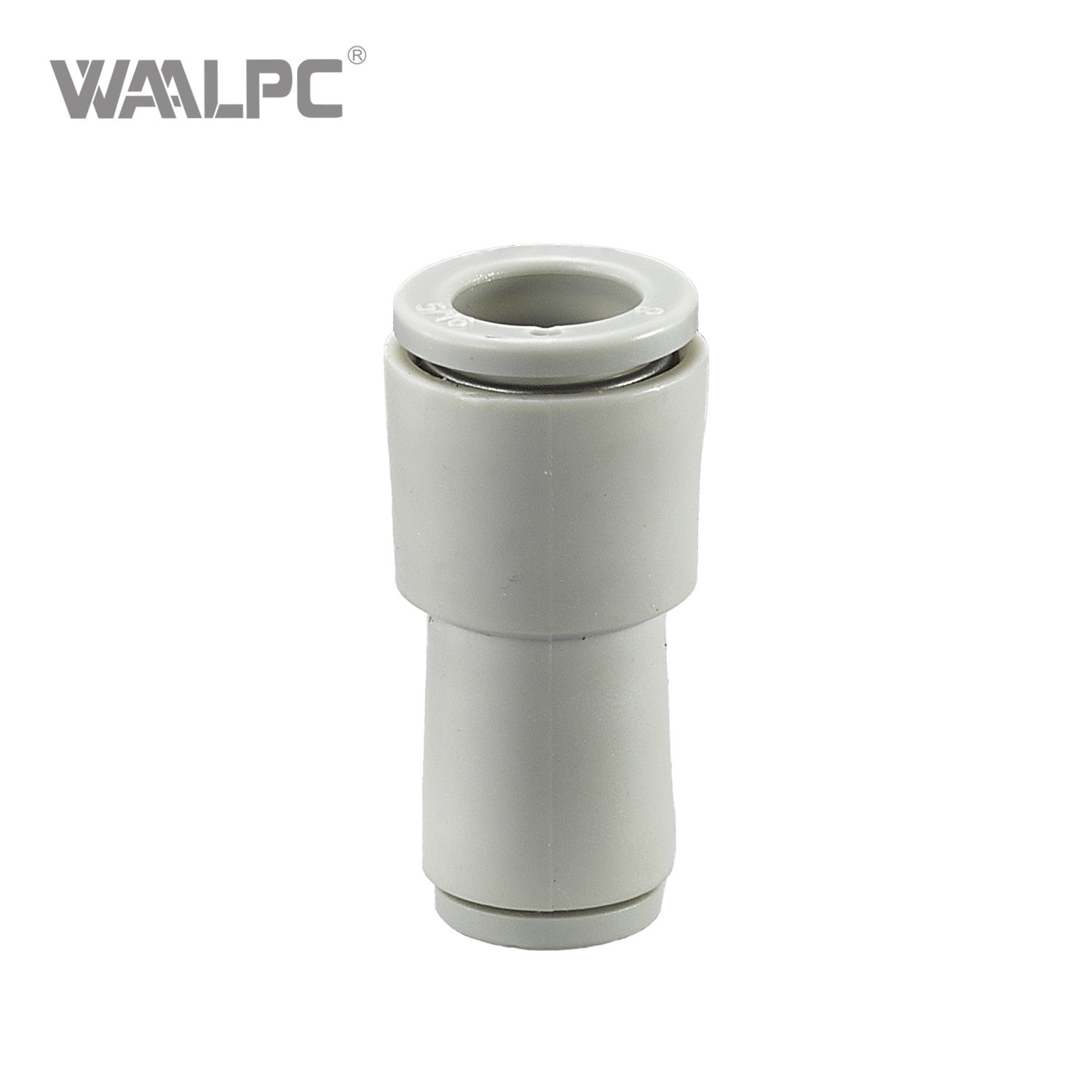

Different straight through connectors: Y-KQ2H

Suitable for the outer diameter of the pipe (mm)		ΦD1	ΦD2	L	M1	M2	Weight (g)
a	b
Φ2	Φ3.2	6.1	7.4	26.2	11.9	13.3	1.1
Φ2	Φ4	6.1	8.8	26.2	11.9	13.3	1.2
Φ3.2	Φ4	7.4	8.8	27.4	13.3	13.3	3
Φ4	Φ6	8.8	10.7	27.4	13.3	13.3	3.9
Φ6	Φ8	10.7	13.6	28.1	13.3	14.2	2.9
Φ8	Φ10	13.6	16.2	30.9	14.2	15.6	4.9
Φ10	Φ12	16.2	19	33.7	15.6	17	7.2
Φ12	Φ16	19	23.8	38.6	17	20.6	12.4

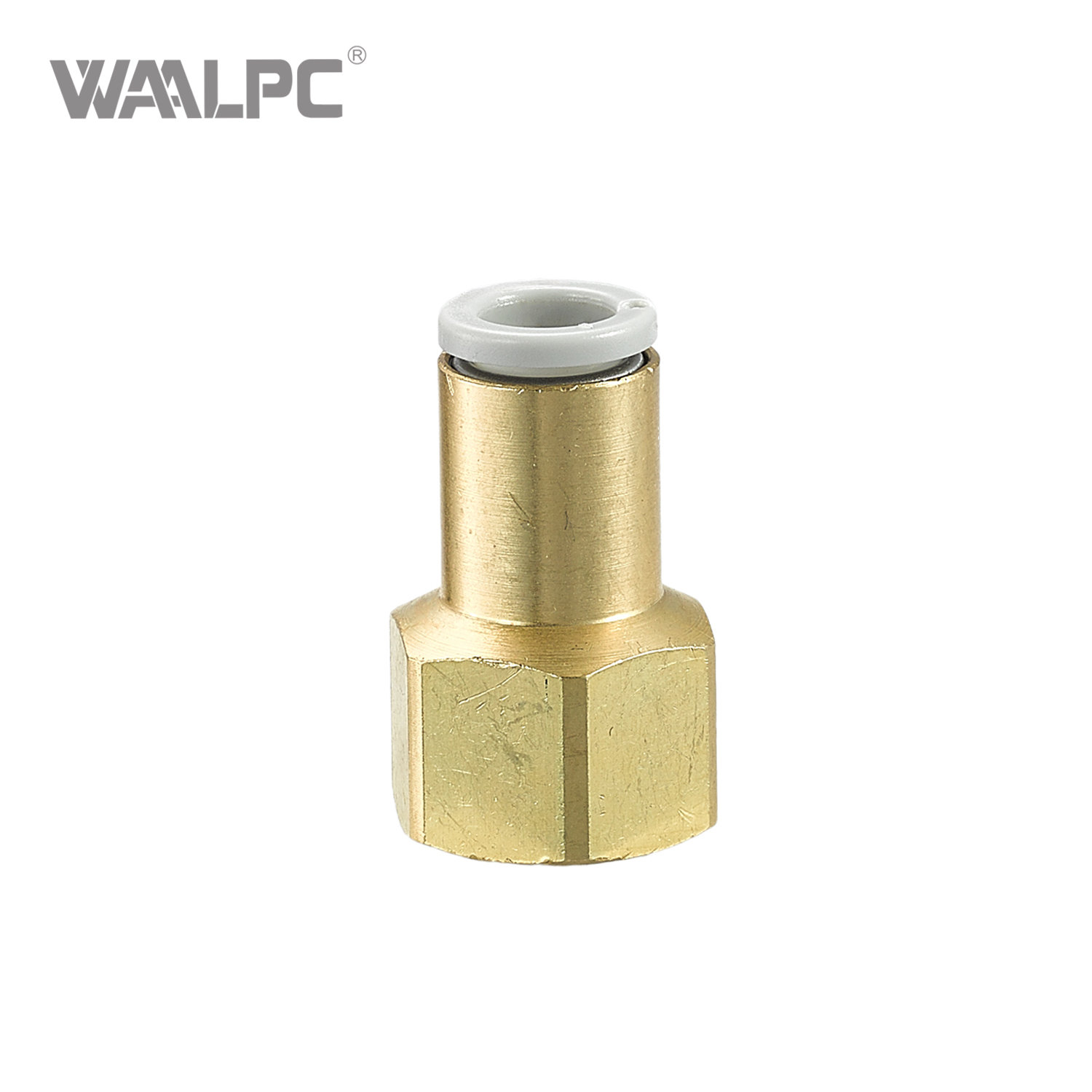

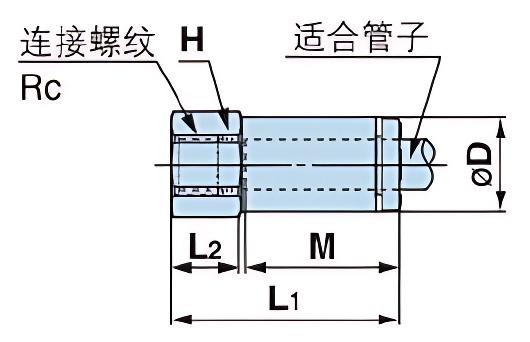

Internal thread straight-through joint: Y-KQ2F

Suitable for the outer diameter of the pipe (mm)	Connection thread (Rc)	H (Hexagonal opposite sides)	ΦD	L1	L2	M	Weight (g)
Φ3.2	M3x0.5	7	6.9	17.3	5.7	13.3	3.1
	M3x0.8	7	6.9	19.7	5.7	13.3	3.3
Φ4	M3x0.5	8	7.9	17.3	6	13.3	4.1
	M5x0.8	8	7.9	19.3	6	13.3	4.5
	1/8	14	8.0	23.8	9	13.3	12
	1/4	17	8.0	28.8	13	13.3	21.5
Φ6	M5x0.8	10	9.9	18.3	5.6	13.3	5.5
	1/8	14	10	23.8	8.8	13.3	12.2
	1/4	17	10	28.3	12.5	13.3	21.6
	3/8	19	10	29.8	13.5	13.3	22.7
Φ8	1/8	14	12.4	24.1	8.9	14.2	12.9
	1/4	17	12.4	28.8	12.8	14.2	22.1
	3/8	19	12.4	30.3	13	14.2	30.7
Φ10	1/4	17	14.9	30.1	13	15.6	24.2
	3/8	19	14.9	31.6	13.6	15.6	25.5
Φ12	1/4	19	17.4	31.1	12.8	17	32.6
	3/8	19	17.4	32.6	13.3	17	27.6
	1/2	24	17.4	36.6	16	17	46.3
Φ16	3/8	24	22	34.7	12.6	20.6	53.8
	1/2	24	22	38.7	15.9	20.6	51.6

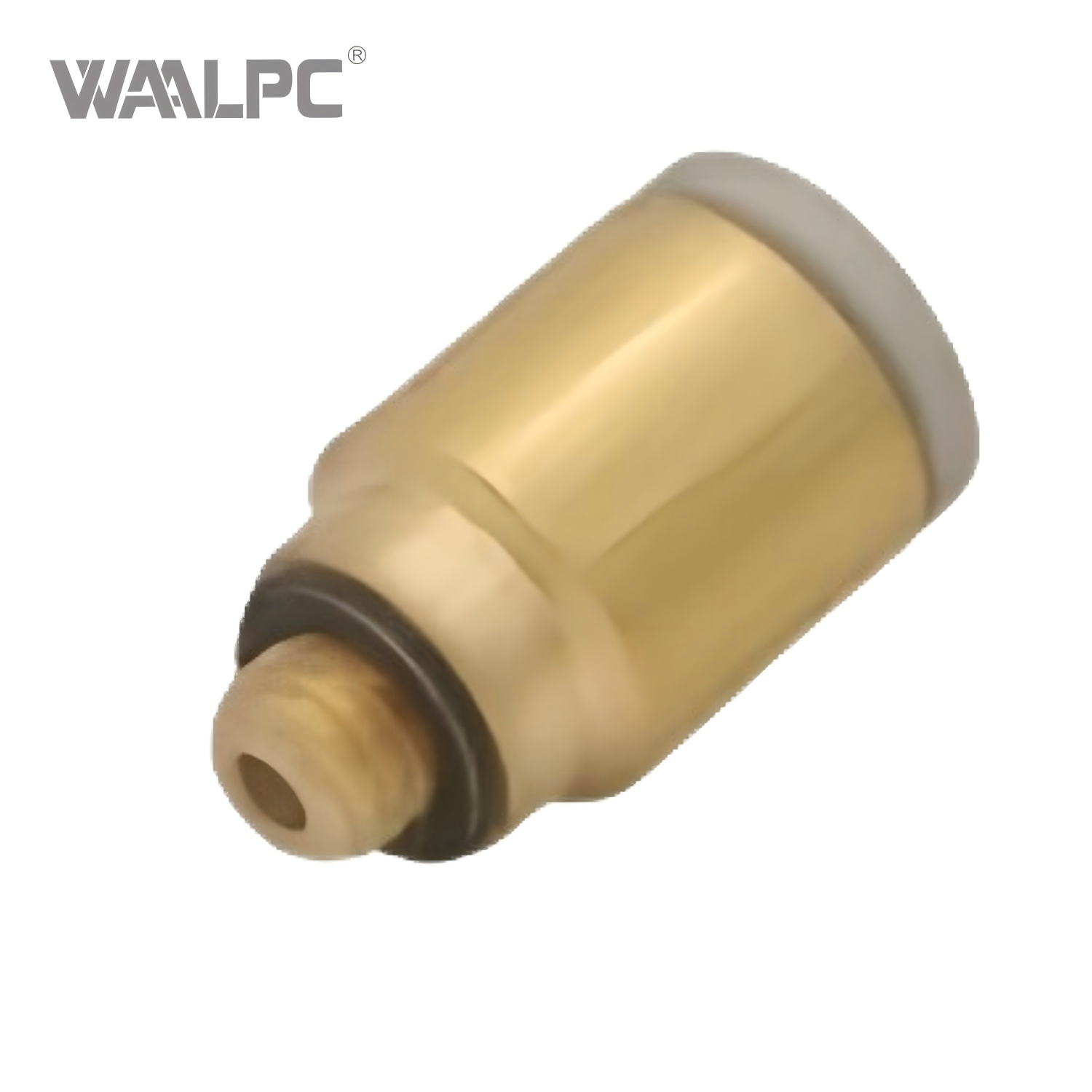

With hex socket straight-through connector: Y-KQ2S

Suitable for the outer diameter of the pipe (mm)	Connection thread (M)	H (Hexagonal opposite sides)	ΦD	L1	L2	A	M	Weight (g)
Φ2	M3x0.5	1.5	6	15.7	14.7	13.1	11.9	1.7
Φ3.2	M3x0.5	1.5	7	17.1	16.1	14.5	13.3	2.2
	M5x0.8	2	7	17.5	16.3	14.5	13.3	2.6
Φ4	M3x0.5	1.5	8	17.3	16.1	14.8	13.3	2.3
	M5x0.8	2	8	18.3	16.5	15.3	13.3	3
	M6x1.0	3	8	20.8	18.1	16.8	13.3	4.1
Φ6	M5x0.8	2	10	18.3	16.5	15.3	13.3	3.5
	M6x1.0	3	10	20.3	17.6	16.3	13.3	5.1
