SMC Type KQ2 Series One-Touch Push-in Fittings for 4mm 6mm 8mm Polyurethane Nylon Tubing

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

ORDERING CODE

SPECIFICATIONS

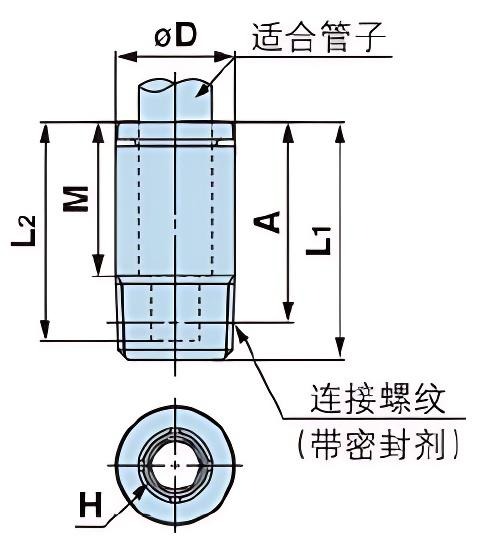

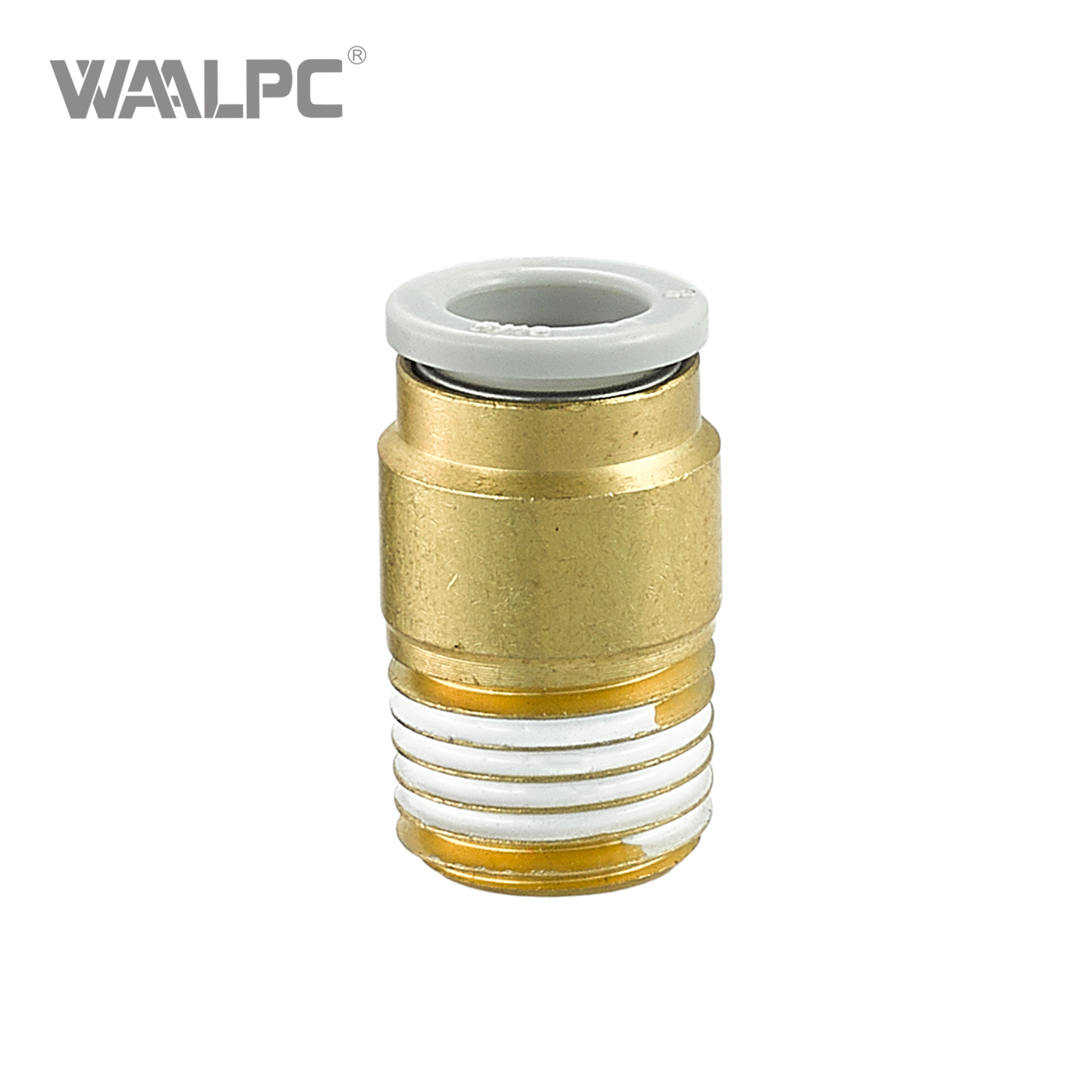

With hex socket straight-through connector: Y-KQ2S

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD	L1	L2	A	M	Weight (g)
Φ4	1/8	3	10	19.6	18.3	17.5	13.3	8.1
Φ6	1/8	4	10	20.3	18.7	17.2	13.3	6.5
	1/4	4	14	19.8	18.7	15.1	13.3	13.4
Φ8	1/8	5	13	23	19.7	19.8	14.2	10.2
	1/4	6	14	23.3	19.7	18.5	14.2	14.3
	3/8	6	17	20.8	19.7	15.6	14.2	21.1
Φ10	1/8	5	15	24.6	21.4	21.2	15.6	12
	1/4	8	15	24.8	21	19.9	15.6	12.4
	3/8	8	17	25.3	21	20	15.6	23.2
	1/2	8	22	21.6	20.5	14.7	15.6	37.4
Φ12	1/4	8	18	29.1	22.5	24.3	17	21
	3/8	10	18	26.6	22.8	21.3	17	21.2
	1/2	10	22	23.1	22	16.4	17	30.5
Φ16	1/4	8	23	32.5	25.1	27.8	20.6	25.7
	3/8	10	23	33.5	25.4	28.4	20.6	38.3
	1/2	12	23	33.4	26.1	27	20.6	43.5

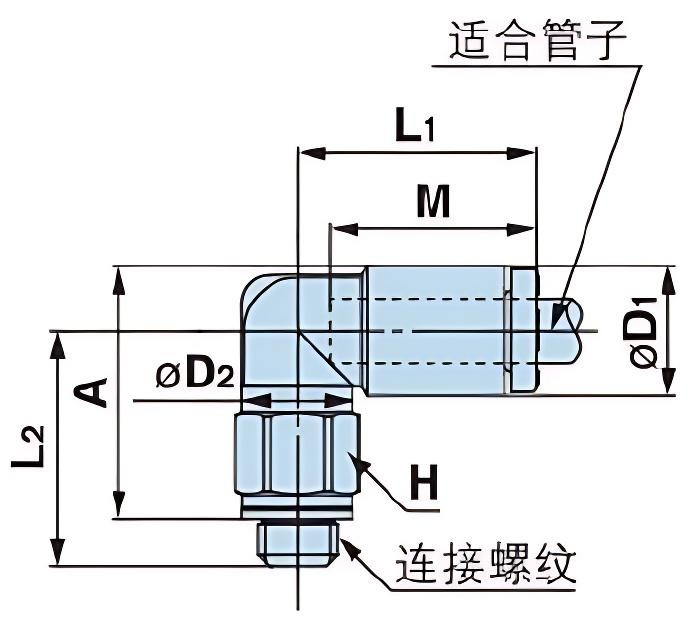

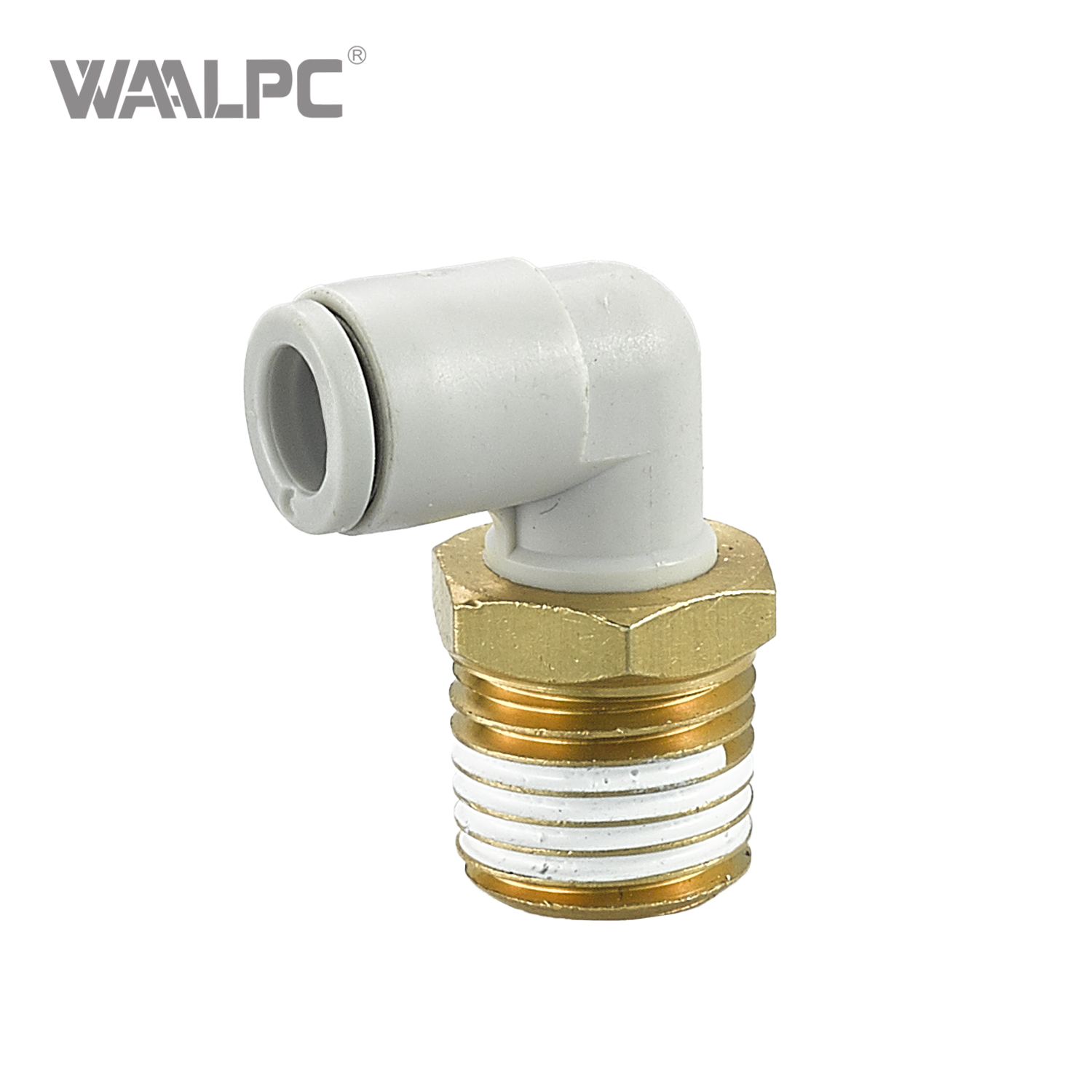

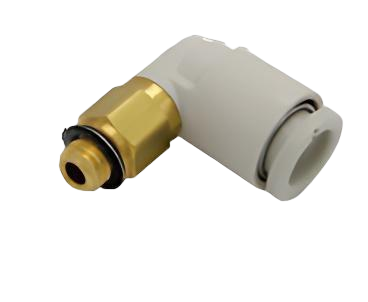

External thread elbow: Y-KQ2L

Suitable for the outer diameter of the pipe (mm)	Connection thread (M)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ2	M3x0.5	5.5	6.1	5.5	12.6	12.5	12.8	11.9	1.6
	M5x0.8	7	6.1	5.5	12.6	13	12.9	11.9	2.7
Φ3.2	M3x0.5	7	7.4	7	15.4	13.8	14.8	13.3	2.7
	M5x0.8	7	7.4	7	15.4	14.3	14.9	13.3	3.1
Φ4	M3x0.5	7	8.8	7	15.4	14.4	16.2	13.3	2.7
	M5x0.8	7	8.8	7	15.4	14.9	16.2	13.3	3.1
	M6x1.0	8	8.8	7	15.4	15.9	16.2	13.3	4.2
Φ6	M5x0.8	7	10.7	7	14.6	16.8	19.2	13.3	3.2
	M6x1.0	8	10.7	7	14.6	17.8	19.2	13.3	4.3

External thread elbow: Y-KQ2L

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ3.2	1/8	10	7.4	10	14.5	16.5	17.2	13.3	4.6
	1/4	14	7.4	10	14.5	20.6	20.1	13.3	14.1
Φ4	1/8	10	8.8	10	14.8	16.5	17.2	13.3	4.8
	1/4	14	8.8	10	14.8	20.6	20.1	13.3	14.3
Φ6	1/8	10	10.7	10	15.3	18.8	19.4	13.3	5.2
	1/4	14	10.7	10	15.3	22.9	23.3	13.3	14.7
	3/8	17	10.7	10	15.3	24.4	24.2	13.3	26.5
Φ8	1/8	10	13.6	10	16.3	19	22.2	14.2	6.1
	1/4	14	13.6	12	17.3	25.1	27.3	14.2	17.7
	3/8	17	13.6	12	17.3	25.6	27.0	14.2	24.7
Φ10	1/8	12	16.2	12	18.6	23.6	28.4	15.6	11.1
	1/4	17	16.2	17	19.3	28.7	31.9	15.6	21.7
	3/8	17	16.2	17	19.3	29.6	32.4	15.6	22.2
	1/2	22	16.2	17	19.3	33.6	35.1	15.6	44.6
Φ12	1/4	17	19	17	21.9	30.0	34.5	17	23.5
	3/8	17	19	17	21.9	30.9	35.0	17	24.1
	1/2	22	19	17	21.9	34.9	37.7	17	46.5
Φ16	1/4	17	23.8	17	25.1	32.6	39.8	20.6	27.8
	3/8	22	23.8	21	27.1	35.4	42.2	20.6	40.8
	1/2	22	23.8	21	27.1	34.1	39.6	20.6	44.5

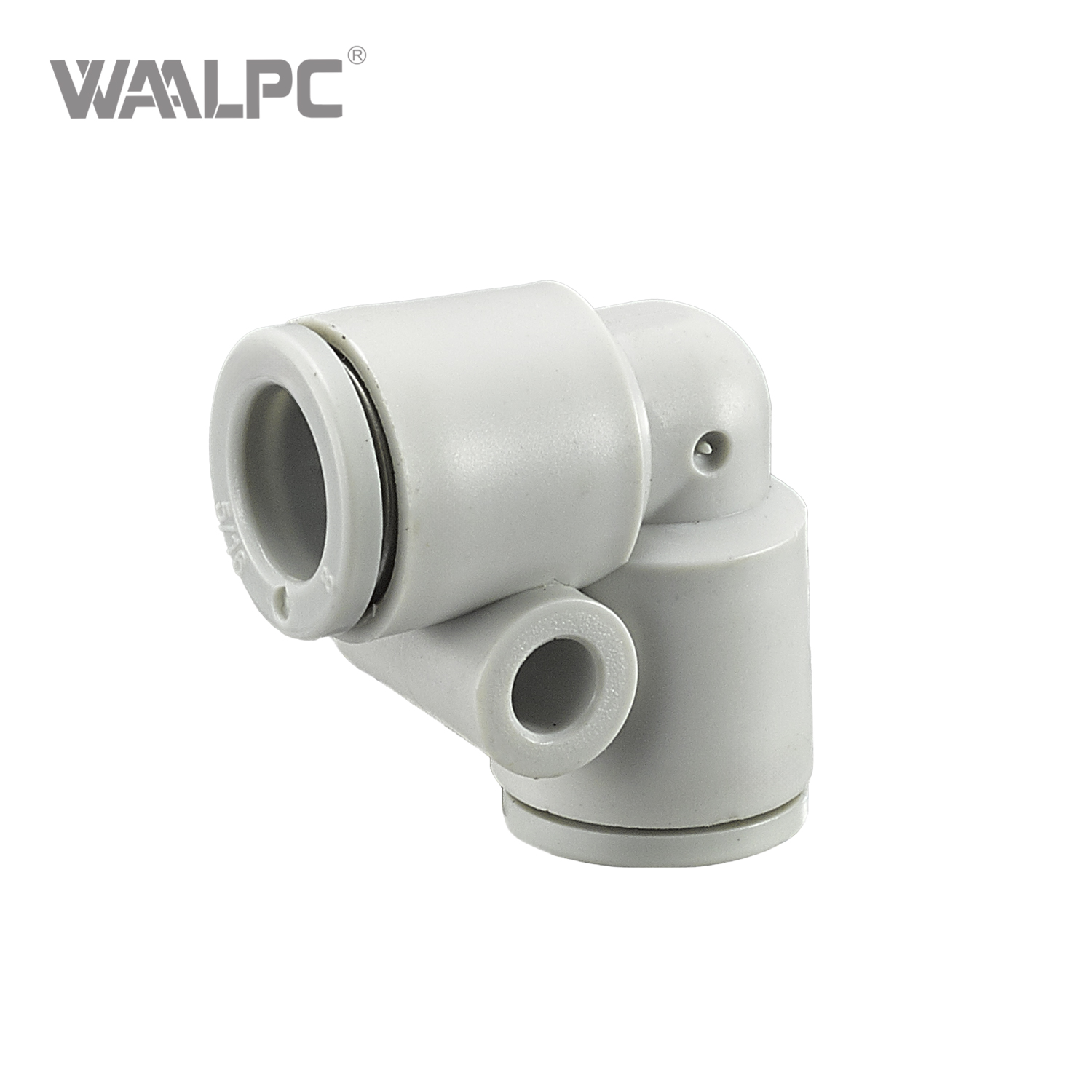

Bent pipe: K-KQ2L

Suitable for the outer diameter of the pipe (mm)	ΦD	L	Q	M	ΦO	ΦN	Weight (g)
Φ3.2	7.4	14.9	5.1	13.3	6	3.2	3.1
Φ4	8.8	15.3	5.7	13.3	6	3.2	3.8
Φ6	10.7	16.3	6.8	13.3	6	3.2	5.3
Φ8	13.6	18.3	8.4	14.2	8	4.2	4.7
Φ10	16.2	21.2	9.6	15.6	8	4.2	4.7
Φ12	19	23.1	10.7	17	8	4.2	7.1
Φ16	23.8	28.6	13.4	20.6	8	4.2	19.7

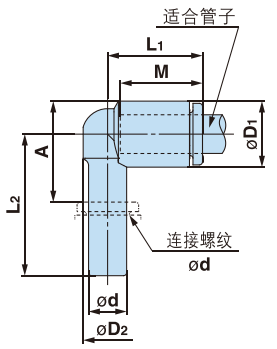

Intubation connector: Y-KQ2L

Suitable for the outer diameter of the pipe (mm)	Connection thread	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ3.2	Φ3.2	7.4	6.4	14.4	20.9	11.1	13	1.8
Φ4	Φ4	8.8	7.2	14.8	21.1	11.9	13	2.3
Φ6	Φ6	10.7	8	15.3	22.3	14.2	13	3.5
Φ8	Φ8	13.6	10	16.8	26	18.6	14	3
Φ10	Φ10	16.2	12	19.3	28.2	20.5	15	4.7
Φ12	Φ12	19	14	22.1	30.8	23.2	17	7
Φ16	Φ16	23.8	20	27.1	36.8	28.1	20	13.7

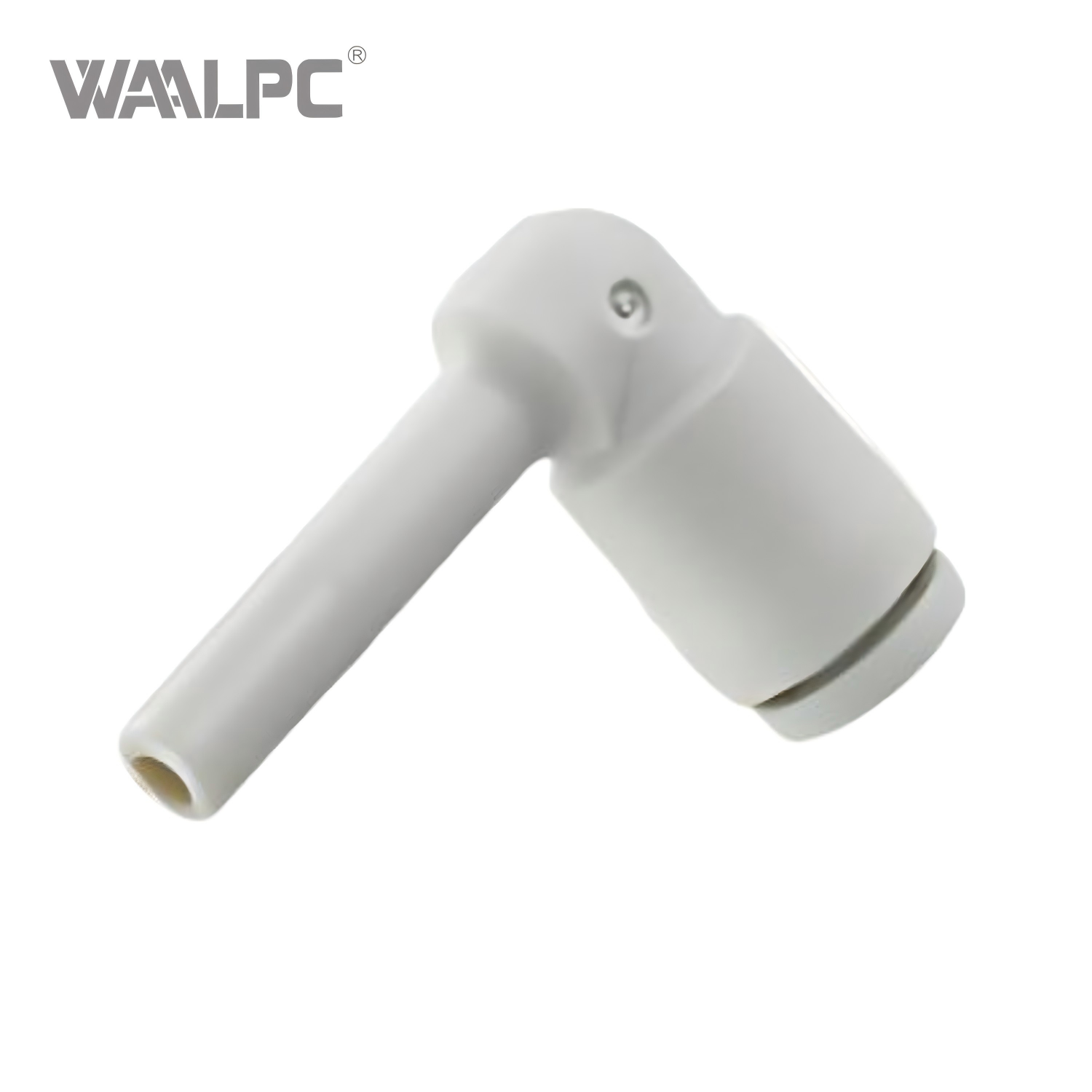

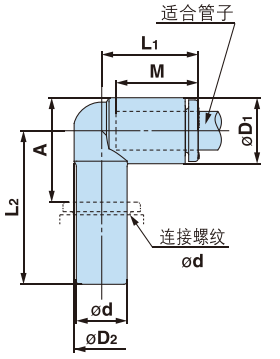

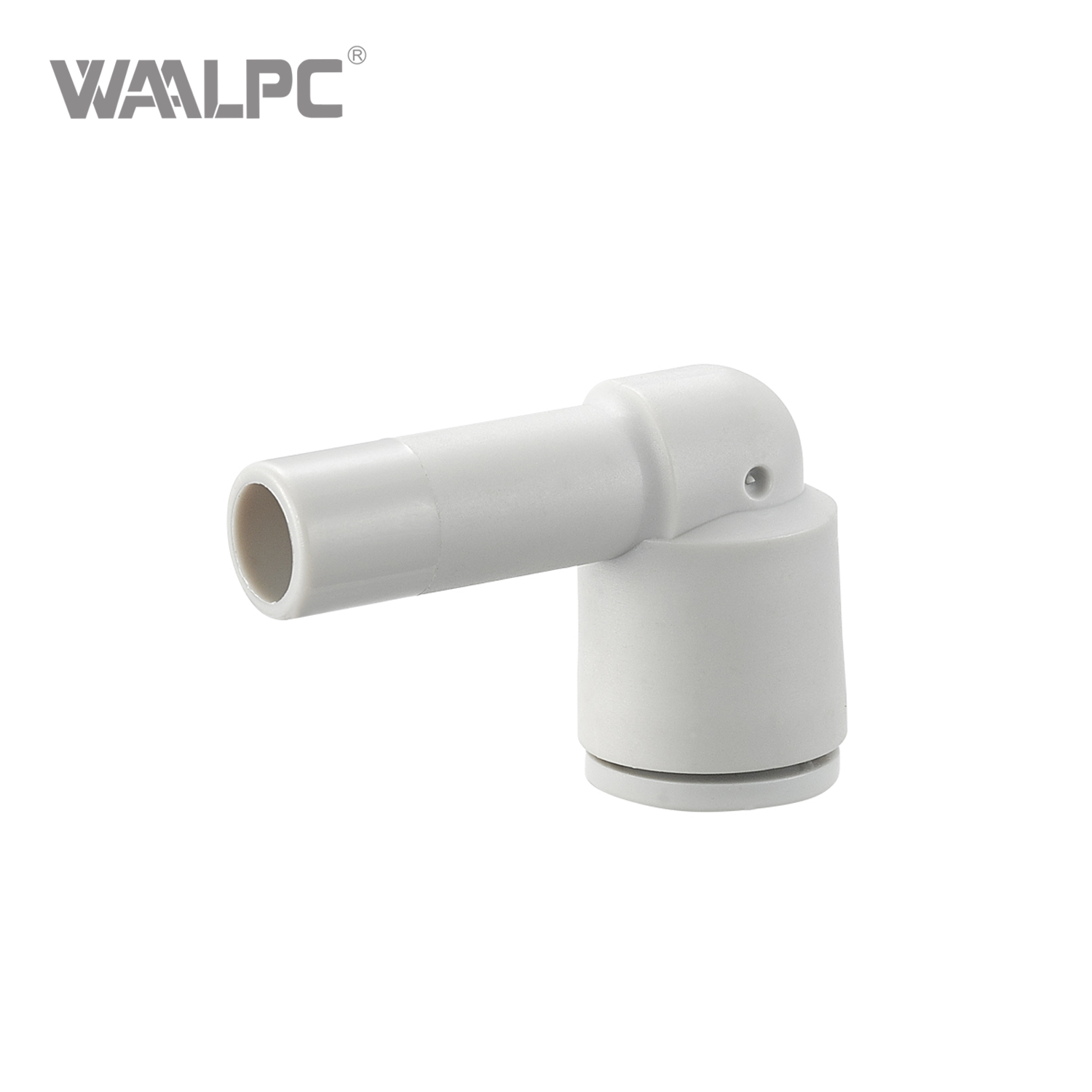

Intubation reduced-diameter elbow: Y-KQ2L

Suitable for the outer diameter of the pipe (mm)	Connection thread	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ3.2	Φ4	7.4	6.4	14.5	23.9	14.1	13.3	2.1
	Φ6	7.4	6.4	14.5	24.1	14.3	13.3	1.3
Φ4	Φ6	8.8	7.2	14.5	24.6	15.4	13.3	2.9
	Φ8	10.7	9	15.8	24.2	15.2	13.3	1.8
Φ6	Φ8	10.7	9	15.8	24.2	15.2	13.3	1.8
	Φ10	13.6	10	18.8	27.1	18.1	13.3	2.7
Φ8	Φ10	13.6	10	18.8	27.1	18.1	14.2	3.5
	Φ12	16.2	12	19.4	35.5	26.5	14.2	3.5
Φ10	Φ12	16.2	12	19.4	35.5	26.5	15.6	5.6
Φ12	Φ16	19	14	21.5	42.6	31.2	17	8.7
