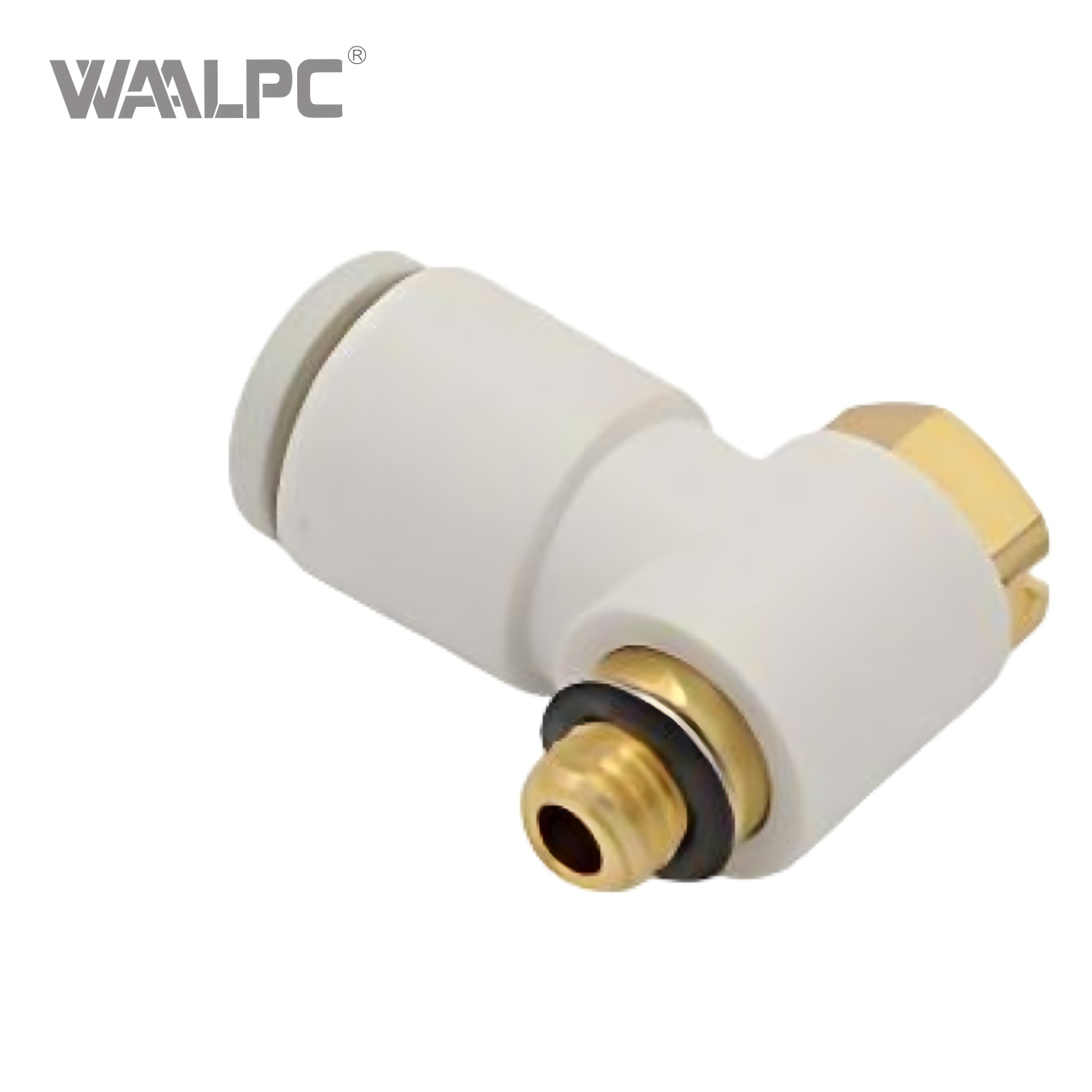

KQ Series Pneumatic Quick Couplings Reliable Fittings for Factory Automation And Packaging Machinery SMC Type

KQ Series Pneumatic Quick Couplings Reliable Fittings for Factory Automation And Packaging Machinery SMC Type


Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency.

Model:
KQ
Brand:
WAALPC
Code:
7307190000

Product Description

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

Technical Parameters

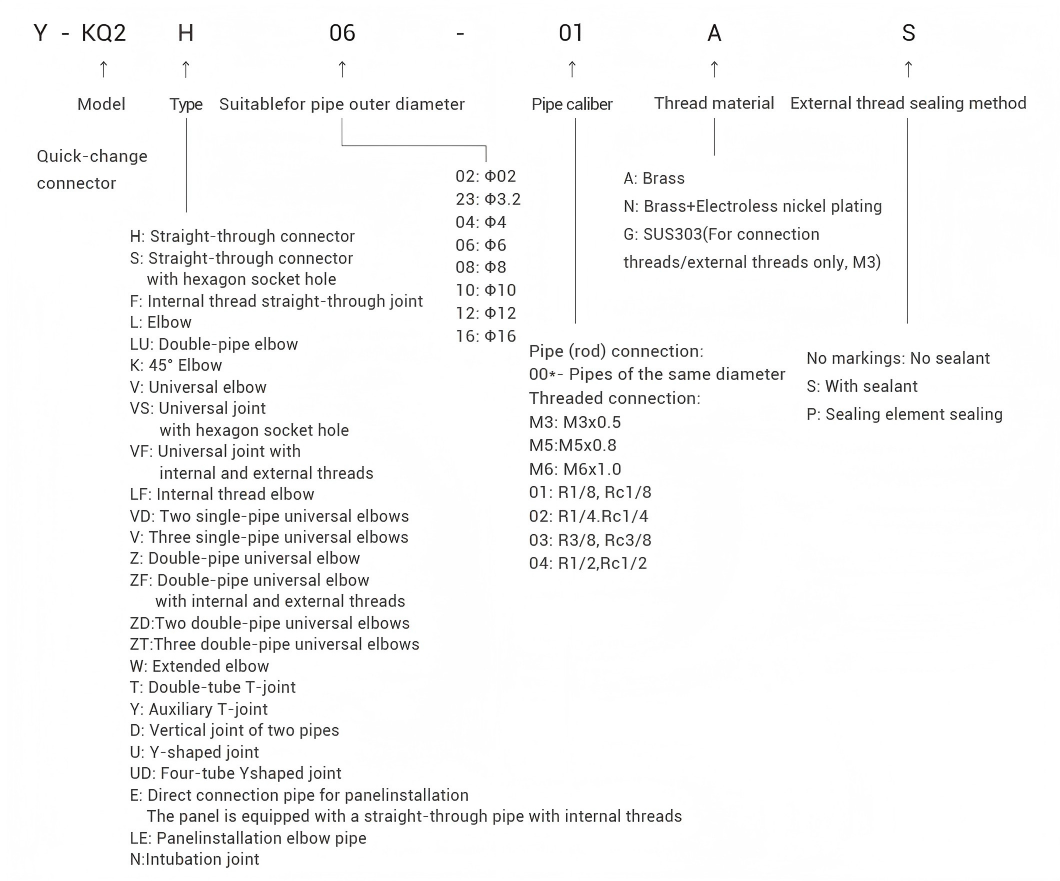

Ordering Code

SPECIFICATIONS

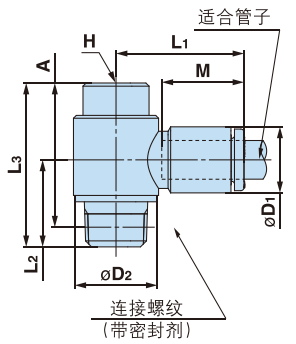

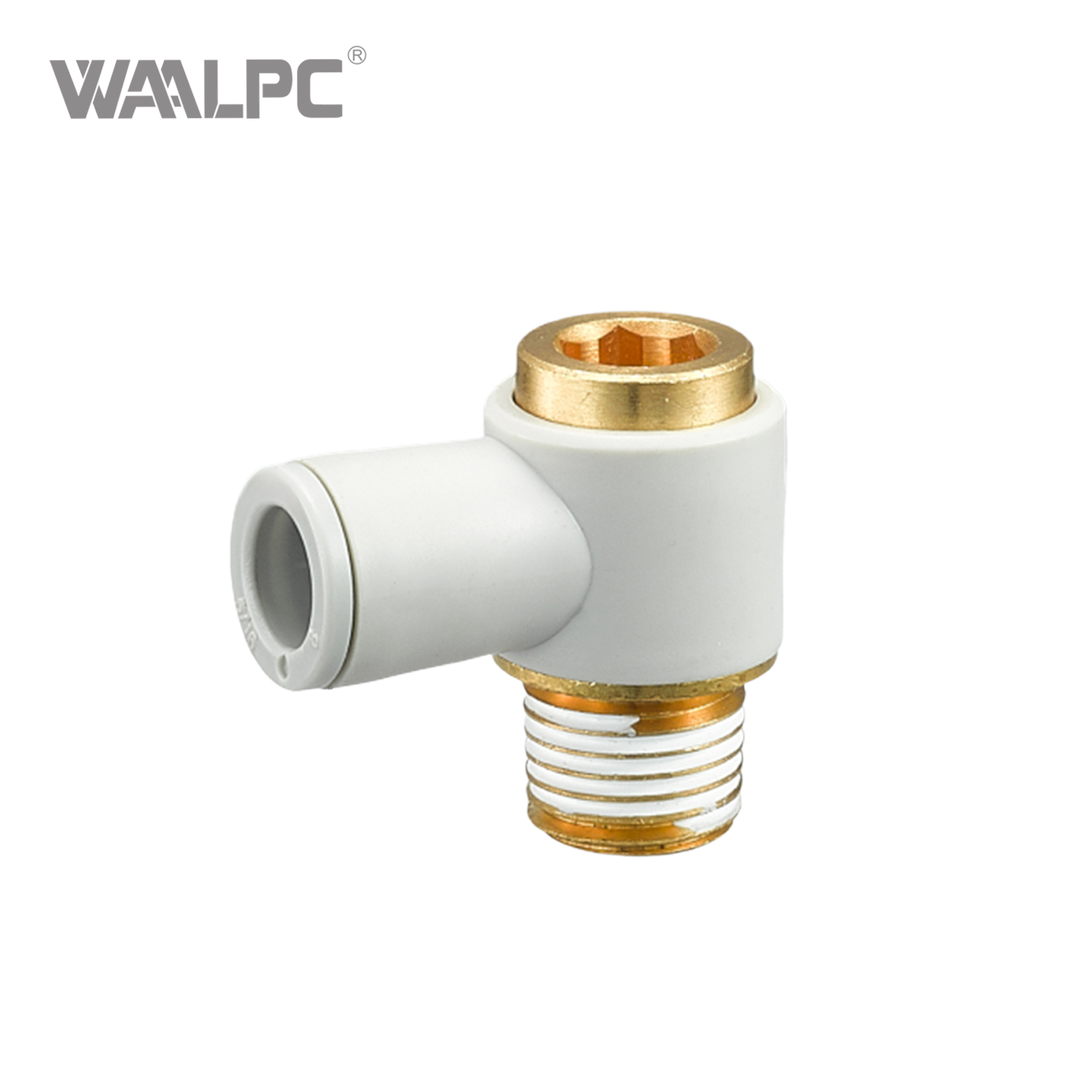

With internal hexagonal universal elbow: Y-KQ2VS

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	L3	A	M	Weight (g)
Φ4	1/8	6	8.8	13.4	19.1	13.9	25.8	22.7	13.3	13.2
Φ6	1/8	6	10.7	13.4	20.1	13.9	25.8	22.7	13.3	13.5
Φ6	1/4	6	10.7	15.3	20	17.7	26.5	21.8	13.3	20.8
Φ8	1/8	8	13.6	17.6	23.5	15.4	26	22.9	14.2	19.2
	1/4	8	13.6	17.6	23.5	18.6	29.5	24.8	14.2	25.7
	3/8	8	13.6	20.6	23.3	19.5	31.5	26.3	14.2	37
Φ10	1/4	8	16.2	20.6	26.4	19.9	31	26.1	15.6	30.4
Φ10	3/8	8	16.2	20.6	26.4	20.4	31.5	26.3	15.6	38.3
Φ12	3/8	10	19	25.2	28.6	21.7	35.0	30	17	51.4
Φ12	1/2	10	19	25.2	28.6	24.9	38.2	31.9	17	70

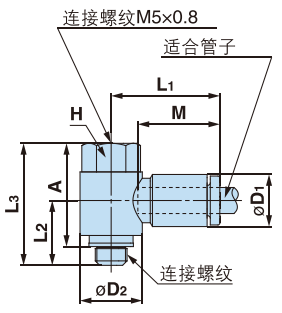

With internal hexagonal universal elbow: Y-KQ2VF

Suitable for the outer diameter of the pipe

(mm)

Connection thread

(M)

H

(Hexagonal opposite sides)

ΦD1

ΦD2

L1

L2

L3

A

M

Weight

(g)

Φ4

M5x0.8

8

8.8

9.8

17.4

10.9

19.2

16.2

13.3

5.5

Φ6

M5x0.8

8

10.7

9.8

17.9

10.9

19.2

16.2

13.3

5.8

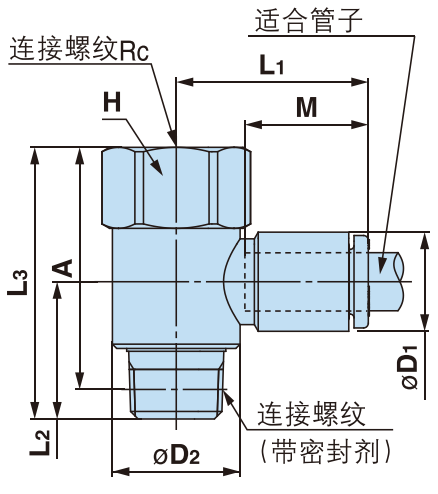

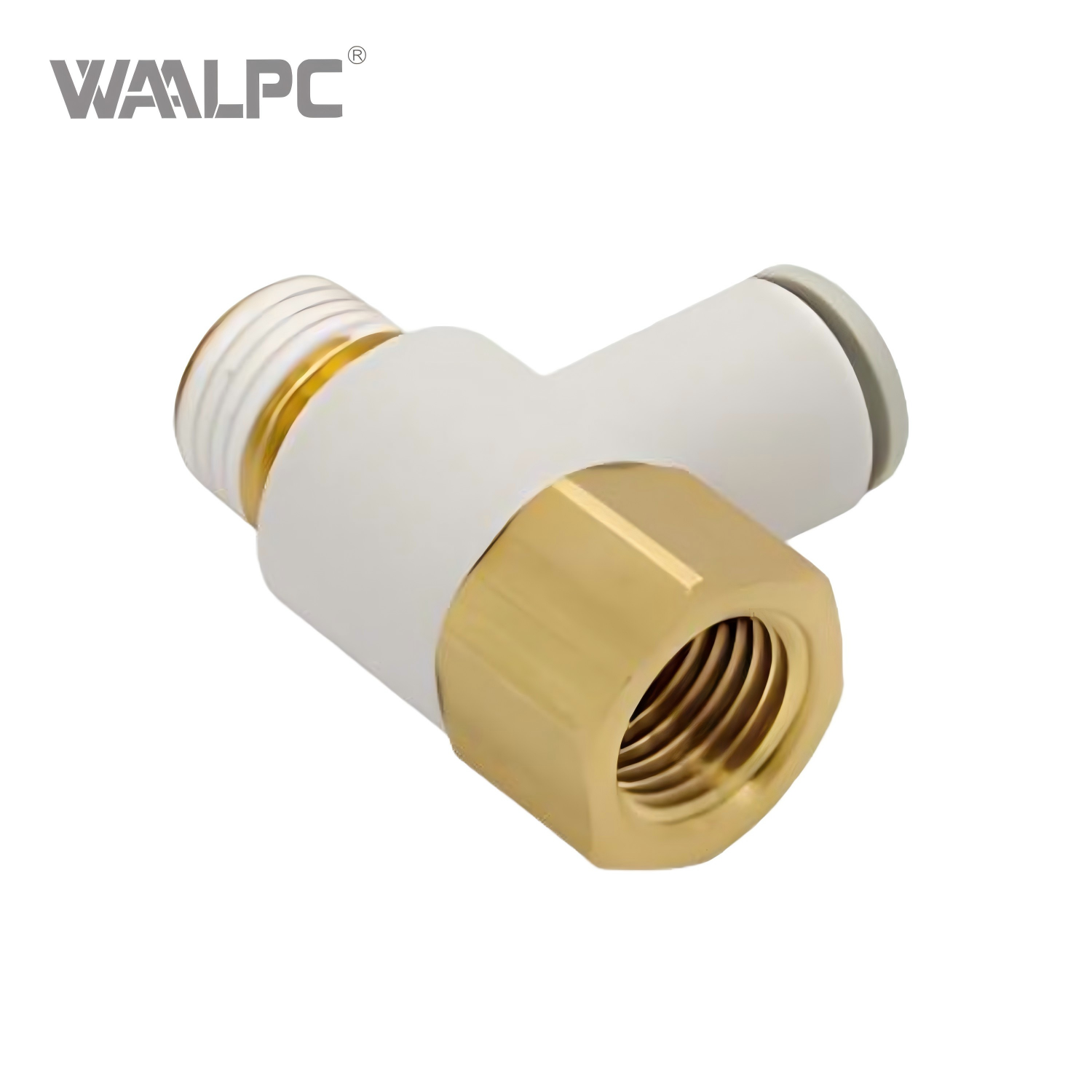

With hexagon socket elbow: Y-KQ2VF

带内六角万向弯头 Y-KQVF（密封剂）带内六角万向弯头 Y-KQ2VF（密封剂）

Suitable for the outer diameter of the pipe (mm)	Connection thread R, Rc	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	L3	A	M	Weight (g)
Φ4	1/8	14	8.8	13.4	19.1	14.4	28.7	25.4	13.3	17.3
Φ6	1/8	14	10.7	13.4	20.1	14.4	28.7	25.4	13.3	17.6
Φ6	1/4	17	13.6	17.6	23.5	18.4	38	33.2	13.3	37
Φ8	1/8	17	13.6	17.6	23.5	15.7	30	26.9	14.2	27.5
	1/4	17	13.6	17.6	23.5	18.4	38	33.2	14.2	38.1
	3/8	22	13.6	25.2	26	19.7	44	38.9	14.2	64.5
Φ10	1/4	19	16.2	20.6	25.9	19.4	40.5	35.6	15.6	46.4
Φ10	3/8	22	13.6	25.2	26	19.7	44	38.9	14.2	64.5
Φ12	3/8	22	19	25.2	28.5	20.9	44	38.9	17	67.2
Φ12	1/2	24	19	27	29.9	24	48.9	42.5	17	95.6

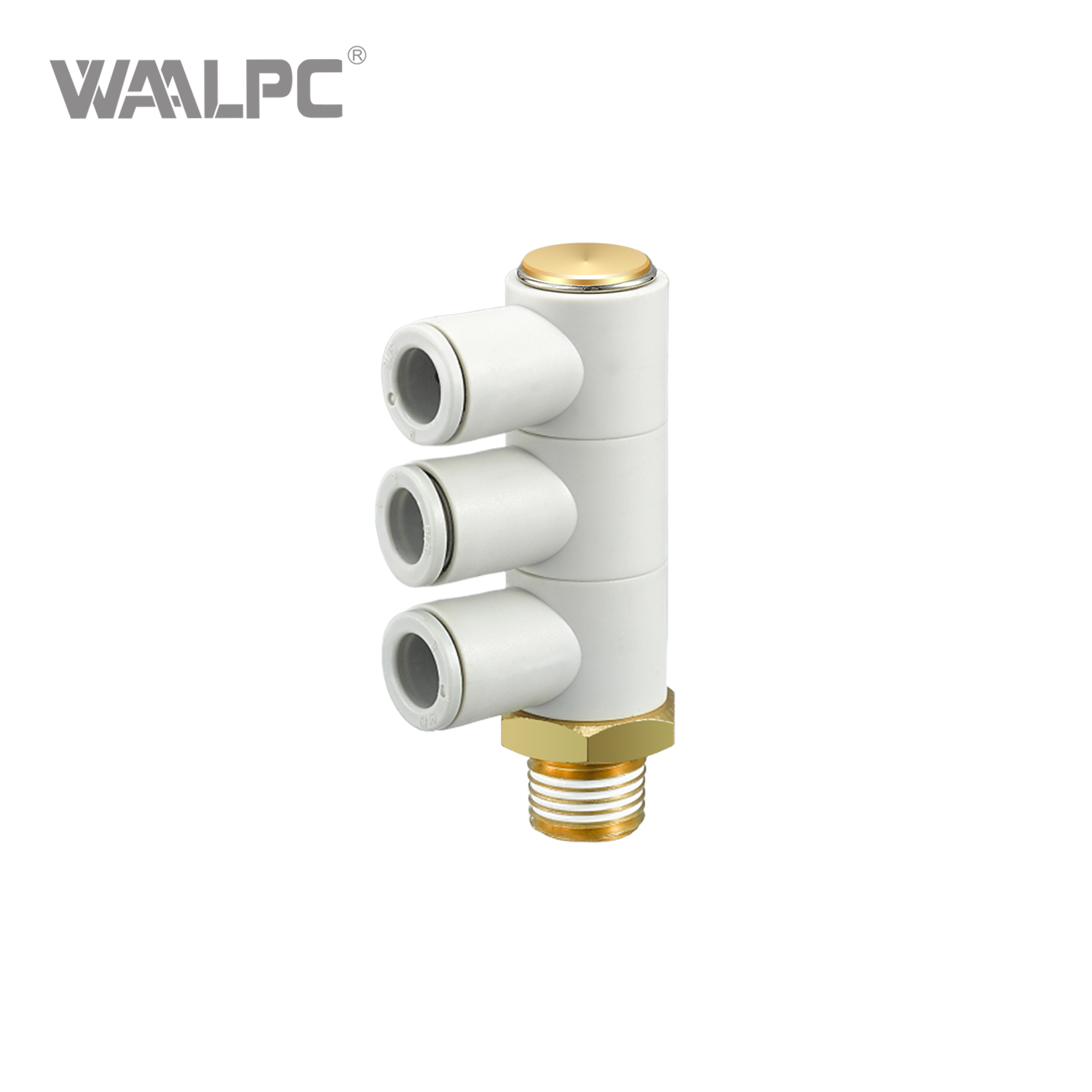

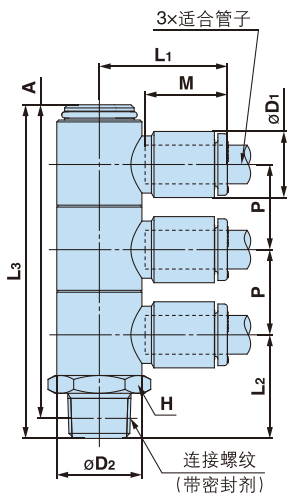

Three single-pipe universal elbows: Y-KQ2VT

Y-KQ2VT 三个单管万向弯头 Y-KQ2VT

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	L3	A	M	P	Weight (g)
Φ4	1/8	14	8.8	13.4	19.3	17	52.5	49.4	13.3	13.5	25.3
	1/4	14	8.8	13.4	19.3	21.2	56.7	52.2	13.3	13.5	32.9
	3/8	17	8.8	13.4	19.3	22.5	58	53.2	13.3	13.5	44.8
Φ6	1/8	14	10.7	13.4	20.1	17	52.5	49.4	13.3	13.5	26.2
	1/4	14	10.7	13.4	20.1	21.2	56.7	52.2	13.3	13.5	33.9
	3/8	17	10.7	13.4	20.1	22.5	58	53.2	13.3	135	45.8
Φ8	1/8	19	13.6	17.6	23.6	19.3	61.3	58.7	14.2	16	59.6
	1/4	19	13.6	17.6	23.6	22.5	64.5	60.5	14.2	16	56.8
	3/8	19	13.6	17.6	23.6	23	65	60.7	14.2	16	64.9
	1/2	22	13.6	17.6	23.6	27.2	69.3	63.6	14.2	16	91.5
Φ10	1/4	21	16.2	20.6	26.4	24.3	74.1	70.8	15.6	27	82
	3/8	21	16.2	20.6	26.4	24.8	74.6	70.8	15.6	27	81.9
	1/2	22	16.2	20.6	26.4	28.5	78.3	73.5	15.6	27	103.9
Φ12	1/4	26	19	25.2	29.1	26.8	82.7	79.4	17	39	139.3
	3/8	26	19	25.2	29.1	27.3	83.2	79.4	17	39	129.7
	1/2	26	19	25.2	29.1	30.5	86.4	81.3	17	39	142.2

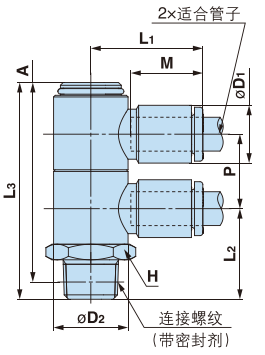

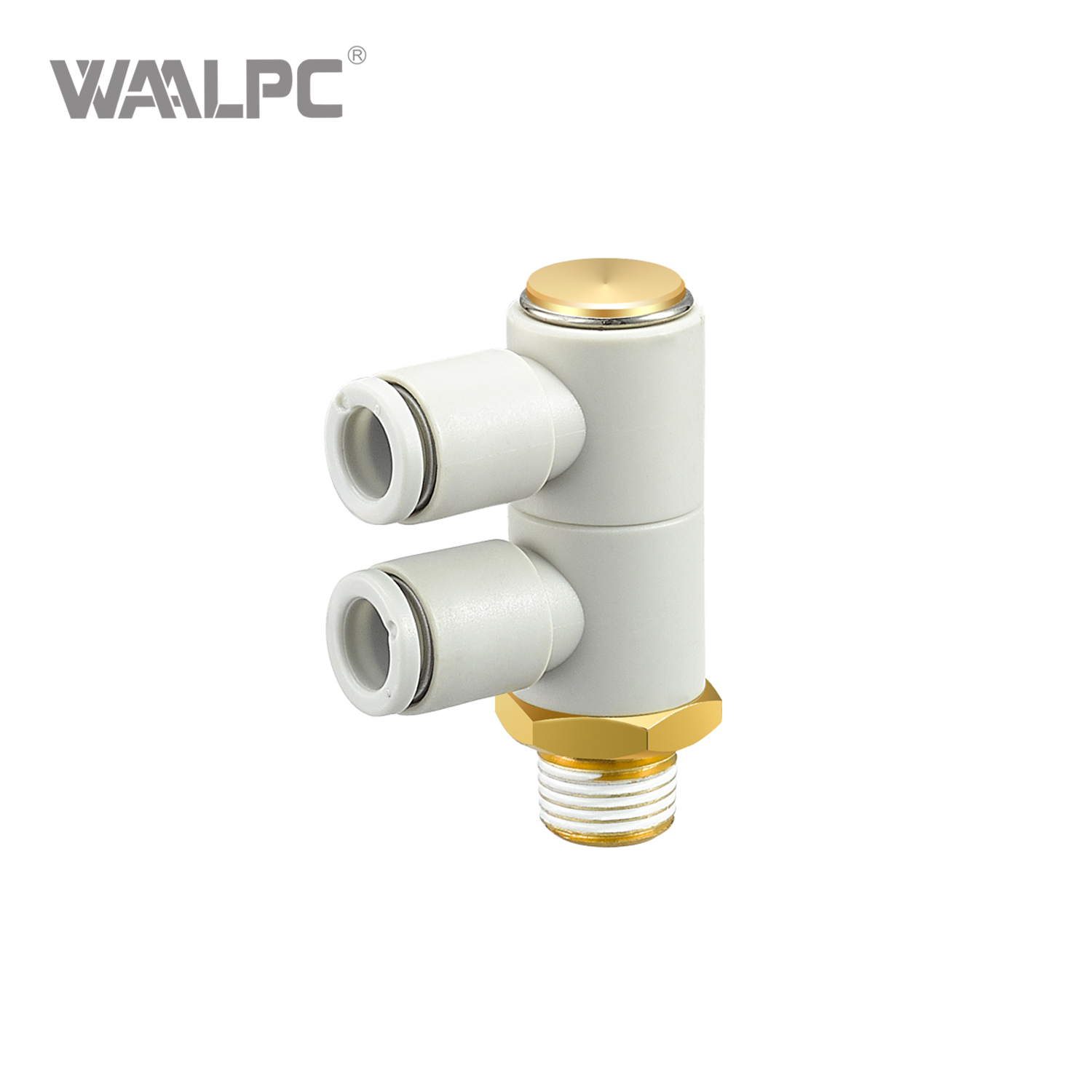

Two single-pipe universal elbows: Y-KQ2VD

Y-KQ2VD 两个单管弯头 Y-KQ2VD

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	L3	A	M	P	Weight (g)
Φ4	1/8	14	8.8	13.4	19.3	17	39.1	35.9	13.3	13.5	19.7
	1/4	14	8.8	13.4	19.3	21.2	43.3	38.7	13.3	13.5	27.4
	3/8	17	8.8	13.4	19.3	22.5	44.6	39.7	13.3	13.5	39.3
Φ6	1/8	14	10.7	13.4	20.1	17	39.1	35.9	13.3	13.5	20.3
	1/4	14	10.7	13.4	20.1	21.2	43.3	38.7	13.3	13.5	28
	3/8	17	10.7	13.4	20.1	22.5	44.6	39.7	13.3	13.5	39.9
Φ8	1/8	19	13.6	17.6	23.6	19.3	45.4	42.7	14.2	16	45.1
	1/4	19	13.6	17.6	23.6	22.5	48.6	44.5	14.2	16	44.3
	3/8	19	13.6	17.6	23.6	23	49.1	44.7	14.2	16	52.3
	1/2	22	13.6	17.6	23.6	27.2	53.4	47.6	14.2	16	78.4
Φ10	1/4	21	16.2	20.6	26.4	24.3	55.3	51.5	15.6	27	63.1
	3/8	21	16.2	20.6	26.4	24.8	55.8	51.5	15.6	27	65.1
	1/2	22	16.2	20.6	26.4	28.5	59.5	53.6	15.6	27	87
Φ12	1/4	26	19	25.2	29.1	26.8	61.5	57.7	17	39	107
	3/8	26	19	25.2	29.1	27.3	62	57.7	17	39	102.1
	1/2	26	19	25.2	29.1	30.5	65.2	59.6	17	39	116.1

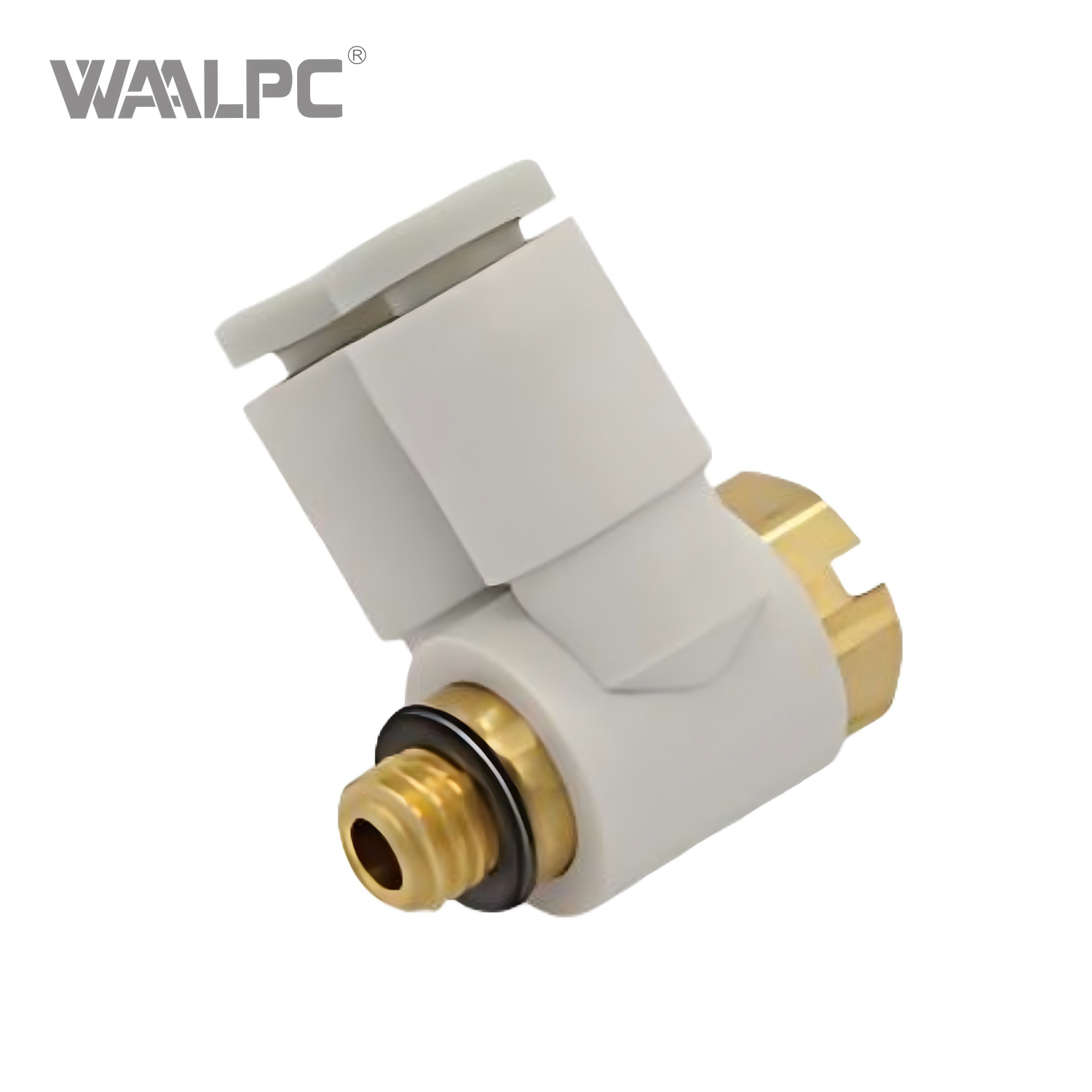

Double-pipe universal elbow: Y-KQ2Z

双管万向弯头 Y-KQ2Z 双管万向弯头 Y-KQ2Z（密封垫）

Suitable for the outer diameter of the pipe

(mm)

Connection thread

(M)

H

(Hexagonal opposite sides)

ΦD1

ΦD2

L1

L2

L3

A

M

P

Weight

(g)

Φ4

M5x0.8

8

8.8

9.8

16.5

10.9

18.4

15.4

13.3

8.8

6.2

Specification Download

Connectors detailed parameters KQ Series.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
