$One-way Throttle Valve G1½ Pneumatic Air Flow Speed Control Valve KLA-40$

$One-way Throttle Valve G1½ Pneumatic Air Flow Speed Control Valve KLA-40$ $One-way Throttle Valve G1½ Pneumatic Air Flow Speed Control Valve KLA-40$

Industrial One Way Restrictive Air Flow Control Valve Adjustable Flow Regulation for Pneumatic Applications

$One-way Throttle Valve G1½ Pneumatic Air Flow Speed Control Valve KLA-40$

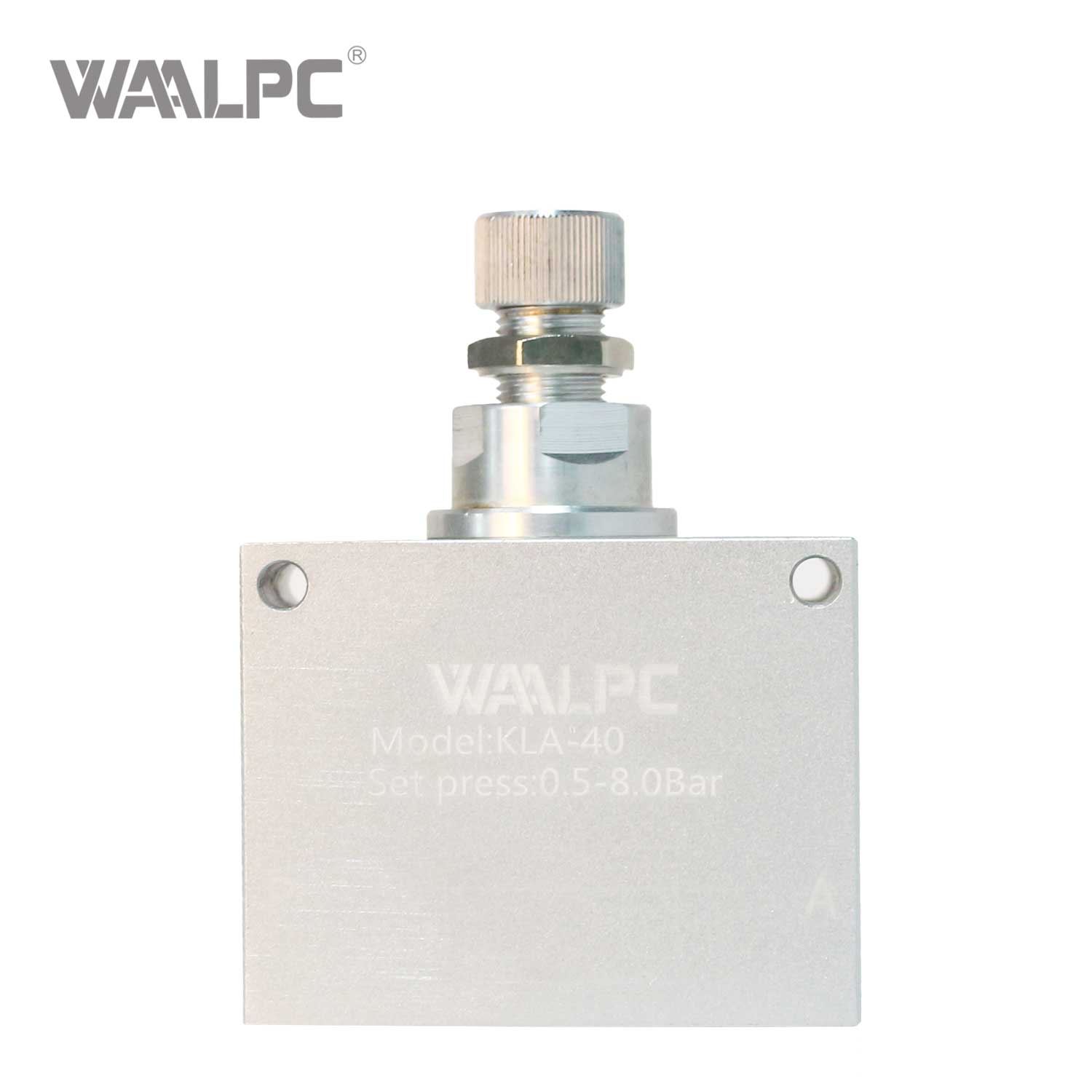

One-way Throttle Valve G1½ Pneumatic Air Flow Speed Control Valve KLA-40


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

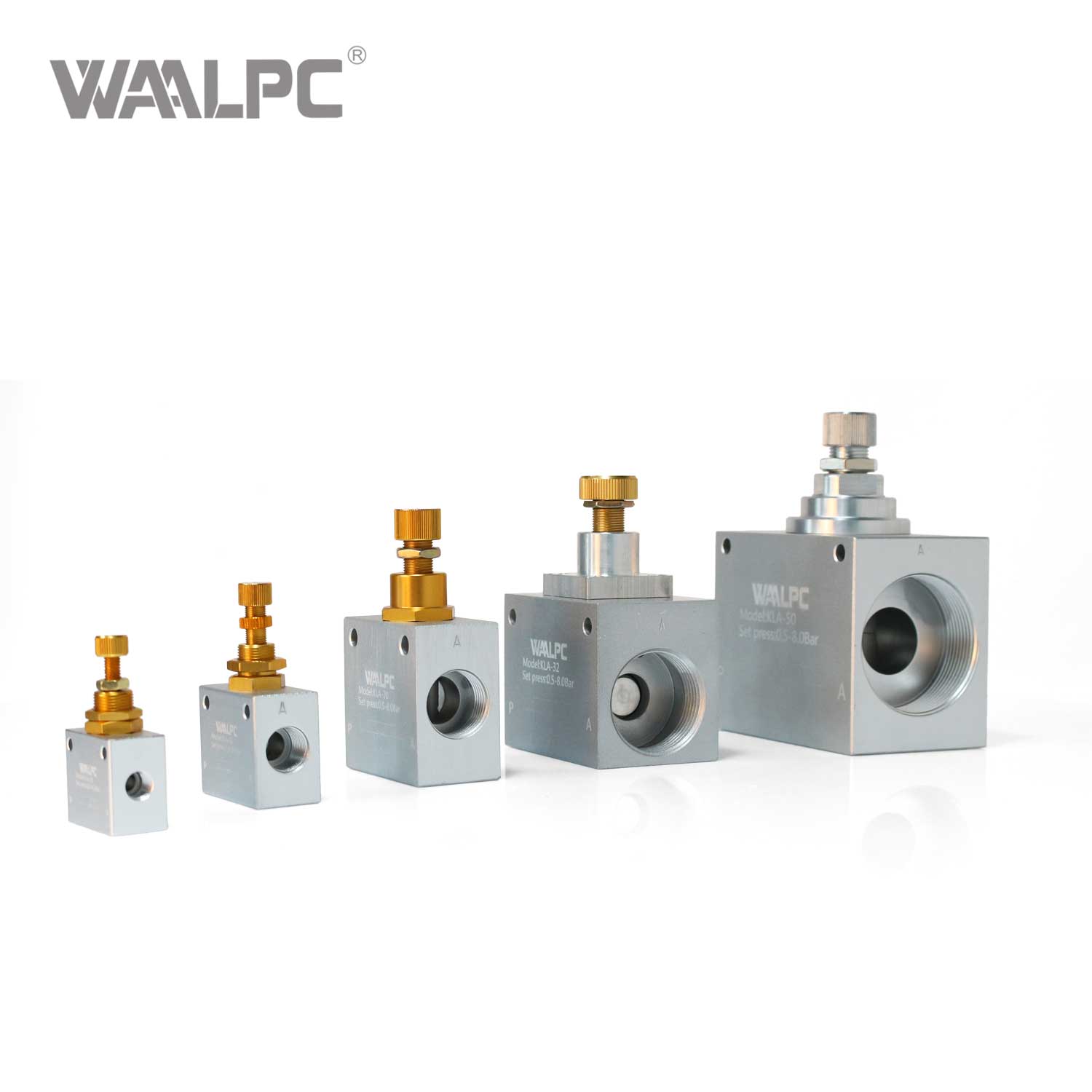

The One-Way Restrictive Air Flow Control Valve KLA Serie is engineered to meet the diverse needs of modern industrial systems, delivering unparalleled control over fluid flow in a single direction. Designed for seamless integration into pneumatic and hydraulic applications, these valves combine high - performance functionality with robust construction, ensuring reliable operation across a wide range of demanding environments.

Model:
KLA-40
Brand:
WAALPC
Code:
8481300000

Product Description

One-Way Restrictive Air Flow Control Valve Advantages

One-Way Restrictive Air Flow Control Valve

Adjustable Flow Control

The KLA series features a finely - tuned adjustment mechanism that allows for precise control of fluid flow rates. Whether you need to regulate the speed of a pneumatic cylinder or manage the flow in a hydraulic circuit, these valves enable smooth, accurate adjustments, reducing the risk of jerky movements or system inefficiencies.

One - Way Functionality

The built - in one - way design ensures that fluid flows freely in one direction while providing adjustable resistance in the opposite direction. This unique feature is ideal for applications where controlled deceleration or extension of actuators is required, preventing sudden drops in pressure or unwanted movement.

One-Way Restrictive Air Flow Control Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Data sheet

Model		KLA-06	KLA-08	KLA-10	KLA-15
Working Medium		Air
Working-pressure Range		0.5~9.5Kgf/cm²
Ensured Pressure resistance		15.0Kgf/cm²
Operating Temperature Range		-5~60℃
Body of Material		Aluminum Alloy 6061-T6		Aluminum Alloy ADC-12
Signal pressure port size		PT(NPT)1/4		NPT1/4
Standard Rated Flow (L/min)	Check Valve	200	450	1250	1650
	One-way Valve	400	800	1500	2000

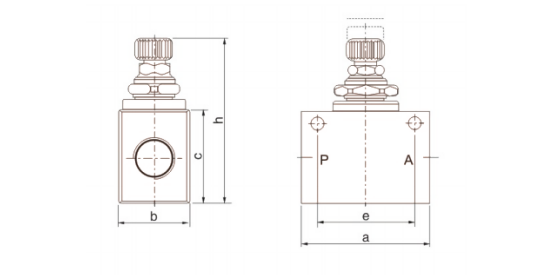

DIMENSION

One-Way Restrictive Air Flow Control Valve

Model	P(A)	a	b	c	e	f	g	h
KLA-06	G1/8	40	20	32	30	5.5	4	62~70
KLA-08	G1/4	40	20	32	30	5.5	4	62~70
KLA-10	G1⅛	50	25	40	37	6	5	78~86
KLA-15	G1/2	60	28	50	45	7	7	88~98
KLA-20	G3/4	65	35	60	45	8	7	100~112
KLA-25	G1	65	45	60	45	7	7	100~112
KLA-32	G1¼	85	55	65	68	10	7	110~125
KLA-40	G1½	95	65	75	82	7	7	125~140
KLA-50	G2	112	70	90	90	7	7	145~160

Specification Download
