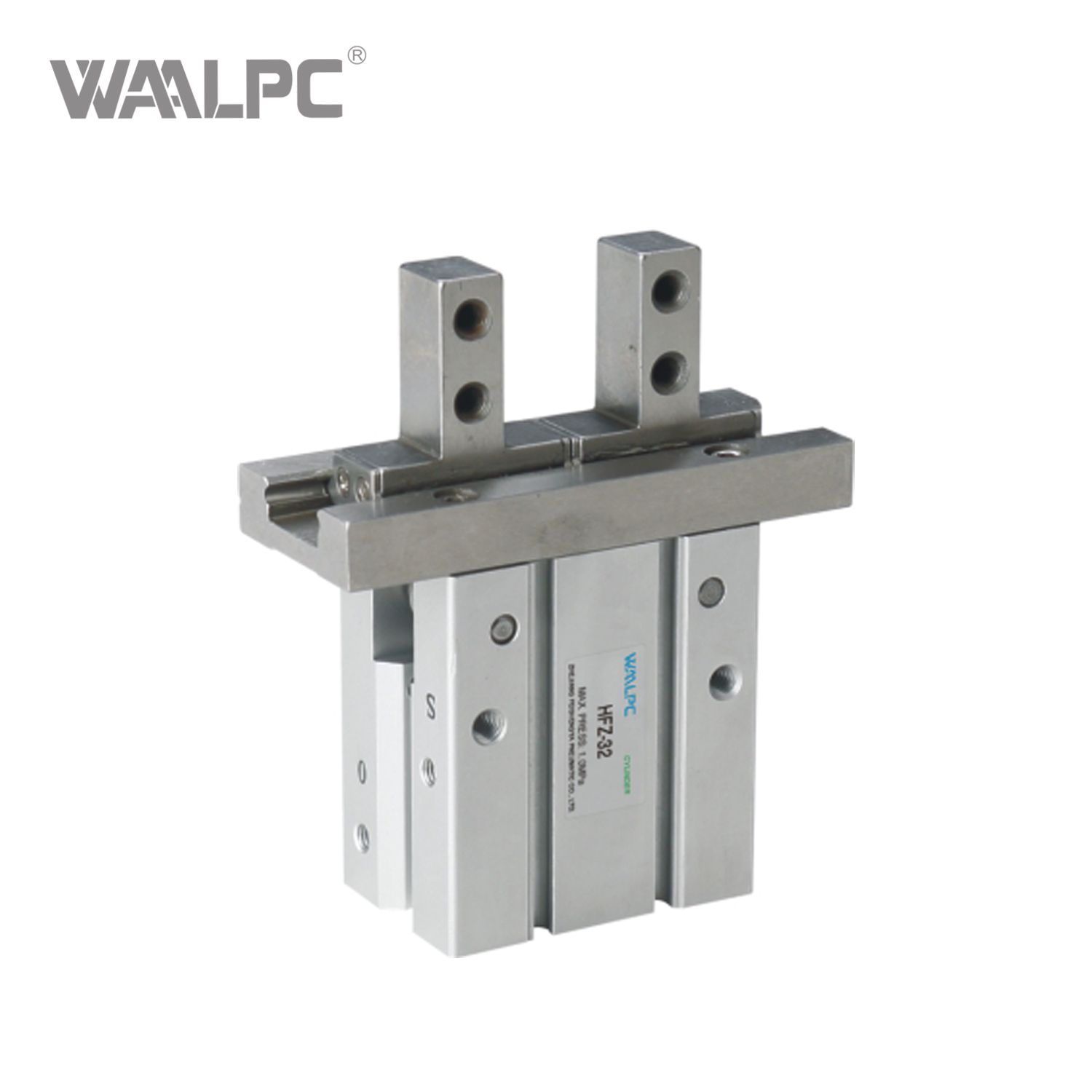

Parallel Gripper Pneumatic Cylinder with Integrated Linear Guide Customizable Jaw Initial Position for High-Speed Automation

Parallel Gripper Pneumatic Cylinder with Integrated Linear Guide Customizable Jaw Initial Position for High-Speed Automation


Availability:

Quantity:



Inquiry Add to Basket

The HFZ Series is a line of parallel pneumatic grippers from AirTAC. Designed for industrial automation, these grippers provide precise linear motion for tasks like gripping, holding, and transferring parts. A key feature is their integrated linear guide design, which provides high rigidity and precision. The series offers a range of bore sizes (e.g., Φ6, Φ10, Φ16, Φ25, Φ32, Φ40) to suit different force and application requirements.

Model:
HFZ Series
Brand:
WAALPC
Code:
8409919990

Product Description

Integrated Linear Guide: The linear guide is designed as one unified structure with the gripper body. A positioning pin at the bottom of the guide prevents misalignment, ensuring stable and accurate operation.

High Repeatability: These grippers achieve high repeat accuracy, with tolerances as tight as ±0.01mm for certain models, making them suitable for precision assembly and handling tasks.

Maintenance-Free Operation: The HFZ Series is designed for non-lubrication (oil-free operation), reducing maintenance needs and making them suitable for clean environments.

Customizable Jaw Position: To meet various application needs, the initial position of the gripper jaws can be customized (open or closed) upon request.

Easy Installation & Sensing: The gripper body is machined with deep center holes for a fixed base, enhancing mounting precision and ensuring consistent repositioning after repeated disassembly. They are also compatible with various inductive switches (e.g., DS1-H, CS1-G) for easy position sensing.

Technical Parameters

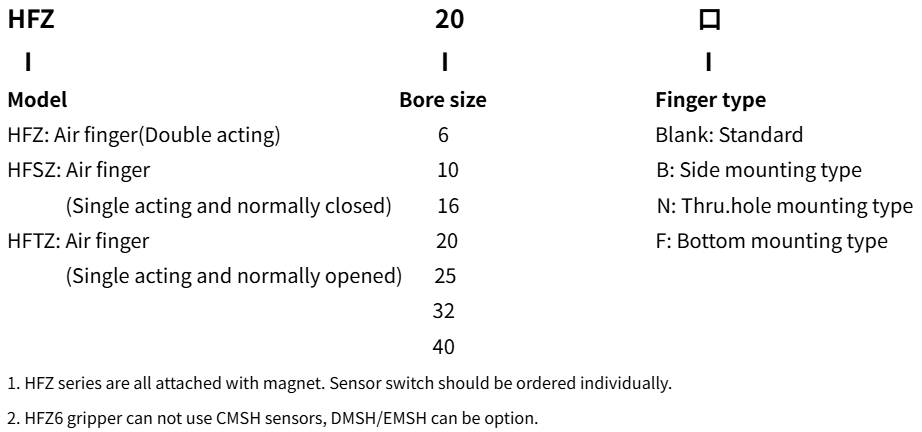

ORDERING CODE

Parallel Gripper Pneumatic Cylinder

SPECIFICATION

Bore size(mm)			6	10	16	20	25	32	40

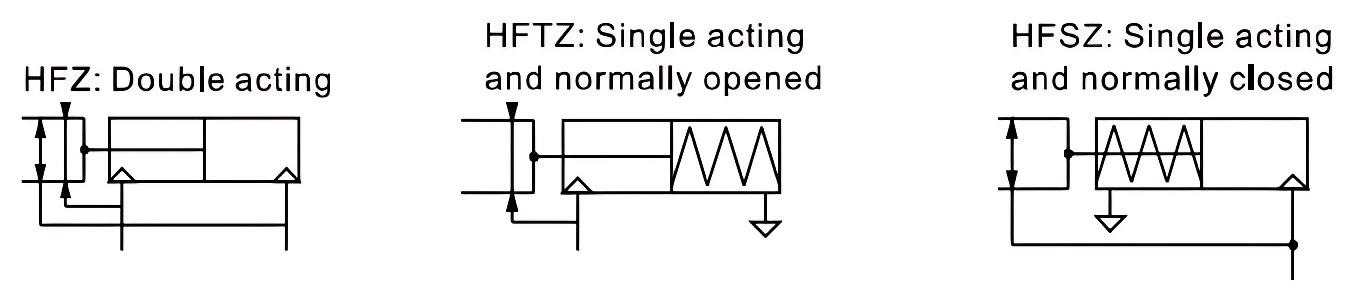

Acting type			Double acting Single acting
Fluid			Air(to be filtered by 40um filter element)
Operating pressure	Double acting	Φ6, Φ10	0.2~0.7MPa(28~100psi)(2.0~7.0bar)
		Others	0.15~0.7MPa(22~100psi)(1.5~7.0bar)
	Single acting	Φ6, Φ10	0.35~0.7MPa(50~100psi)(3.5~7.0bar)
		Others	0.25~0.7MPa(36~100psi)(2.5~7.0bar)
Temperature (℃)			-20~70
Lubrication			Not required
Repeatability (mm)			±0.01					±0.02
Max. frequency			180(c.p.m)					60(c.p.m)
Sensor switches			CMSH/DMSH EMSH		CMSG/DMSG/EMSG CMSH/DMSH/EMSH
Port size			M3x0.5		M5x0.8

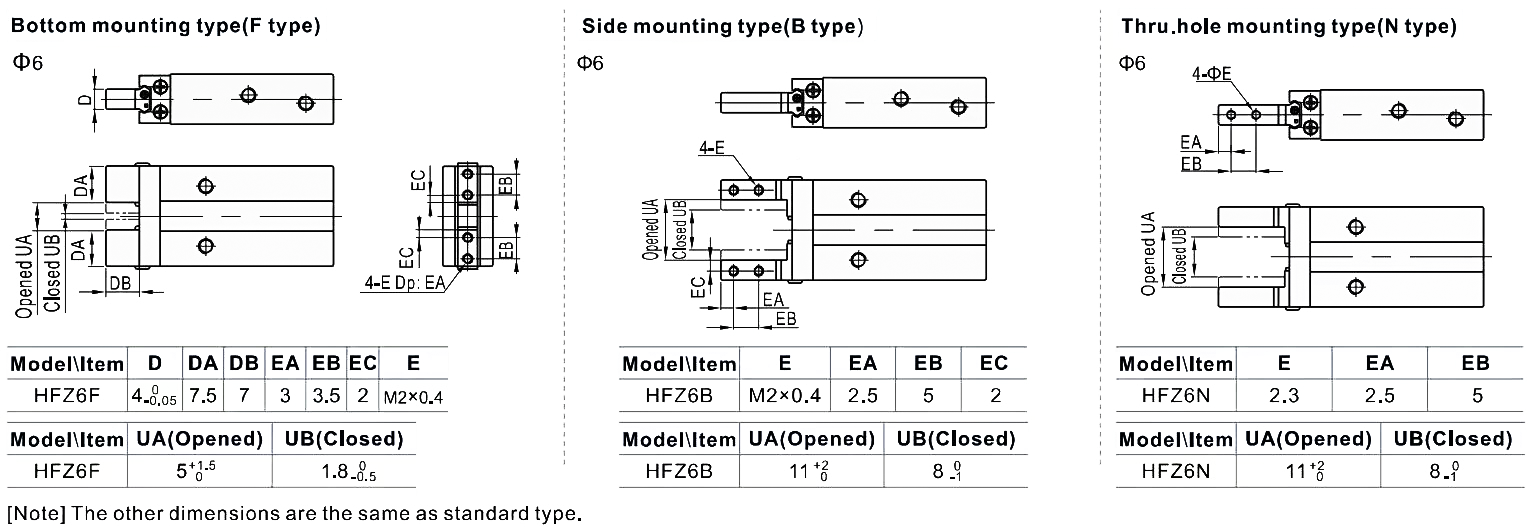

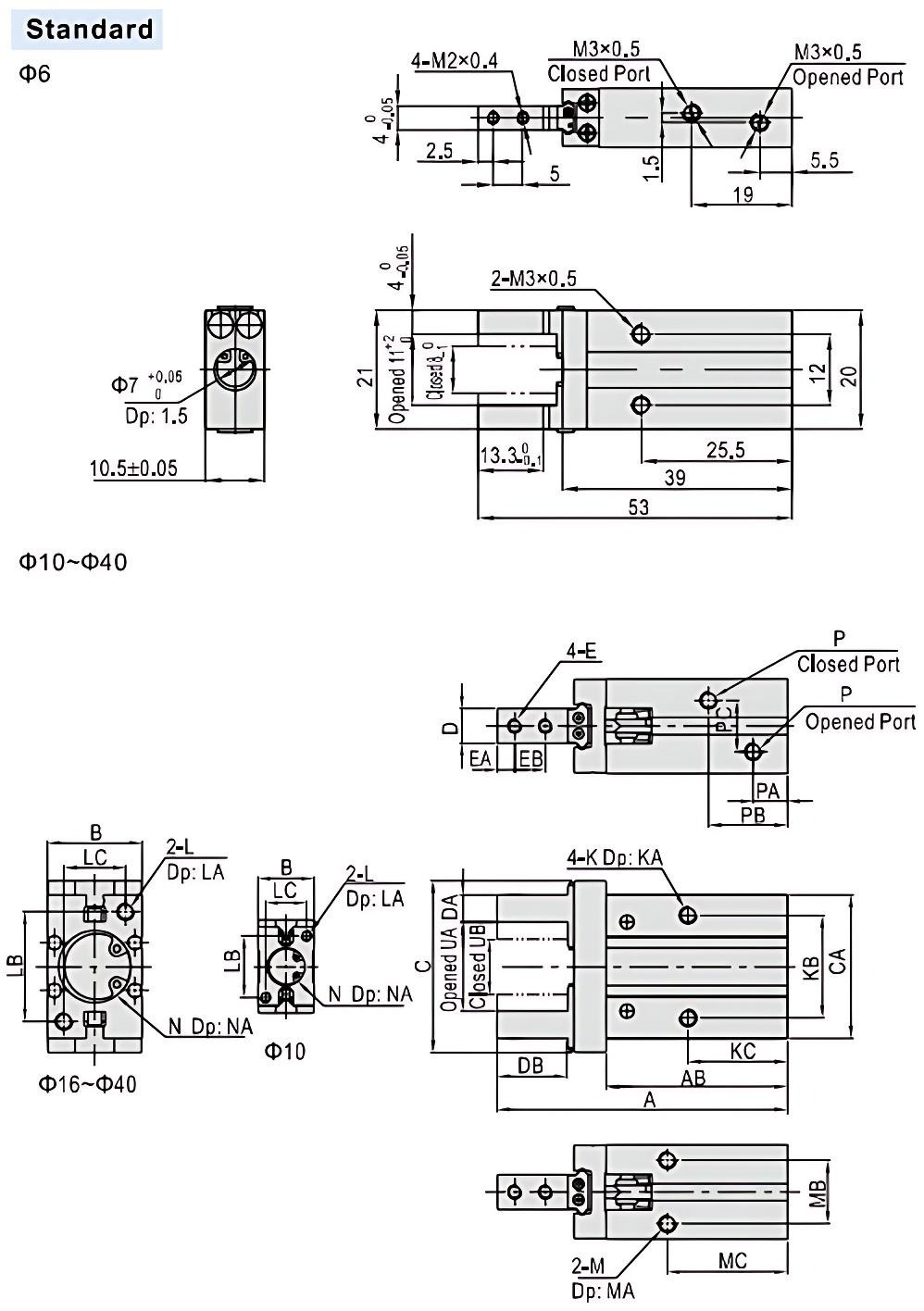

OVERALLDIMENSION&STRUCTURE

Parallel Gripper Pneumatic Cylinder

Model/Item	A	AB	B	C	CA	D	DA	DB	E	EA
HFZ10	57	37.5	16.5	30	23	5_-0.05	4_-0.05	12.2-0.1	M2.5X0.45	3
HFZ16	67.5	42.5	23.5	39	30.5	8_-0.05	5_-0.05	15.3_-0.1	M3X0.5	4
HFZ20	85	53	27.5	53	42	10_-0.05	8_-0.05	20.5_-0.1	M4X0.7	5
HFZ25	103	64	33.5	71	52	12_-0.05	10_-0.05	25.3_-0.1	M5X0.8	6
HFZ32	113(122)	67(76)	40	106	60	15_-0.05	12_-0.05	29.75_-0.1	M6X1.0	7
HFZ40	139(152)	83(96)	48	132	72	18_-0.05	14_-0.05	36.75_-0.1	M8X1.25	9

Model/Item	EB	K	KA	KB	KC	L	LA	LB	LC	M	MA	MB
HFZ10	5.7	M3X0.5	5	16	23	M3X0.5	6	18	12	M3X0.5	6	11.5
HFZ16	7	M4X0.7	7	24	24.5	M4X0.7	8	22	15	M4X0.7	4.5	16
HFZ20	9	M5X0.8	8	30	29	M5X0.8	10	32	18	M5X0.8	8	18.5
HFZ25	12	M6X1.0	10	36	30	M6X1.0	12	46	26	M6X1.0	10	26
HFZ32	14	M6X1.0	10	46	40(49)	M6X1.0	12	46	26	M6X1.0	10	26
HFZ40	17	M8X1.25	12	56	49(62)	M8X1.25	16	56	32	M8X1.25	12	32

Model/Item	MC	N	NA	P	PA	PB	PC	UA(Opened)	UB(Closed)
HFZ10	27	Φ11^+0.05	1.5	M3x0.5	7	19	10	15.5⁺²	11.5_-1
HFZ16	30	Φ17+0.05	1.5	M5x0.8	7.5	19	13	21⁺²	15_-1
HFZ20	35	Φ21^+0.05	2	M5x0.8	9.5	23	15	26.5⁺²	16.5_-1
HFZ25	36.5	Φ26^+0.05	2	M5x0.8	9	24	20	33.5⁺²	19.5_-1
HFZ32	48(57)	Φ34^+0.05	2.5	M5x0.8	9.5	31(40)	24	48^+2.5	26_-1
HFZ40	58(71)	Φ42^+0.05	2.5	M5x0.8	10.5	38(50)	28	60^+2.5	30_-1

[Note] The values in "()" in the above table are single acting type sizes.
