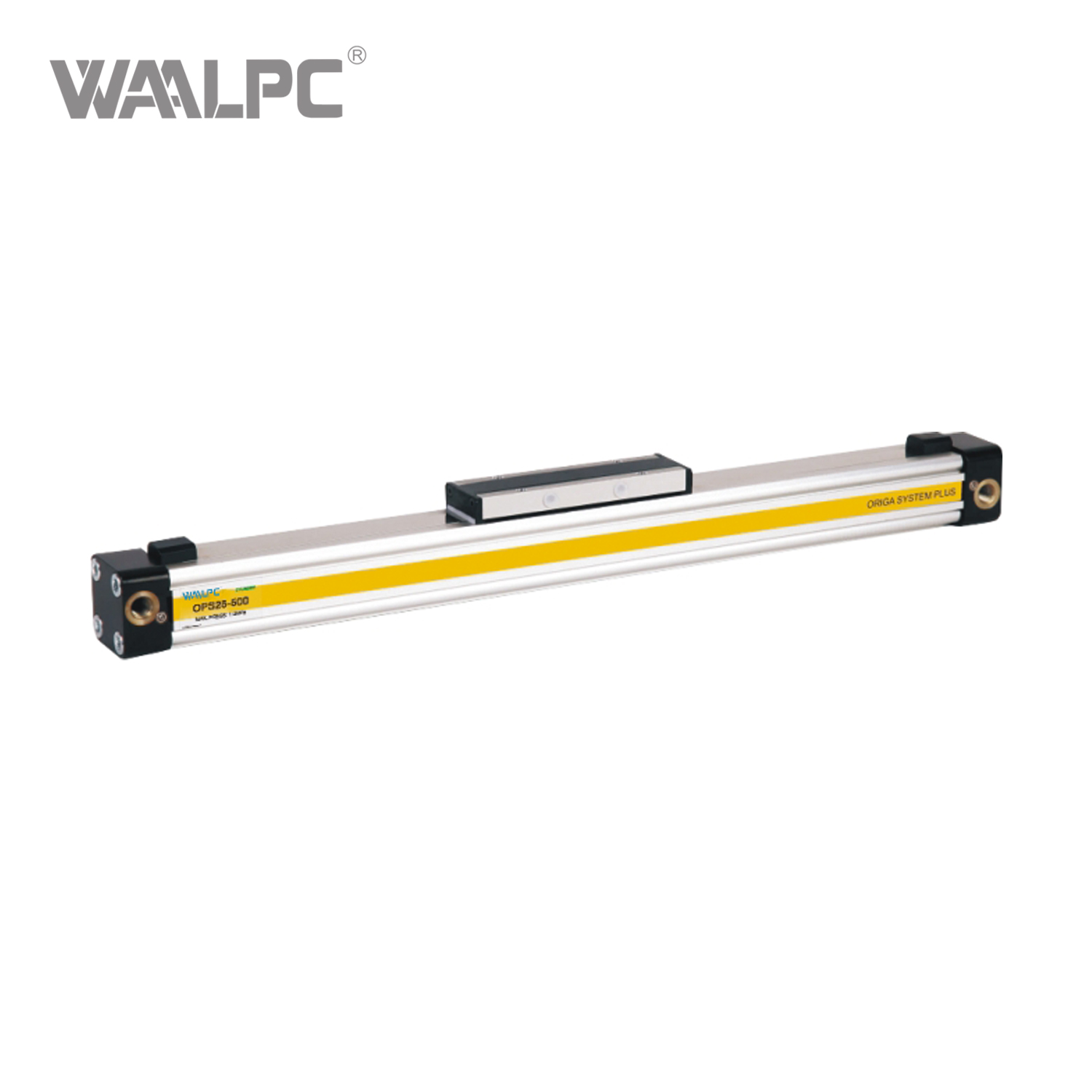

Parker Type Ost/OSP High-Speed Rodless Pneumatic Cylinder OSP-P Series Air Cylinder Bore 10-80mm Stroke Up To 6000mm 8 Bar Pressure Double Acting with Magnetic Piston

Modularity & Integration: A defining feature of the OSP series, especially the pneumatic models, is the three-side dovetail mounting slots on the cylinder profile .  This allows modular components like linear guides, valves, and magnetic switches to be directly attached to the cylinder itself .  This solves installation challenges in space-constrained applications and offers immense flexibility.

High Performance & Long Life: These cylinders are built for durability and high performance.  The OSP-P series boasts a service life of up to 8,000 km .  They can operate at very high speeds up to 30 m/s , while special low-speed versions with unique grease lubrication ensure smooth motion from 0.005 to 0.2 m/s .  The use of a high-tech polymer inner sealing band ensures optimal sealing with very low friction.

Rigidity and Load Capacity: The optimized cylinder profile offers maximum stiffness with minimum weight .  The OSP-L series, for instance, can handle high moments and lateral loads, with a maximum force of up to 7,500 N and torque up to 400 Nm.

Versatility for Harsh Environments: The series offers special versions to suit demanding conditions.  These include Stainless Steel versions for wet environments, ATEX versions for potentially explosive atmospheres, Clean Room versions for sensitive environments, and Low-Temperature versions operating down to -40°C.

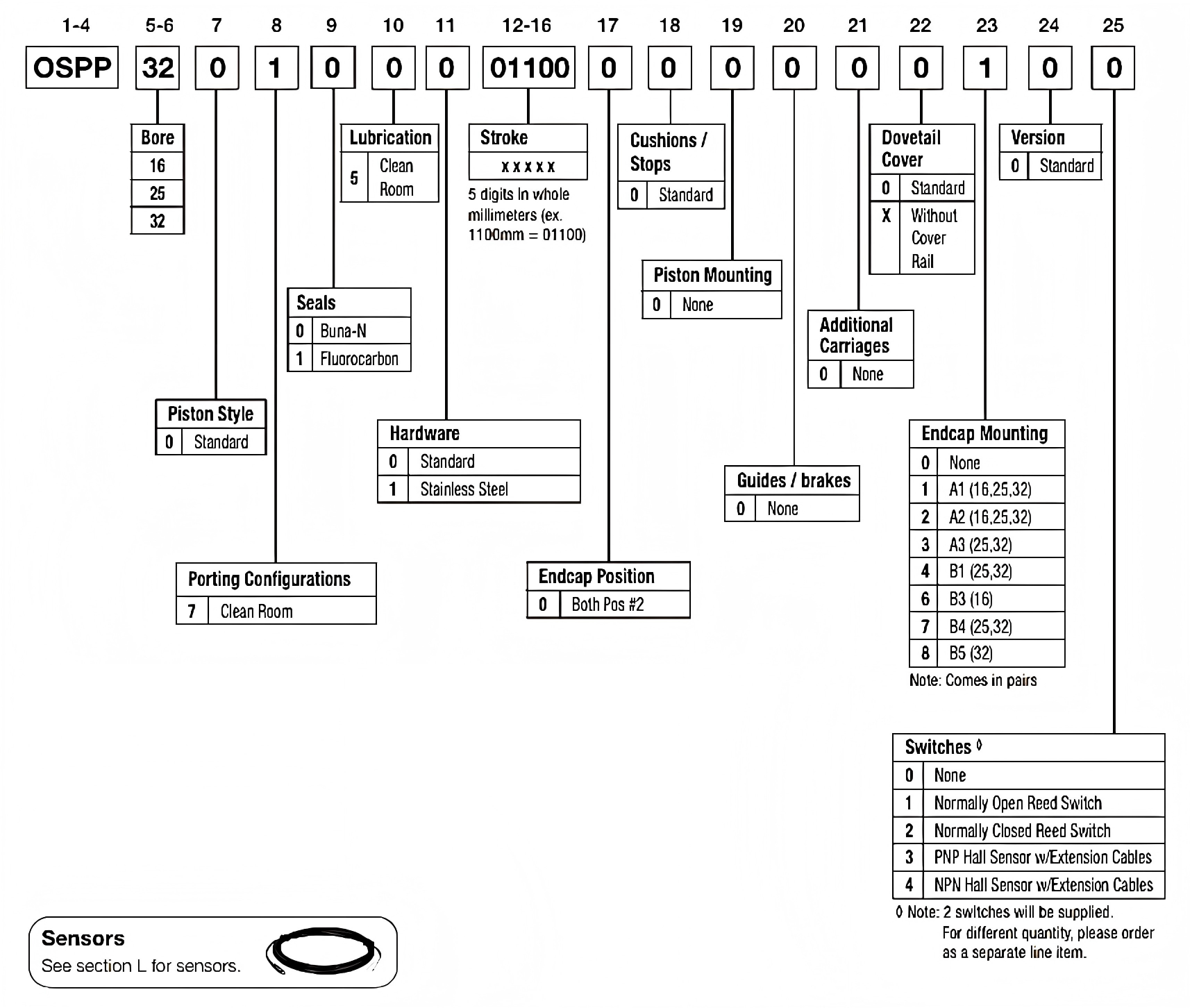

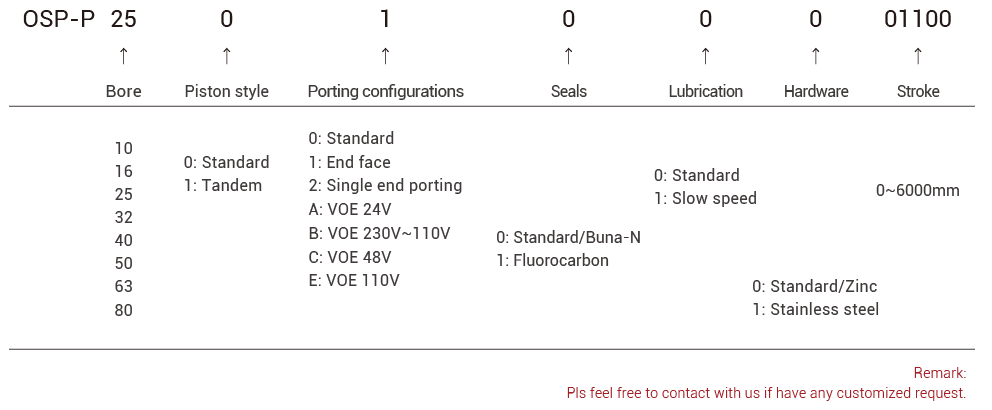

ORDERING CODE

SPECIFICATION

Type		Rodless Cylinder
Series		OSP-P
System		Bi-directional drive,with cushioning and position sensing function
Air Port		Threaded port
Ambient &Medium Temperature Range		-10～+80°C(Custom temperature ranges available upon request)
Mounting Orientation		Any position
Working Medium		Filtered,non-lubricated compressed air;other media customizable
Lubrication Oil		Permanent grease lubrication(no additional air line lubricator required) Optional: Special low-speed lubricant
Materials	Materials	Anodized Aluminum
	Slider (Piston)	Anodized Aluminum
	End Cap	Aluminum with painted finish
	Sealing Band	Corrosion-resistant steel band
	Seals	NBR
	Screws	Electroplated steel; Stainless steel optional
	Dust Cover/Wiper	Plastic
	Max.Operating Pressure	8 bar

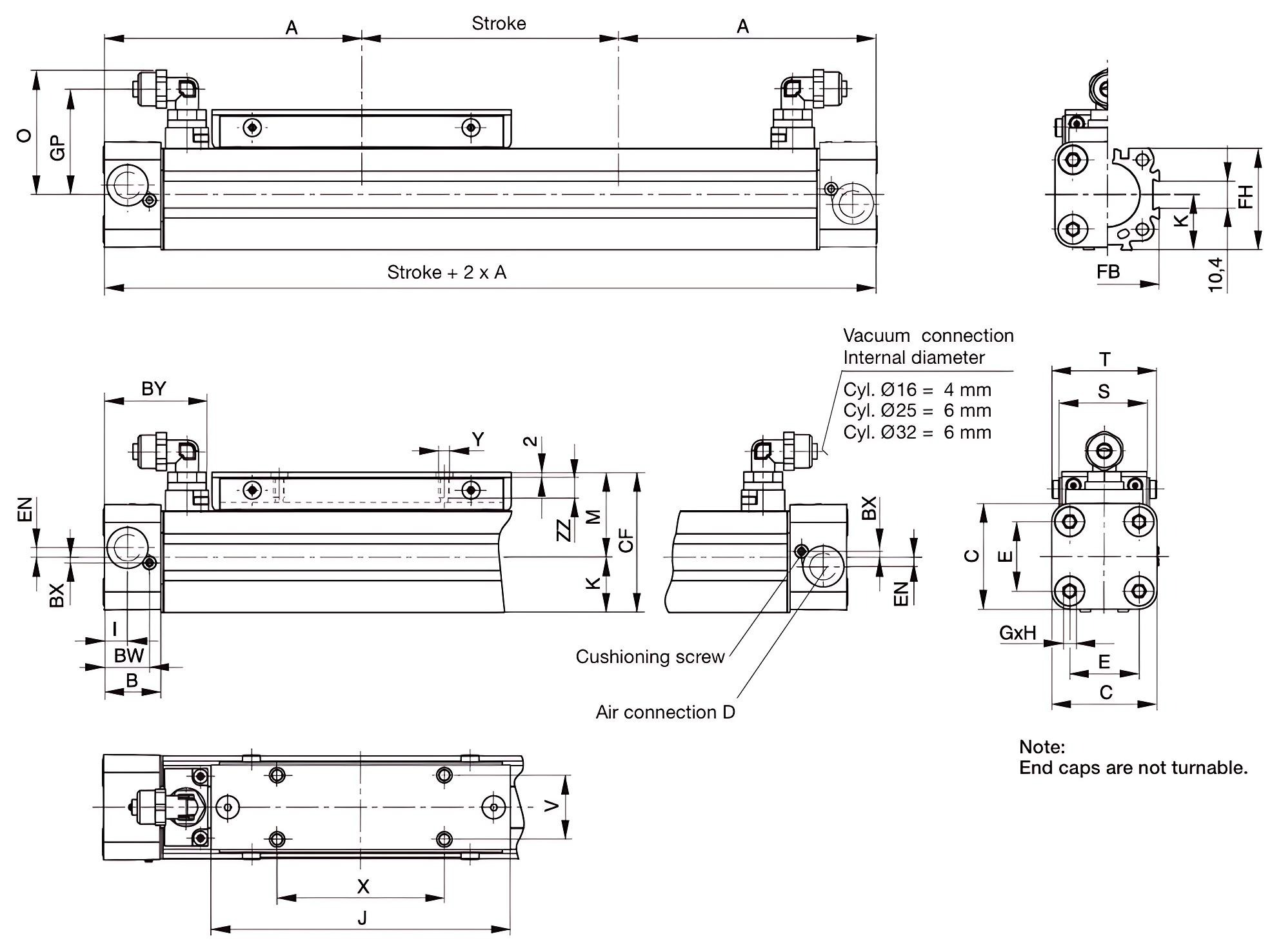

OVERALLDIMENSION&STRUCTURE

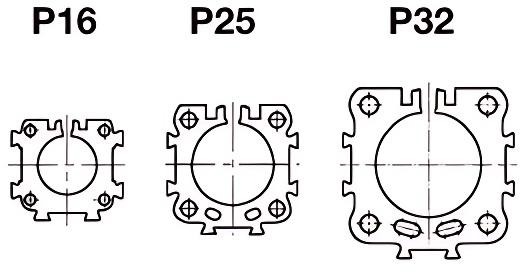

Basic cylinder - 10mm bore

Dimensions(mm)

Series	A	B	C	D	E	G	H	I	J	K	L	M	N	P	R	S	W	X	Y	Zmin	CF	EM	EN	FB	FH	ZZ
OSP-P10	44.5	12	19	M5	12	M3	5	6	60	8.5	22	22.5	17.5	10.5	3.4	16	22.5	31	M3	64	32	9.5	2	17	17	6

Basic cylinder - 16 to 80mm bore

Series	A	B	C	D	E	G	H	I	J	K	M	O	S	V	X	Y	Z	BW	BX	BY	CF	EN	FB	FH	ZZ
OSP-P16	65	14	30	M5	18	M3	9	5.5	69	15	23	33.2	22	16.5	36	M4	81	10.8	1.8	28.4	38	3	30	27.2	7
OSP-P25	100	22	41	G1/8	27	M5	15	9	117	21.5	31	47	33	25	65	M5	128	17.5	2.2	40	52.5	3.6	40	39.5	8
OSP-P32	125	25.5	52	G1/4	36	M6	15	11.5	152	28.5	38	59	36	27	90	M6	170	20.5	2.5	44	66.5	5.5	52	51.7	10
OSP-P40	150	28	69	G1/4	54	M6	15	12	152	34	44	72	36	27	90	M6	212	21	3	54	78.5	7.5	62	63	10
OSP-P50	175	33	87	G1/4	70	M6	15	14.5	200	43	49	86	36	27	110	M6	251	27	-	59	92.5	11	76	77	10
OSP-P63	215	38	106	G3/8	78	M8	21	14.5	256	54	63	107	50	34	140	M8	313	30	-	64	117	12	96	96	16
OSP-P80	260	47	132	G1/2	96	M10	25	22	348	67	80	133	52	36	190	M10	384	37.5	-	73	147	16.5	122	122	20
