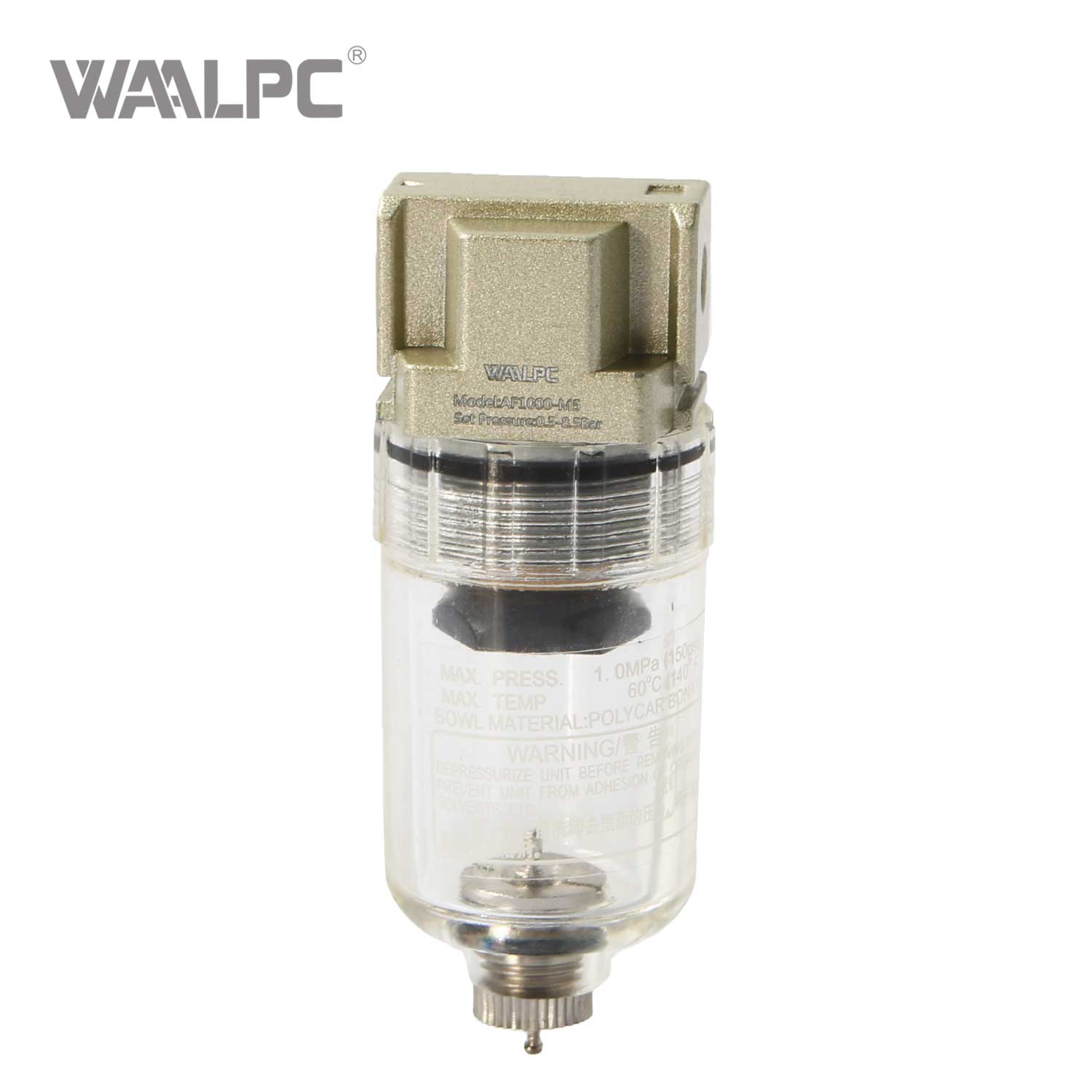

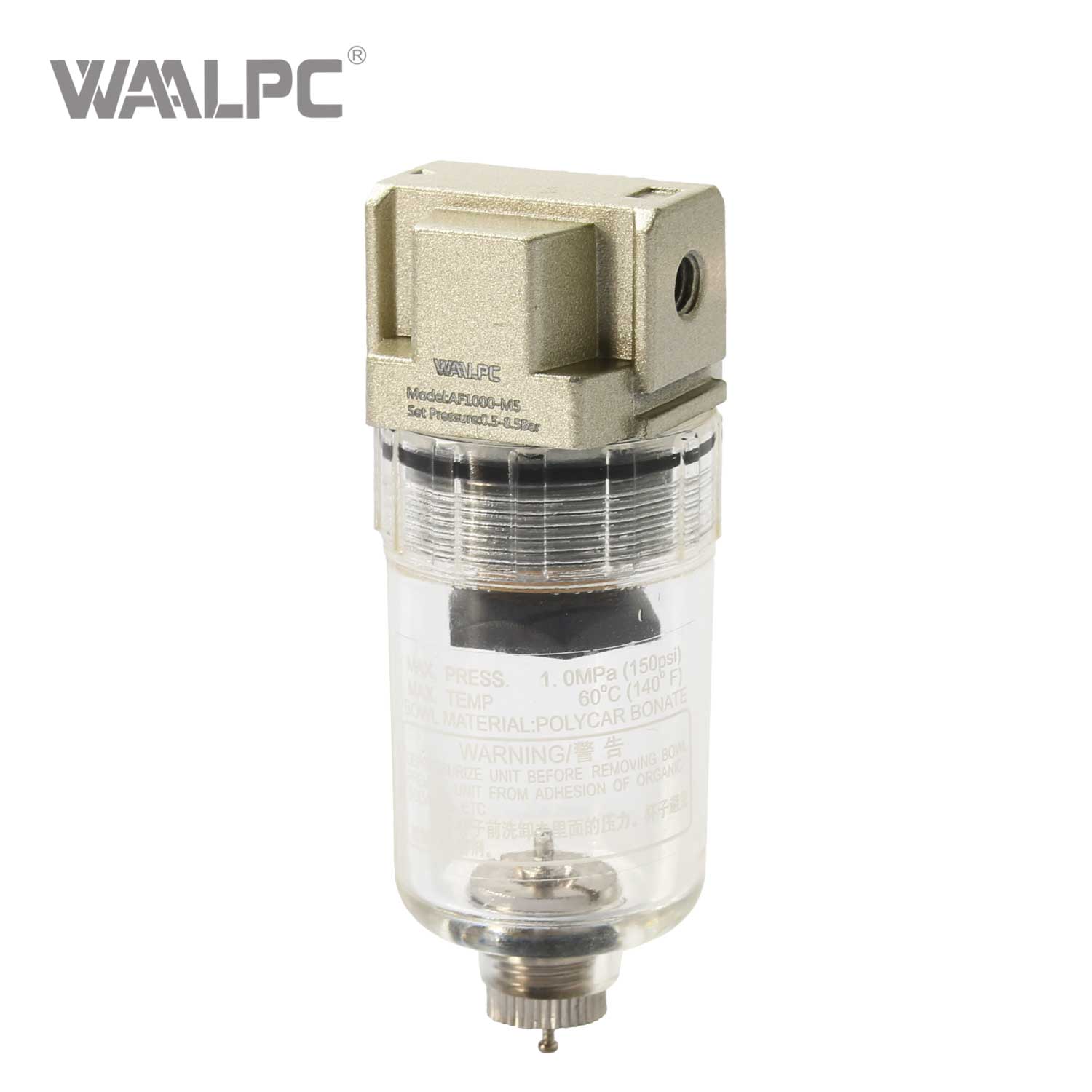

Pneumatic air filter AF1000-M5 Port M5 with copper Cartridge Manual Drain SMC type air source treatment units

Pneumatic Air Filter AF1000-M5 Port M5 with Copper Cartridge Manual Drain SMC Type Air Source Treatment Units


Availability:

Quantity:



Inquiry Add to Basket

The AF1000-M5 Pneumatic Air Filter is a high-performance filtration solution designed to maintain clean and dry compressed air in pneumatic systems. Engineered with precision, this filter effectively removes solid particles, moisture, and contaminants as small as 5 micrometers, ensuring optimal performance and longevity of downstream pneumatic components such as valves, cylinders, and tools.

Model:
AF1000-M5
Brand:
WAALPC
Code:
8421399090

Product Description

1. Prepare air for all types of compressed air tools and equipment;

2. Compressed air with filters to remove solid particles and condensate;

3. Protect your pneumatic tools for longer lifespan.

Technical Parameters

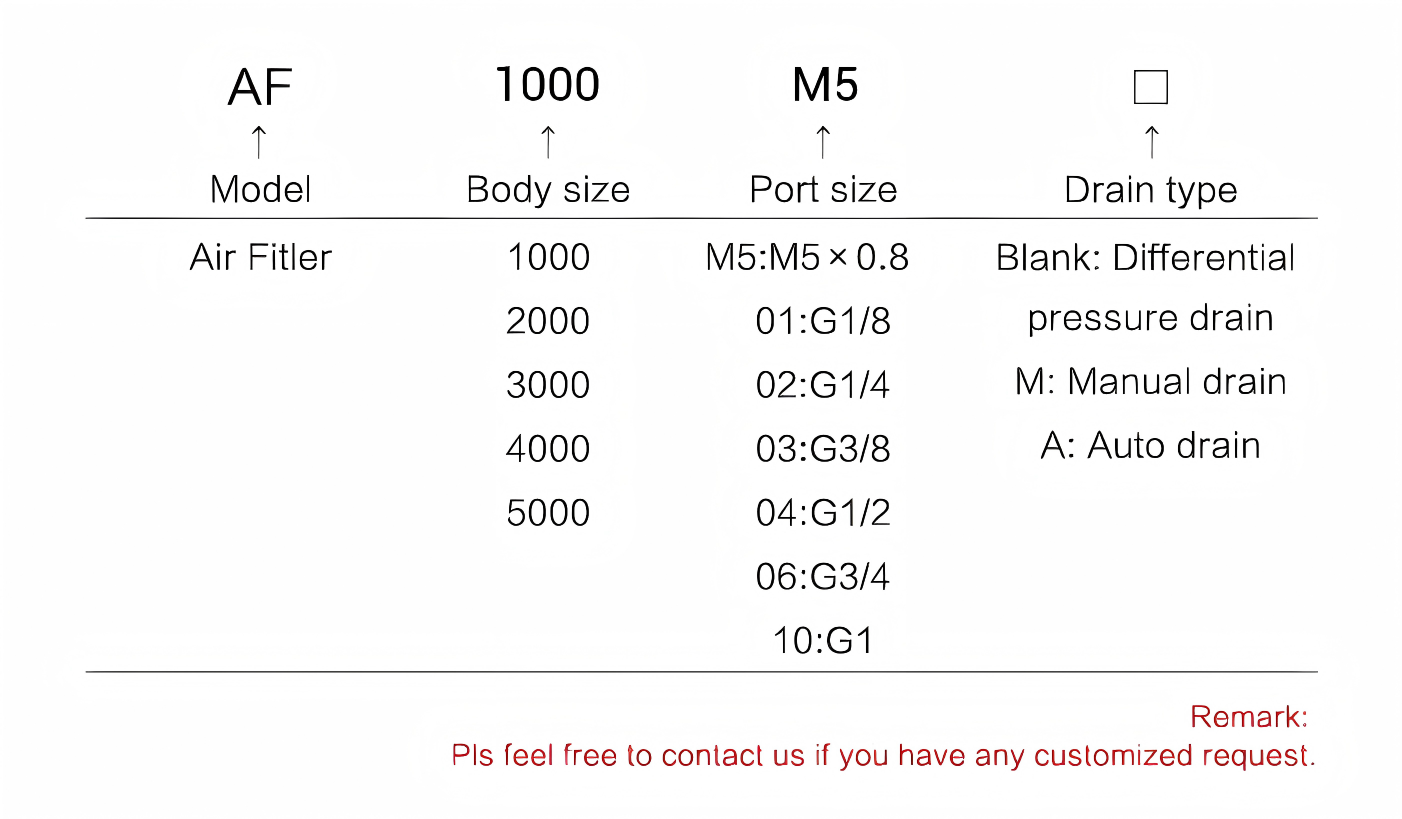

ORDERING CODE

DATA SHEET

Type-name	Air Filter
Model	AF1000-M5	AF2000-01	AF3000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
Port Size	M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Drain Type	Manual drain, auto drain and differential pressure drain (optional)
Grade of Filtration	5um, 25um, 40um
Working Medium	Air
Operating temperature range	5~60℃
Filter Cup Capacity	10	15	15	20	20	45	45	45	130	130
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight	100g	160g	160g	320g	320g	580g	580g	630g	1080g	1080g

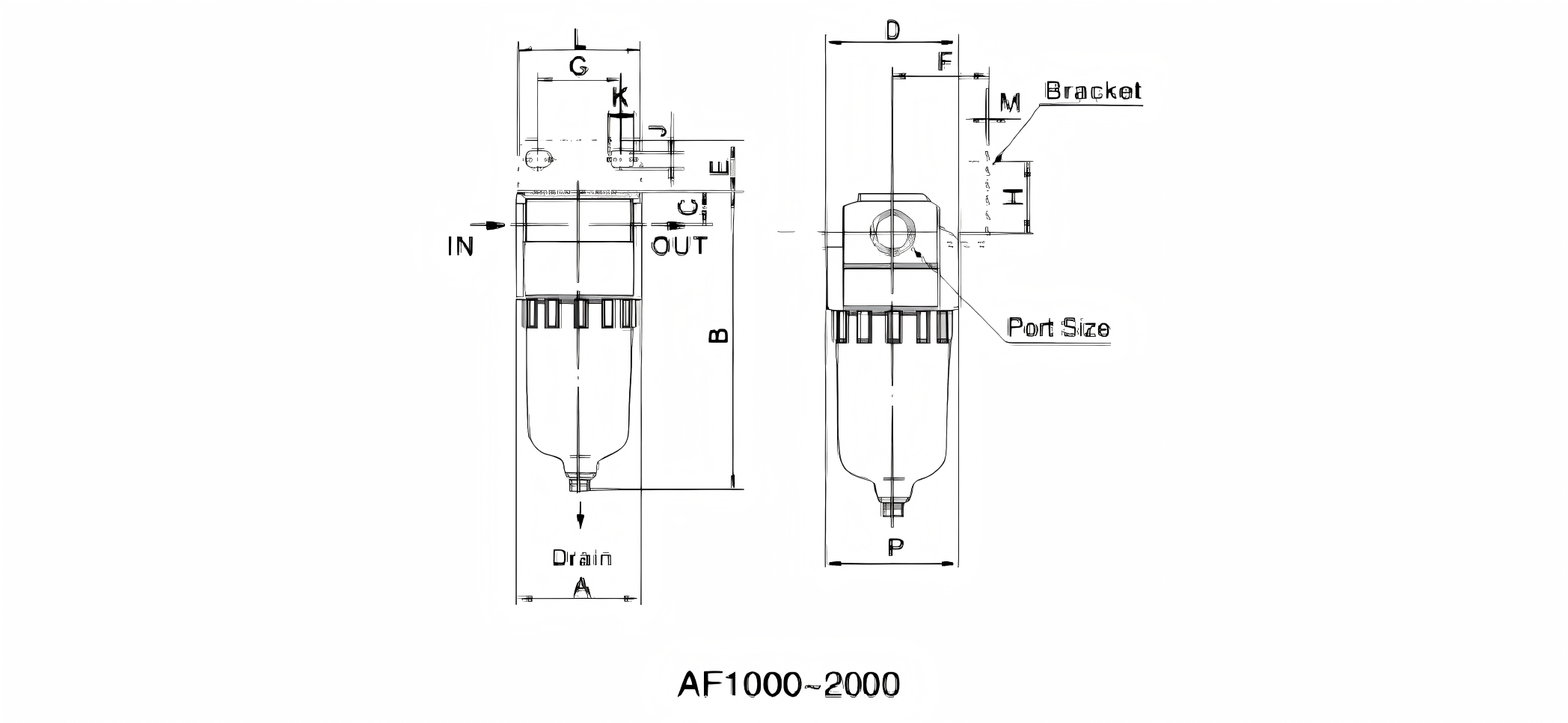

STRUCTURE

Air filte

Model	Port size	A	B	C	D	E	F	G	H	J	L	M	P
AF1000	M5	25	66	7	25	-	-	-	-	-	-	-	26.5
AF2000	1/8-1/4	40	97.5	11	40	17	30	27	22	5.4	40	2.3	40
AF3000	1/4-3/8	53	132.5	14	53	16	41	40	23	6.5	53	2.3	56
AF4000	3/8-1/2	70	168.5	18	70	17	50	54	26	8.5	70	2.3	73
AF4000-06	3/4	75	172.5	20	70	14	50	54	25	8.5	70	2.3	73
AF5000	3/4-1	90	247.5	24	90	23	66.5	66	35	11	90	3.2	90
