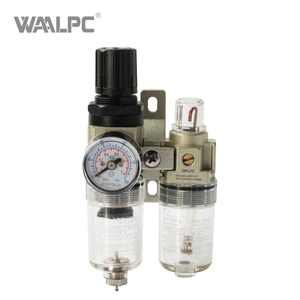

SMC MINI Series AC1000-M5 Modular FRL Unit - M5 Thread, 5μm Filtration, 0.05–0.8 MPa Pressure Regulation

SMC MINI Series AC1000-M5 Modular FRL Unit - M5 Thread, 5μm Filtration, 0.05–0.8 MPa Pressure Regulation


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

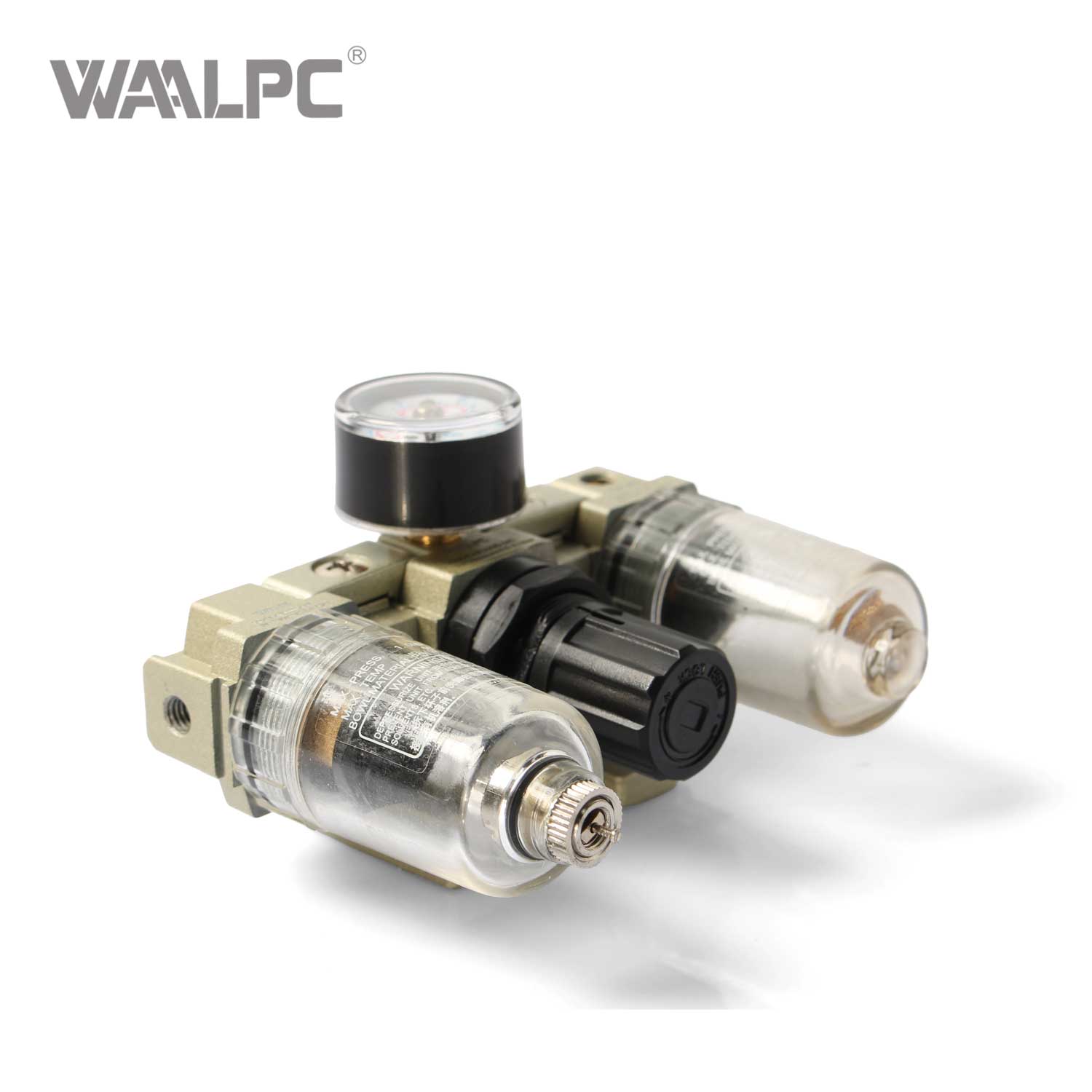

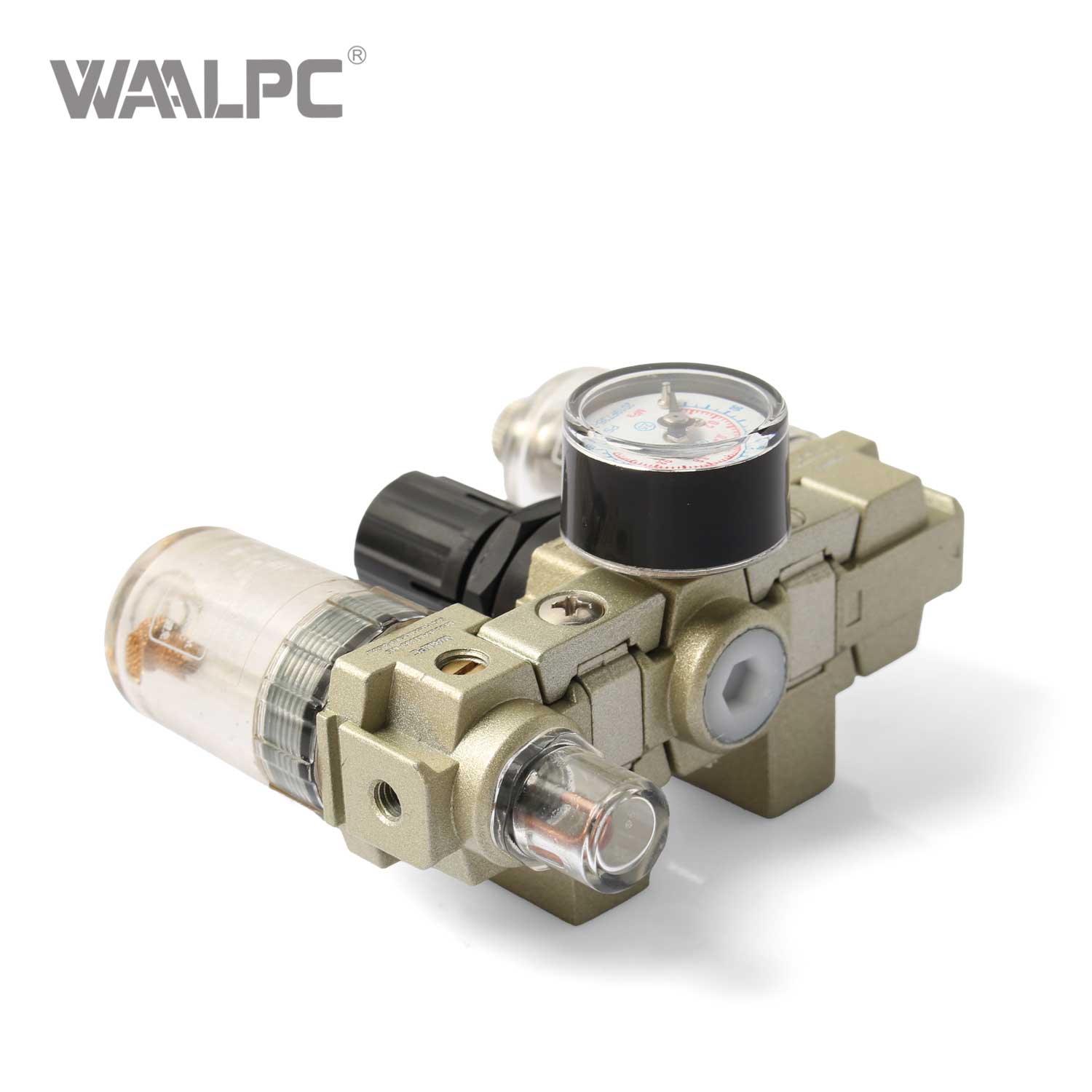

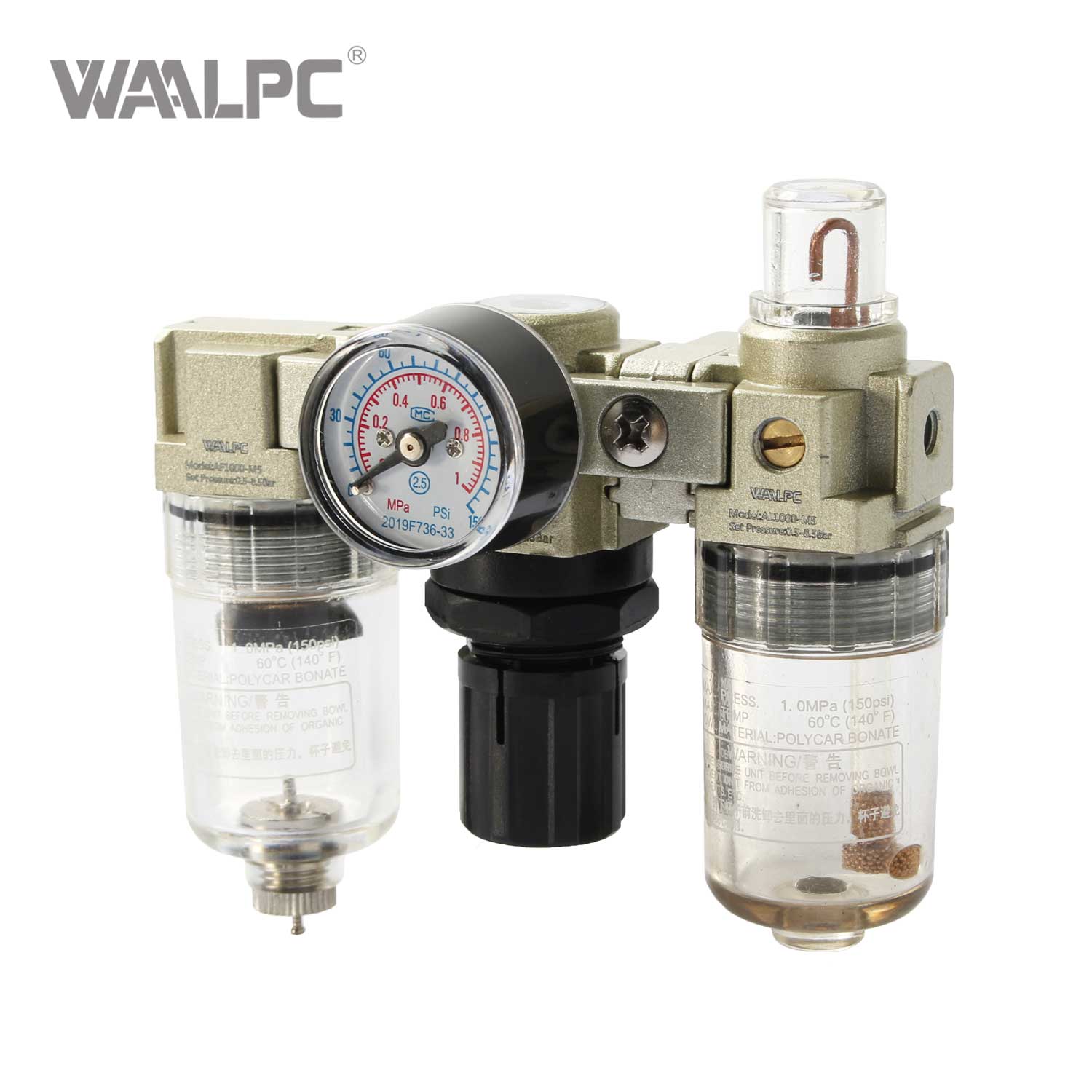

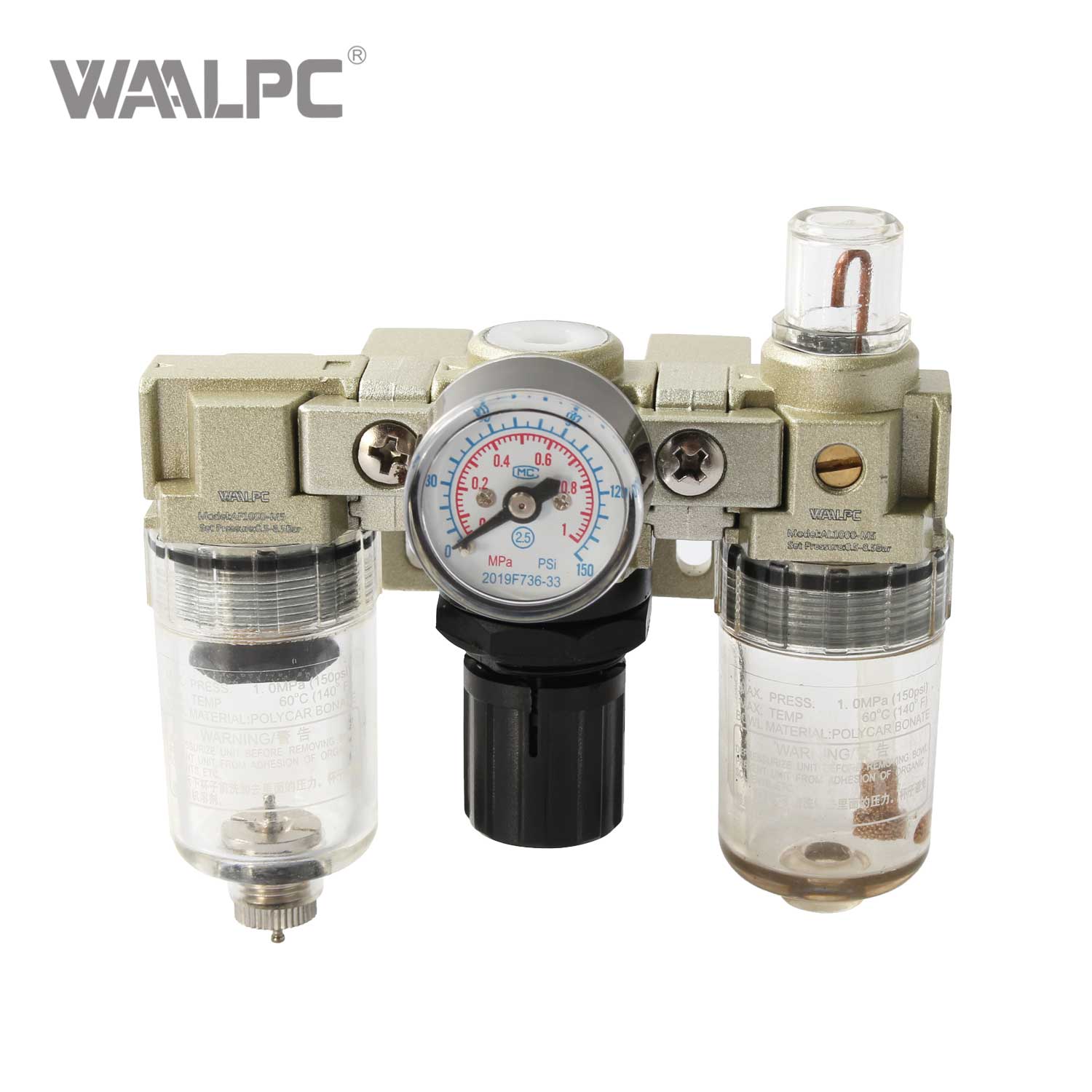

The SMC MINI Series AC1000-M5 is a compact, high-performance air treatment solution designed to deliver clean, regulated, and lubricated compressed air in space-constrained industrial and commercial applications. As a modular FRL unit, it integrates three critical functions—filtration, pressure regulation, and lubrication—into a single streamlined design, optimizing efficiency for small-bore pneumatic systems.

Model:
AC1000-M5
Brand:
WAALPC
Code:
8421399090

Product Description

The SMC MINI Series AC1000-M5 FRL Unit Advantages

FRL Unit

1. Prepare air for all types of compressed air tools and equipment;

2. Compressed air with filters to remove solid particles and condensate;

3. Regulator valves accurately maintain air pressure over a wide flow range;

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions;

5. Protect your pneumatic tools for longer lifespan.

The SMC MINI Series AC1000-M5 FRL Unit Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

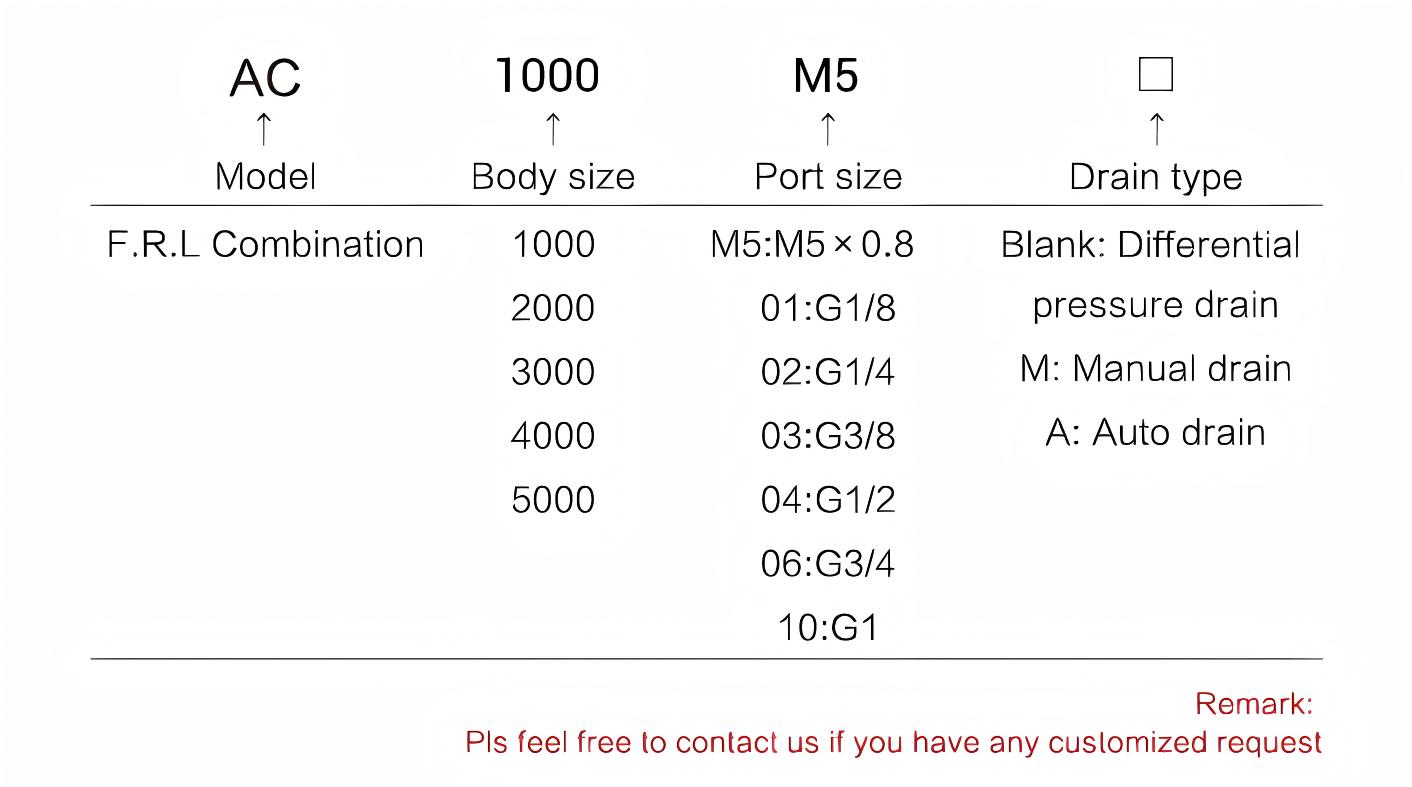

Type-name		F.R.L combination
Model		AC1000-M5	AC2000-01	AC3000-02	AC3000-02	AC3000-03	AC4000-03	AC4000-04	AC4000-06	AC5000-06	AC5000-10
Port Size		M5*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Cup Protective Cover		AW1000-2000 (W/0)	AW3000-5000 (W)
Drain Type		Manual drain, auto drain and diferential pressure drain (optional)
Grade of Filtration		5um,25um,40um
Working Medium		Air
Pressure Regulating Range		0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure		1.0MPa (145Psi)
Pressure Resistance		1.5MPa (215Psi)
Operating temperature range		5~60℃
Filter Cup Capacity		10	15	15	20	20	45	45	45	130	130
Lubricator Cup Capacity		10	15	15	20	20	45	45	45	130	130
Recommeded Oil		Oil for turbine 1 ISOVG32
Pressure Gauge		Y40-01					Y50-02
L-type Bracket		L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material		Housing: Aluminum die-casting molding; Container cup: PE; Protective cover: iron
Weight		400g	470g	470g	950g	950g	1810g	1810g	1910g	3150g	3150g
components	Filter	AF1000-M5	AF2000-01	AF2000-02	AF3000-02	AF3000-03	AF4000-03	AF4000-04	AF4000-06	AF5000-06	AF5000-10
	Regulator	AR1000-M5	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
	Lubricator	AL1000-M5	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL4000-06	AL5000-06	AL5000-10

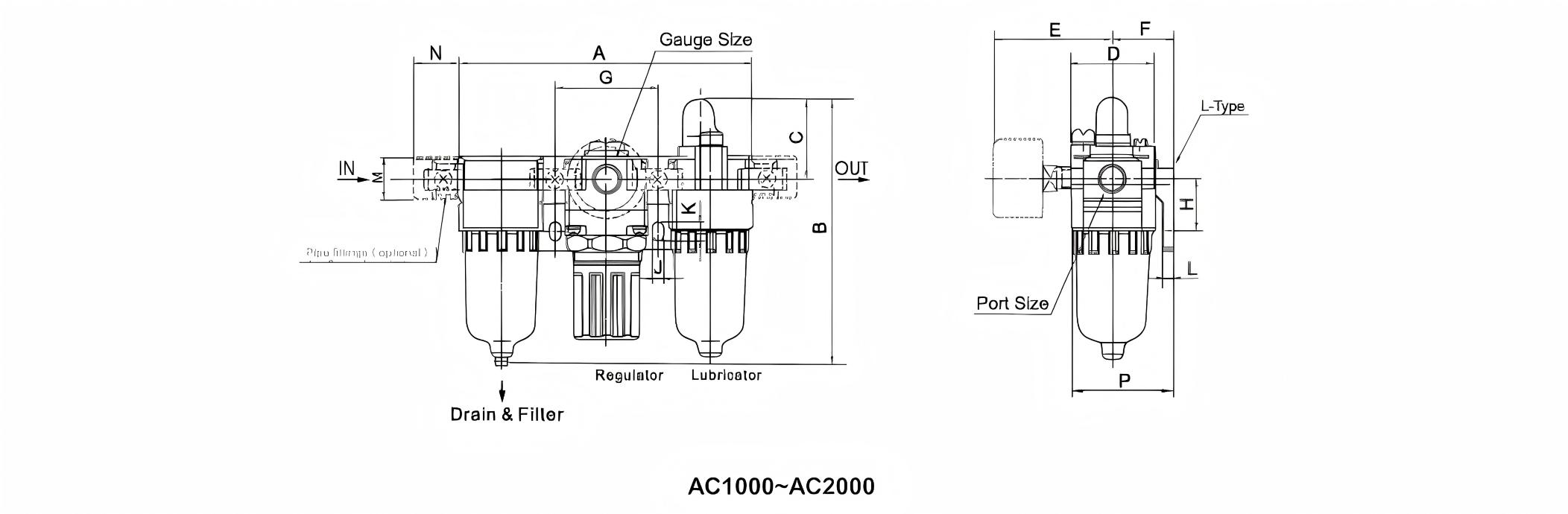

STRUCTURE

SMC FRL Unit

Specification Download
