Every pneumatic system lives or dies by the quality of its air supply. Dirty, wet, or unregulated compressed air silently destroys valves, cylinders, and seals — costing factories thousands in unplanned downtime. The fix? A properly configured FRL unit.

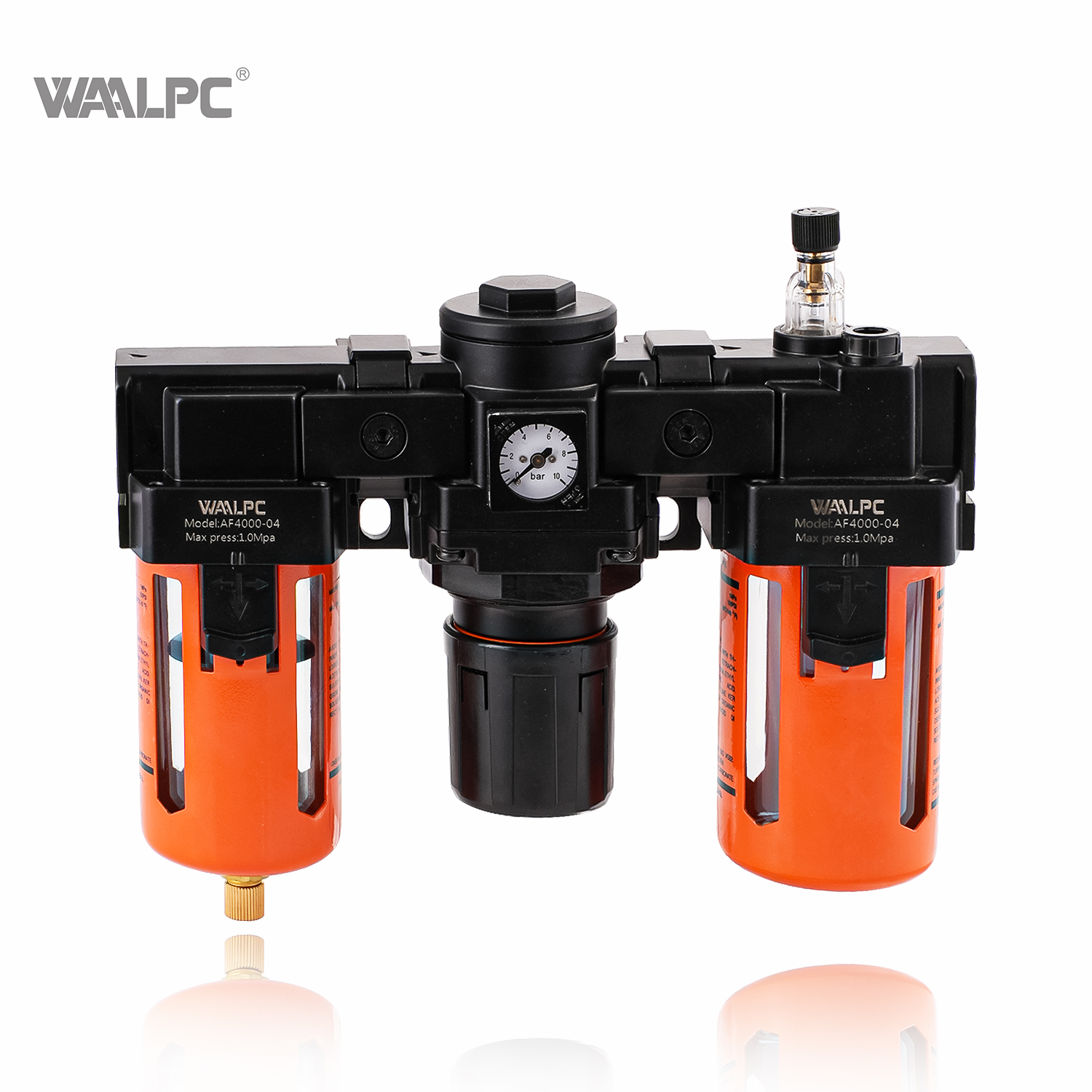

An FRL unit — comprising a Filter, Regulator, and Lubricator — is the air preparation backbone of any pneumatic system. It removes contaminants, stabilizes operating pressure, and delivers lubrication to protect downstream components and extend service life. FRL units protect pneumatic equipment by removing harmful contaminants that cause seal wear, maintaining stable pressure that prevents component stress, and providing lubrication that reduces friction and corrosion, typically extending equipment life by 200-300% while reducing system faults by up to 85%.
This article provides a comprehensive guide to FRL units, including how each component works, proper installation procedures, maintenance schedules, troubleshooting tips, and key selection considerations.
FRL stands for Filter, Regulator, and Lubricator — the three core components of a pneumatic air preparation unit that clean, control, and condition compressed air before it reaches actuators and valves. These three stages work in sequence: filtration removes contaminants, regulation stabilizes pressure, and lubrication protects moving parts.
The three components are typically integrated into a single assembly or mounted separately in series, with the installation order following the direction of airflow: Filter → Regulator → Lubricator.
Component | Primary Function | Key Benefit | Typical Maintenance Interval |
|---|---|---|---|
Filter | Contaminant removal | Clean air supply | 3-6 months |
Regulator | Pressure control | Consistent performance | 12 months |
Lubricator | Air conditioning | Component protection | 6-12 months |
(Based on data from reference )
The filter is the first stage of the FRL unit. Its job is to remove solid particles, water droplets, and oil aerosols from compressed air before air reaches downstream components.
Incoming compressed air enters the filter bowl at an angle, creating a spinning vortex. This centrifugal separation action flings heavier water droplets and particles outward against the bowl wall, where they drain to the bottom. After centrifugal separation, air passes through a sintered or mesh filter element that captures finer particulates — rust, pipe scale, and compressor debris.
Standard filtration ratings for FRL units typically range from 5 to 75 microns, with 5, 25, and 40 micron options being most common. At the rated micron size, filter efficiency is approximately 99.9% removal.
Two types of drains are available:
Manual Drain | Auto-Drain |
|---|---|
Lower cost | Higher cost |
Requires operator attention | Self-managing |
Best for low-volume, monitored systems | Best for high-volume, continuous operation |
Risk of overflow if neglected | Minimal risk |
For high-duty-cycle lines, auto-drain filters are strongly recommended, as neglected manual drains are one of the top causes of premature cylinder seal failure.
The regulator is the second stage of the FRL unit. It uses a spring-loaded diaphragm mechanism to maintain a stable downstream pressure regardless of upstream supply fluctuations, protecting components from pressure spikes and ensuring repeatable actuator performance.
The regulator operates on the diaphragm force-balance principle: spring force and output air pressure on the diaphragm reach dynamic equilibrium. When downstream pressure drops below the set point, the diaphragm flexes, opening a poppet valve to allow more airflow. When pressure reaches the set point, the valve closes. This feedback loop runs continuously — dozens of times per second.
Input range: Typically 0.5–16 bar (7–230 PSI) maximum
Output range: Adjustable 0.5–10 bar (7–145 PSI) typical
Accuracy: ±2% regulation under varying flow
Flow capacity: 50–8000 L/min depending on model size
The lubricator is the final stage of the FRL unit. It atomizes lubricating oil into the compressed air stream, providing controlled lubrication to downstream pneumatic components such as cylinders, valves, and air tools. Proper lubrication reduces wear, extends equipment life, and ensures smooth operation.
Compressed air enters the lubricator and passes through a nozzle, where it accelerates and creates a low-pressure zone. A small portion of the compressed air is diverted into the upper chamber of the oil bowl, pressurizing the oil surface. This pressure forces oil up through a pickup tube, past a check valve, and through a metering needle valve into the sight dome. Oil drops fall into the high-velocity air stream at the nozzle and are atomized into fine mist, which is then carried to downstream equipment.
Application | Drops per Minute |
|---|---|
Standard cylinders and valves | 1–2 drops/min |
Pneumatic tools (wrenches, grinders) | 3–5 drops/min |
Large cylinders or multiple devices | 5–10 drops/min |
Guideline: A thin oil film on the cylinder piston rod is sufficient. Too much oil causes waste and contamination; too little leads to insufficient lubrication.
Only pneumatic turbine oil (ISO VG32) should be used. The lubricant must be rust-resistant and must not cause expansion, contraction, or degradation of sealing materials (typically nitrile rubber/NBR). Viscosities that are too high or too low are not suitable, and deteriorated oil should be replaced immediately.
The three components must be installed in the correct order: Filter → Regulator → Lubricator, following the direction of airflow marked by arrows on each component body.
Mounting: The FRL should be installed with the filter first (nearest the air source), then the regulator, and finally the lubricator downstream. For best results, install the FRL in an upright position with the filter bowl at the bottom and the lubricator bowl accessible for refilling.
Install the FRL after air coolers and reservoirs. Do not install it near the compressor as the air exiting the compressor is very hot and will damage FRL components.
Install the lubricator as close as possible to the point of use — recommended delivery distance ≤ 5 meters (standard lubricator) or up to 30 meters (micro-fog type).
Leave sufficient clearance for maintenance access and bowl draining.
Ensure the installation location is safe and convenient for regular maintenance.
Shut off and depressurize: Close the inlet air valve and completely vent all system pressure before attempting installation.
Mount the FRL: Attach the FRL bracket securely. Connect the input line to the FRL’s inlet port.
Apply thread sealant: Wrap PTFE tape around male threads only, leaving the first thread bare to prevent debris from entering the valve. Use proper torque to tighten connections.
Install pressure gauge: Mount the pressure gauge tightly for accurate readings.
Fill the lubricator: Unscrew the oil cup and fill with pneumatic turbine oil (ISO VG32) to between MIN and MAX marks.
Set initial pressure: Before pressurizing, turn the regulator knob fully counterclockwise to unload the spring. Slowly open the inlet valve, then rotate the knob clockwise to increase output pressure to the desired setting.
Check for leaks: Apply soapy water to all connections and look for bubbles. Tighten any leaking connections.
Test operation: Verify airflow and pressure to ensure the FRL unit is operating correctly.
Prohibition | Reason |
|---|---|
Never install the lubricator before the filter | Unfiltered air will clog the lubricator nozzle |
Never install the regulator after the lubricator | Oil mist will contaminate regulator internals and degrade diaphragm |
Never install in reverse flow direction (OUT to IN) | Component damage will occur immediately |
Never install near heat sources or in direct sunlight | High temperatures will degrade plastic bowls and seals |
Never install with missing bowl guards | Transparent bowls can burst under overpressure — guards prevent injury |
To set the output pressure:
Pull up (or unlock) the regulator knob to disengage the lock
Turn clockwise to increase pressure, counterclockwise to decrease
Monitor the pressure gauge as you adjust
Push down (or lock) the knob to secure the setting
Important: When decreasing pressure, always first vent the downstream line; otherwise the knob will be ineffective and pressure may not drop.
To set the oil feed rate:
Locate the needle valve adjustment screw on the lubricator
Turn clockwise to decrease oil flow, counterclockwise to increase
Observe the oil drops falling through the sight window
Adjust to the recommended rate for your application (typically 1–5 drops per minute)
Tip: When first commissioning the lubricator after filling, temporarily increase the flow rate until you see oil exiting the outlet, then reduce to the desired steady drip rate.
Manual drain filters must be drained regularly to prevent water buildup. The frequency depends on system duty cycle and ambient humidity. For auto-drain filters, verify that the automatic drain function is working periodically.
Observe pressure gauge for stable readings — no slow pressure drop or drift
Check filter bowl for accumulated condensate — drain if necessary
Verify oil level in lubricator bowl — refill if below MIN mark
Check oil drip rate through sight window — adjust if necessary
Listen for air leaks at fittings and connections
Observe downstream equipment for abnormal noise or sticking
Clean external dust and oil from the unit to maintain heat dissipation
Re-verify output pressure — compare no-load vs. load pressure readings
Inspect bowls (filter and lubricator) for cracks, aging, or discoloration
Check metal bowl guards for damage
Inspect threaded connections for looseness or leakage
Clean the sight window for clear oil drop visibility
Fully inspect the FRL unit at least once every quarter
Replace or clean filter element if pressure drop exceeds 0.05 MPa (about 7 PSI)
Clean bowl with neutral cleaning fluid — never use solvents that can damage plastic bowls
Clean pickup tube and check valve in the lubricator
Inspect lubricator needle valve and nozzle for clogging
Check all sealing rings for aging or damage
Inspect lubricator bowl and sight window for cracks
Fully disassemble and clean all components
Replace filter element (even if not visibly clogged)
Replace all seals and O-rings (rubber components degrade over time)
Inspect regulator diaphragm for cracks, hardening, or perforation
Inspect regulator spring for fatigue, deformation, or rust
Inspect lubricator needle valve and nozzle for wear — replace if necessary
Perform leak test and atomization performance test
Verify pressure regulation accuracy
Close inlet valve and exhaust system pressure completely
Drain all condensate from filter bowl
Drain all oil from lubricator bowl (old oil degrades over time)
Blow internal passages with clean compressed air
Cover unit with dust cap or plastic sheeting
Before restarting, clean bowl and add fresh oil
Fault Symptom | Possible Cause | Remedy |
|---|---|---|
Pressure drops under load | Filter element clogged | Clean or replace filter element |
Water in downstream equipment | Bowl not drained | Drain bowl regularly or install auto-drain |
Bowl cracks or leaks | Overpressure or chemical damage | Replace bowl and check pressure setting |
Low or no airflow | Severely clogged filter element | Replace filter element |
Fault Symptom | Possible Cause | Remedy |
|---|---|---|
Output pressure drifts / cannot maintain set point | Worn valve seat, damaged diaphragm, clogged filter | Clean/replace filter, inspect diaphragm and seat |
Output pressure too low | Low supply pressure, filter clogged, regulator undersized | Check supply, clean filter, upsize regulator if needed |
Output pressure too high | Regulator damaged, diaphragm perforated, valve stuck open | Replace regulator or rebuild with service kit |
Fluctuating output pressure | Supply pressure unstable, filter clogged, dirt in regulator | Stabilize supply, clean filter, clean regulator |
Knob hard to turn | Internal contamination, spring rusted, lack of lubrication | Clean regulator, replace rusted spring |
Fault Symptom | Possible Cause | Remedy |
|---|---|---|
No oil drops | Oil level too low, pickup tube clogged, check valve stuck, nozzle clogged, system pressure too low, needle valve fully closed | Refill oil, clean pickup tube, clean/ replace check valve, clean nozzle, increase system pressure, open needle valve |
Excessive oil drops | Needle valve open too far, needle valve damaged, system pressure too high, abnormal upper bowl pressure | Close needle valve slightly, replace needle valve, reduce system pressure, inspect shut-off valve |
Unstable oil drop rate | Large system pressure fluctuations, contaminants in bowl, check valve malfunction, loose pickup tube | Check regulator, clean bowl and pickup tube, clean/ replace check valve, tighten pickup tube |
Oil leakage | Seal aged/damaged, cracked bowl, filler plug loose, loose connections | Replace seals, replace bowl, tighten filler plug, tighten connections |
Poor atomization | Nozzle clogged or worn, system pressure too low, oil viscosity too high, excessive tilt angle | Clean or replace nozzle, increase system pressure, use ISO VG32 oil, adjust to vertical installation |
Fault Symptom | Possible Cause | Remedy |
|---|---|---|
Unit not working (no air output) | Air pressure too low, filter element completely blocked, inlet valve closed | Check supply pressure, replace filter element, open inlet valve |
Air leakage from unit | Loose fittings, aging or damaged seals, cracked bowls | Tighten fittings, replace seals, replace cracked bowls |
When selecting an FRL unit for your pneumatic system, consider the following parameters:
Parameter | Consideration |
|---|---|
Flow rate (L/min or SCFM) | Must exceed maximum system demand with adequate margin |
Port size | Match pipe diameter to system piping |
Maximum inlet pressure | Must be ≥ actual supply pressure |
Pressure regulation range | Must cover required output pressure |
Filtration rating | 40–75 micron for general purpose; 5 micron for precision applications |
Drain type | Manual for monitored systems; auto-drain for high-volume or unattended systems |
Bowl material | Polycarbonate (transparent) or metal (for harsh environments) |
Lubricator oil delivery | Select based on number and type of downstream devices |
Not all applications require all three components. Two common configurations:
F-R Unit (Filter + Regulator) : Used in systems where lubrication is not required — common in food processing, pharmaceutical, electronics, painting, and other clean air applications where oil mist is prohibited.
FRL Unit (Filter + Regulator + Lubricator) : Used in general industrial automation where moving parts require lubrication — cylinder and valve applications, pneumatic tools, packaging machinery.
F-R Unit (Filter + Regulator) : Used in systems where lubrication is not required — common in food processing, pharmaceutical, electronics, painting, and other clean air applications where oil mist is prohibited.
FRL Unit (Filter + Regulator + Lubricator) : Used in general industrial automation where moving parts require lubrication — cylinder and valve applications, pneumatic tools, packaging machinery.
Rule | Reason |
|---|---|
Always shut off and depressurize before maintenance | Compressed air can cause serious injury — components can eject violently |
Never exceed maximum rated pressure (typically ≤1.0 MPa / 145 PSI) | Bowls can burst, causing injury and equipment damage |
Use only correct lubricating oil (ISO VG32 pneumatic turbine oil) | Other oils (engine oil, diesel, grease, hydraulic oil) cause clogging, poor atomization, seal swelling, or system contamination |
Never disassemble under pressure | Inlet valve must be closed and system fully vented before any disassembly |
Never operate with oil level above MAX | Excess oil will be sucked into the system, causing valve sticking, cylinder contamination, and product contamination |
Never run with empty oil bowl | Downstream components will operate without lubrication, causing rapid wear |
Never bypass or remove bowl guards | Guards prevent injury if plastic bowls burst |
Never use solvent cleaners on polycarbonate bowls | Solvents cause cracking and catastrophic failure |
FRL units must not be used in applications requiring oil-free compressed air, including:
Food and beverage processing
Pharmaceutical manufacturing
Electronics assembly and cleanrooms
Painting and coating operations
Medical air systems
Any process where oil contamination cannot be tolerated
For these applications, use F-R units (filter + regulator only) or oil-removal filters.
An FRL unit is the most critical component in any pneumatic system. It handles 100% of the compressed air supply, making it the single point that determines whether clean, regulated air reaches your components or contaminated, unstable air destroys them from the inside.
A compromised FRL unit does not just affect one component — it cascades through the entire pneumatic system, causing widespread failures and costly downtime. Conversely, a properly selected, correctly installed, and regularly maintained FRL unit can extend pneumatic component life by 200-300% while reducing system faults by up to 85%.
By understanding how each component works, following proper installation procedures, adhering to regular maintenance schedules, and observing all safety rules, engineers and technicians can ensure their pneumatic systems deliver reliable, efficient, trouble-free operation for years to come.
