Pneumatic Vibrator for Pipeline Pneumatic Air Hammer


Availability:

Quantity:



Inquiry Add to Basket

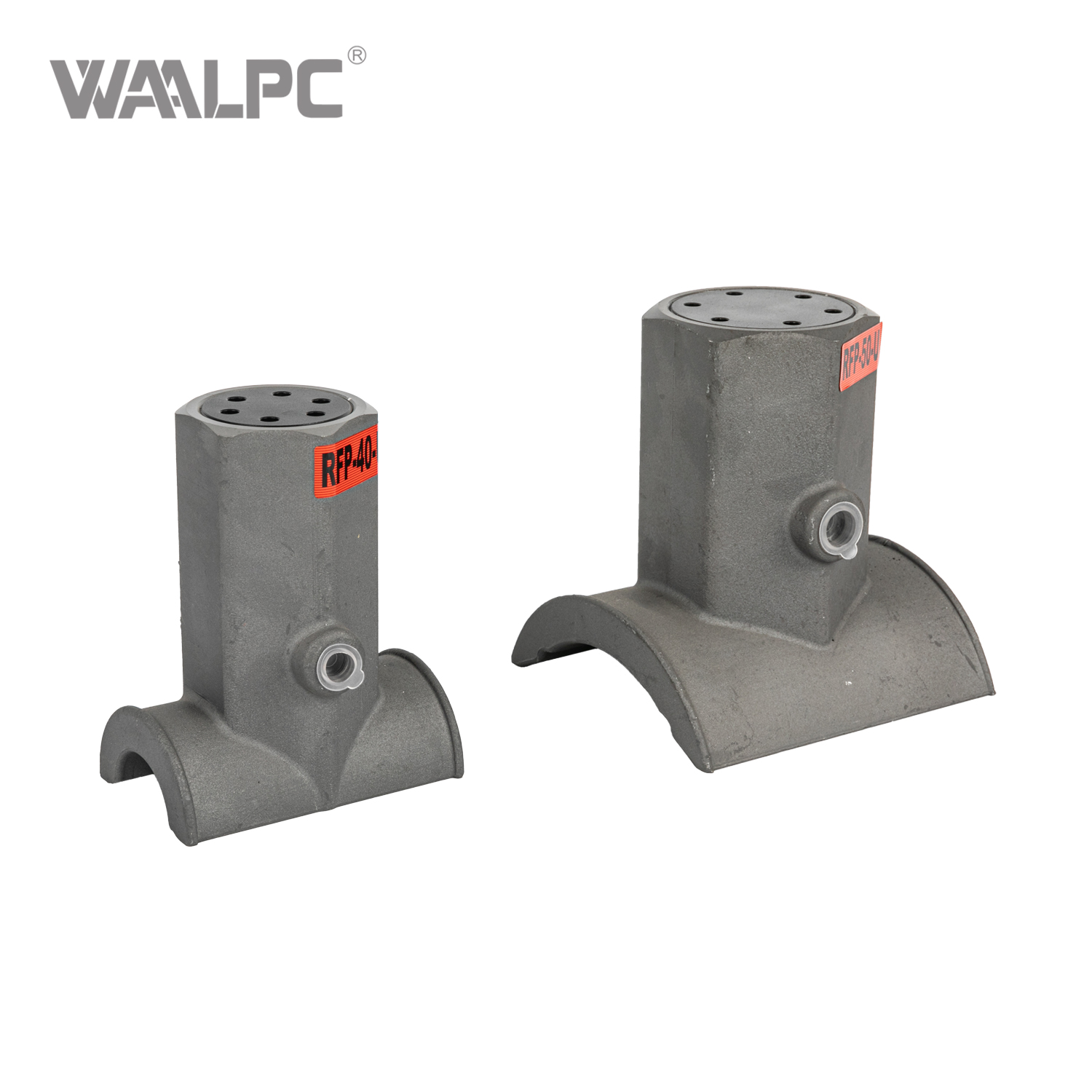

The RFP-U Pipeline Vibrator is an industrial-grade pneumatic device engineered to prevent material blockages and promote efficient material flow within pipelines and various industrial conduits.

Model:
RFP-40-U
Brand:
WAALPC
Code:
8501109990

Product Description

Direct Pipeline Mounting: Specifically designed for external attachment to pipelines to prevent material buildup and blockages;

Inherently Safe Operation: Pneumatic design eliminates explosion risks, suitable for hazardous environments;

Infinitely Adjustable: Impact force and frequency can be precisely controlled by regulating air pressure;

Maintenance-Free Performance: Robust construction requires no lubrication and provides long service life;

Broad Application Range: Effective for various powdered and granular materials in pipes, silos, and processing equipment.

Technical Parameters

DATA SHEET

Model	Impact(NM)	Impact frequency/s	Applicable pipeline diameter(mm)	Air consumption/min(L)
RFP-40-U	15-1000	40-120	50-165	65-85
RFP-50-U	25-2200	35-90	165-285	75-95

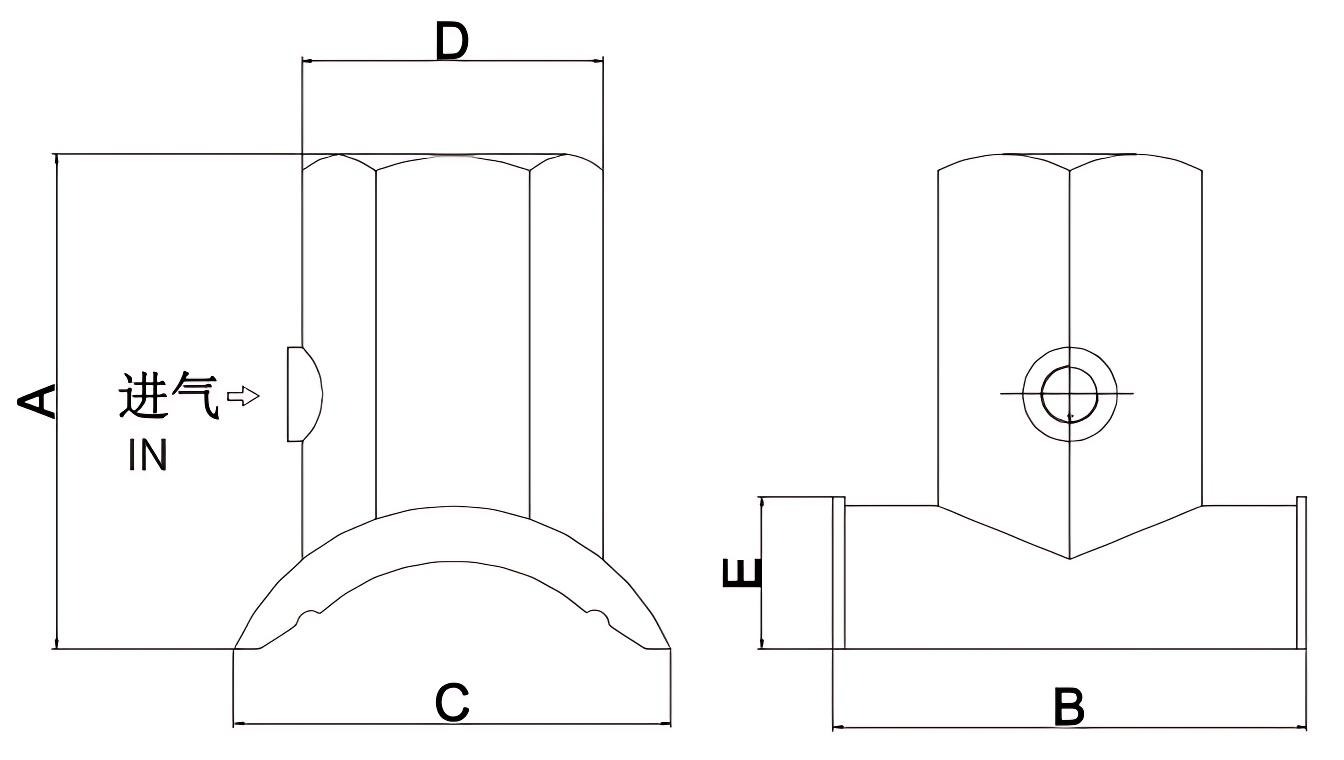

OVERALLDIMENSION&STRUCTURE

RFP-U structure_

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	IN
RFP-40-U	123	100	62	62	33	G1/4
RFP-50-U	135	129	118	82	46	G3/8

Specification Download

Piston reciprocating vibrator.pdf
