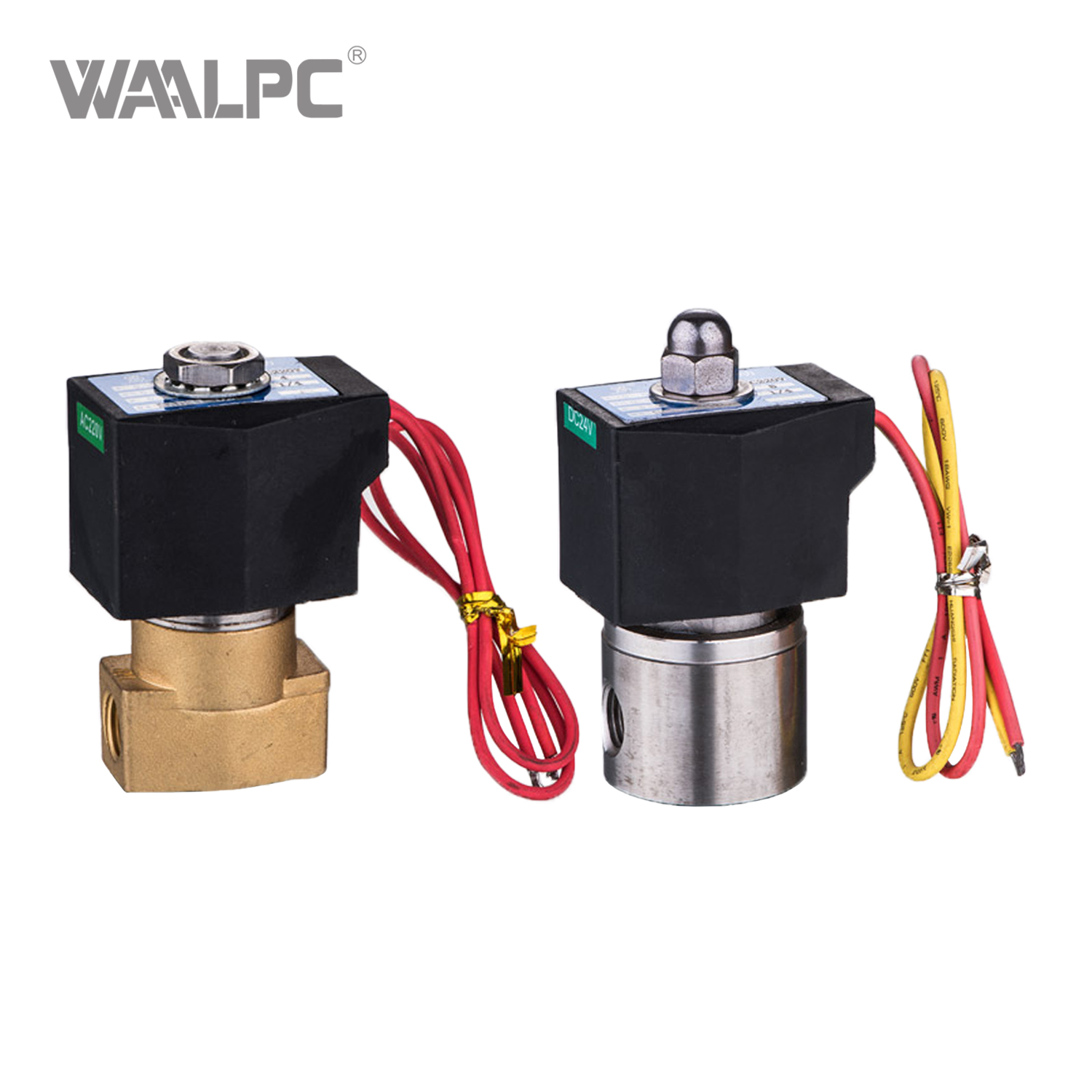

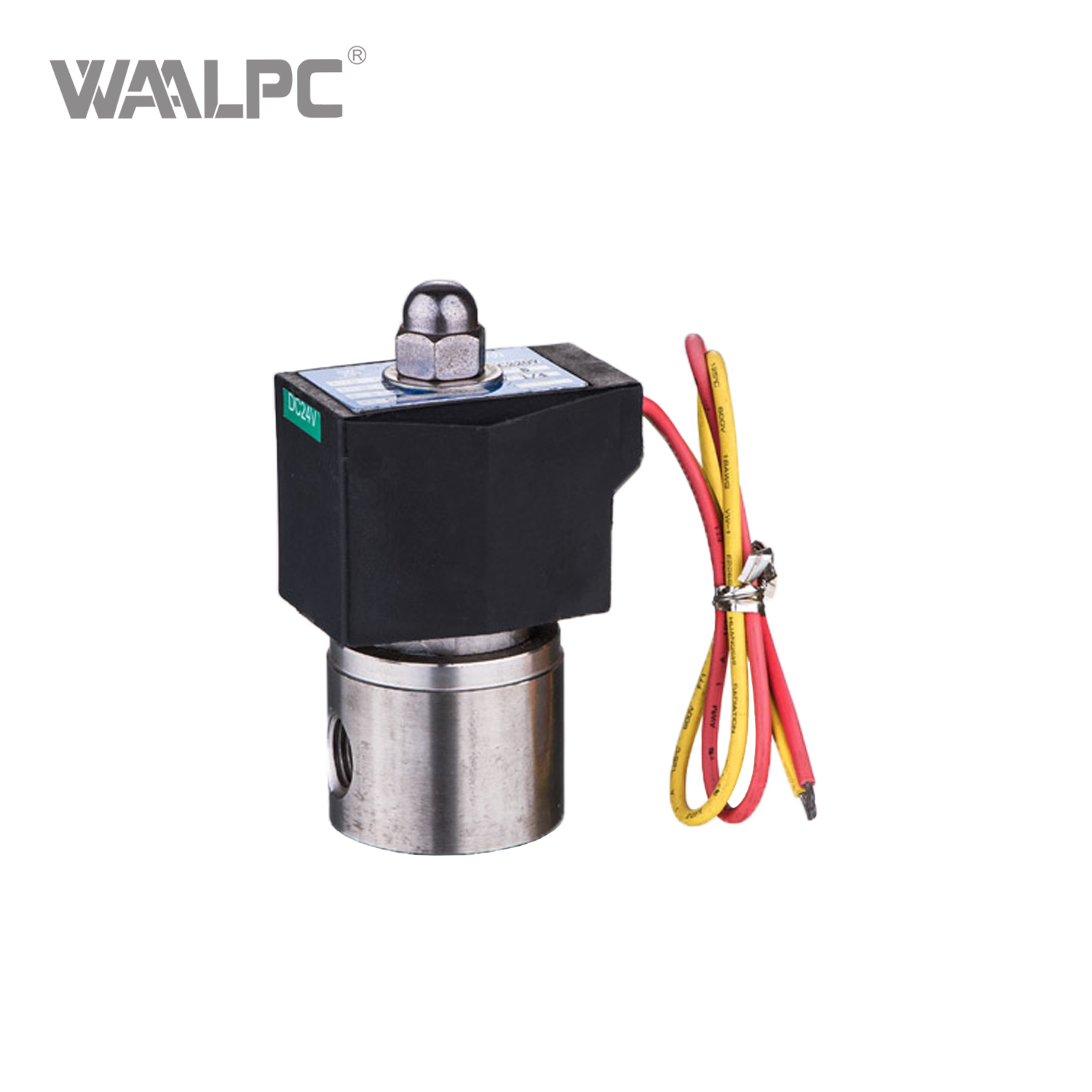

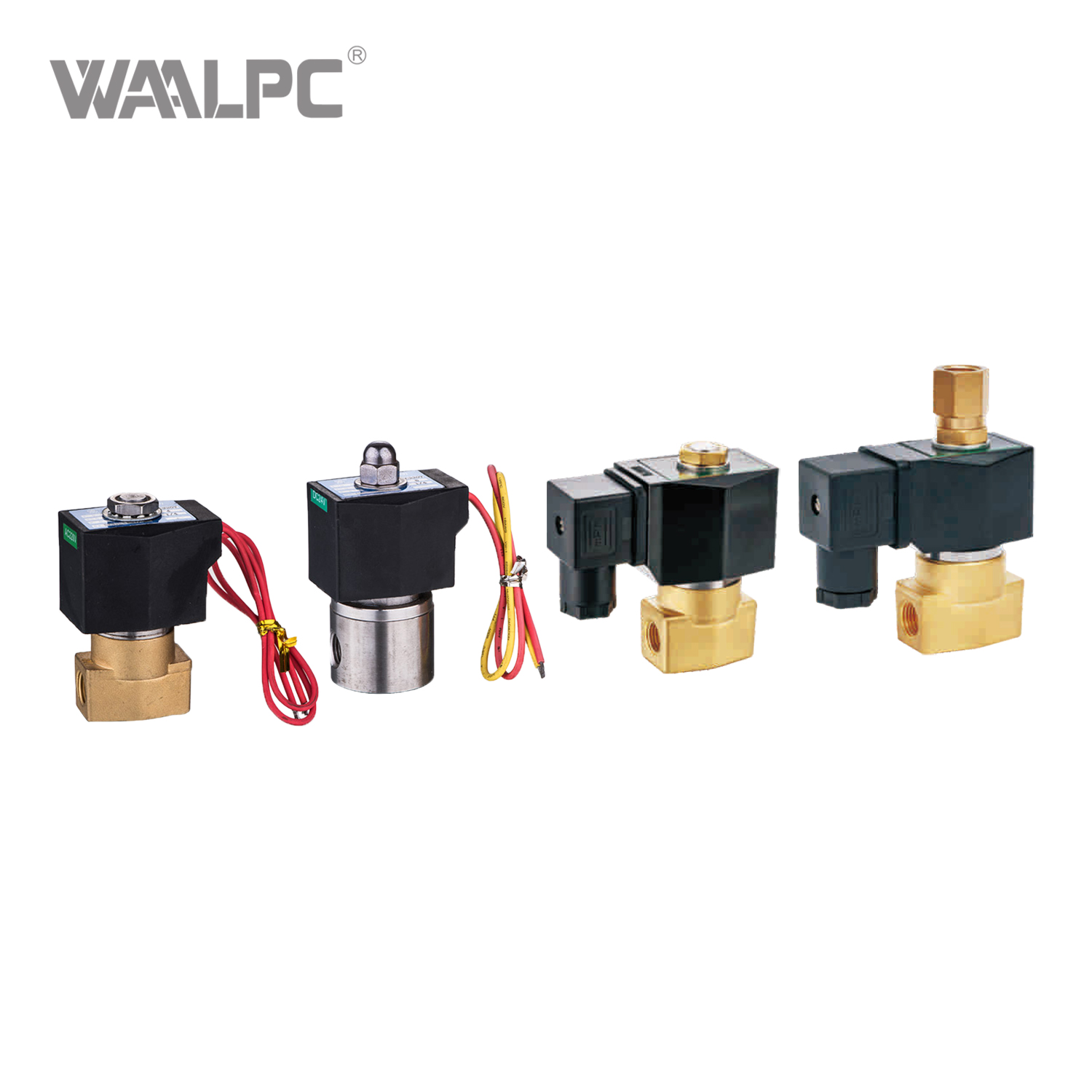

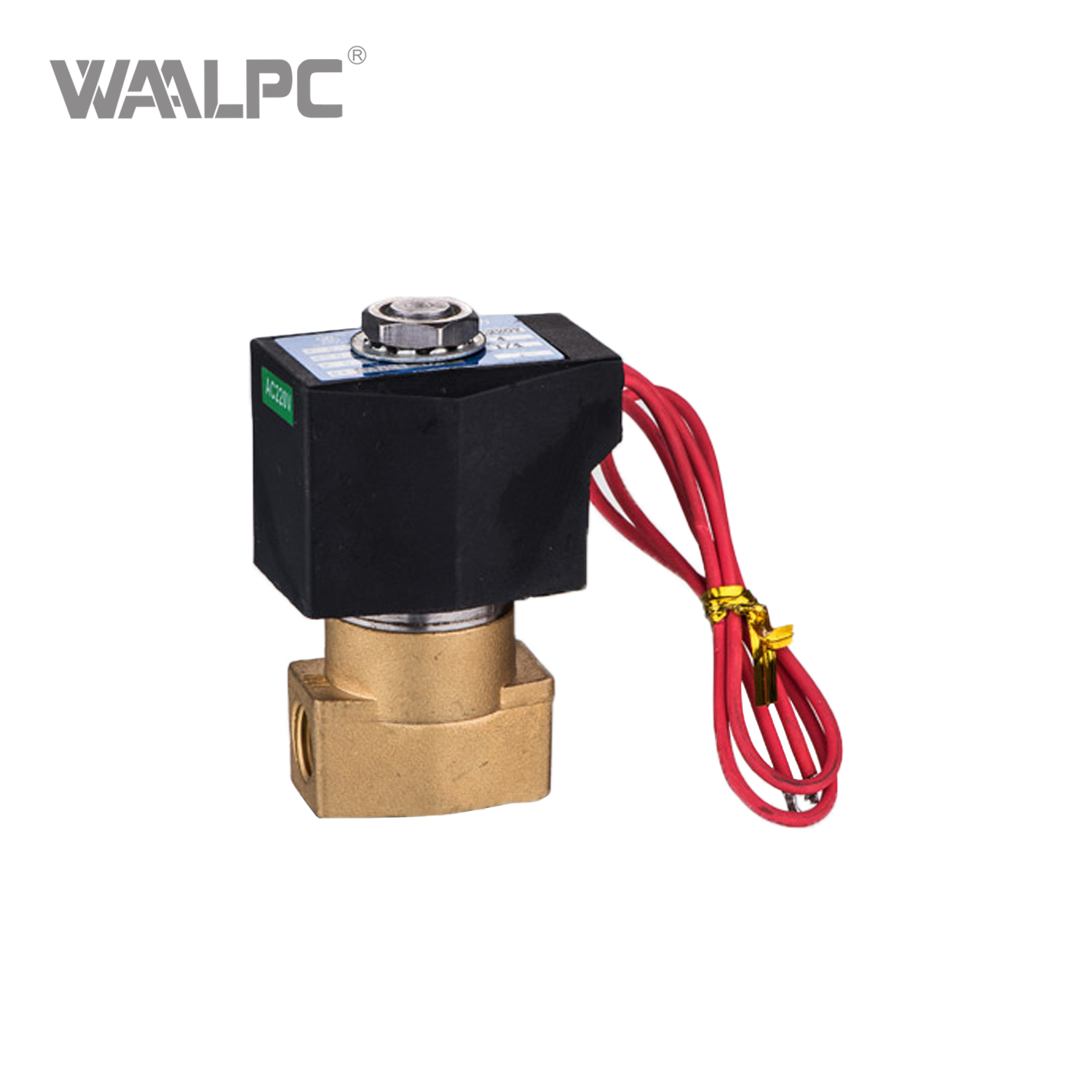

SAB SAG Series 5/2 Pilot Solenoid Valve, Pneumatic Directional Control Valve


Availability:

Quantity:



Inquiry Add to Basket

SAB/SAG series 5/2 pilot pneumatic solenoid valves are directional control valves for controlling cylinders in automated equipment, featuring fast response, reliable sealing and optional manual override.

Model:
SAB SAG
Brand:
WAALPC
Code:
8481804090

Product Description

Pilot operated 5/2 way solenoid valve, used to control pneumatic cylinders
Fast switching response, stable operation for frequent cyclic work
Excellent sealing performance with low air leakage
Built-in manual override for convenient testing and maintenance
IP65 protection grade, dustproof and suitable for workshop environments
Multiple coil voltage options: DC24V, AC220V
Compact structure, easy installation on automation equipment

Technical Parameters

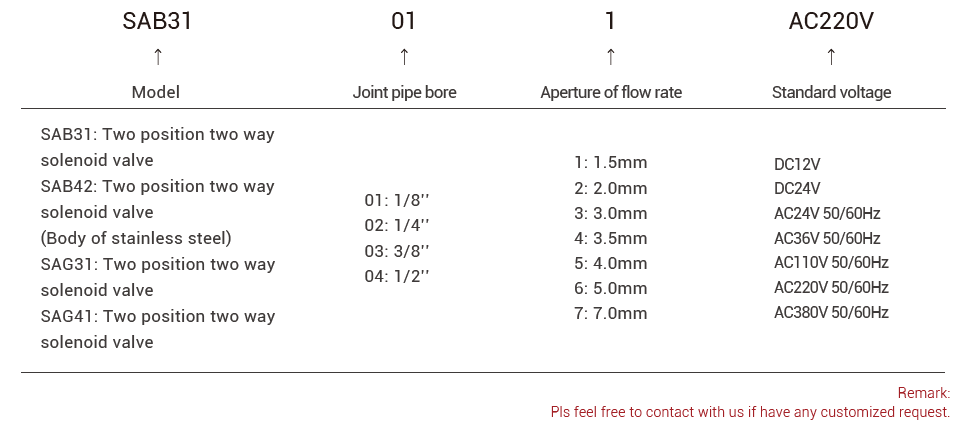

ORDERING CODE

Solenoid Valve

SPECIFICATION

Model	Motion Pattern	Bore Size	Cv Value(mm)	Max. Operating Pressure Differential(MPa)	Apparent Power 50Hz(60Hz)	Fluid Temperature
Fluid Media: Air, Oxygen-rich gas, Vacuum(0.1 torr), Water, Warm water, Kerosene, Oil(≤5OCST), Steam
SAB31-01-1	Direct Drive (Normal Close)	1/8''	1.5(0.10)	※1~2.5	Holding 12(10)VA Inrush 17(14)VA	-10~60℃, 184℃( non-freezing steam )
SAB31-01-2			2.0(0.15)	※1~1.5
SAB31-01-3			3.0(0.31)	※0.5~1
SAB31-01-4			3.5(0.42)	※0.4~0.6
SAB31-01-5			4.0(0.54)	※0.25~0.4
SAB31-01-6			5.0(0.80)	※0.15~0.2
SAB31-02-1		1/4''	1.5(0.10)	※1~2.5
SAB31-02-2			2.0(0.15)	※1~1.5
SAB31-02-3			3.0(0.31)	※0.5~1
SAB31-02-4			3.5(0.42)	※0.4~0.6
SAB31-02-5			4.0(0.54)	※0.25~0.4
SAB31-02-6			5.0(0.80)	※0.15~0.2
SAB41-02-1			1.5(0.10)	※1~5	Holding 18(15)VA Inrush 29(24)VA
SAB41-02-2			2.0(0.15)	※1~3
SAB41-02-3			3.0(0.31)	※0.9~1.5
SAB41-02-4			3.5(0.42)	※0.6~1.2
SAB41-02-5			4.0(0.54)	※0.5~1
SAB41-02-6			5.0(0.80)	※0.25~0.6
SAB41-02-7			7.0(1.0)	※0.1~0.25
SAB41-03-7		3/8''	7.0(1.0）	※0.1~0.25	Holding 18(15)VA	-10~60℃, 180℃( non-freezing steam )
SAG31-01-1		1/8''	1.5	※0.7~0.7
SAG31-01-2		1/8''	2.0	*0.4~0.7
SAG31-02-1		1/4''	1.5	※0.7~0.7
SAG31-02-2		1/4''	2.0	※0.4~0.4
SAG41-02-1		1/4''	2.0	※0.7~1
SAG41-02-2		1/4''	2.3	※0.4~0.7
SAG41-03-1		3/8''	2.	※0.7~1
SAG41-03-2		3/8''	2.3	※0.4~0.7

The maximum operating pressure differential varies depending on AC / DC power supply for the working fluid.
Voltage: AC220V(50Hz), DC24V; other voltages available upon special order.

Electrical connection:Direct lead wire (standard),DIN terminal box,open housing,terminal box
Integratable.
For steam service, suffix model number with -C4A.

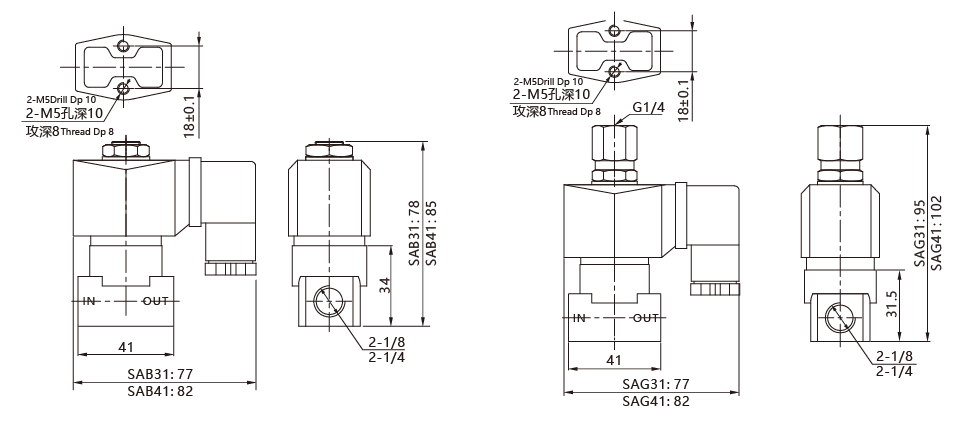

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

Specification Download

SAB SAG Series Solenoid Valve.pdf

Superiority

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
