When maintaining a pneumatic system, most engineers check for leaks or regulator pressure. However, the most common silent killer of cylinder and valve life sits inside the air filter.
At Waalpc, we often see factories replacing expensive solenoid valves every few months while ignoring the FRL unit upstream. If your air tools feel weak or your cylinders move slowly, the issue is likely not the compressor—it is pressure drop caused by an incorrectly sized or clogged filter.
Let’s cut through the technical jargon. Here is what "Rated Flow" actually means and why getting it wrong costs you money.
Many buyers look at the port size (e.g., 1/2 inch) and assume that defines the flow capacity. That is a mistake.
In engineering standards, the Rated Flow is defined as the volume of air a filter can pass while maintaining a pressure loss of only 0.05 MPa (0.5 bar) . This is measured under strict lab conditions (0.7 MPa inlet pressure, 20°C).
Think of the rated flow as the speed limit on a highway.
At rated flow: Traffic flows smoothly (low pressure loss, high efficiency).
Above rated flow: You hit traffic jam. Air velocity spikes, efficiency drops, and energy bills rise.
If you choose a pneumatic filter that is too small for your system, you are forcing air through a bottleneck.
You might think, "My compressor has enough pressure, so the filter is fine." But pressure is different from flow.
When you push air through an undersized air filter unit, three things happen immediately:
A standard 5μm filter removes 95% of contaminants only at or below rated flow.
At 1.2x Rated Flow: Efficiency drops to ~80%.
At 1.5x Rated Flow: Efficiency drops to ~60%.
At 2.0x Rated Flow: The filter essentially stops working. Dirt and water rush straight to your valves.

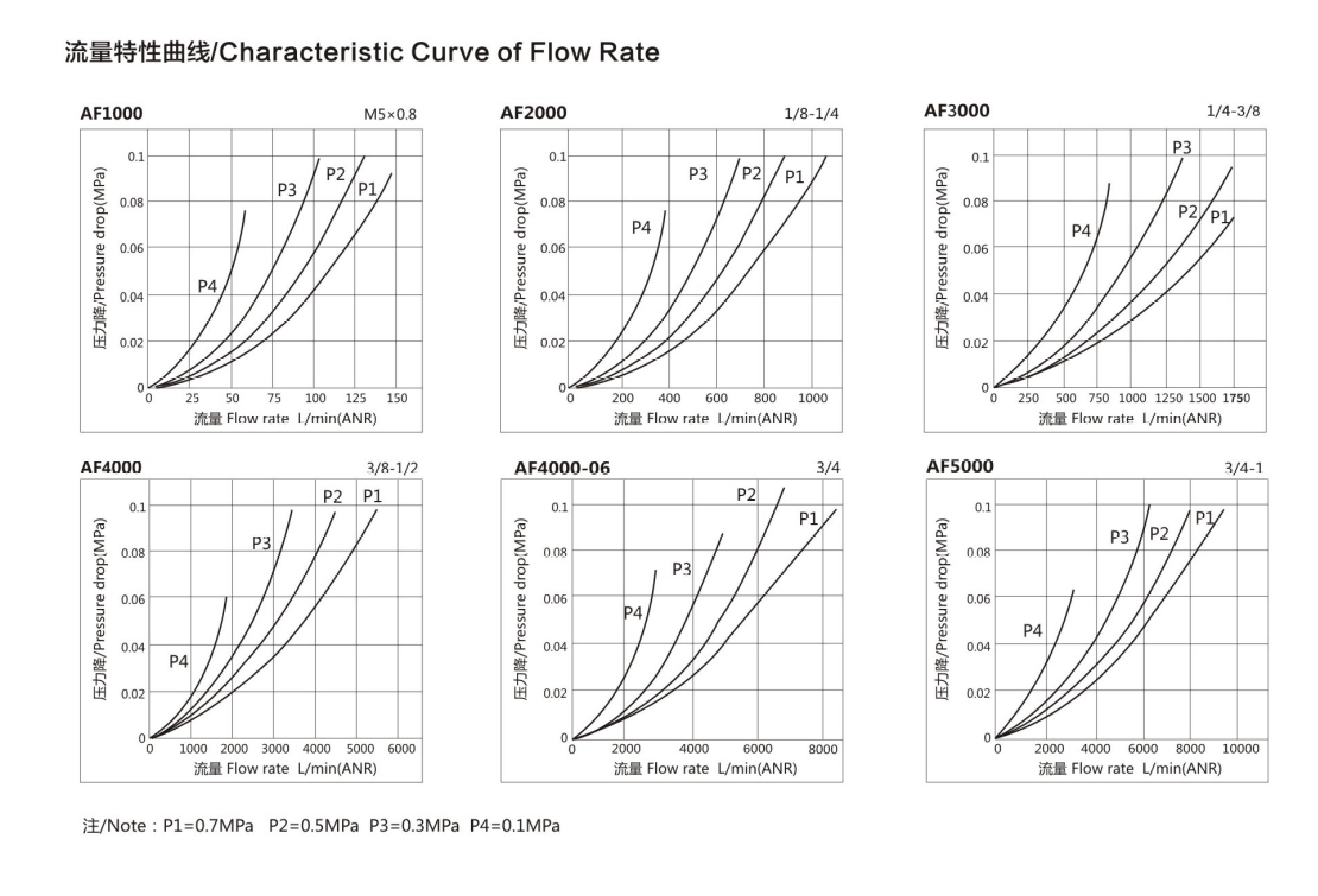

Here is the math that scares plant managers: Pressure loss has a square relationship with flow.
If you double the flow, you quadruple the pressure loss.
Example: A filter rated for 1000 L/min at 0.05 MPa loss.
If you push 2000 L/min through it, the loss jumps to 0.2 MPa.
That extra 0.1 MPa of loss forces your air compressor to work 7%-10% harder, burning thousands of extra kWh per year.
Higher flow means more contaminants hit the filter element per second. A replacement element that should last 12 months will fail in 2-3 months simply because the airflow is too violent.
Don't just match the old filter size. Do the math.
The Golden Rule: The filter’s rated flow must be 1.2 to 1.5 times your system’s maximum air consumption.
Real-world example:
Your system uses 800 L/min max.
Safety buffer: 800 x 1.2 = 960 L/min.
If you use a high-precision (1μm) air filter -> Multiply by 1.2 = 1152 L/min.
Final selection: Look for a filter rated at ~1200 L/min or higher, not just 800.
Pro tip: When working in hot environments (40°C+) or low pressure (0.4 MPa), you need to increase the model size further.
Manufacturers give standard life spans (e.g., "change every 12 months"). But in reality, dirty environments (like woodworking or welding) kill filters faster.
Do not wait for the calendar. Watch for these three physical signs:

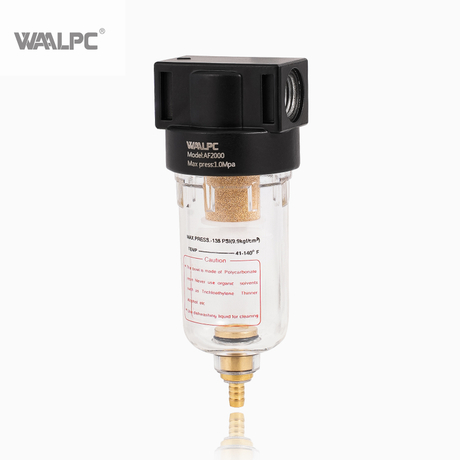

The "Black Ring" Effect: Look at the filter bowl. If the element inside looks black or dark brown, it is saturated. Replace it immediately.
The Drain Spits Debris: Your auto drain valve should expel water. If it starts spitting black sludge or oil emulsion, the filter has failed.
The 0.1 MPa Rule: If your system has a pressure gauge before and after the filter, change the element when the difference (ΔP) reaches 0.1 MPa.
We often see users trying to save money by blowing out stainless steel or copper sintered elements.
Warning: While you can clean them, you will never restore the original micron rating. Once clogged deeply, the filter element is permanently damaged. Replace it.
Even experienced maintenance leads fall into these traps.
Mistake 1: "I have a 1/2 inch filter, so it must flow 5000 L/min."
Reality: Port size doesn't equal flow. A cheap 1/2 inch filter might only flow 2000 L/min with a huge pressure drop. Always check the rated flow spec sheet.
Mistake 2: "Cheap filters save money upfront."
Reality: A cheap FRL combo unit with high internal resistance will cost you more in compressor electricity in 6 months than the purchase price.
Mistake 3: "My regulator is dropping pressure, so the regulator is bad."
Reality: Often, the filter is clogged. The regulator simply cannot get enough air to the downstream side. Check the filter first.
The air filter is the immune system of your factory. Treating it as a "fit it and forget it" part is expensive.
The action plan for today:
Walk to your machine with the highest failure rate.
Check the pressure differential (if you have a maintenance alarm unit).
Look at the color of the filter element through the bowl. Is it dark?
Compare your machine's air consumption to the rated flow of the filter.
If you are unsure about your current setup or need a reliable, low-pressure-drop solution, check our Waalpc FRL Series. We design our housings for maximum flow with minimal energy waste.
