15mm Solenoid Valves 331-C4XB Pneumatic 6V/12V/24V 3/2 NC Pilot for Lonati SANTONI Sock Hosiery Machines


Socket connection method:	Z: 90° right Angle Type S: 180° horizontal type C: insert type X: direct lead type
Availability:

Quantity:



Inquiry Add to Basket

15mm Direct Acting Solenoid Valve 331 Series
331 series direct-acting miniature solenoid valves can be installed on solenoid valve manifold in combined use way or used directly with a single valve seat for separate installation. Can be used as a pilot valve for high-flow valves as well as high-frequency control of single-acting cylinder operation.

It is widely used in the textile industry, sock knitting machines, respirators, oxygen generators, medical industry & electronic industry and so on. It has the advantages of compact structure and taking little space,conventient installation,sensitiveness,stable performance,and so on. Moreover,it is protected by two potents.

Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Model:
331-C4XB
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

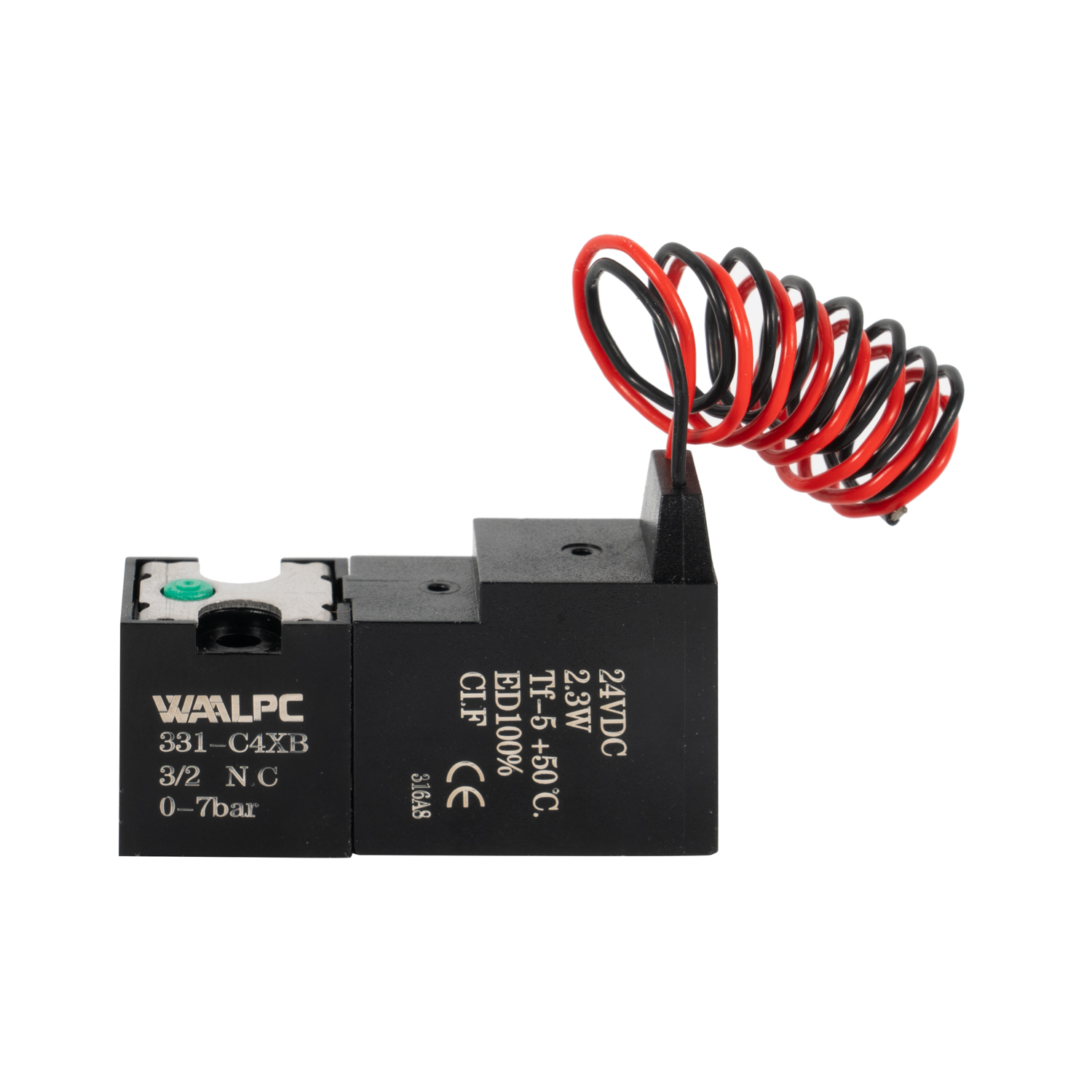

331-C4XB solenoid valve

1.Pilot-oriented mode:Internal pilot or external pilot.
2.Structure in sliding column mode: good tightness and sensitive reaction.
3.Double control solenoid valves have memory function.
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5.No need to add oil for lubrication.
6.Affiliated manual devices are equipped to facilitate installation and debugging.
7.Several standard voltage grades are optional.
8.Integrate with the manifold to save installation space.
9.direct-acting miniature solenoid valves can be mounted with a plate connection or used directly with a single valve seat.
10.It can control the operation of single-acting cylinders with high frequency, and can also be used as pilot valves for high-flow valves.
11.There are a variety of power and diameter to meet different requirements, can be combined into a vacuum, vacuum destruction unit, normally closed (NC) and normally open (NO) two functions.

12. Low power consumption, small size, high frequency, long working life, can work more than 50 million times.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

ORDERING CODE

331- C 4 S J 口口- L

① ② ③ ④ ⑤ ⑥ ⑦ ⑧

Symbol	Content
①	331 series
② Function	C: normally closed (NC), O: normally open (NO)
③ Voltage	4: DC24V, 2: DC12V, 6: DC6V, A: AC24V, T: Special voltage
④ Socket connection method	Z: 90 right Angle Type, S: 180 horizontal type, C: insert type M: insert nut type (insertion test can be installed) X: direct lead type
⑤ Circuit board type	Blank: without circuit board, P: with two-way indicator G: with lamp with over voltage protection circuit, J: with energy-saving template
⑥ Wiring length	Blank: no wiring, A: cable length 125mm B: cable length 300mm, C: special requirements
⑦ Plug type	Blank: no plug, 1: A1, 2: A2, 3: A3, 4: A4, 5: A5, 6: A6, 7: A7, 8: A8, 9: A9

DATA SHEET

Valve Position Function

Two-position three-way, normally closed

(NC) or normally open (NO)

Operating Pressure

0-6bar(NO), 0-7bar(NC), 0-10bar(NC or NO)

Operating Method

Cut-off

Medium and Ambient Temperature

-5℃~50℃ (but not frozen)

Installation Method

Free installation

Working Medium

Filtered compressed air (grade of

filtration meets IS08573-15.4.4)

or inert gas

Orifice Size

1.3mm, 1.5mm, 2.0mm (large flow),

1.0mm (small power or pressure

10bar)

Response Time

Open <10ms, close <12ms

Voltage

DC6V, DC12V, DC24V, AC24V (or

other voltages)

Work Cycle

100% continuous operation

Voltage Tolerance

± 10%

Electrical Connections

Socket or direct lead

Power Consumption

2.3W, 1.8W, 0.5W (special power

can be customized)

IP Level

IP50, IP65 (direct lead type)

STRUCTURE

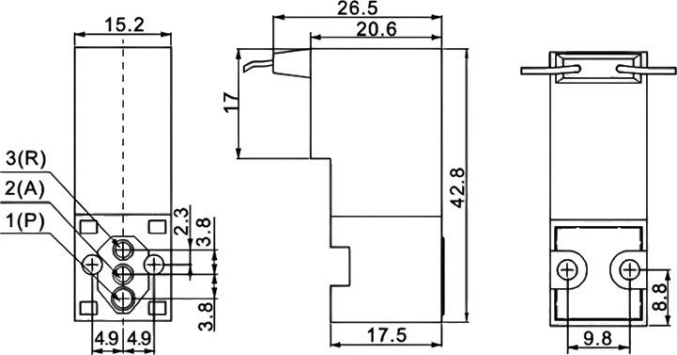

331-C4XB- solenoid valve size

Specification Download

Solenoid Valve -331~378 series.pdf
