KTW200 5um 4um 20Bar G1/4'' OEM 316 Pressure Reducing Valve Stainless Steel Filter Regulator with Manual Drain

ASCO 5um 4um 20Bar G1/4'' OEM 316 SS Pressure Reducing Valve Stainless Steel Filter Regulator with Manual Drain for Valve Industry


Material:	Stainless Steel
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:
KTW200
Brand:
WAALPC

Product Description

Product Advantages

ASCO stainless steel filter regulator

1.SUS316 stainless steel

2.High pressure, corrosion, high&low temperature ,acid and alkali resistant. 3.Effective and fast removal of water and particles.

4. High flow rate.

5.Oil spray in mist ensure good lubrication for machines, extend long lifetime

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-Name	Air Filter & Regulator
Model	KTW200	KTW400
Port Size（G）	G1/4	G1/2
Max Flow Rate(L/Min)	1850	2500
Filter Cup Capacity	105cc	110cc
Grade of Filtration	5μm, 40μm
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa（870Psi）
Operating Temperature Range	-40~100℃
Drain Type	Manual drain(Drain below 0.05MPa)
Material	SUS316 stainless steel
Accessories	Pressure gauge, Mounting bracket, screw x2
Weight	1340g	1960g

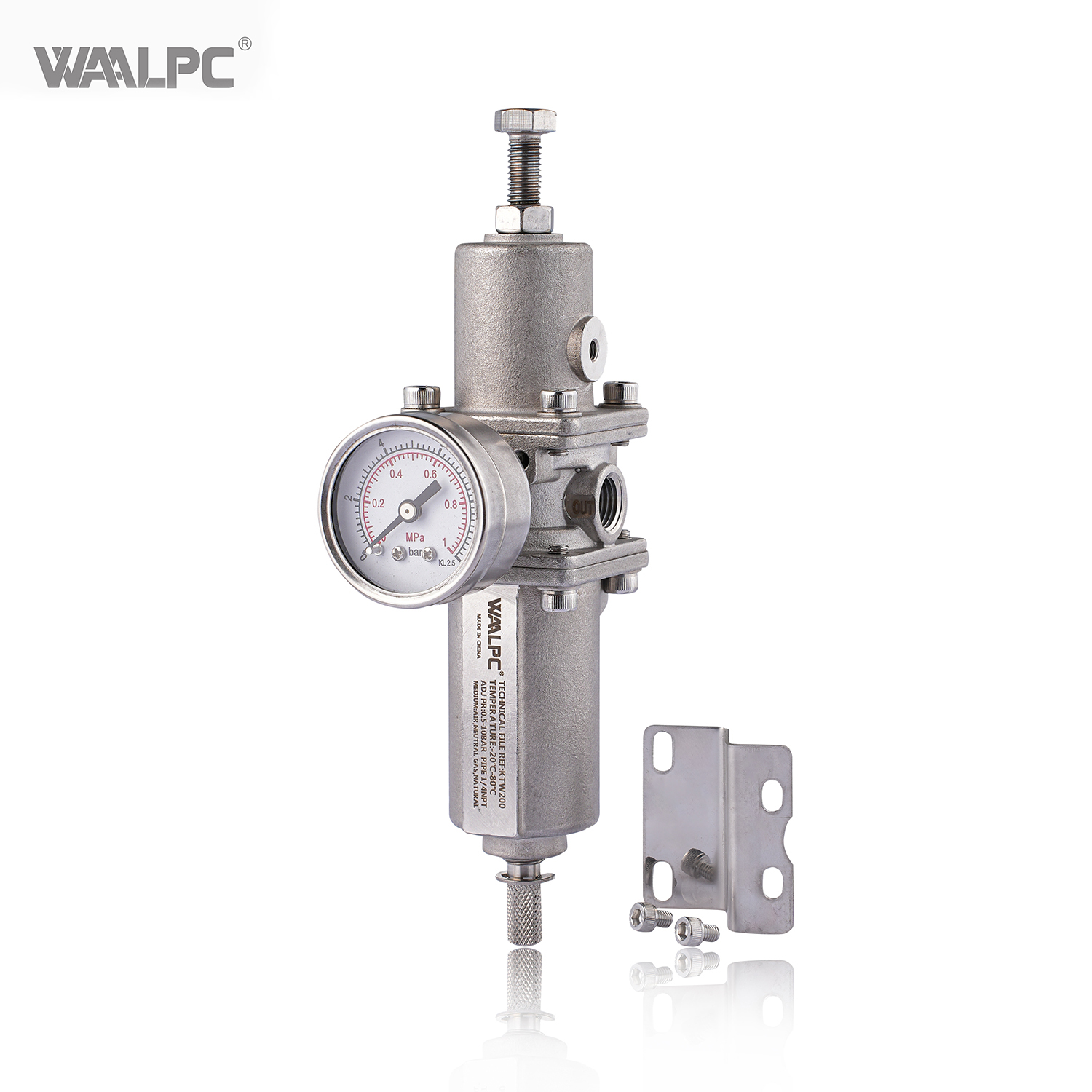

1/4'' Stainless Steel Filter Regulator

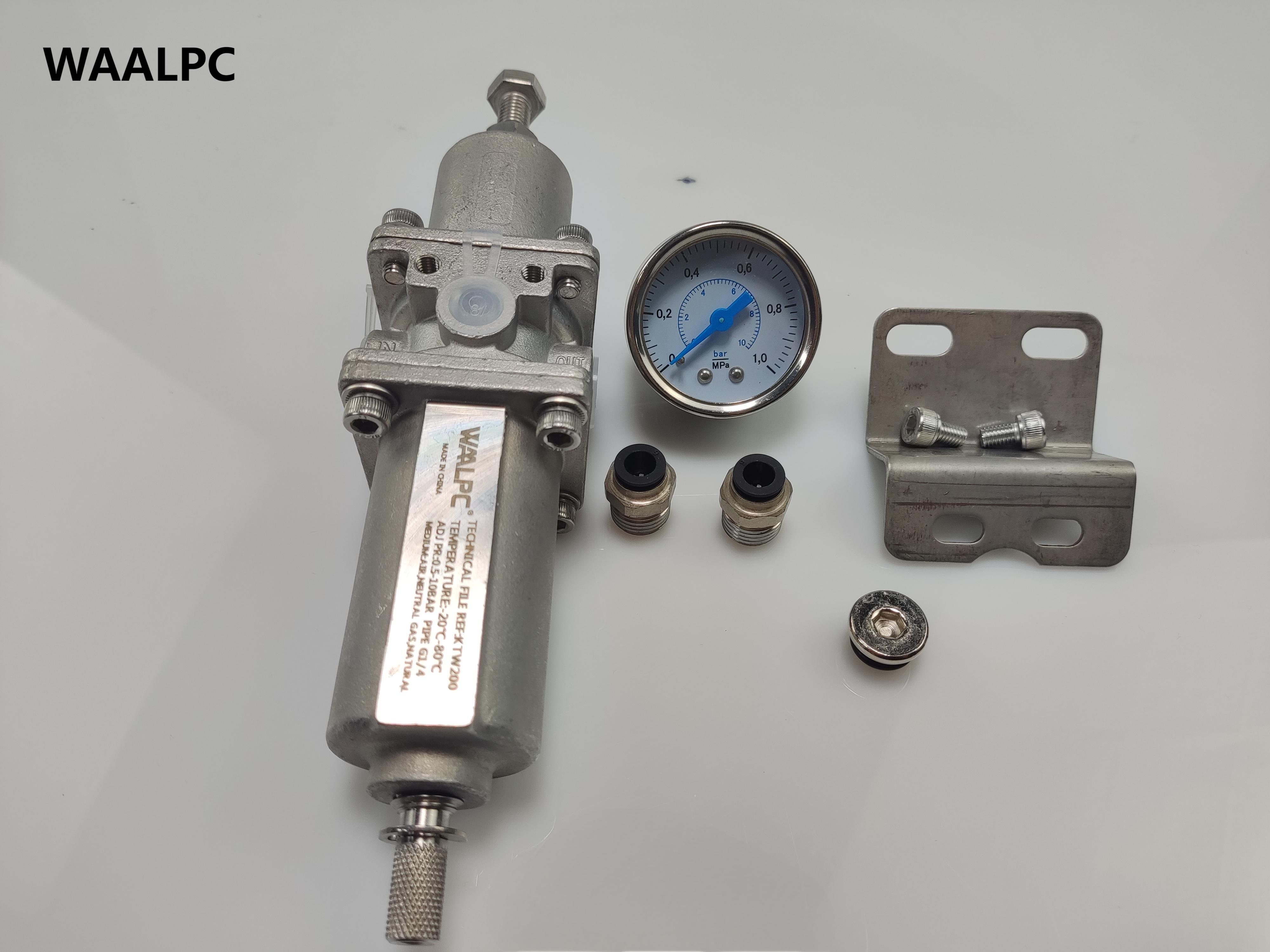

Mounting Bracket:

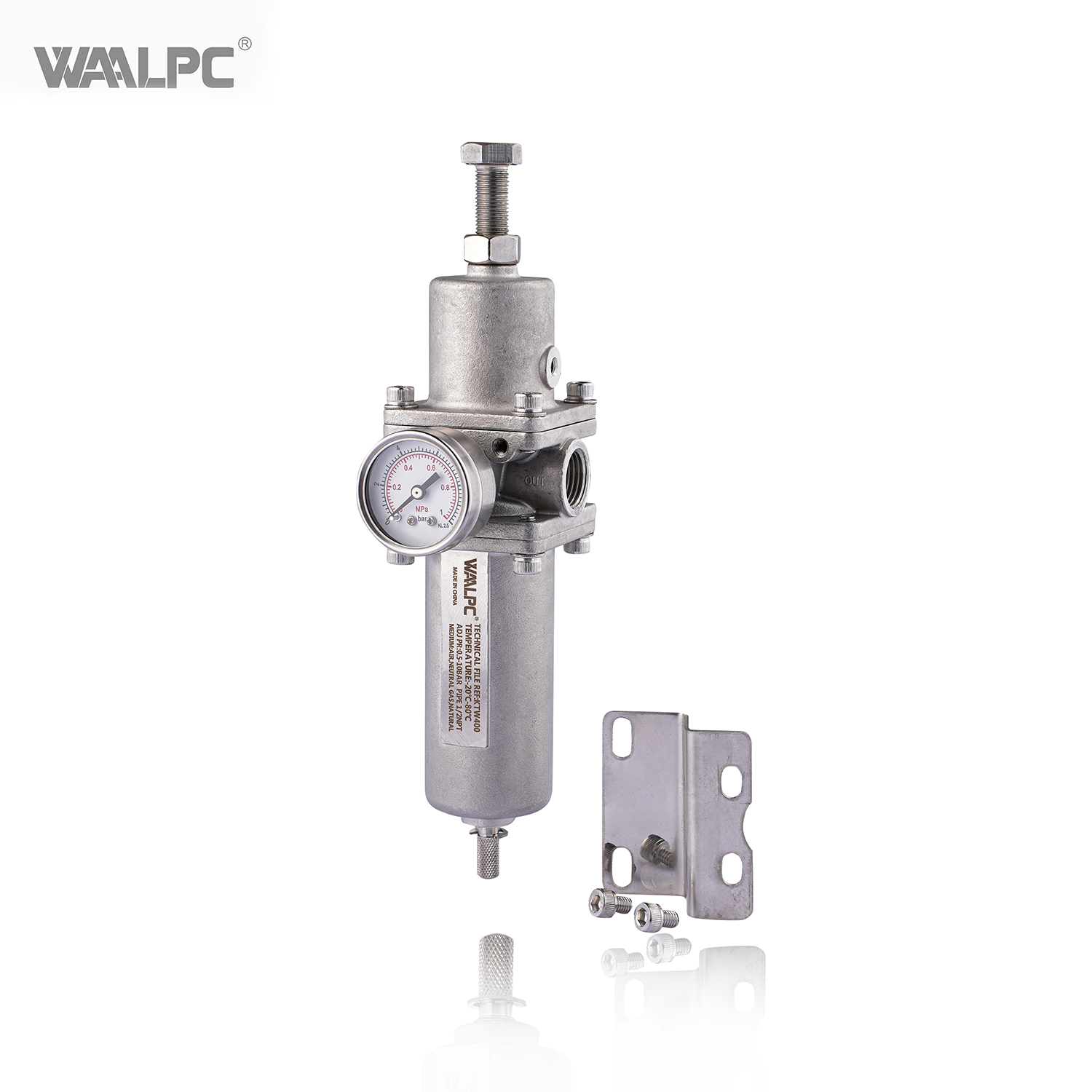

1/4'' Stainless Steel air source treatment

Specification Download

WAALPC KTW Series Stainless Steel Filter & Regulator.pdf
