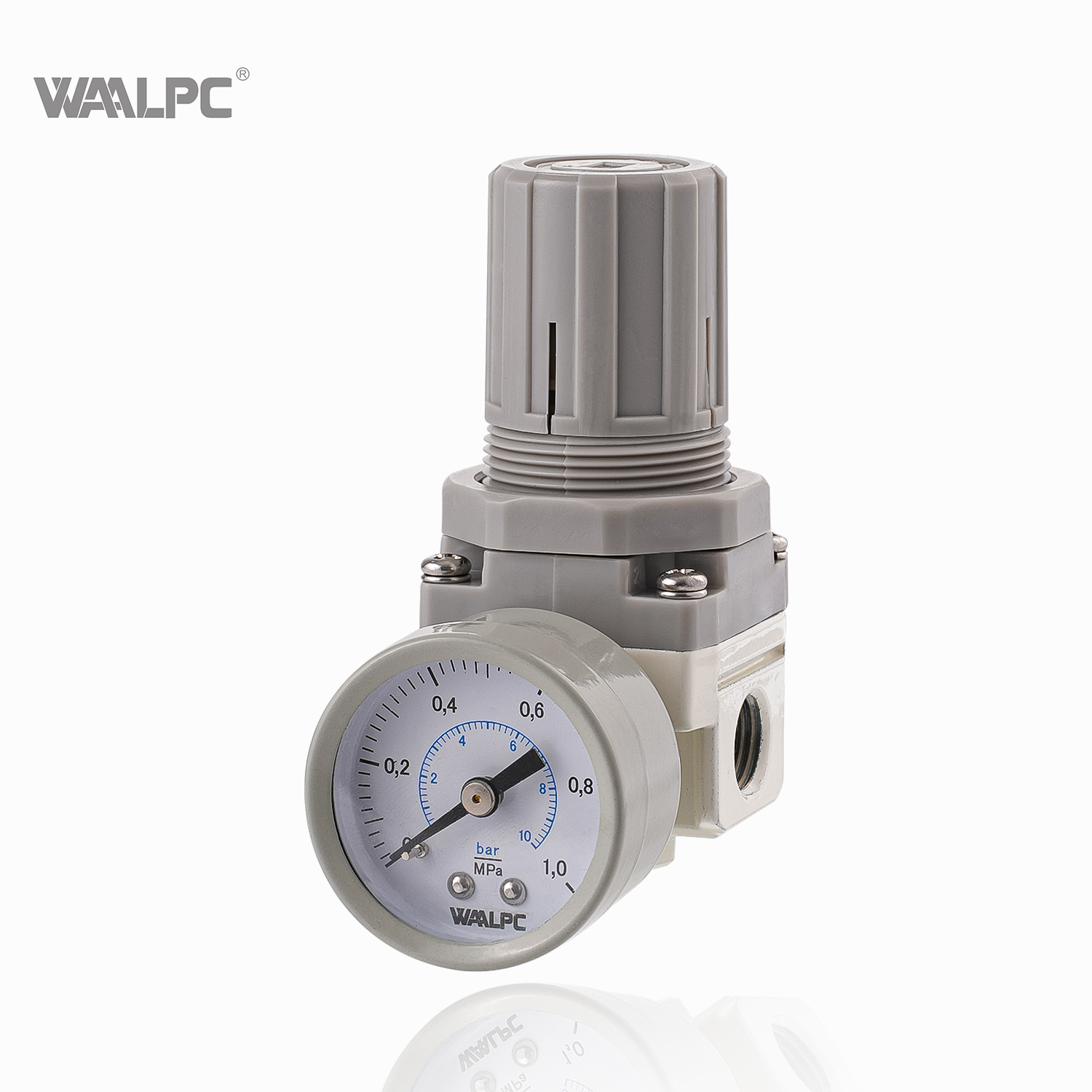

AR2000 white 1/4'' 1/8'' SMC Competitive Offer Advanced Leak-Proof Design Air Pressure Regulator valve with TUV for air compressor

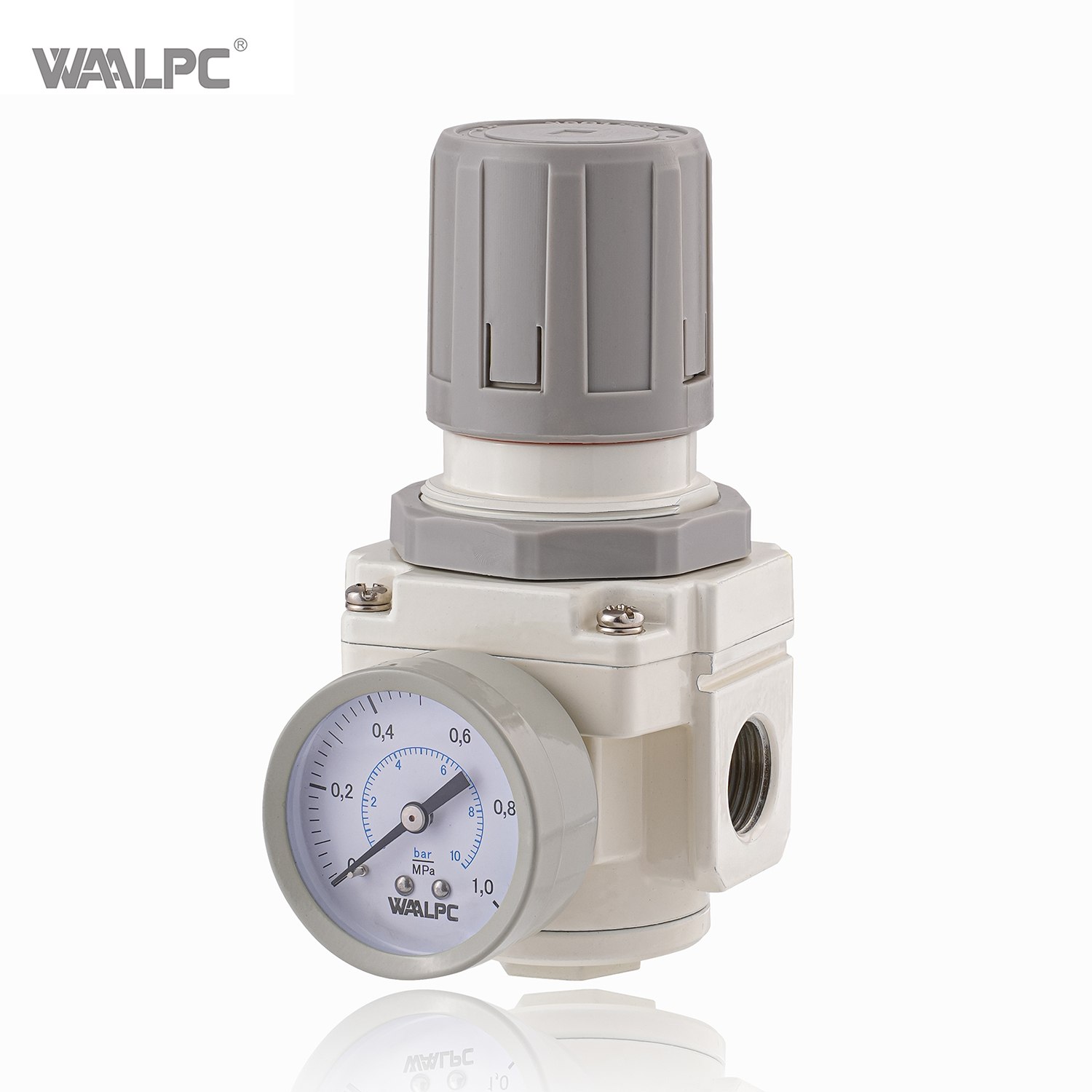

Air Pressure Regulator Valve with TUV for Automation Equipment AR4000 White 3/4'' 1/2'' 3/8'' SMC Advanced Leak-Proof Design


Color:	Black White
Availability:

Quantity:



Inquiry Add to Basket

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

Model:
AR4000 white
Brand:
WAALPC
Code:
8421999000

Product Description

Product Advantages

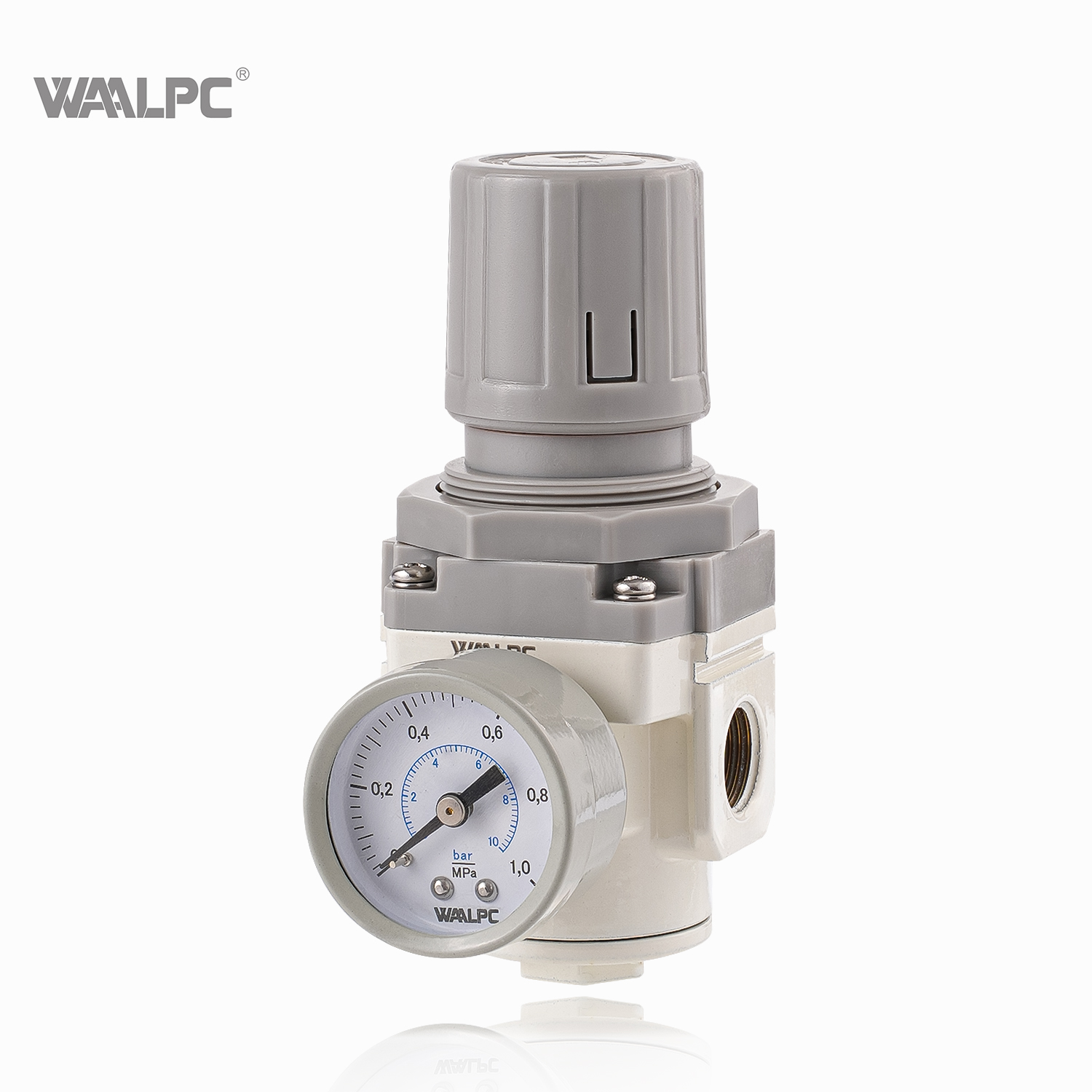

SMC 1/2" 3/8'' 3/4'' AR3000 white Air Regulator manufacturer

1. Light and compact structure, easy to install and use.
2. Press-in self-locking mechanism, which can prevent the set pressure from external interference.
3. Small leakage: can effectively reduce the waste of compressed air.
4. Sensitive and precise pressure adjustment.
5. High pressure, high &low temperature resistant.
6. Strong anti-interference ability: strong adaptability to system pressure fluctuations.

7. Port size available: M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-name	Air Regulator
Model	AR1000-M5	AR2000-01	AR2000-02	AR3000-02	AR3000-03	AR4000-03	AR4000-04	AR4000-06	AR5000-06	AR5000-10
Port Size (G)	M5×*0.8	1/8	1/4	1/4	3/8	3/8	1/2	3/4	3/4	1
Working Medium	Air
Pressure Regulating Range	0.05-0.07MPa	0.05-0.85MPa
Max. Operating Pressure	1.0MPa（ 145Psi）
Pressure Resistance	1.5MPa（ 215Psi）
Operating Temperature Range	5-60 ℃
Pressure Gauge	Y40-01				Y50-02
L-type Bracket	L10	L20	L20	L30	L30	L40	L40	L50	L50	L60
Material	Aluminum die-casting molding;
Weight	200g	280g	280g	460g	460g	890g	890g	940g	1200g	1200g

STRUCTURE

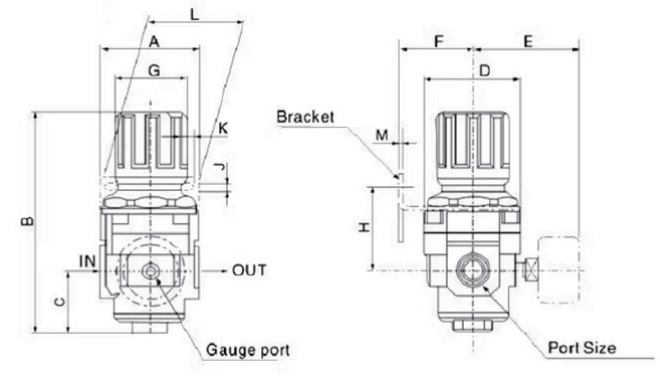

AR2000 SIZE

DIMENSION(MM)

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N
AR1000	M5	25	61.5	11	25	25	25	28	30	4.5	6.5	40	2	20.5
AR2000	1/8-1/4	40	95	17	40	56.6	30	34	44	5.4	15.4	55	2.3	33.5
AR3000	1/4-3/8	53	127.5	35	53	60.8	39	40	46	6.5	8	53	2.3	42.5
AR4000	3/8-1/2	70	149.5	37.5	70	65.5	49.2	54	54	8.5	10.5	70	2.3	52.5
AR4000-06	3/4	75	154	40.5	70	69.5	49.2	54	55.5	8.5	10.5	70	2.3	52.5
AR5000	3/4-1	90	168	48	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5

Specification Download
