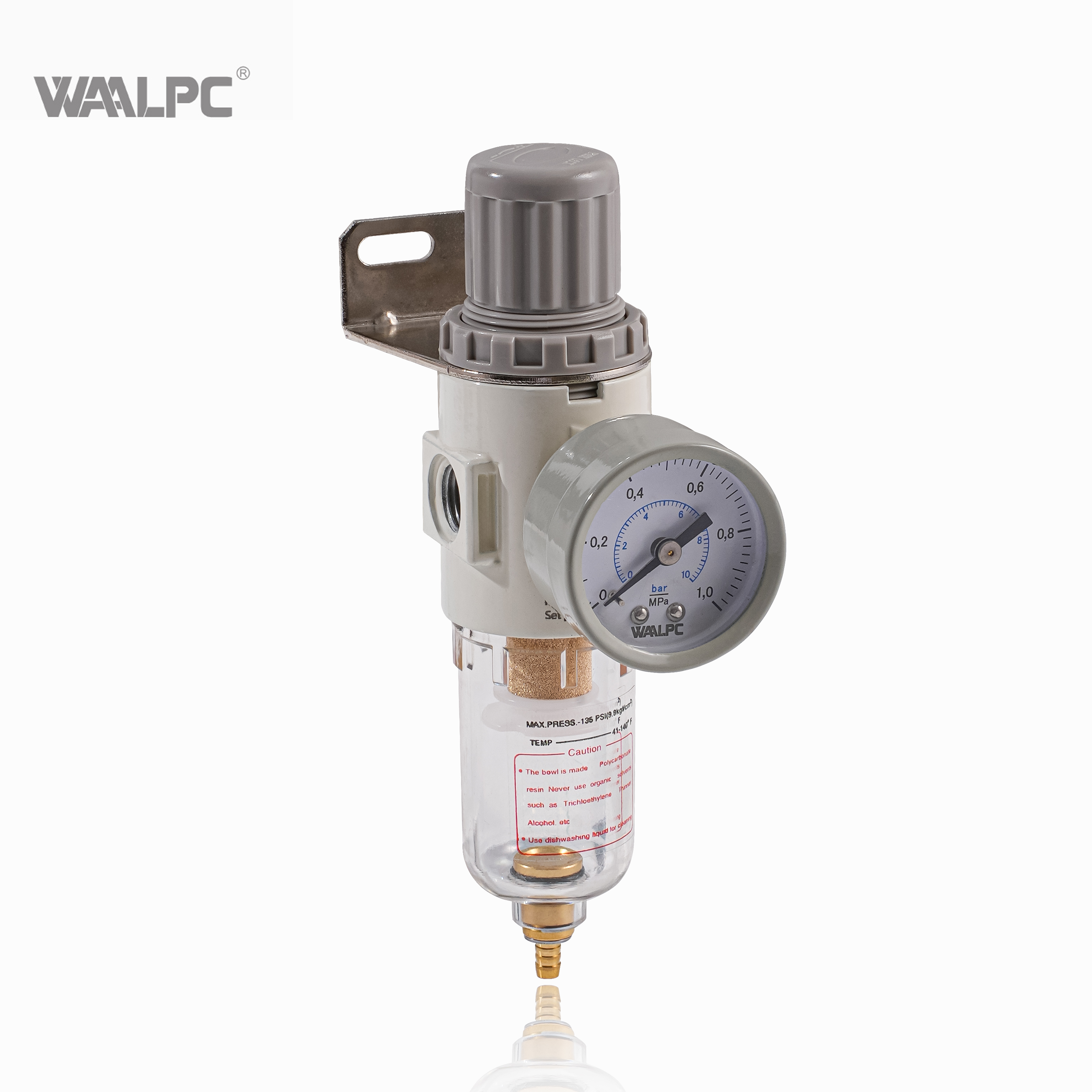

AFR2000 PT NPT G 1/8'' 1/4'' 3/8'' 1/2'' Air Source Treatment Auto Drain Pressure Gauge Air Filter Regulator for Automation Equipments

Auto Drain Air Filter Regulator PT NPT G 1/8'' 1/4'' 3/8'' 1/2'' Air Source Treatment Pressure Gauge for Automation Equipments

Auto Drain Air Filter Regulator PT NPT G 1/8'' 1/4'' 3/8'' 1/2'' Air Source Treatment Pressure Gauge for Automation Equipments


Color:	White Black
Availability:

Quantity:



Inquiry Add to Basket

The air treatment device is used to process the air source from the air compressor.

It includes three parts with different functions: an air filter for filtering dirt and particles in the air source, a regulator for adjusting

the air source pressure, and a lubricator for oil lubrication.

Model:
AFR2000
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

Auto Drain Air Filter Regulator

1. Light and compact structure, easy to install and use

2. Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4. Transparent housing,the amount of oil dripping can be observed directly

5. In addition to the standard type,there is also a low pressure type available (the max. regulating pressure is 0.4MPa)

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-name	Air Filter & Regulator
Model	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Working Medium	Air
Grade of Filtration	5μm,25μm,40μm
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Lubricator Cup Capacity	A Series 25CC		B Series 90CC
Recommended Oil	ISO VG32/ equivalent oil
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

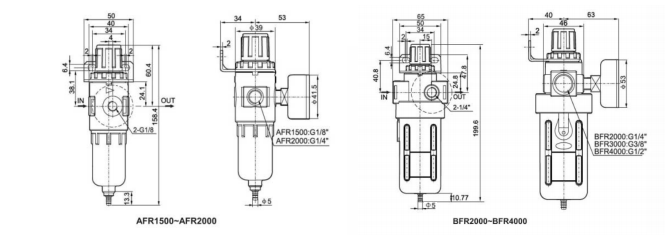

Auto Drain Air Filter Regulator

Specification Download

AIRTAC Series Air Source Treatments.pdf

Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
