Not all pneumatic systems require lubrication. In industries such as food processing, pharmaceutical manufacturing, electronics assembly, and painting, oil contamination is strictly prohibited. For these applications, the standard FRL (Filter-Regulator-Lubricator) is replaced by an F-R unit – consisting only of a Filter and a Regulator.
An F-R unit removes solid particles and water from compressed air while stabilizing downstream pressure – all without introducing any oil mist. This ensures clean, dry, regulated air meets strict industry standards while protecting equipment from corrosion and wear.
This guide covers how each component works, how to select and install an F-R unit, maintenance best practices, and common troubleshooting.
F-R stands for Filter and Regulator. These two components are installed in sequence to treat compressed air before it reaches pneumatic actuators, valves, or other sensitive equipment.
Component | Function | Benefit |
|---|---|---|
Removes solid particles (rust, scale, dust) and liquid water | Prevents contamination and corrosion | |
Maintains stable downstream pressure regardless of supply fluctuations | Ensures consistent actuator force and speed |
Installation sequence must be: Filter → Regulator
The filter must always come first to protect the regulator’s internal parts (diaphragm, valve seat) from debris.
Food and beverage processing (oil-free air requirement)
Pharmaceutical and medical device manufacturing
Electronics and semiconductor assembly
Painting and coating lines (oil mist would ruin finishes)
Cleanrooms and laboratories
Any application where oil contamination is unacceptable
For general industrial automation where lubrication is needed (cylinders, air tools, etc.), a full FRL unit is recommended. For oil-free systems, the F-R unit is the correct choice.
The filter uses centrifugal separation plus a sintered or mesh element to clean compressed air.
How it works:
Incoming air enters the filter bowl tangentially (at an angle), creating a high-speed vortex.
Heavier water droplets and solid particles are flung outward by centrifugal force and fall to the bottom of the bowl.
Air then passes through a filter element (typically 5–40 micron rating) that captures finer dust, rust, and compressor carbon.
Collected condensate can be drained manually (via a push valve) or automatically (with an auto-drain accessory).
Key specifications:
Filtration rating: 5 µm, 25 µm, or 40 µm (select based on downstream sensitivity)
Maximum inlet pressure: typically 1.0 MPa (10 bar / 145 PSI)
Bowl material: polycarbonate (transparent) or metal (hazardous environments)
Drain type: manual or auto-drain
Why filtration matters:
Without a filter, rust and pipe scale will scratch cylinder bores and valve spools.
Liquid water causes corrosion and washout of lubricating films (even in oil-free systems).
Clean air reduces downtime and extends component life by 2–3 times.
The regulator operates on the diaphragm force-balance principle. It maintains a constant output pressure regardless of fluctuations in inlet pressure or downstream flow demand.
How it works:
Turning the adjustment knob compresses a set spring, which pushes down on a diaphragm.
The output pressure (P2) is fed back to the underside of the diaphragm through a sensing passage.
When downstream pressure rises above the set point, the upward force on the diaphragm exceeds the spring force. The diaphragm moves up, closing the valve poppet slightly – reducing flow.
When downstream pressure drops, the spring force pushes the diaphragm down, opening the valve more – increasing flow.
This dynamic balance happens continuously, keeping output pressure stable within ±2% of the set point.
Key specifications:
Input pressure range: up to 1.6 MPa (16 bar / 230 PSI) for some models
Output adjustment range: typically 0.05–0.85 MPa (0.5–8.5 bar) or 0.05–1.0 MPa
Relief (overflow) function: standard on most modern regulators – automatically exhausts excess pressure if downstream pressure exceeds set point.
Regulator types:
Type | Description | Application |
|---|---|---|
Non-relieving | No exhaust port; downstream pressure can get trapped | Simple systems with downstream relief |
Relieving (standard) | Exhausts excess pressure through a port in the bonnet | Most industrial applications |
Pilot-operated | Uses a small pilot regulator to control a larger main valve | High-flow or remote control systems |
For most F-R units, a relieving-type regulator is standard.
Aspect | F-R Unit | FRL Unit |
|---|---|---|
Oil contamination | None | Oil mist present |
Suitable for clean applications | Yes (food, pharma, electronics) | No |
Maintenance complexity | Lower (no lubricator to fill/adjust) | Higher |
Component cost | Lower | Higher |
Upstream filtration requirement | Standard (25–40 µm) | Standard (25–40 µm) |
Typical applications | Oil-free systems, instrumentation, painting | General industrial automation |
“I need a lubricator to protect my cylinders.”
Not always. Many modern pneumatic components (especially those with advanced seals) can operate dry for millions of cycles if the air is clean and dry. Always check your manufacturer’s recommendations. For oil-free environments, an F-R unit is perfectly adequate.
When choosing an F-R unit for your application, consider these parameters:
Parameter | Recommendation |
|---|---|
Port size | Match main pipe diameter: 1/8", 1/4", 3/8", 1/2", 3/4", 1" |
Flow capacity (L/min or SCFM) | Must exceed maximum system demand by at least 20% |
Maximum inlet pressure | Must be ≥ your compressor’s output (typically 1.0 MPa) |
Filtration rating | 40 µm for general purpose; 5 µm for precision instruments or small-bore cylinders |
Bowl material | Polycarbonate (visible, economical) or metal (high temperature, chemical exposure) |
Drain type | Manual for intermittent operation; auto-drain for continuous or unattended systems |
Regulator relief type | Relieving (standard) for most; non-relieving for special circuits |
A system with two small cylinders (each 50 mm bore, 100 mm stroke, cycling 20 times per minute) consumes approximately 300 L/min at 0.6 MPa. Select an F-R unit with 1/2" ports and a flow capacity > 400 L/min (e.g., WAALPC FR series).
PTFE tape (or other thread sealant suitable for pneumatic threads)
Wrenches (open-end or adjustable)
Pressure gauge (for regulator outlet)
Soap solution (for leak testing)
Depressurize the system – Close the inlet ball valve and vent all downstream pressure completely.
Mount the F-R unit – Use the supplied bracket. Leave enough clearance to remove the filter bowl for draining and element replacement.
Connect piping – Apply PTFE tape only to male threads, leaving the first thread bare to prevent tape debris from entering the valve. Do not overtighten (use proper torque for the port size).
Install pressure gauge – Screw the gauge into the regulator’s outlet gauge port. Use sealant on the gauge threads if required.
Initial setup – Before pressurizing, turn the regulator knob fully counterclockwise to unload the spring.
Open air supply slowly – Gradually open the inlet valve. Watch the pressure gauge – it should remain near zero.
Set working pressure – Turn the regulator knob clockwise to increase pressure until the desired value is shown on the gauge. Pull up (or tighten the lock nut) to secure the setting.
Check filter drain – If manual drain, press the valve to ensure condensate can be expelled.
Test for leaks – Apply soap solution to all threaded connections. If bubbles appear, tighten or re-seal.
Do | Do Not |
|---|---|
Install filter before regulator | Install regulator before filter |
Use PTFE tape sparingly | Let tape debris enter the port |
Leave space for bowl removal | Mount upside down (bowl must be at bottom) |
Use bowl guard (if polycarbonate) | Remove bowl guard |
Depressurize before servicing | Loosen fittings under pressure |
Observe pressure gauge – stable reading with no drift.
Check filter bowl for condensate – drain if water visible.
Listen for air leaks at fittings.
Quick visual check of bowl for cracks.
Clean external dust and oil from the unit.
Re-verify output pressure (compare no-load vs. load reading).
Drain accumulated condensate thoroughly.
Check bowl guard for damage.
Inspect filter element – if pressure drop exceeds 0.05 MPa (about 7 PSI) when clean air is flowing, replace or clean the element.
Clean filter bowl with mild detergent and water – never use solvents that can damage polycarbonate.
Check regulator diaphragm (if accessible) for cracks or hardening.
Inspect regulator spring for fatigue or rust.
Fully disassemble the F-R unit.
Replace filter element.
Replace all seals and O-rings (they harden over time).
Inspect regulator valve seat for wear – replace if necessary.
Reassemble and test for performance (pressure regulation accuracy, leak tightness).
Close inlet valve and depressurize.
Drain all condensate from filter bowl.
Cover unit to prevent dust ingress.
Before restarting, inspect seals and re-lubricate moving parts (regulator threads) with light pneumatic oil if allowed (but do not introduce oil into air stream for oil-free applications).
Symptom | Likely Cause | Solution |
|---|---|---|
Output pressure drops under load | Clogged filter element; undersized regulator | Clean/replace element; upsize F-R unit |
Output pressure drifts upward | Regulator diaphragm perforated or valve seat leaking | Replace diaphragm or rebuild regulator |
Output pressure cannot be adjusted | Regulator knob stuck; internal spring broken | Clean threads; replace spring or regulator |
No air output | Filter element completely blocked; inlet valve closed; regulator fully closed | Replace filter element; open valve; adjust regulator |
Water in downstream equipment | Filter bowl not drained | Drain regularly; install auto-drain |
Air leakage from regulator bonnet (relief hole) | Diaphragm ruptured | Replace diaphragm |
Air leakage from filter bowl threads | Bowl seal damaged or loose | Tighten bowl; replace O-ring |
Pressure gauge reading unstable / flickering | Gauge damaged; regulator internal oscillation | Replace gauge; check regulator for contamination |
Condensate does not drain (manual type) | Drain valve clogged | Clean or replace drain valve |
Prohibition | Reason |
|---|---|
Never disassemble or loosen bowl under pressure | Compressed air can eject parts violently, causing injury |
Never exceed maximum rated pressure (typically 1.0 MPa) | Bowl burst hazard |
Never use solvents (acetone, alcohol, gasoline) on polycarbonate bowls | Solvents cause stress cracking and sudden failure |
Never remove the bowl guard from polycarbonate bowls | Guard prevents injury if bowl bursts |
Never install without an upstream filter (if regulator is used alone) | Debris will damage regulator seat and diaphragm |
Never use in oil-lubricated systems if the application requires oil-free air | F-R unit does not remove oil mist – use an oil-removal filter |
⚠️ For truly oil-free applications, ensure the entire compressed air system (compressor, dryer, piping) is designed for oil-free operation. An F-R unit alone does not remove oil aerosols if the compressor uses oil lubrication.

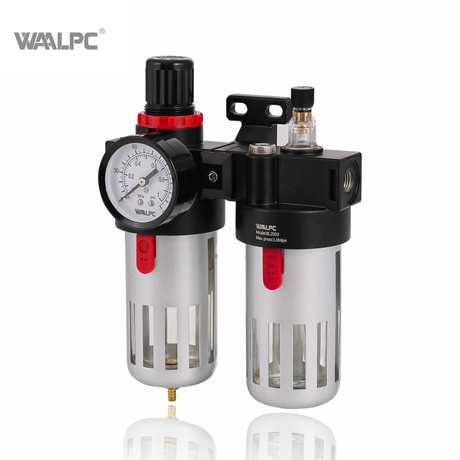

WAALPC offers a complete range of pneumatic F-R units designed for industrial reliability and ease of maintenance.
✅ High-efficiency filter – Removes 99.9% of particles down to 5–40 µm depending on element choice.
✅ Large-capacity bowls – Reduce draining frequency.
✅ Relieving-type regulator – Standard on most models, with ±2% accuracy.
✅ Self-cleaning pressure gauge port – Allows easy gauge mounting.
✅ Durable construction – Aluminum body, polycarbonate or metal bowl, NBR/FKM seals.
✅ Various port sizes – 1/8" to 1" NPT, G, or Rc threads.
✅ OEM/ODM available – Custom branding and specifications.
Food packaging lines (oil-free zone)
Medical device assembly
Electronics pick-and-place machines
Painting robots and spray booths
Laboratory pneumatic instruments
Cleanroom automation
An F-R unit (Filter-Regulator) is the correct air preparation solution for any pneumatic system that requires clean, dry, regulated air without oil mist. By removing harmful particles and water, and stabilizing pressure, it protects sensitive downstream components and ensures consistent performance.
For oil-free industries – food, pharma, electronics, painting – the F-R unit is not an option; it is a requirement.
WAALPC’s F-R units combine reliable filtration and precision pressure regulation in a compact, easy-to-maintain package. Whether you need a small 1/4" unit for a single tool or a 1" unit for a whole production line, WAALPC has the right solution.
