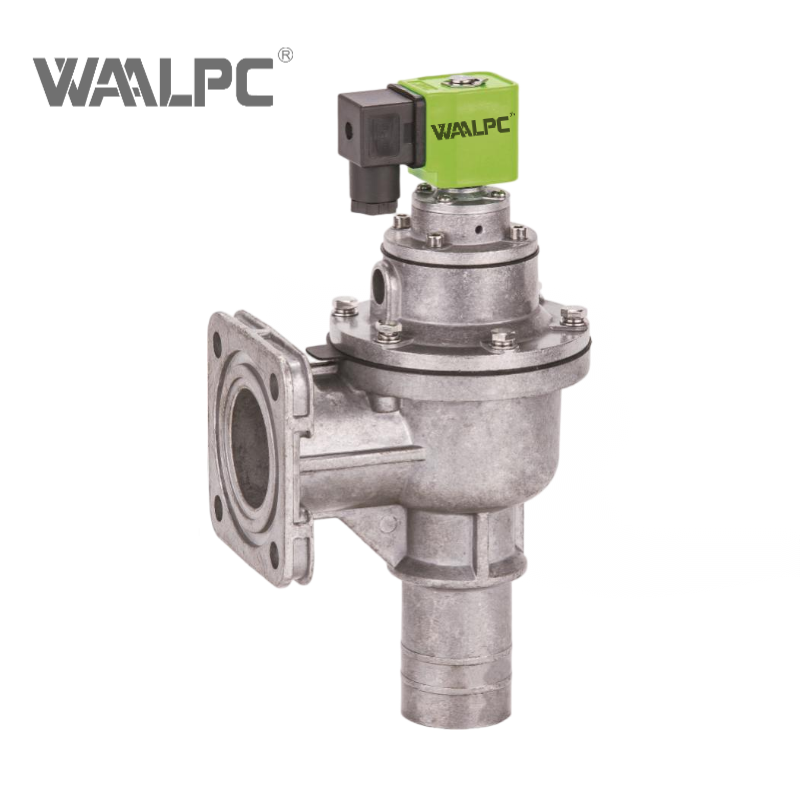

Durable Stainless Steel Aluminum Pulse Jet Solenoid Valve Air Cleaning for Harsh Environment Dust Collection

Durable Stainless Steel Aluminum Pulse Jet Solenoid Valve Air Cleaning for Harsh Environment Dust Collection


Size:	YDD-ZF-40S
Availability:

Quantity:



Inquiry Add to Basket

The Pulse Valve is a critical electro-pneumatic component engineered for high-efficiency reverse-jet cleaning in industrial dust collection systems. Utilizing a robust diaphragm design with a solenoid pilot, it delivers rapid, high-volume bursts of compressed air (0.1–0.8 MPa) into filter bags or cartridges. This forceful pulse dislodges embedded dust particles, maintaining optimal airflow and filtration efficiency in baghouses, silos, and cyclone separators.

Model:
YDD-ZF
Brand:
WAALPC
Code:
8481802190

Product Description

1. Exceptional Reliability

Heavy-duty diaphragm & spring mechanism withstands >1 million cycles.

IP65-rated solenoid coil resists moisture, dust, and electrical interference.

2. High Energy Efficiency

Low-power solenoid pilot (≤5W) minimizes operational costs.

Optimized air consumption reduces compressed air waste by 15–30%.

3. Superior Flow Performance

Large orifice design (up to 3") enables rapid air release (≤0.1 sec).

Sustained peak pressure ensures deep filter cleaning.

Technical Parameters

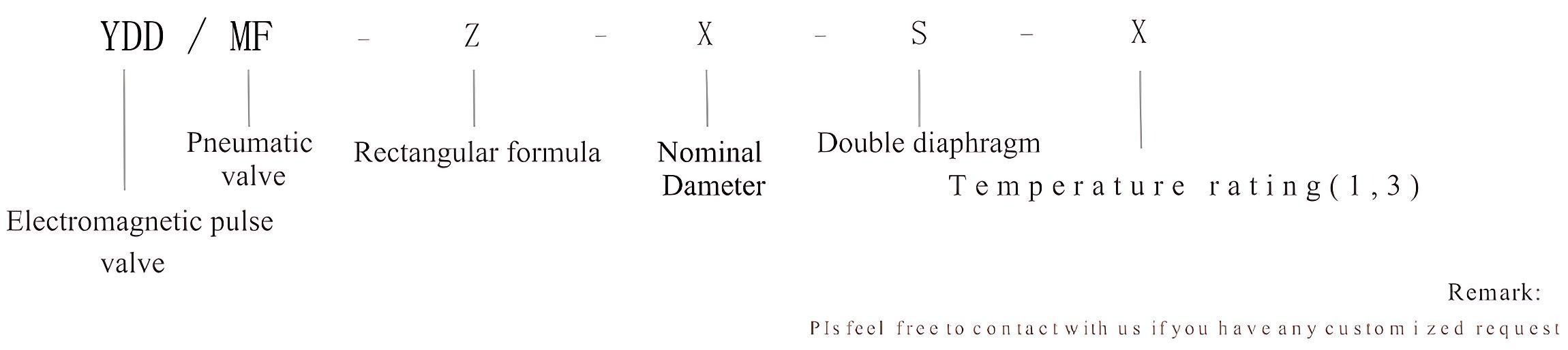

ORDERING CODE

Pulse Valve

DATA SHEET

Type-Name	Pulse Valve
Model	YDD-ZF-25	YDD-ZF-40S	YDD-ZF-40SA
Port Size (G)	1	1 1/2	1 1/2
Diaphragm diameter (mm)	96	112	112
Working pressure	0.1~0.8MPa (Recommend 0.2~0.6MPa)
Working medium	Clean Air
Voltage	DC24V, AC110V, AC220V
Temperature	Grade 1: -25~80°C; Grade 3: -25~230°C
Protection grade	IP65
Weight(kg)	1	1.6	1.6

OVERALLDIMENSION&STRUCTURE

Pulse Valve

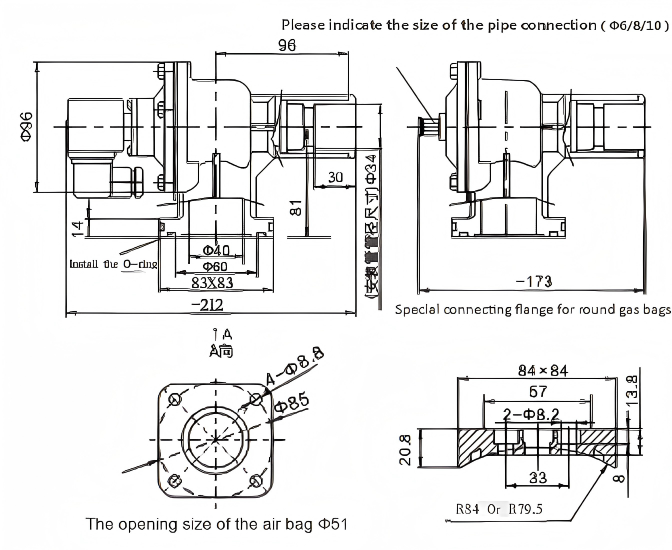

YDD-ZF-25

ydd-zf 40s

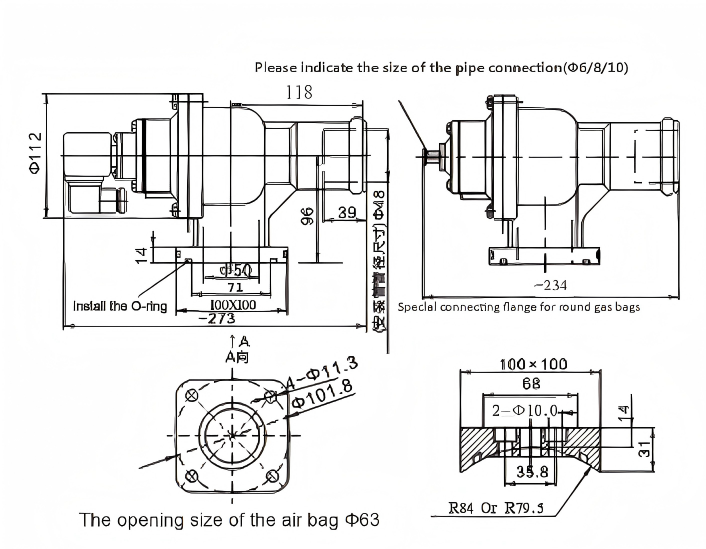

YDD-ZF-40S

ydd-zf 40sa

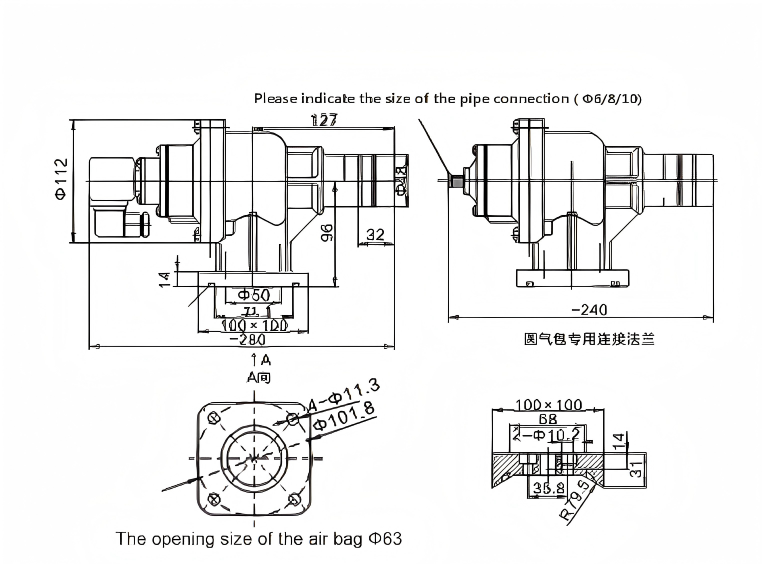

YDD-ZF-40SA

Specification Download

YDD-ZF.pdf
