GOYEN Type Submerged Solenoid Pulse Valve with Nitrile/Viton Diaphragm for Baghouse Filter Cleaning

GOYEN Type Submerged Solenoid Pulse Valve with Nitrile/Viton Diaphragm for Baghouse Filter Cleaning


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

The GOYEN type submerged solenoid pulse valves are high-performance diaphragm valves designed specifically for pulse-jet dust collection systems in industrial settings. They are mounted directly onto the external wall of the air storage tank (air box), with the inlet submerged within the tank, allowing for efficient airflow and powerful cleaning pulses to dislodge dust from filter elements such as filter bags and cartridges.

Model:
YDG-Y
Brand:
WAALPC
Code:
8481802190

Product Description

1. Exceptional Reliability

Heavy-duty diaphragm & spring mechanism withstands >1 million cycles.

IP65-rated solenoid coil resists moisture, dust, and electrical interference.

2. High Energy Efficiency

Low-power solenoid pilot (≤5W) minimizes operational costs.

Optimized air consumption reduces compressed air waste by 15–30%.

3. Superior Flow Performance

Large orifice design (up to 3") enables rapid air release (≤0.1 sec).

Sustained peak pressure ensures deep filter cleaning.

Technical Parameters

ORDERING CODE

YD - G - Z - XX - S - 口

| | | | | |

DingTian Goyen Type Z: Right-angle type; Diaphragm Double Diaphragm Voltage

Y: Submerged type

Remark:

Pls feel free to contact with us if you have any customized request

DATA SHEET

Type-Name	Pulse Valve
Model	YDG-Y-50S	YDG-Y-62S	YDG-Y-76S	YDG-Y-102S
Port Size (G)	2	2 1/2	3	3 1/2
Diaphragm diameter (mm)	ø50	ø62	ø76	ø102
Working pressure	Z:Right-angle formula: 0.3-0.8MPa; Y: Submerged type: 0.2-0.6MPa
Working medium	Dry and clean compressed air
Voltage	AC220V/DC24V(Special voltages are optional)
Temperature	-5-80°C
Protection grade	IP65
Diaphragm life	Over one million times

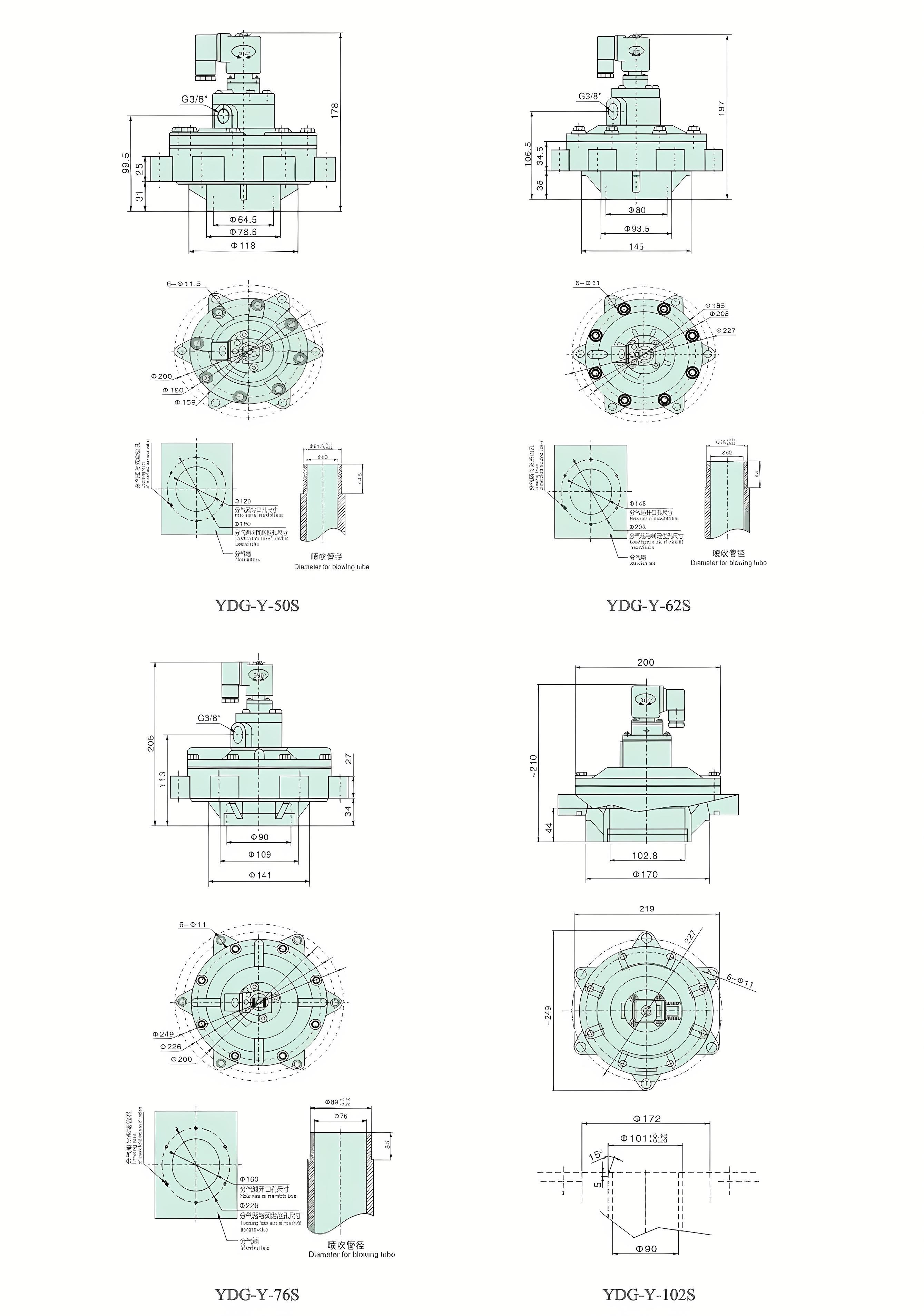

OVERALLDIMENSION&STRUCTURE

Pulse Valve YDG-Y Series STRUCTURE_

Specification Download

YDG-Y.pdf
