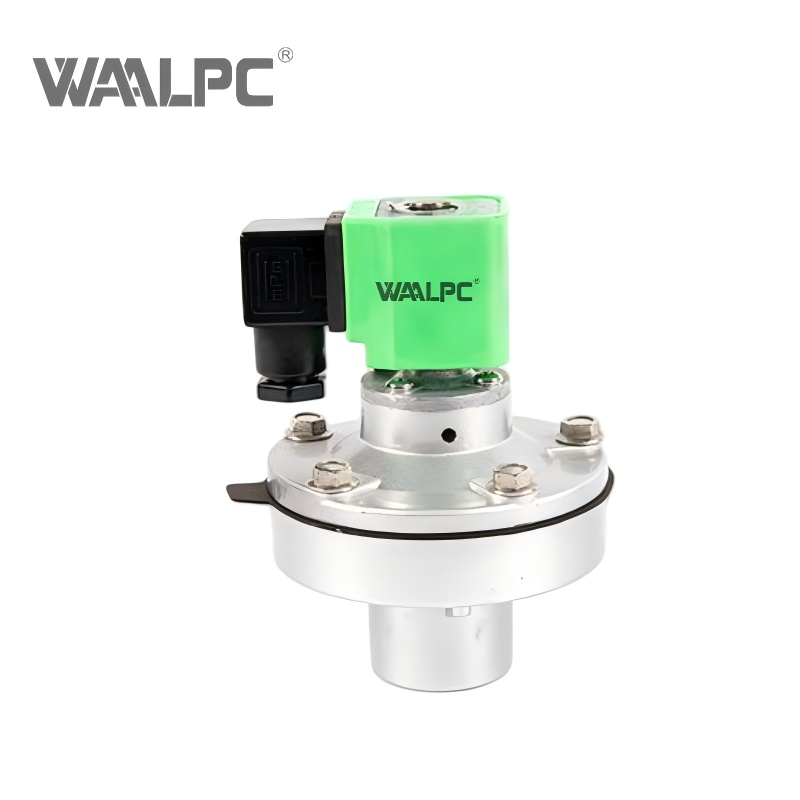

Submerged-Flange Type Solenoid Pulse Valve for Dust Collector Systems - High Flow, Fast Response, Durable Diaphragm Design G1-4'' 8bar

Submerged-Flange Type Solenoid Pulse Valve for Dust Collector Systems - High Flow, Fast Response, Durable Diaphragm Design G1-4'' 8bar


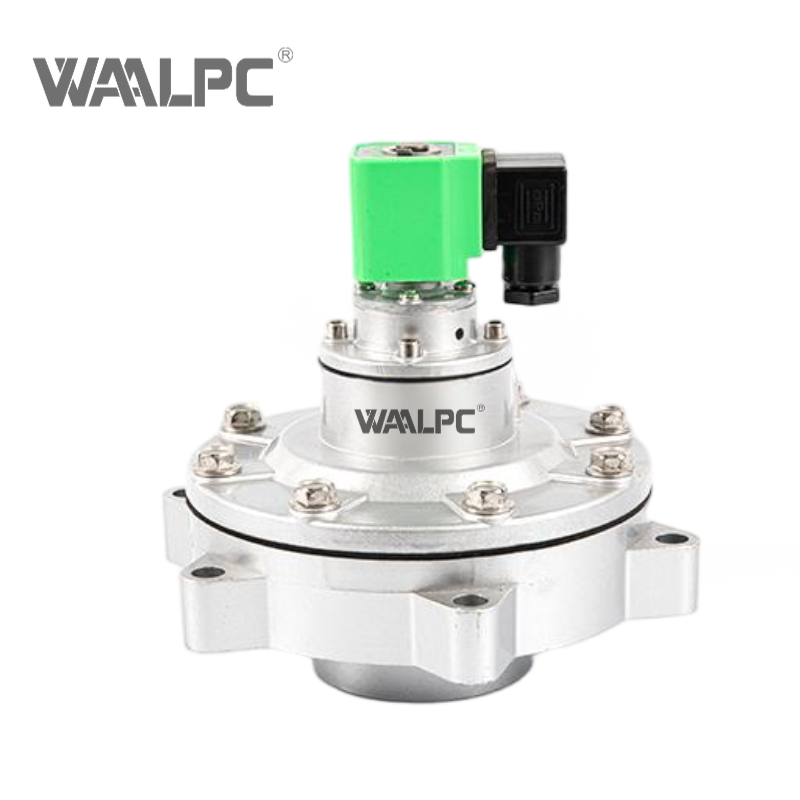

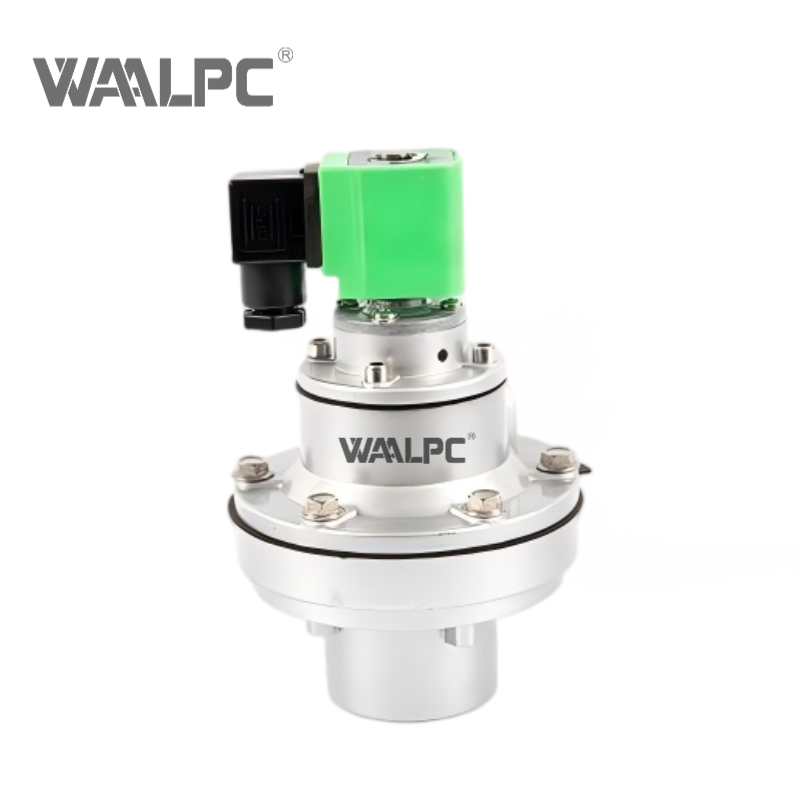

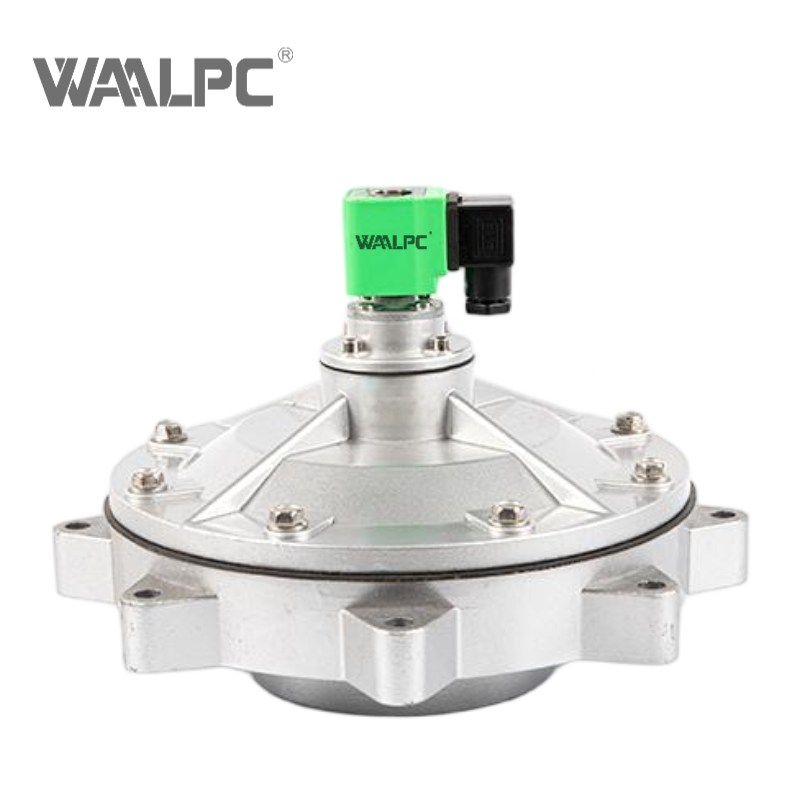

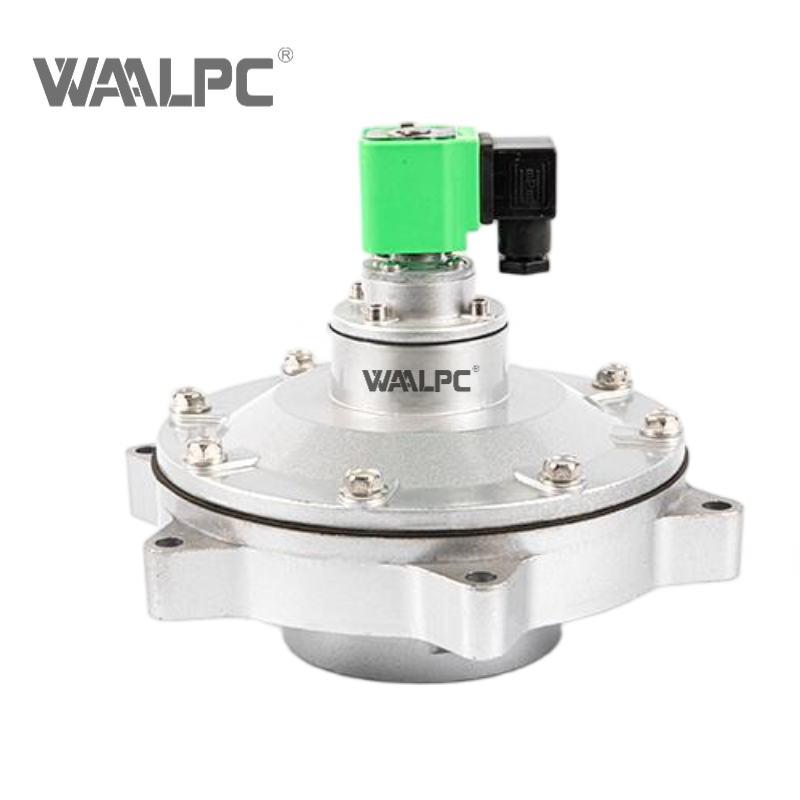

Size:	YDD-Y-25 YDD-Y-40S YDD-Y-50S YDD-Y-62S YDD-Y-76S YDD-Y-102S YDD-Y-112S
Availability:

Quantity:



Inquiry Add to Basket

The Pulse Valve is a critical electro-pneumatic component engineered for high-efficiency reverse-jet cleaning in industrial dust collection systems. Utilizing a robust diaphragm design with a solenoid pilot, it delivers rapid, high-volume bursts of compressed air (0.1–0.8 MPa) into filter bags or cartridges. This forceful pulse dislodges embedded dust particles, maintaining optimal airflow and filtration efficiency in baghouses, silos, and cyclone separators.

Model:
YDD-Y
Brand:
WAALPC
Code:
8481802190

Product Description

1. Exceptional Reliability

Heavy-duty diaphragm & spring mechanism withstands >1 million cycles.

IP65-rated solenoid coil resists moisture, dust, and electrical interference.

2. High Energy Efficiency

Low-power solenoid pilot (≤5W) minimizes operational costs.

Optimized air consumption reduces compressed air waste by 15–30%.

3. Superior Flow Performance

Large orifice design (up to 3") enables rapid air release (≤0.1 sec).

Sustained peak pressure ensures deep filter cleaning.

Technical Parameters

ORDERING CODE

YDD/MF - Y - X - S - X

| | | | |

Electromagnetic pulse valve Rectangular formula Nominal Dameter Double diaphragm Temperature Rating(1,3)

Remark:

Pls feel free to contact with us if you have any customized request

DATA SHEET

Type-Name	Pulse Valve
Model	YDD-Y-25	YDD-Y-40S	YDD-Y-50S	YDD-Y-62S	YDD-Y-76S	YDD-Y-102S	YDD-Y-112S
Port Size (G)	1	1 1/2	2	2 1/2	3	3 1/2	4
Diaphragm diameter (mm)	96	112	160	188	204	204	255
Working pressure	0.1~0.8MPa (Recommend 0.2~0.6MPa)
Working medium	Clean Air
Voltage	DC24V, AC110V, AC220V
Temperature	Grade 1: -25~80°C; Grade 3: -25~230°C
Protection grade	IP65
Weight(kg)	0.8	1.2	2.5	3.0	3.3	3.3	5.0

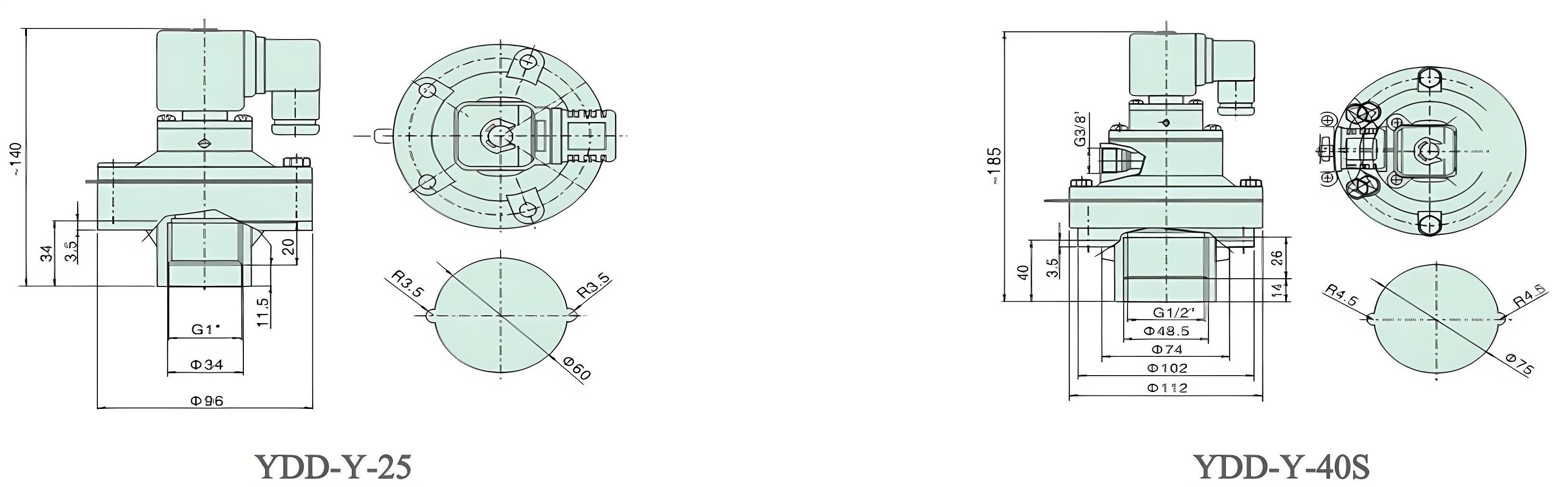

OVERALLDIMENSION&STRUCTURE

ydd-y 25 40s_

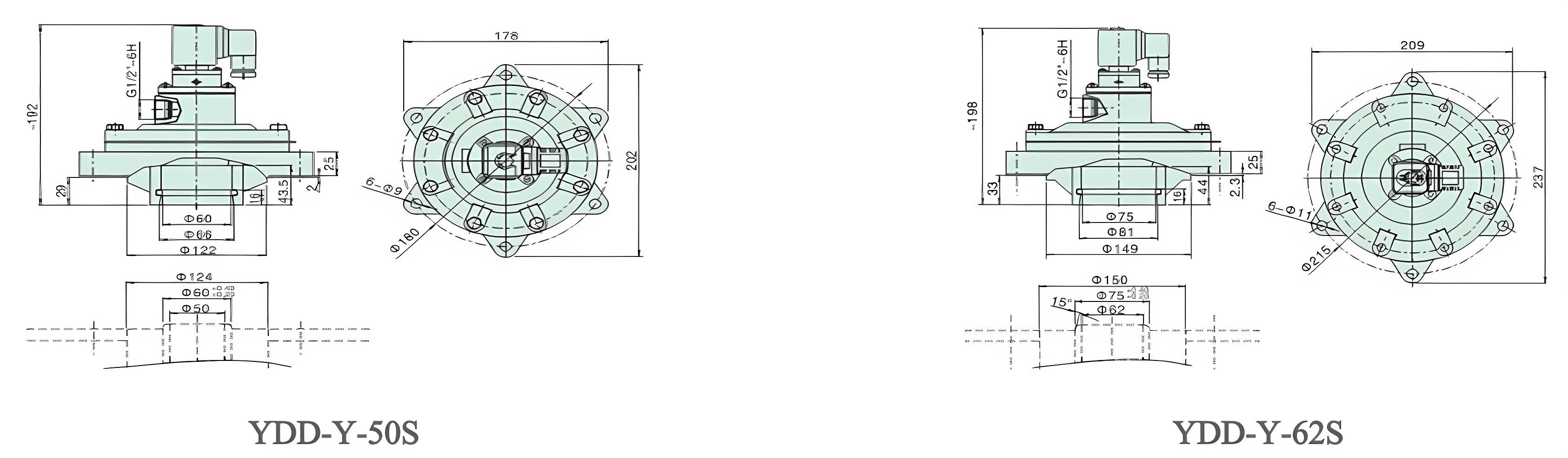

ydd-y 50s 62s_

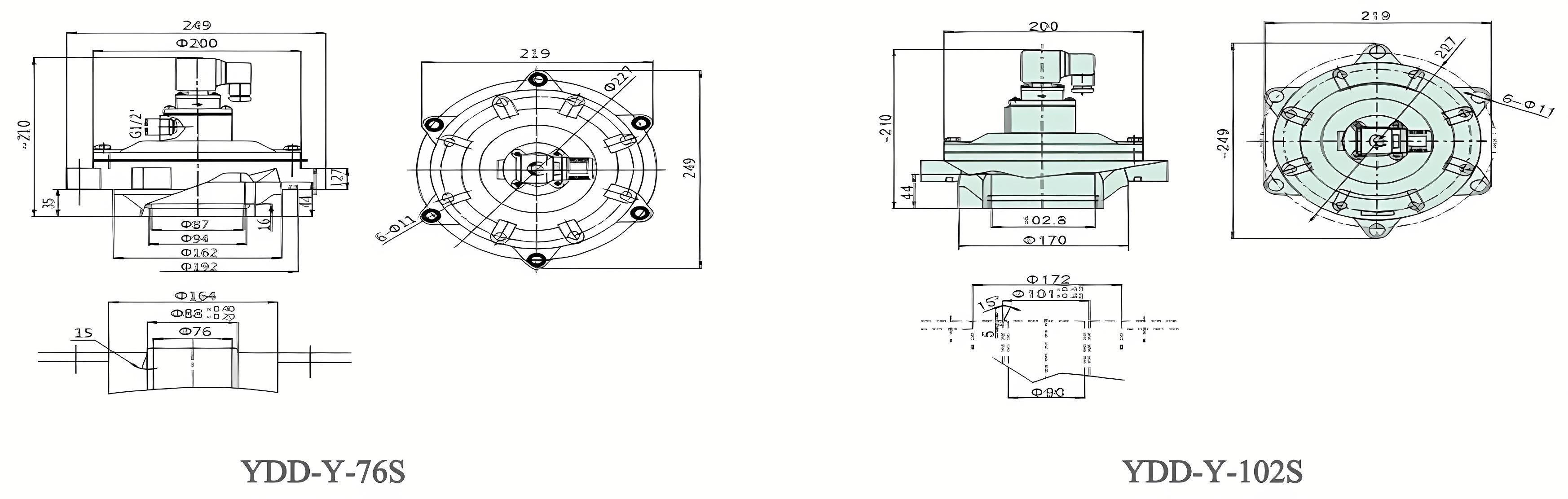

ydd-y 76 102s_

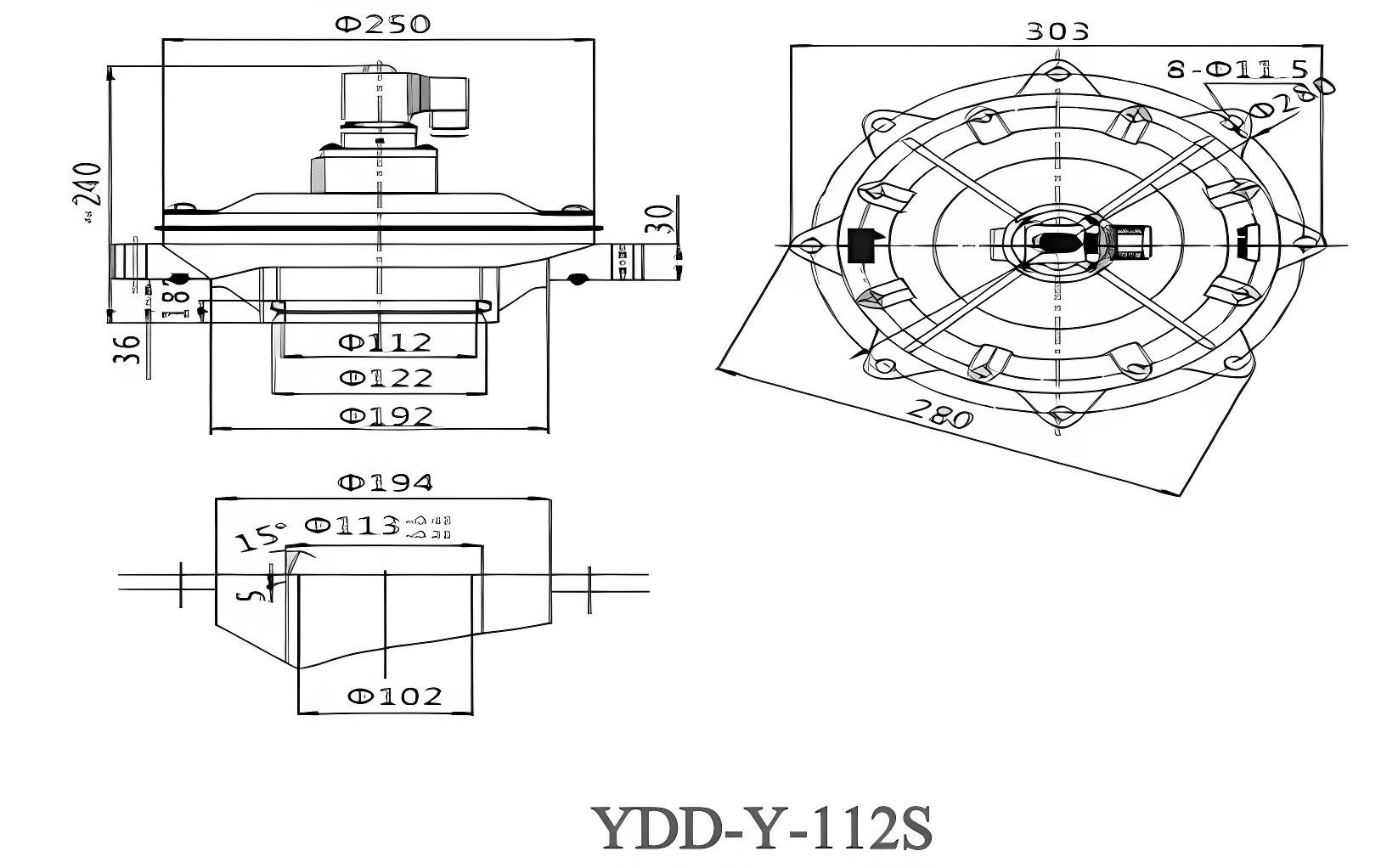

ydd-y 112s_

Specification Download

YDD-Y.pdf
