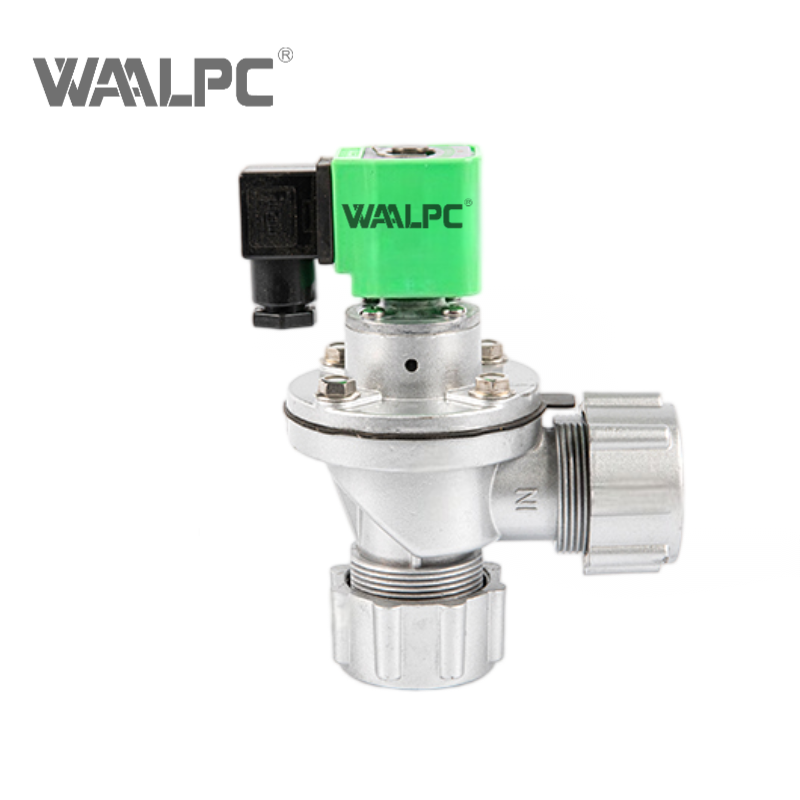

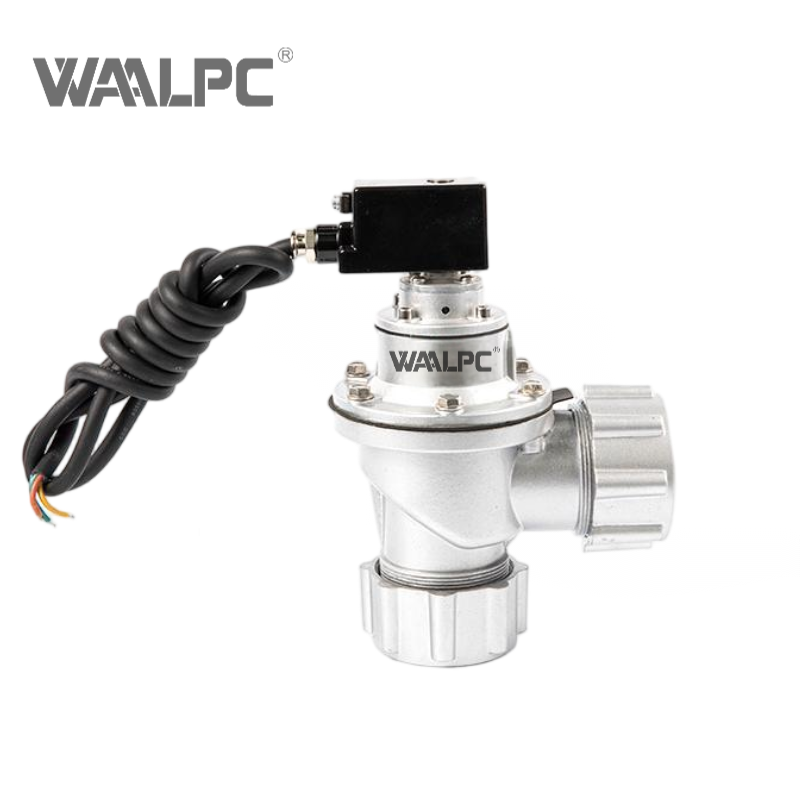

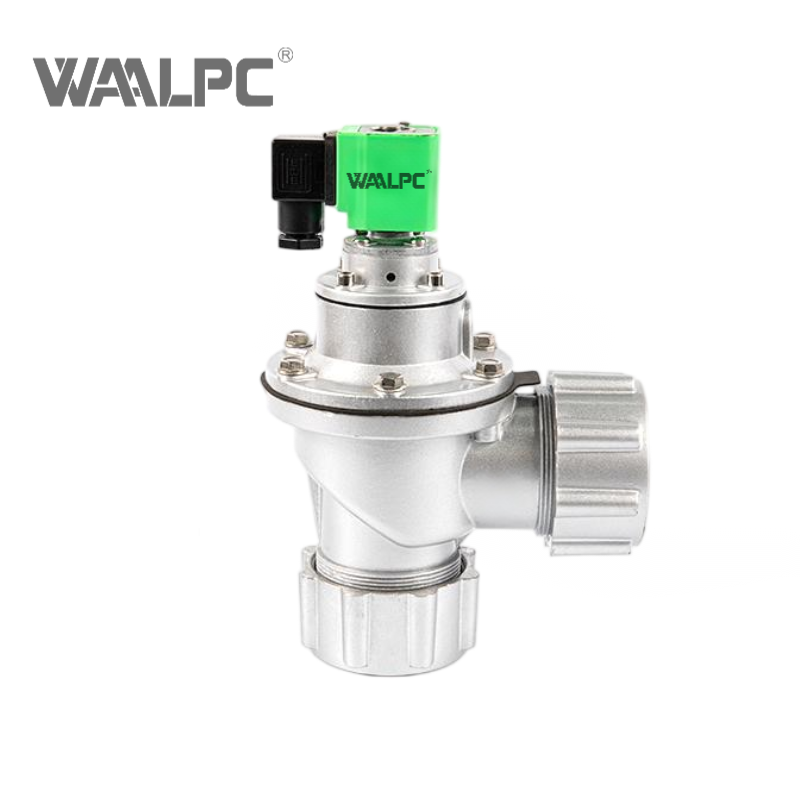

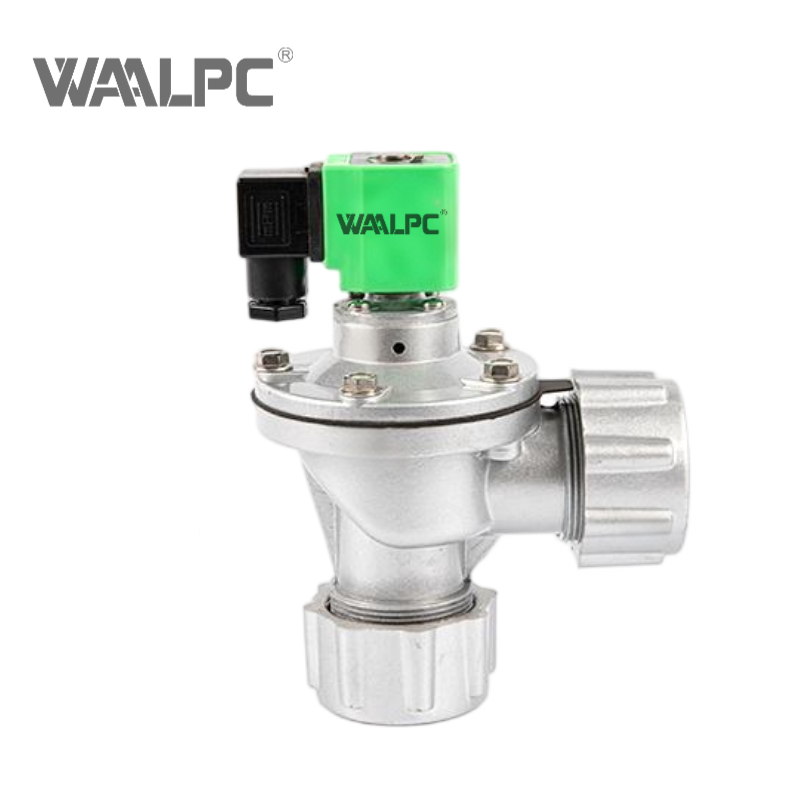

Heavy Duty Right-Angle Mounting Electromagnetic Pulse Diaphragm Valve with IP65 Protection - High Flow Rate for Cement Plant Dust Removal & Pneumatic Conveying

Heavy Duty Right-Angle Mounting Electromagnetic Pulse Diaphragm Valve with IP65 Protection - High Flow Rate for Cement Plant Dust Removal & Pneumatic Conveying


Size:	YDD-ZM-25
Availability:

Quantity:



Inquiry Add to Basket

The Pulse Valve is a critical electro-pneumatic component engineered for high-efficiency reverse-jet cleaning in industrial dust collection systems. Utilizing a robust diaphragm design with a solenoid pilot, it delivers rapid, high-volume bursts of compressed air (0.1–0.8 MPa) into filter bags or cartridges. This forceful pulse dislodges embedded dust particles, maintaining optimal airflow and filtration efficiency in baghouses, silos, and cyclone separators.

Model:
YDD-ZM
Brand:
WAALPC
Code:
8481802190

Product Description

Pulse Valve Advantages

1. Exceptional Reliability

Heavy-duty diaphragm & spring mechanism withstands >1 million cycles.

IP65-rated solenoid coil resists moisture, dust, and electrical interference.

2. High Energy Efficiency

Low-power solenoid pilot (≤5W) minimizes operational costs.

Optimized air consumption reduces compressed air waste by 15–30%.

3. Superior Flow Performance

Large orifice design (up to 3") enables rapid air release (≤0.1 sec).

Sustained peak pressure ensures deep filter cleaning.

Pulse Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-Name	Pulse Valve
Model	YDD-ZM-20	YDD-ZM-25	YDD-ZM-40S
Port Size (G)	3/4	1	1 1/2
Diaphragm diameter (mm)	80	96	112
Working pressure	0.1~0.8MPa (Recommend 0.2~0.6MPa)
Working medium	Clean Air
Voltage	DC24V, AC110V, AC220V
Temperature	Grade 1: -25~80°C; Grade 3: -25~230°C
Protection grade	IP65
Weight(kg)	0.65	0.8	1.4

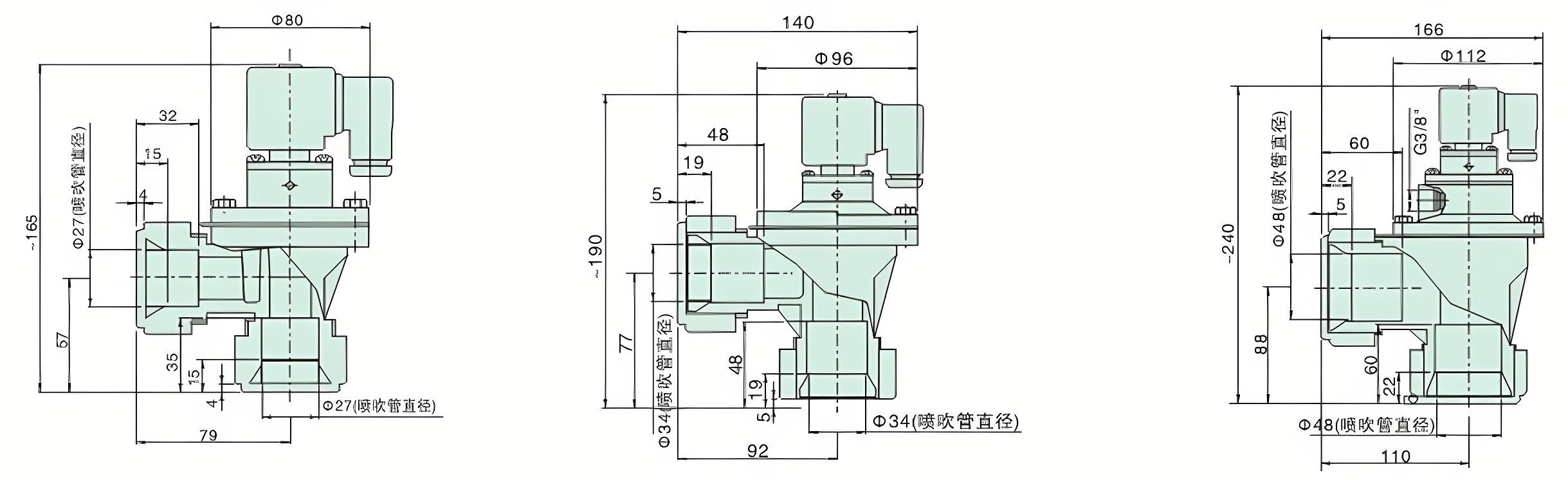

Installation diagram

Pulse Valve

Specification Download

YDD-ZM.pdf
