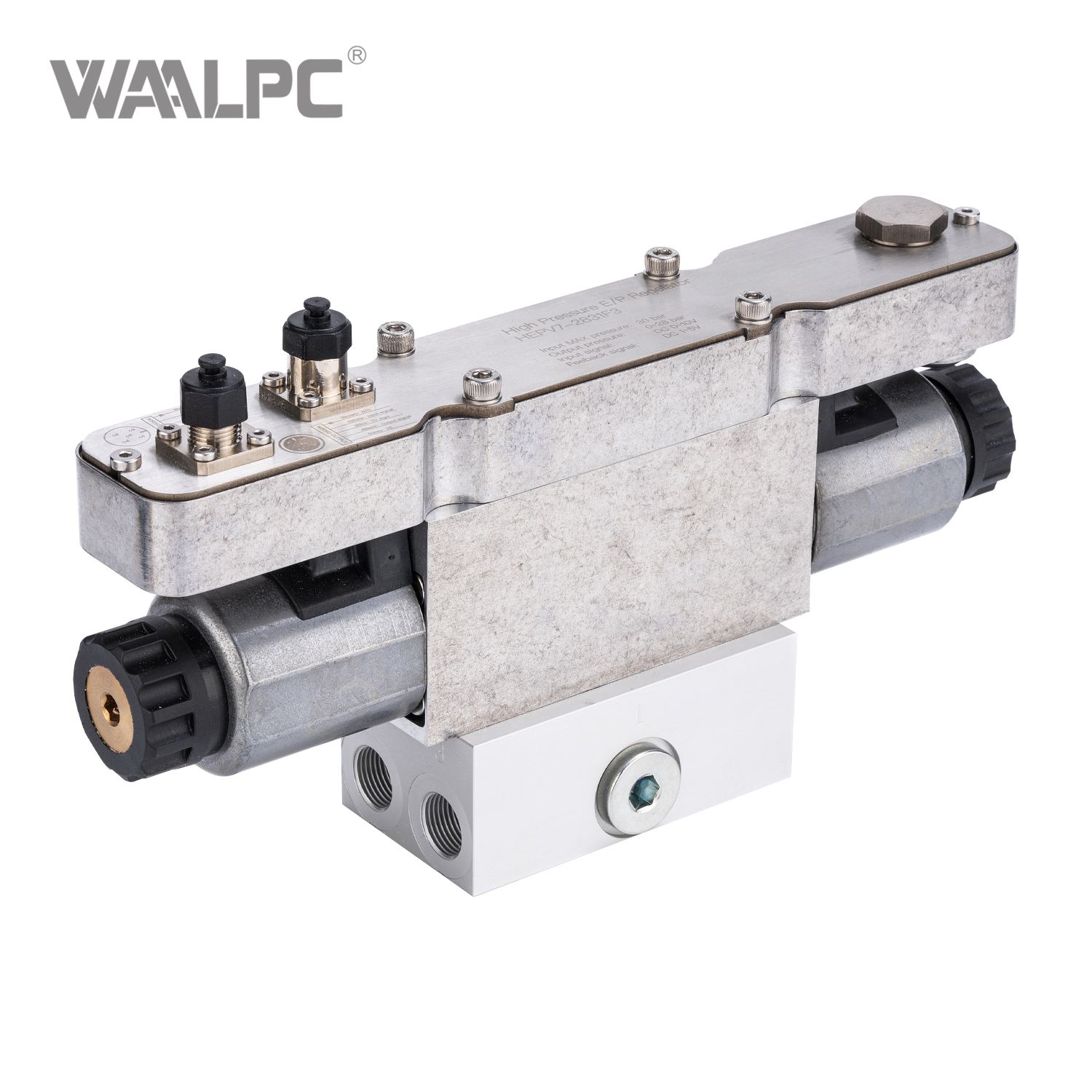

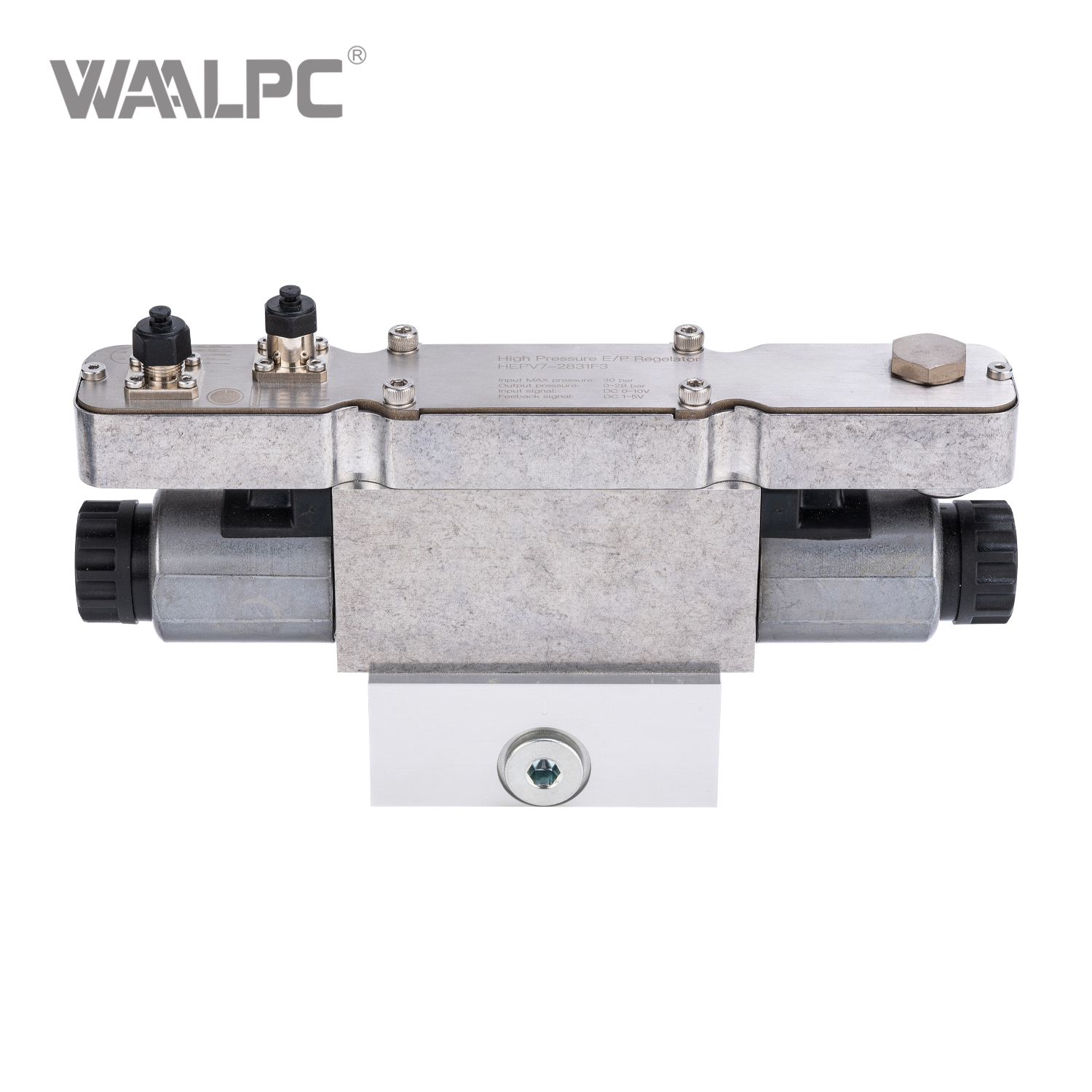

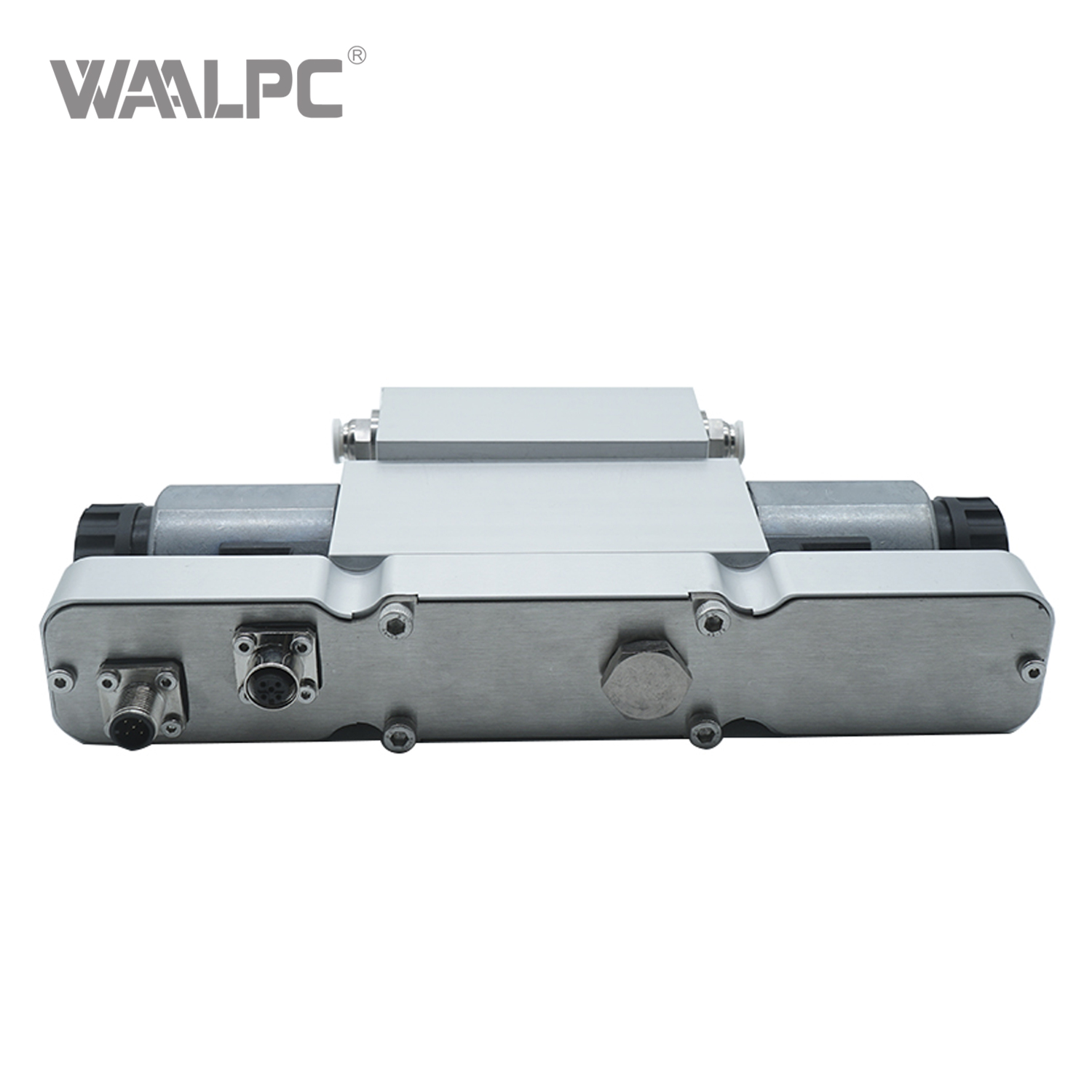

Hepv High Pressure Electric Proportional Valve 30bar


Availability:

Quantity:



Inquiry Add to Basket

The HEPV Series is a high-performance electro-pneumatic proportional valve designed for precise pressure control in demanding industrial applications. This series features a cone valve structure that enables stable and accurate pressure regulation at high pressures.

Model:
HEPV
Brand:
WAALPC
Code:
8481804090

Product Description

High Pressure Capability – The HEPV model achieves a maximum operating pressure of 30 bar, with a minimum operating pressure of 0.5 bar plus the target output pressure. Other models cover ranges from 0–10 bar (HEPV1) to 0–15 bar (EPV3).
Exceptional Precision – Accuracy reaches ±0.1% F.S. (HEPV7) with a resolution of 1 kPa, ensuring precise control even in critical applications. Base models offer ±0.5% FS accuracy, outperforming conventional regulators.
High Flow Capacity – Delivers 1300 L/min flow rate under standard conditions (input 7 bar, output 6 bar), providing ample capacity for high-demand pneumatic systems.
Durable Industrial Construction – Features a corrosion-resistant stainless steel or aluminum body, designed to withstand harsh industrial environments and chemical exposure.

Technical Parameters

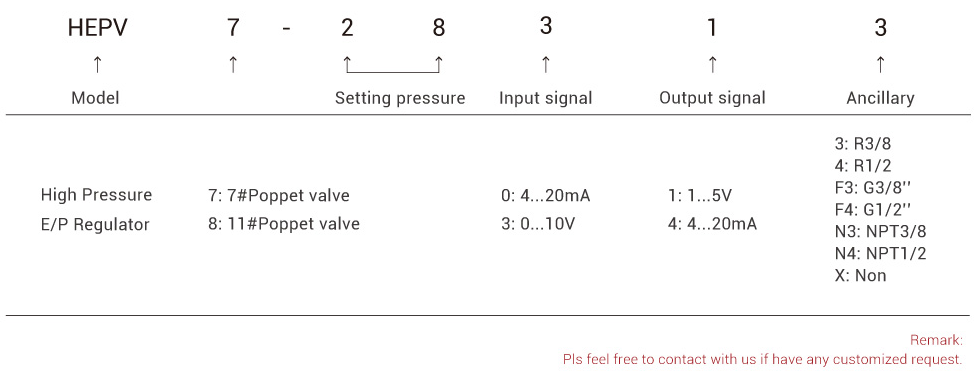

ORDERING CODE

ITVH High Pressure Regulator

DATA SHEET

Version	Poppet valve
Mounting Orientation	α=0...90° ±β=0...90°
Working Pressure Max.	30Bar
Working Pressure Min.	0.5Bar+required secondary pressure
Ambient Temperature Min./Max.	5...50℃
Medium	Compressed air
Max.Particle Size	50um
Oil Content of Compressed ai	0...1mg/m³
Precision	0.1%F.S.
Division	1KPa
Nominal Flow Qn	1300L/min*Input 7 Bar, output 6 Bar
Control	Analog
DC Operating Voltage	DC24V
Voltage Tolerance D	-20%/+30%
Permissible Ripple	5%
Max.Power Consumption	1400mA
Protection Class	IP65

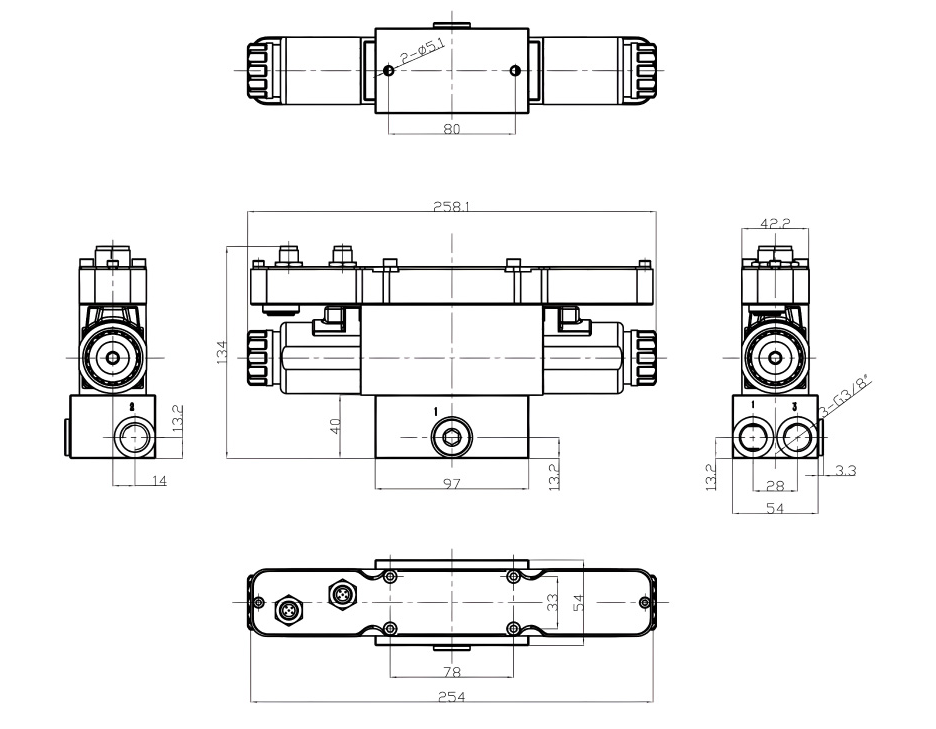

STRUCTURE&DIMENSION(MM)

ITVH High Pressure Regulator

Specification Download

HEPV.pdf
