High-Precision FRL Unit HDAC Series 1/2'' 5μm 25μm 40μm Filtration ±1% Pressure Stability And Oil Mist Lubrication 0.05~0.85MPa

High-Precision FRL Unit HDAC Series 1/2'' 5μm 25μm 40μm Filtration ±1% Pressure Stability And Oil Mist Lubrication 0.05~0.85MPa


Size:	1 2
Availability:

HDAC Series FRL Combination Units are advanced pneumatic solutions integrating Filter, Regulator, and Lubricator into a single compact unit, designed to deliver clean, stable, and lubricated compressed air for industrial applications.

Model:
HDAC40-04
Brand:
WAALPC
Code:
8421399090

Product Description

HDAC Series FRL Combination Units Advantages

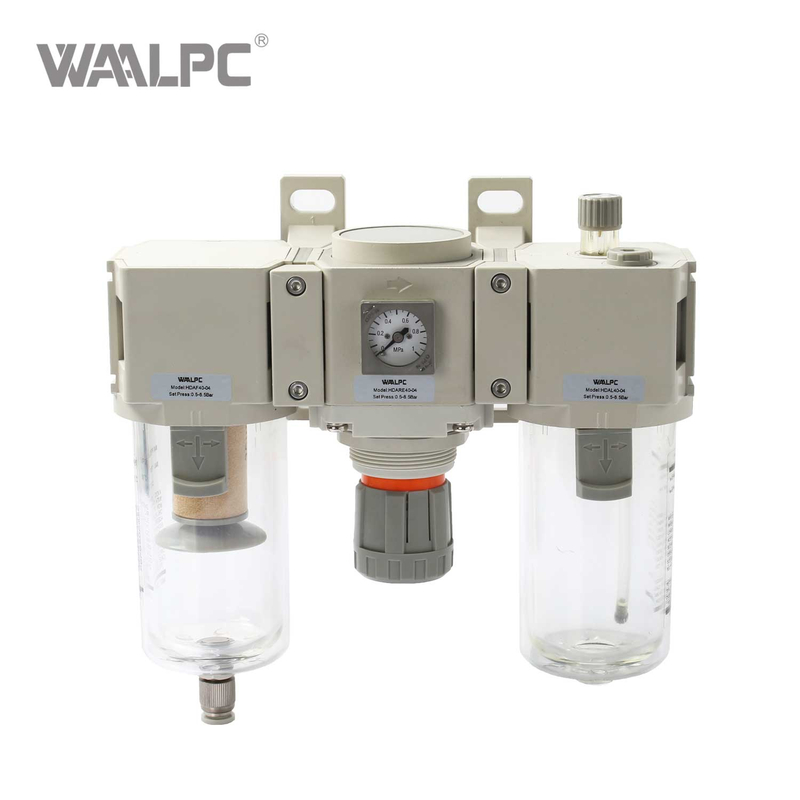

HDAC40

1. 3-in-1 Integrated Design for Maximum Efficiency

Space-Saving Innovation: Combines filter, regulator, and lubricator into a single compact unit, reducing installation space by 30% compared to separate components—ideal for tight automation setups, CNC machines, and modular production lines.

Plug-&-Play Modularity: Standardized interfaces (G/NPT threads, quick-connect fittings) enable seamless integration into new or existing systems, with optional mounting brackets for horizontal/vertical installation.

2. Triple Functionality for Complete Air Treatment

High-Precision Filtration:

Removes 99.9% of particles ≥5μm (ISO 8573-1:2010 class 2-4-2 compliant), protecting valves, cylinders, and sensitive instruments from dust, water, and oil mist.

Replaceable filter element (5μm/40μm options) with tool-free changeout to minimize downtime.

HDAC Series FRL Combination Units Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	HDAC20-01	HDAC20-02	HDAC30-02	HDAC30-03	HDAC40-03	HDAC40-04
PortSize	1/8	1/4	1/4	3/8	3/8	1/2
Highest Working Pressure	1.0MPa
Working Medium	Compressed air
Ambient and Fluid Temperature	5~60℃
Installation Method	Pipe installation or bracket installation
Installation Position	Vertical±5°
MinimumOil MistFlowRate	15L/min		40L/min		50L/min
RecommendedOil Use	Turbine No.1oil (ISOVG32)
Container Material	Polycarbonate
ProtectiveCover	No		Polycarbonate

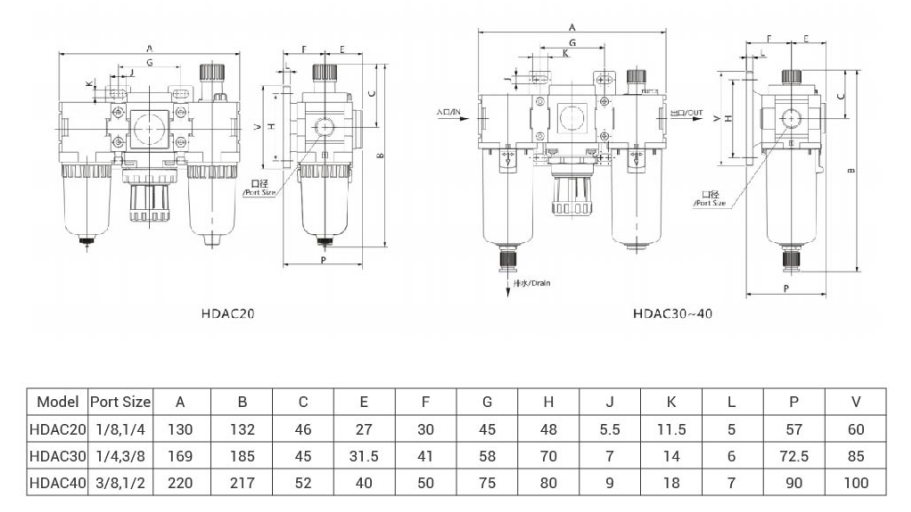

STRUCTURE

HDAC structure
