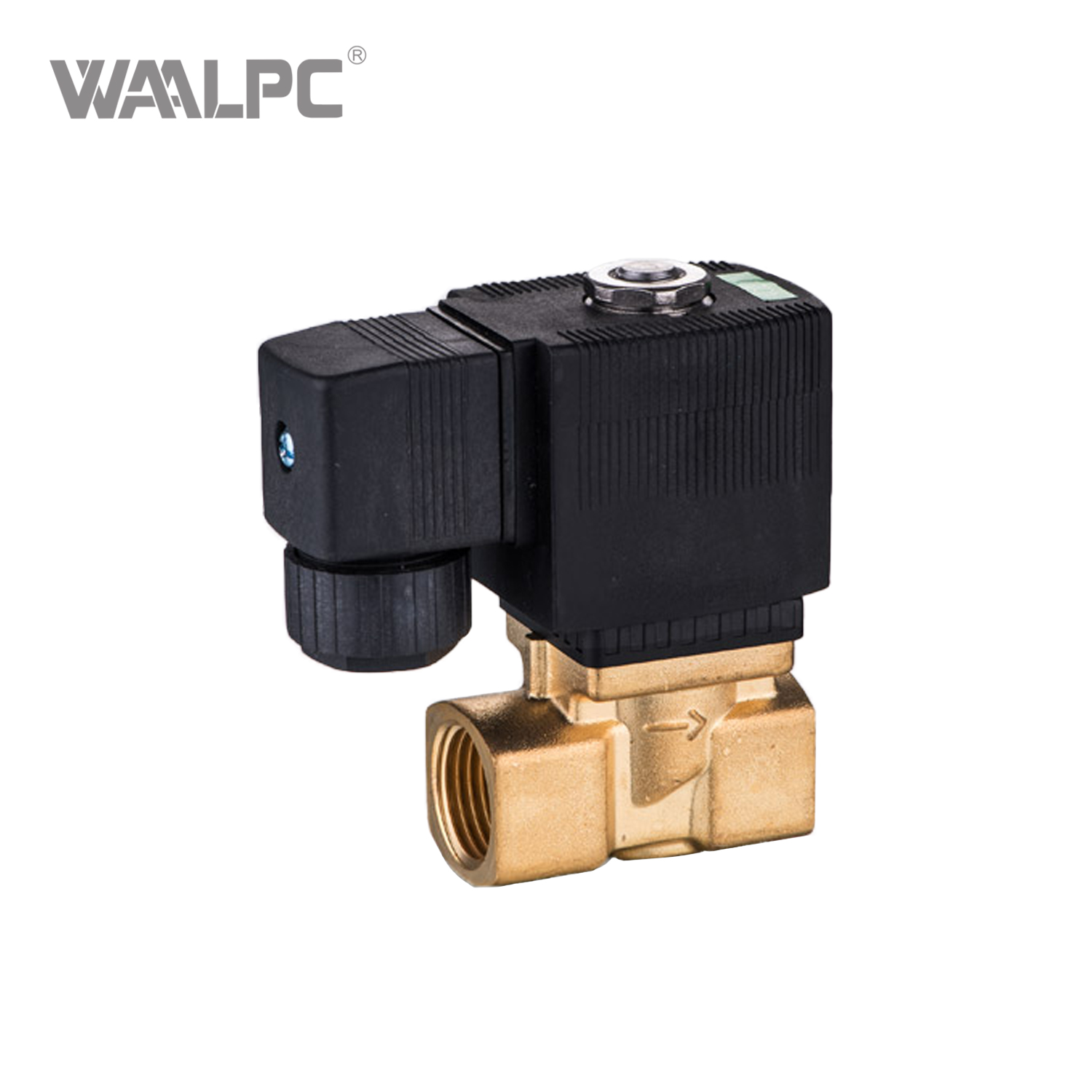

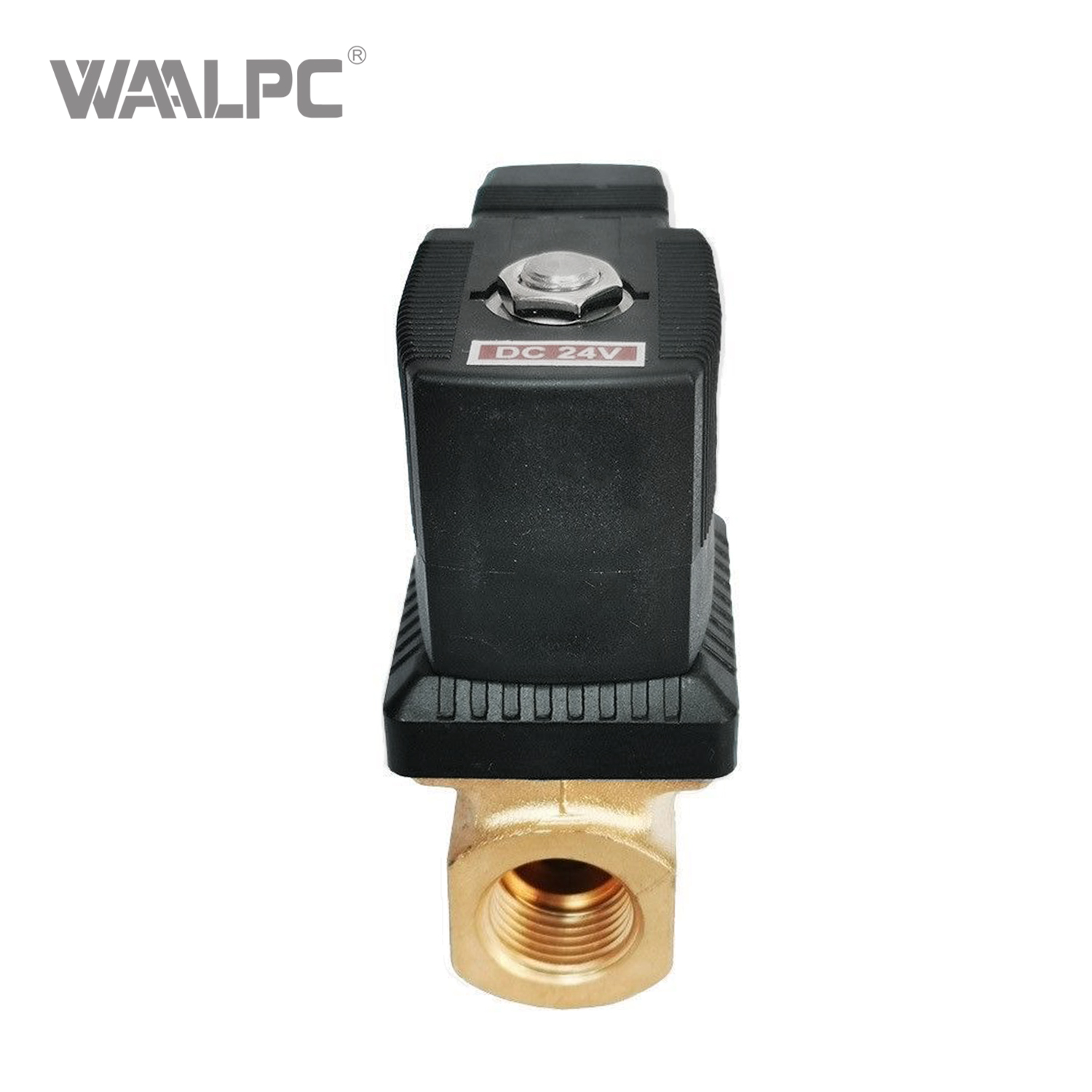

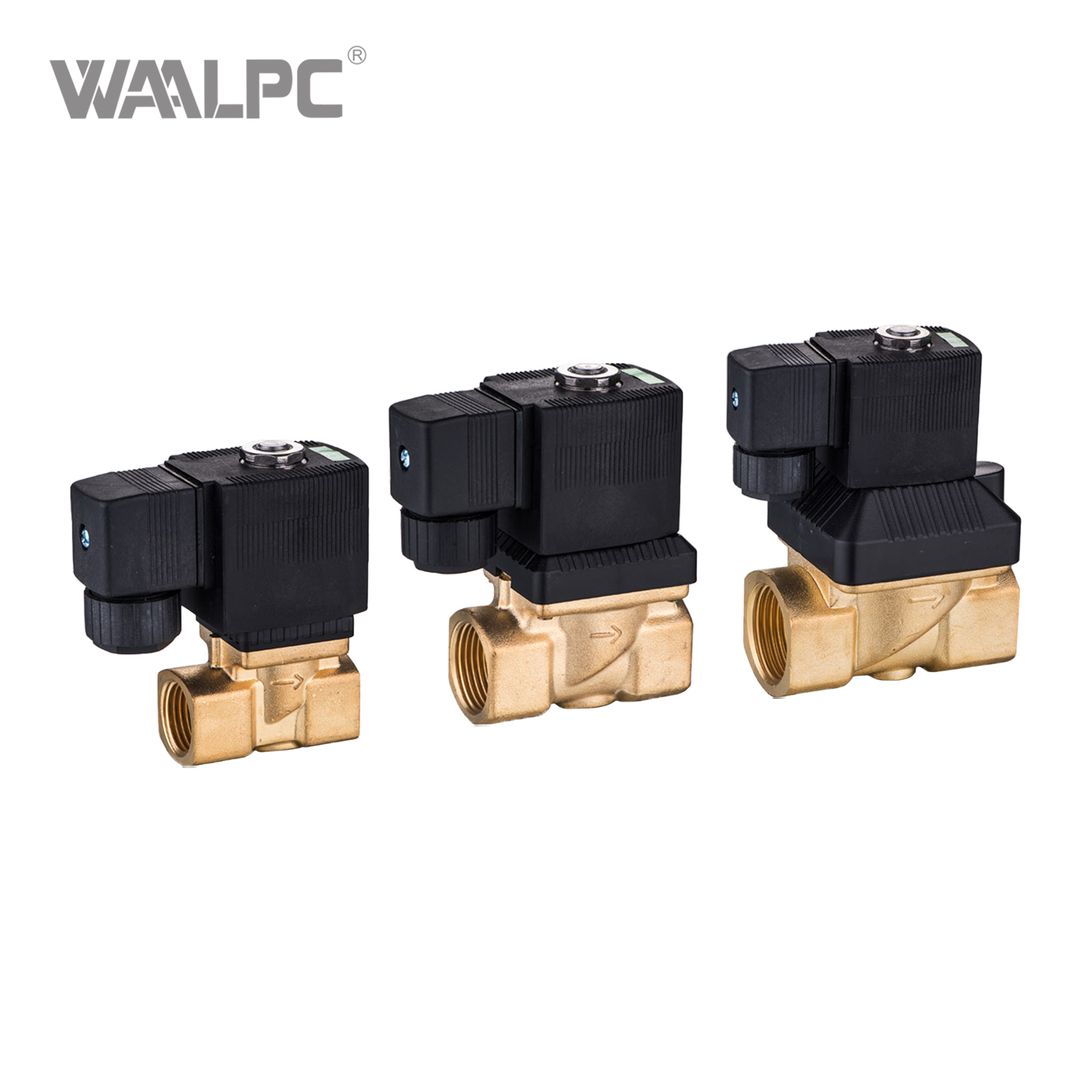

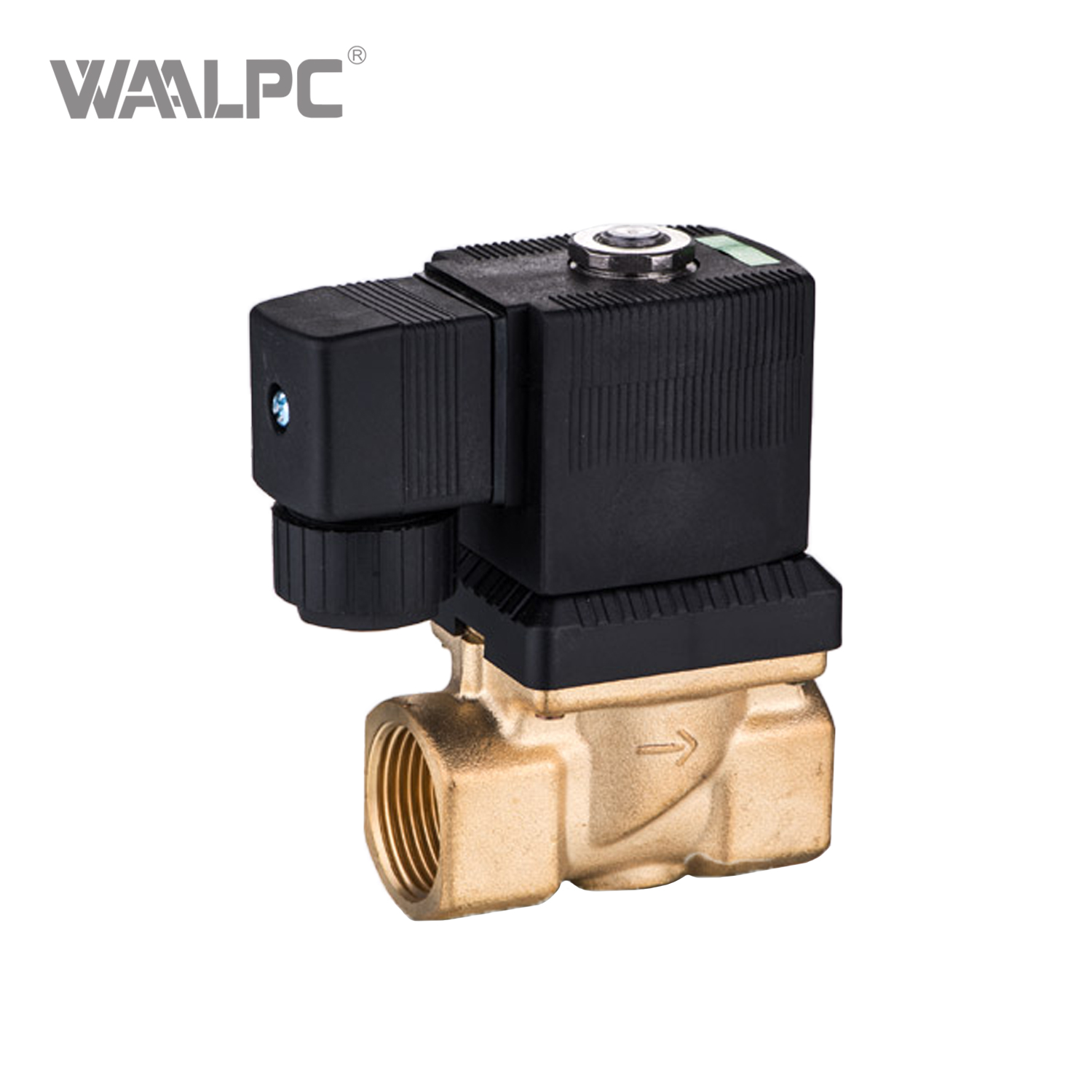

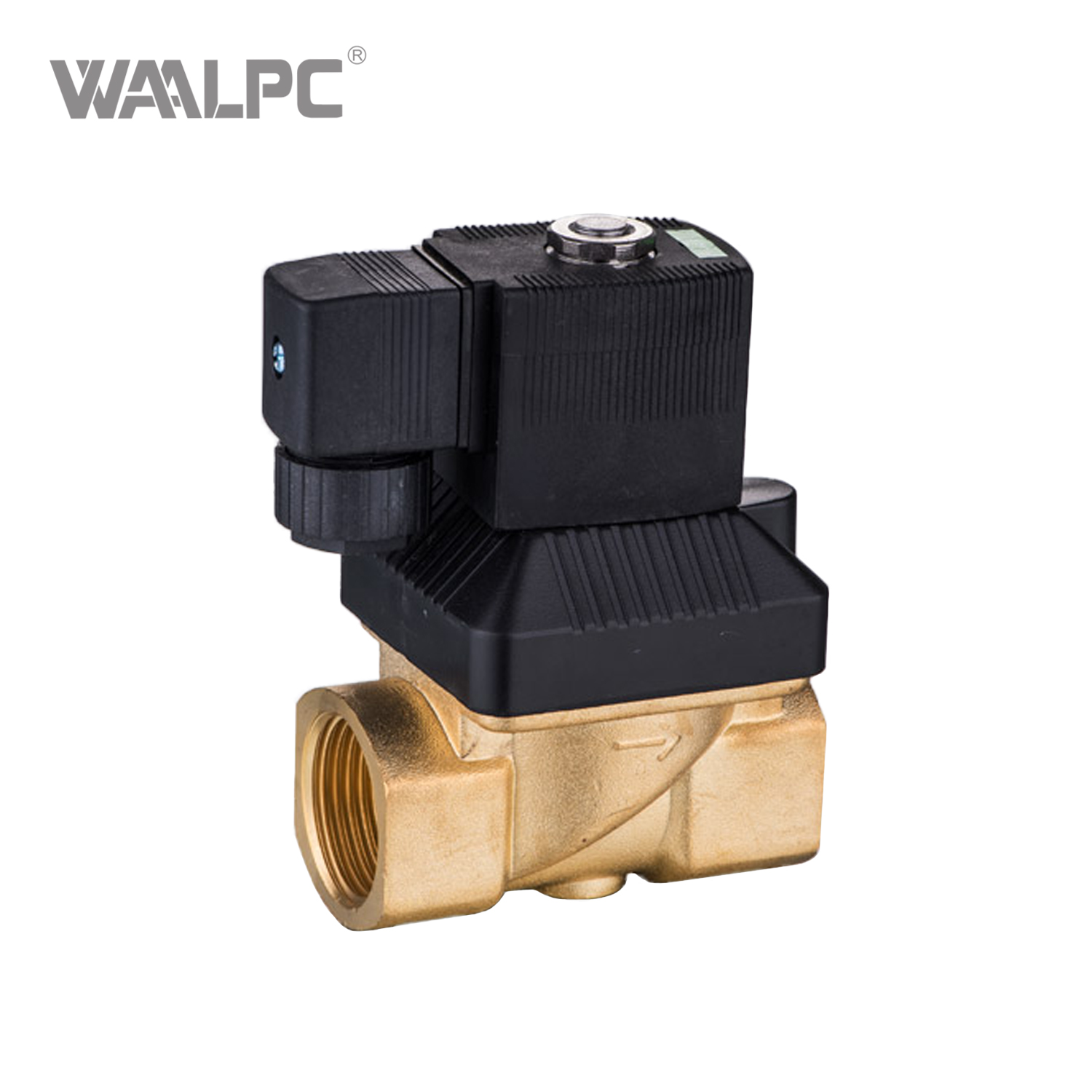

JSG6213 Solenoid Valve, 2 Position 2 Way Fluid Solenoid Valve


Availability:

Quantity:



Inquiry Add to Basket

JSG6213 series solenoid valve is a 2-position 2-way solenoid valve, widely used to control air, water and light oil in automation equipment.

Model:
JSG6213
Brand:
WAALPC
Code:
8481804090

Product Description

2/2 way pilot-operated structure, low power consumption and stable action
Good sealing performance, low leakage, long service life
Multiple medium compatibility: air, water and light non-corrosive oil
Optional AC and DC voltages to meet different industrial control requirements
Compact structure, easy installation and maintenance
Suitable for medium pressure working conditions, widely used in automation equipment

Technical Parameters

SPECIFICATION

Model	JSG6213-02	JSG6213-03	JSG6213-04	JSG6213-06	JSG6213-08
Inside Nominal Diameter(mm)	10			14	20
Inside Pipe Screw Thread	G1/4	G3/8	G1/2	G3/4	G1
Working Pressure(kgf/cm2)	0.1~1.5
Environment Temperature	-10~55℃
Operating Temperature Range	-5~80℃
Cv Value(m3/h)	2			3.6	8.3
Weight(kg)	0.558	0.506	0.5	0.706	1.263

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

Model	G	C	F	L	J	A	B	H	K
JSG6213-02	G1/4	35	10	50	26	74	87	40	80
JSG6213-03	G3/8	35	10	50	26	74	87	40	80
JSG6213-04	G1/2	35	10	50	26	74	87	40	80
JSG6213-06	G3/4	45	16	62	31	82	99	40	80
JSG6213-08	G1	60	18	81	41	98	118	40	80

Specification Download

JSG6213 series solenoid valve.pdf
