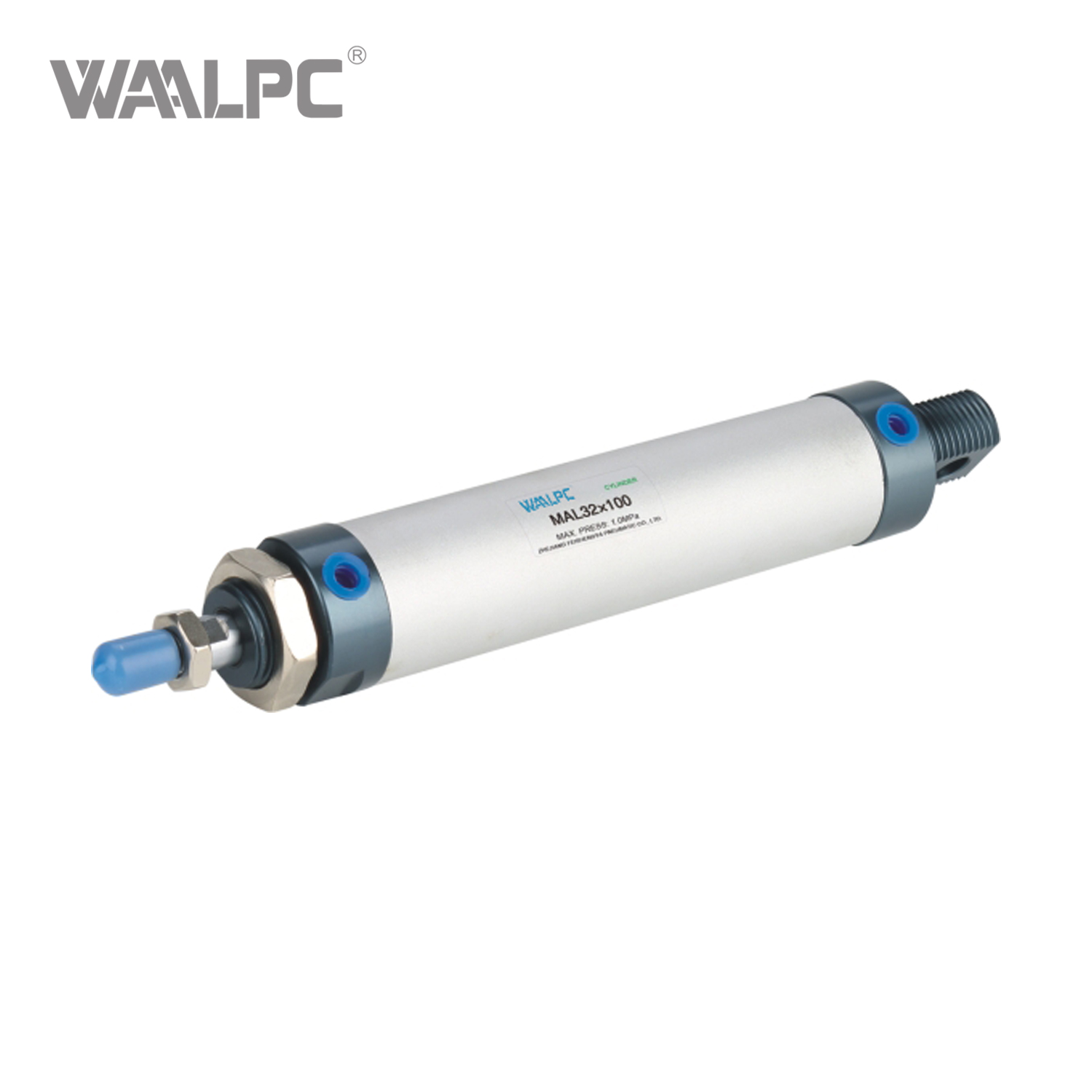

MAL Series Compact Pneumatic Cylinders - Space-Saving Design with Magnetic Piston & Multiple Mounting Options

MAL Series Compact Pneumatic Cylinders - Space-Saving Design with Magnetic Piston & Multiple Mounting Options


Availability:

Quantity:



Inquiry Add to Basket

The MAL Series represents a line of compact, double-acting mini pneumatic cylinders crafted from aluminum alloy. A key design advantage is their space-saving and lightweight construction, making them ideal for equipment with limited installation space.

Model:
MAL
Brand:
WAALPC
Code:
8409919990

Product Description

1. Compact and Durable Construction: The cylinder features a high-strength aluminum alloy tube. The ends are secured with a threaded connection between the covers and the tube, making the structure robust yet compact and easy to maintain.

2. High-Performance Sealing and Lubrication: The piston utilizes a special bidirectional sealing structure. This design is compact, incorporates an oil reservoir function, and ensures low starting pressure. The use of self-lubricating bearing in the front cover provides good guidance and allows for operation without additional lubrication.

3. Flexible Installation and Options: A wide variety of rear cover styles (e.g., CA-swivel type, CM-round type, U-flat type) and mounting accessories (e.g., FA-front flange, LB-foot mounting) are available, offering great flexibility for installation. An optional magnetic piston is available for models denoted with an 'S' in the part number, enabling position sensing with external reed switches.

Technical Parameters

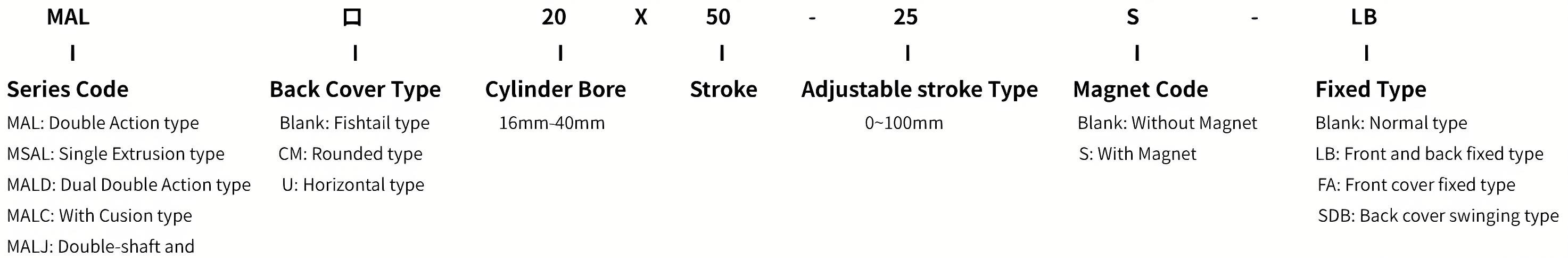

ORDERING CODE

MAL ordering_

SPECIFICATION

Bore(mm)		16	20	25	32	40
Motion Pattern		Double Action or Single Action
Working Medium		Air
Fixed Type		Normal/LB/FA/SDB Type
Operating Voltage Range		0.1-0.9Mpa
Ensured Pressure Resistance		1.35MPa
Operating Temperature Rang		-5-70℃
Operating Speed Range		30-800mm/s
Buffer Type	Standard Type	Anti-crashcushion
	Damping Type	-	Adjustable cushion
Port Size		M5x0.8	G1/8

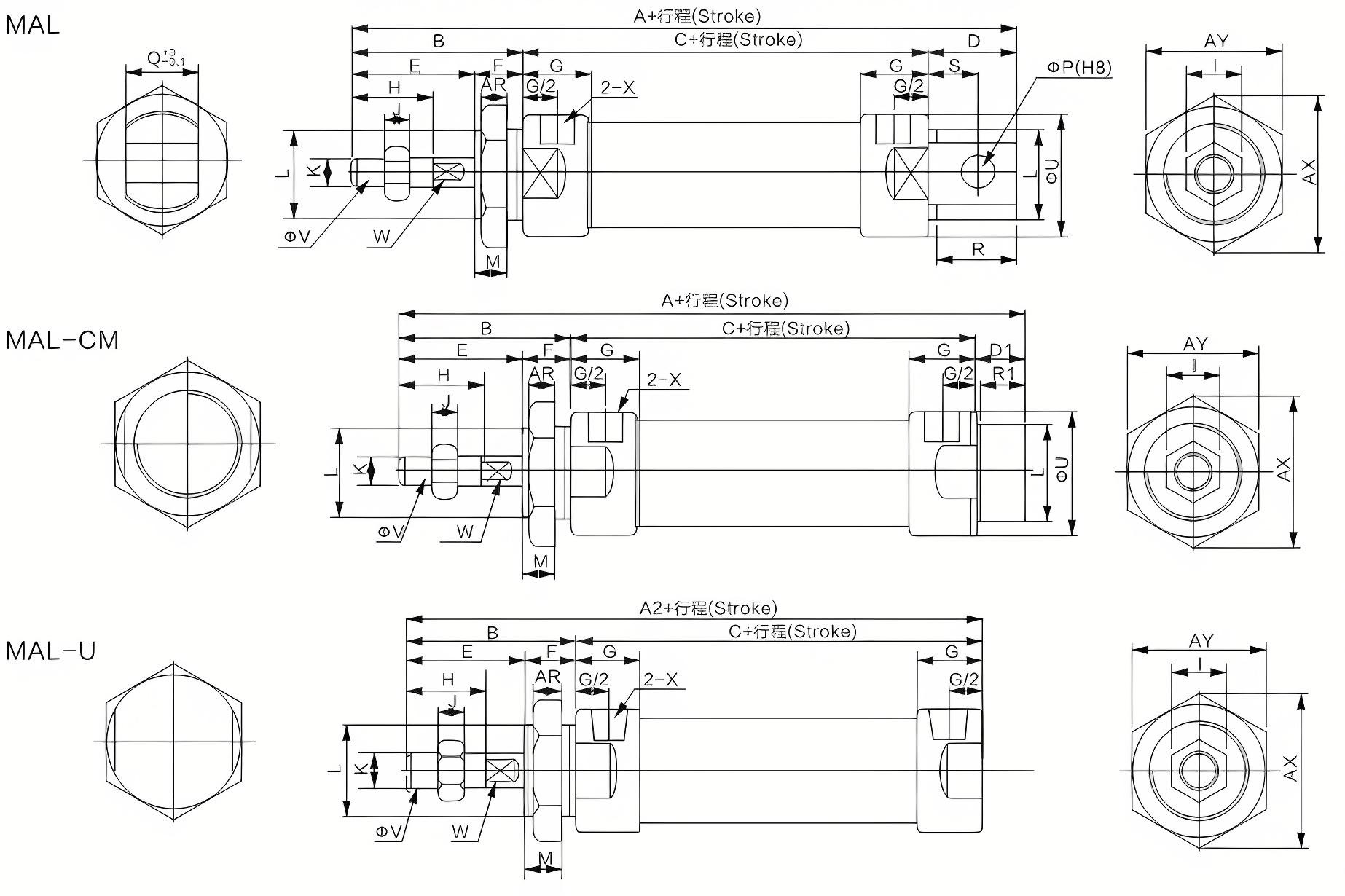

OVERALLDIMENSION&STRUCTURE

MAL Series Compact Pneumatic Cylinders

Bore(mm)	A	A1	A2	B	C	D	D1	E	F	G	H	I	J	K
16	114	114	98	38	60	16	16	22	16	10	16	10	5	M6X1
20	131	122	110	40	70	21	12	28	16	16	20	12	6	M8X1.25
25	135	128	114	44	70	21	14	30	16	16	22	17	6	M10X1.25
32	141	128	114	44	70	27	14	30	16	16	22	17	6	M10X1.25
40	165	152	138	45	92	27	14	32	22	22	24	17	7	M12X1.25

Bore(mm)	L	M	P	Q	R	R1	S	U	V	W	X	AR	AX	AY
16	M16X1.5	14	6	12	14	14	9	21	6	5	M5	6	25	22
20	M22X1.5	10	8	16	19	10	12	29	8	6	G1/8	7	33	29
25	M22X1.5	12	8	16	19	12	12	34	10	8	G1/8	7	33	29
32	M24X2.0	12	10	16	25	12	15	39.5	12	10	G1/8	8	37	32
40	M30X2.0	12	12	20	25	12	15	49.5	16	14	G1/4	9	37	41

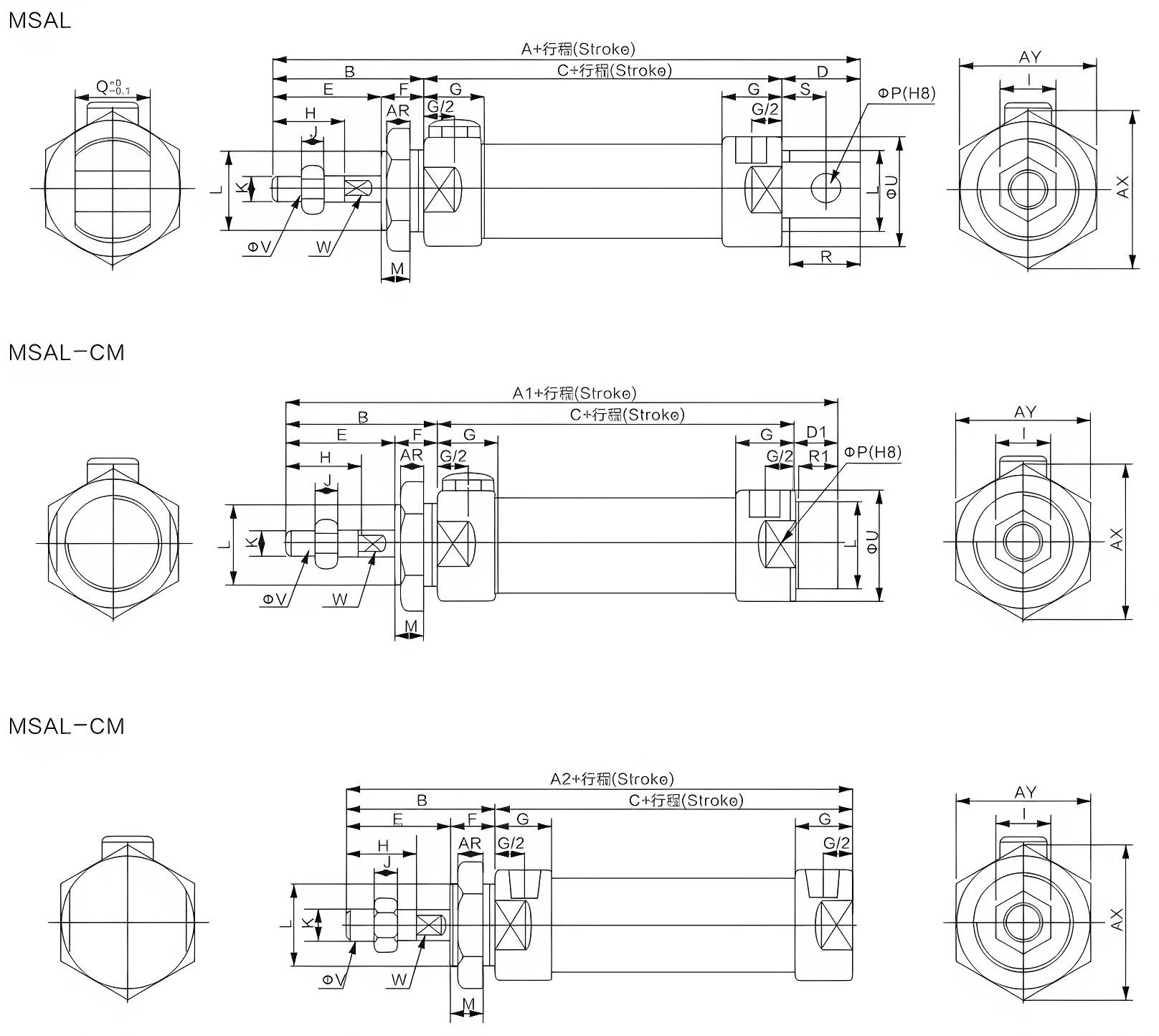

Compact Pneumatic Cylinders

Symbol	A		A1		A2		B	C		D1	D	E	F	G	H	I	J
Bore/Stroke	0-50	51-100	0-50	51-100	0-50	51-100	B	0-50	51-100	D1	D	E	F	G	H	I	J
20	131	156	122	147	110	135	40	70	95	21	12	28	12	16	20	12	6
25	135	160	160	153	114	139	44	70	95	21	14	30	14	16	22	17	6
32	141	166	166	153	114	139	44	70	95	27	14	30	14	16	22	17	6
40	165	190	190	177	138	163	46	92	117	27	14	32	14	22	24	17	7

Inside Diameter/Symble	K	L	M	P	Q	R	R1	S	U	V	W	X	AR	AX	AY
20	M8X1.25	M22X1.5	10	8	16	19	10	12	29	8	6	G1/8	7	33	29
25	M10X1.25	M22X1.5	12	8	16	19	12	12	34	10	8	G1/8	7	33	29
32	M10X1.25	M24X2.0	12	10	16	25	12	15	39.5	12	10	G1/8	8	37	32
40	M12X1.25	M30X2.0	12	12	20	25	12	15	49.5	16	14	G1/4	9	47	41

MAL Series Compact Pneumatic Cylinders

Inside Diameter/Symbol	A	A1	B	C	E	F	G	H	I	J	K
20	150	147	40	70	28	12	16	20	12	6	M8X1.25
25	158	155	44	70	30	14	16	22	17	6	M10X1.25
32	158	155	44	70	30	14	16	22	17	6	M10X1.25
40	184	180	46	92	32	14	22	24	17	7	M12X1.25

Inside Diameter/Symbol	L	M	U	V	W	X	AR	AX	AY	T
20	M22X1.5	10	29	8	6	G1/8	7	33	29	19
25	M22X1.5	12	34	10	8	G1/8	7	33	29	21
32	M24X1.5	12	39.5	12	10	G1/8	8	37	32	21
40	M30X2.0	12	49.5	16	14	G1/4	9	47	41	21
