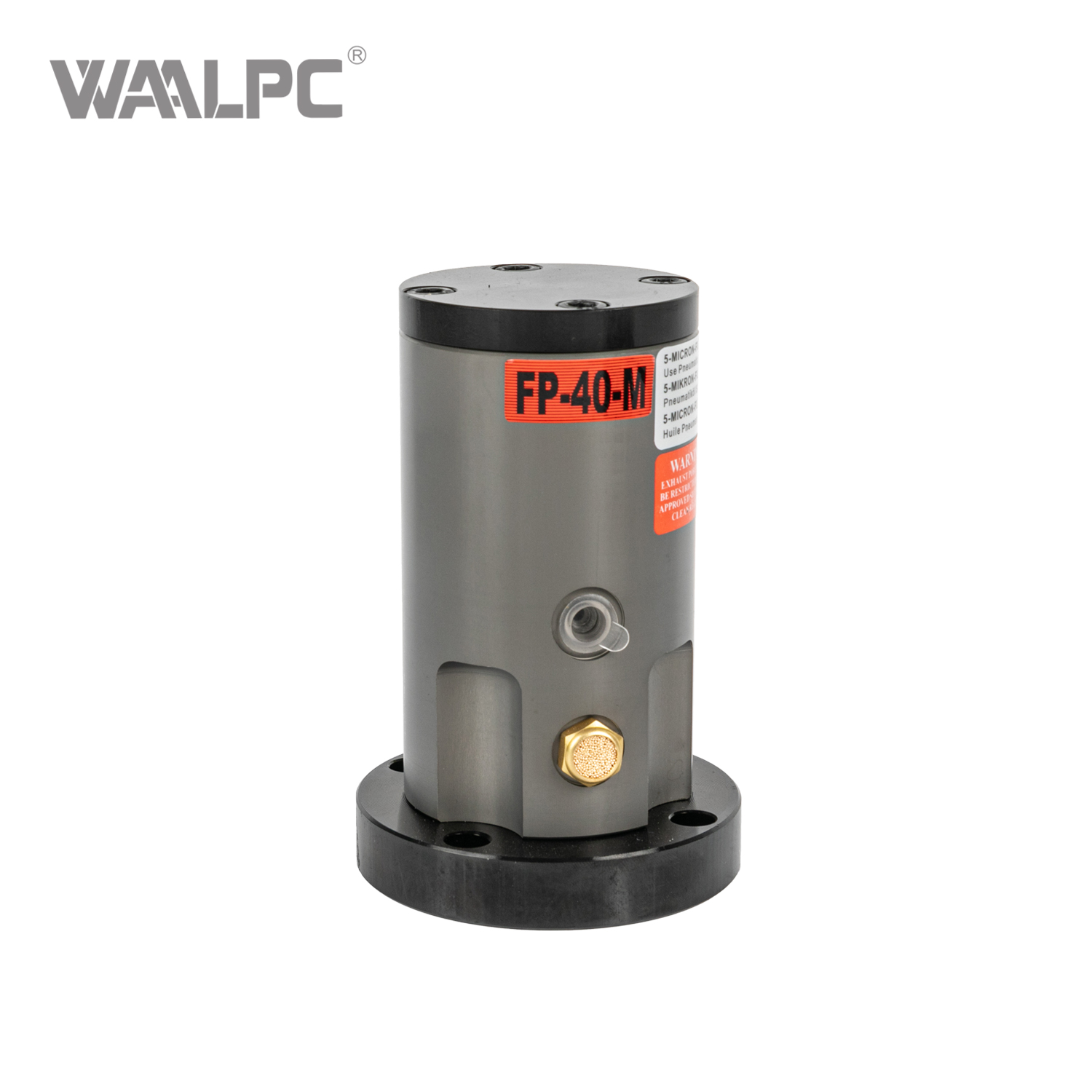

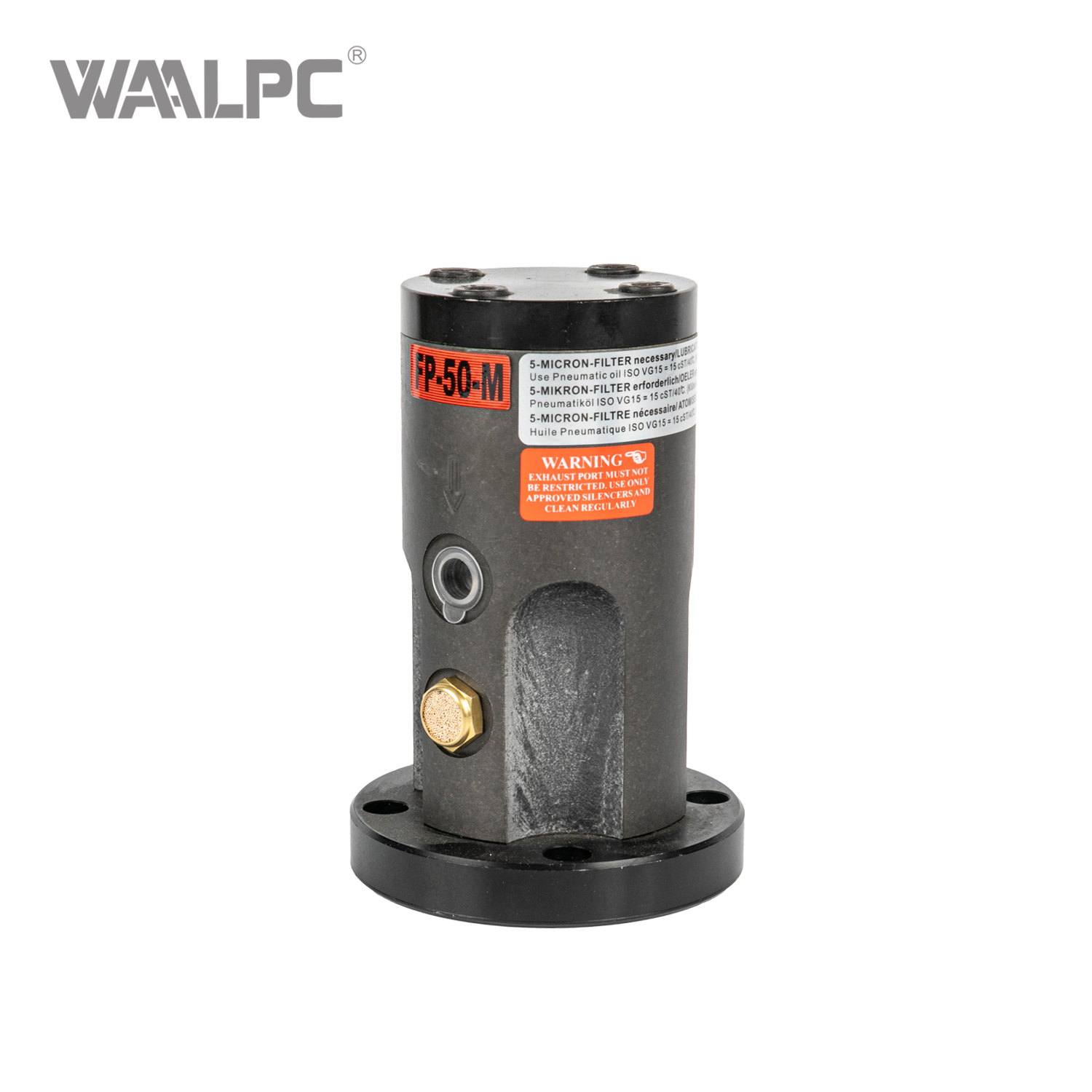

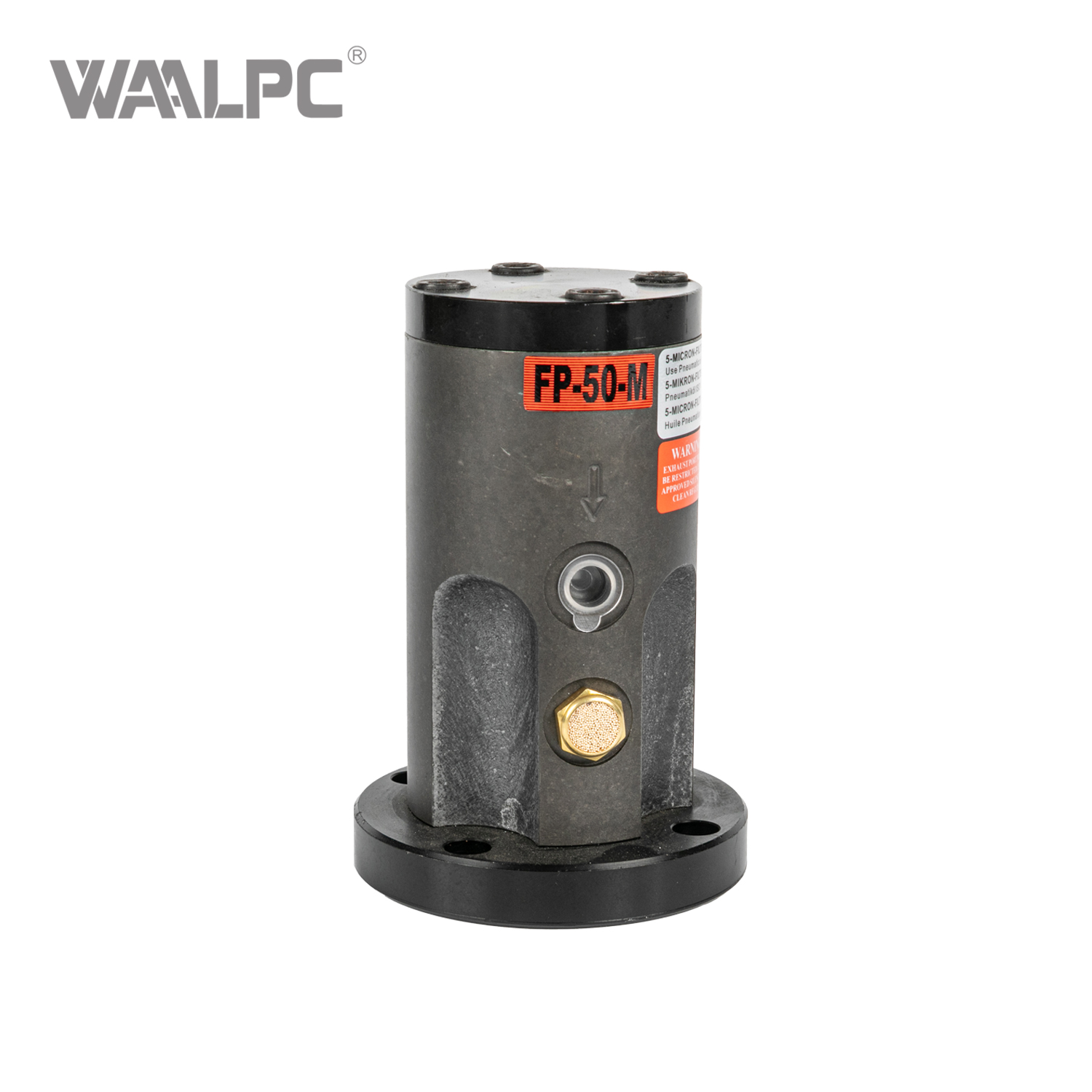

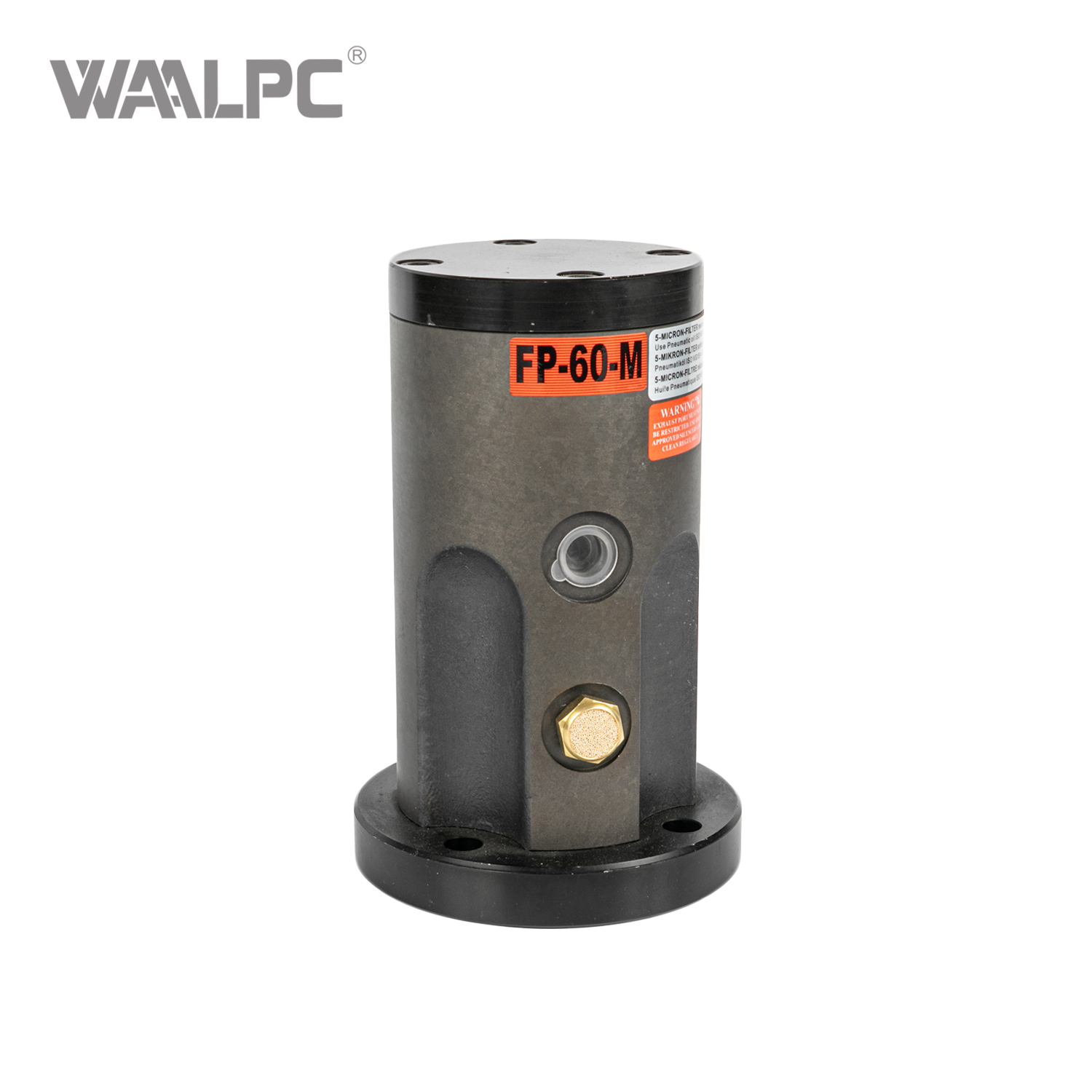

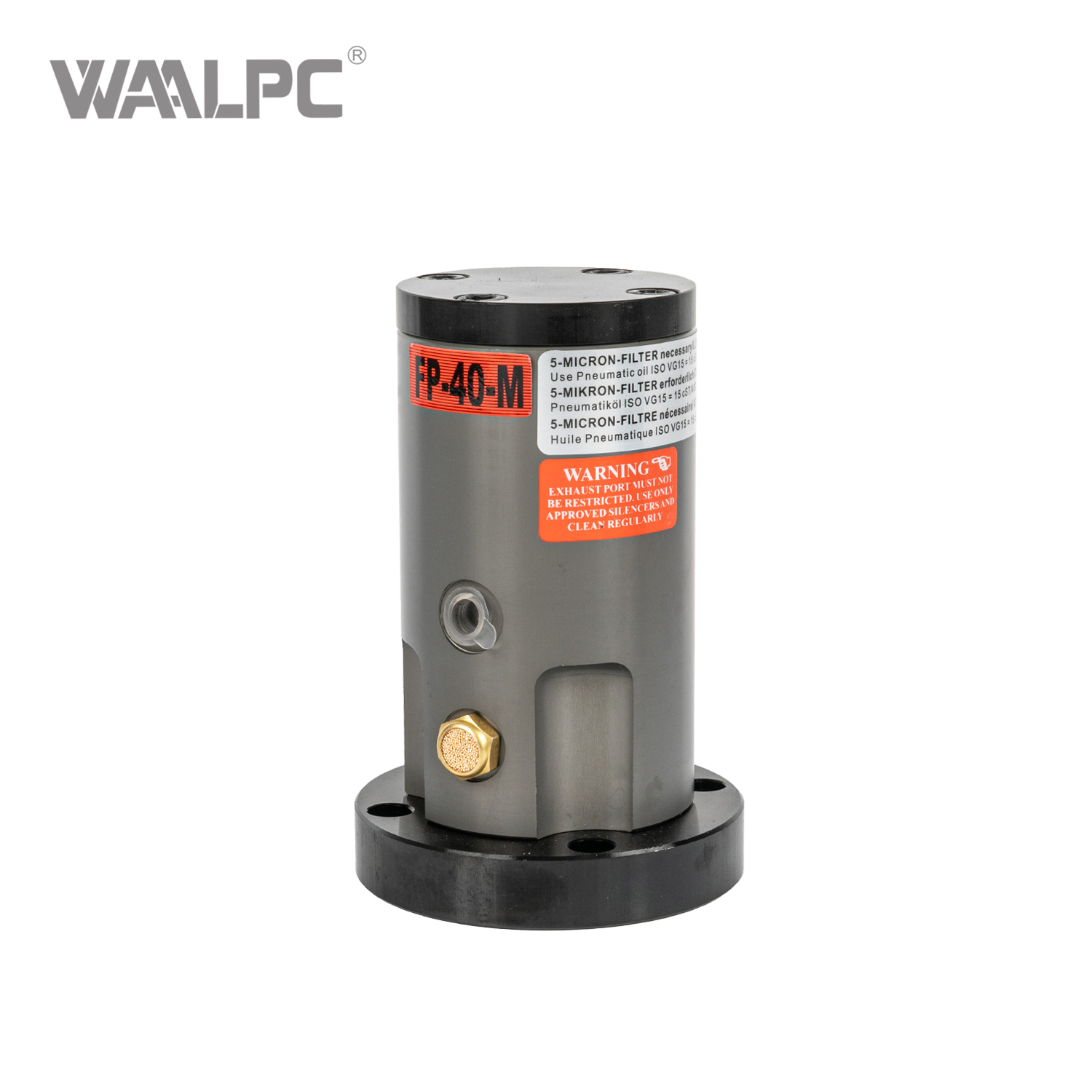

Piston Pneumatic Vibrator with Flange Plate Oscillator Aluminum Alloy Pneumatic Hammer

Piston Pneumatic Vibrator with Flange Plate Oscillator Aluminum Alloy Pneumatic Hammer


Availability:

Quantity:



Inquiry Add to Basket

The FP Series Flange Mount Vibrators are industrial-grade, pneumatically driven devices designed to generate powerful linear vibrations for material flow promotion. They are engineered to prevent material blockages, such as arching and ratholing, in equipment like silos, hoppers, and chutes.

Model:
FP-32
Brand:
WAALPC
Code:
8501109990

Product Description

Powerful & Adjustable Force: Generates high impact force for stubborn materials, adjustable to match specific application needs.

Robust & Low Maintenance: Simple piston mechanism and hardened aluminum construction ensure long service life with minimal upkeep.

Safe for Hazardous Areas: Pneumatic operation is inherently explosion-proof.

Quiet & Efficient: Designed for relatively low-noise operation and efficient air consumption.

Technical Parameters

DATA SHEET

Model	Frequency/minute			centrifugal force(N)			Air sonsumption
Model	0.2MPa	0.4MPa	0.6MPa	0.2MPa	0.4MPa	0.6MPa	L/min
FP-32	3250	4000	4850	265	550	865	33-108
FP-40-M	2550	3080	3560	350	850	1550	50-198
FP-50-M	1880	2350	2850	450	1050	1750	96-336
FP-60-M	1780	2250	2780	550	1305	2150	96-336
FP-80-M	1700	2150	2680	600	3000	5250	96-336

Parameter conversion: 1 kilogram=9.8 newtons

OVERALLDIMENSION&STRUCTURE

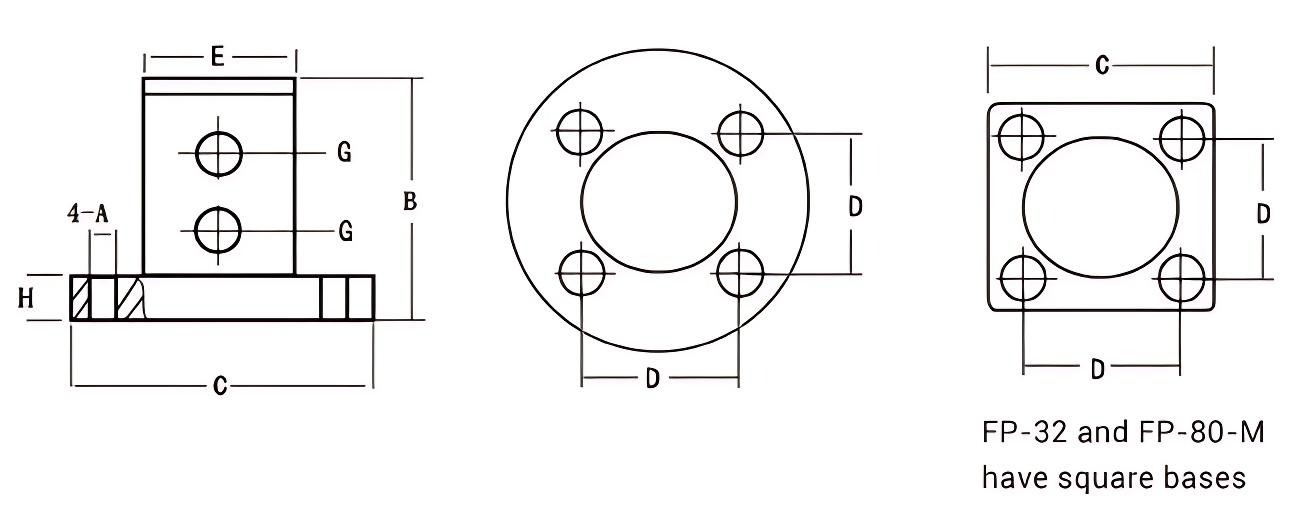

FP flange type structure_

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G
FP-32	7	92	60	46	57	15	G1/8
FP-40-M	9	122	80	47	60	15	G1/8
FP-50-M	11	140	94	54	68	15	G1/4
FP-60-M	11	185	120	67	92	20	G3/8
FP-80-M	13	193	116	82	114	20	G3/8

Specification Download

Piston reciprocating vibrator.pdf
