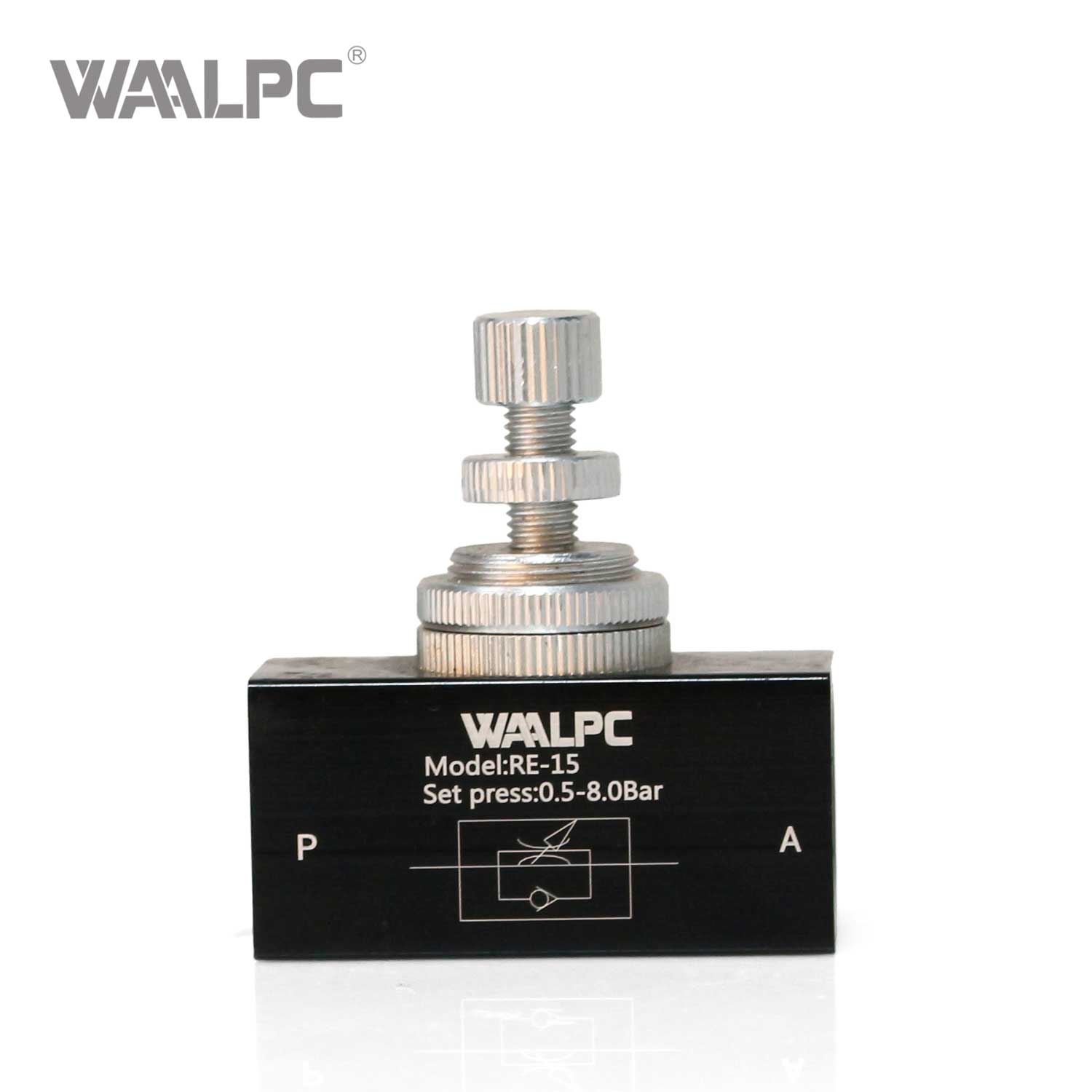

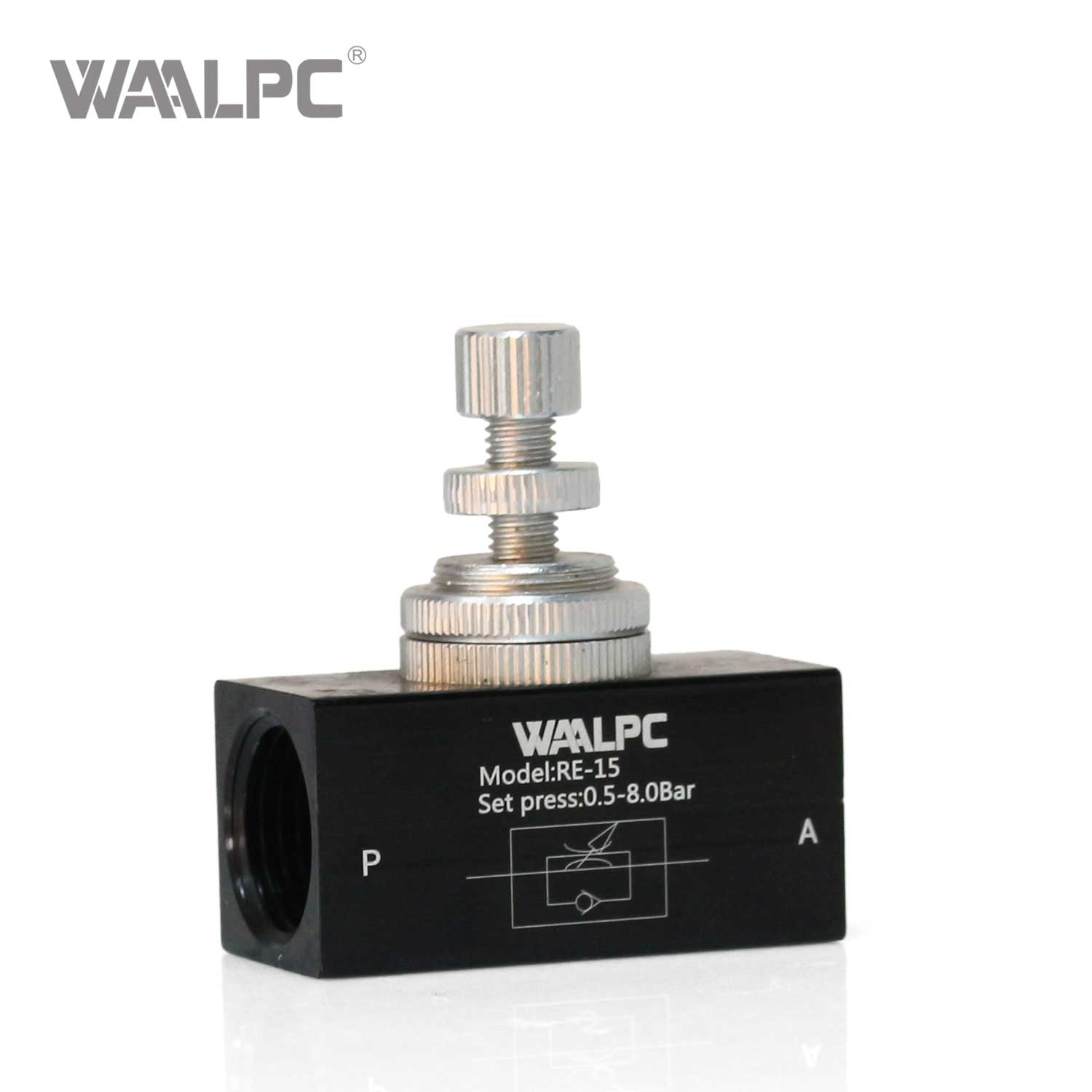

Pneumatic Air Flow Speed Control Valve RE-15 Throttle Valve G1/2'' Port


Size:	RE-15 RE
Availability:

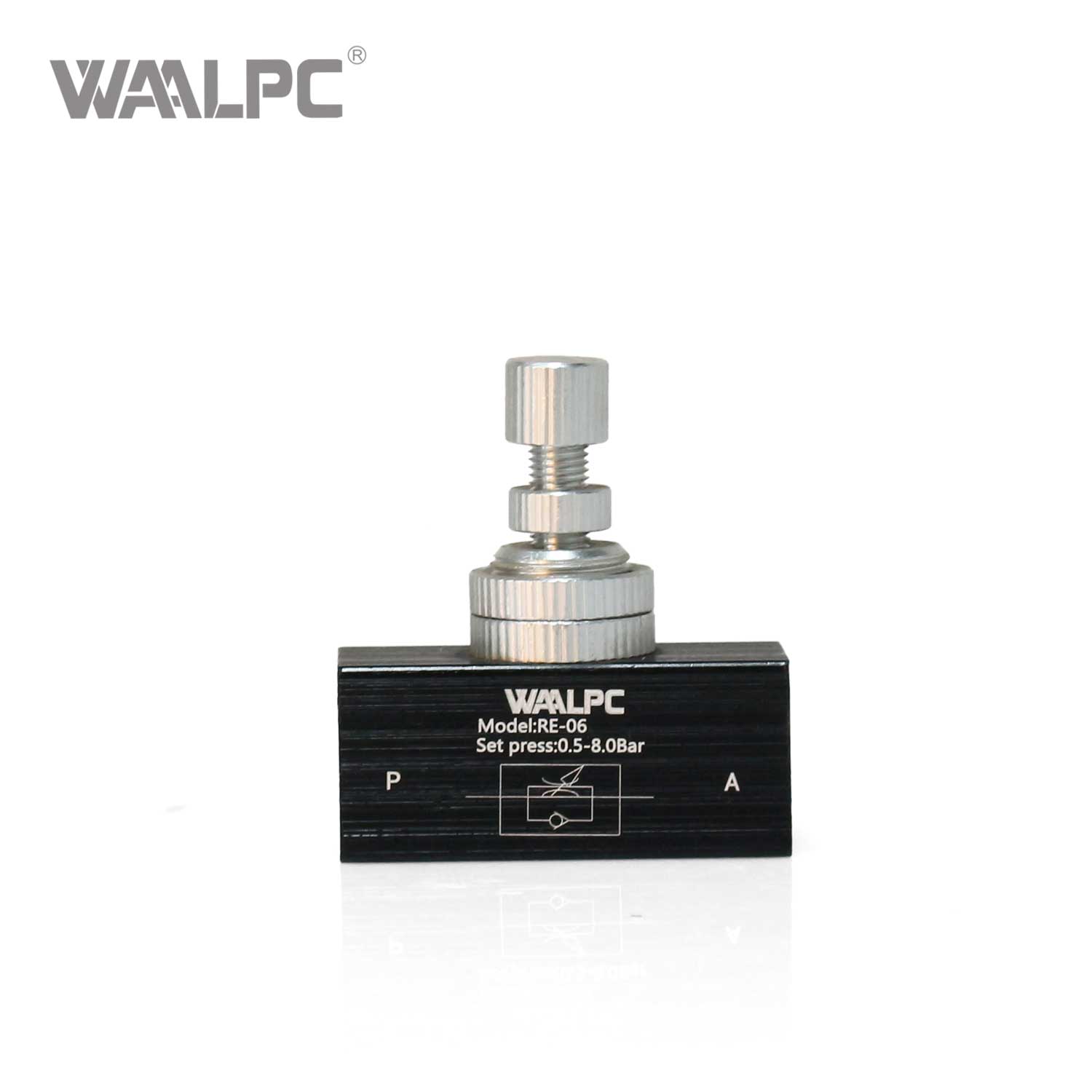

The RE Series One-Way Throttle Valve is a cutting-edge industrial solution designed to deliver precise and reliable flow control in pneumatic and hydraulic systems. Engineered with meticulous attention to detail, these valves allow fluid to flow freely in one direction while offering adjustable resistance in the reverse flow path, enabling users to fine-tune the speed, pressure, and performance of connected actuators and equipment. With a wide range of models available, the RE Series caters to diverse industrial needs, from high-precision automation processes to heavy-duty applications in challenging environments.

Model:
RE-15
Brand:
WAALPC
Code:
8481300000

Product Description

The RE Series One-Way Throttle Valve Advantages

The RE Series One-Way Throttle Valve

1. Precision Control

±0.3% flow accuracy ensures smooth actuator operation, eliminating jerky movements and boosting system efficiency.

2. Rugged Build

Constructed from corrosion-resistant aluminum alloy or stainless steel, with -30℃~90℃ temperature tolerance and 35MPa pressure resistance for reliable operation in harsh environments.

3. Customizable Solutions

Tailor body materials, ports, connections, and add features like gauges to meet specific industrial requirements.

The RE Series One-Way Throttle Valve Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Data sheet

Model	RE-06	RE-08	RE-10	RE-15
Port size	G1/8''	G1/4''	G3/8''	G1/2''
Working Medium	Air
Working-pressure Range	0~0.95MPa
Operating Temperature Range	0~60℃

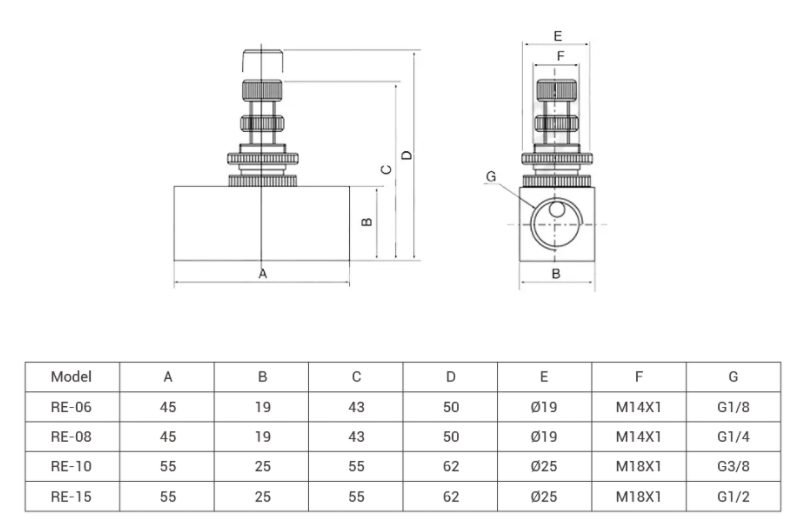

DIMENSION

Specification Download

RE One-way Throttle Valve.png
