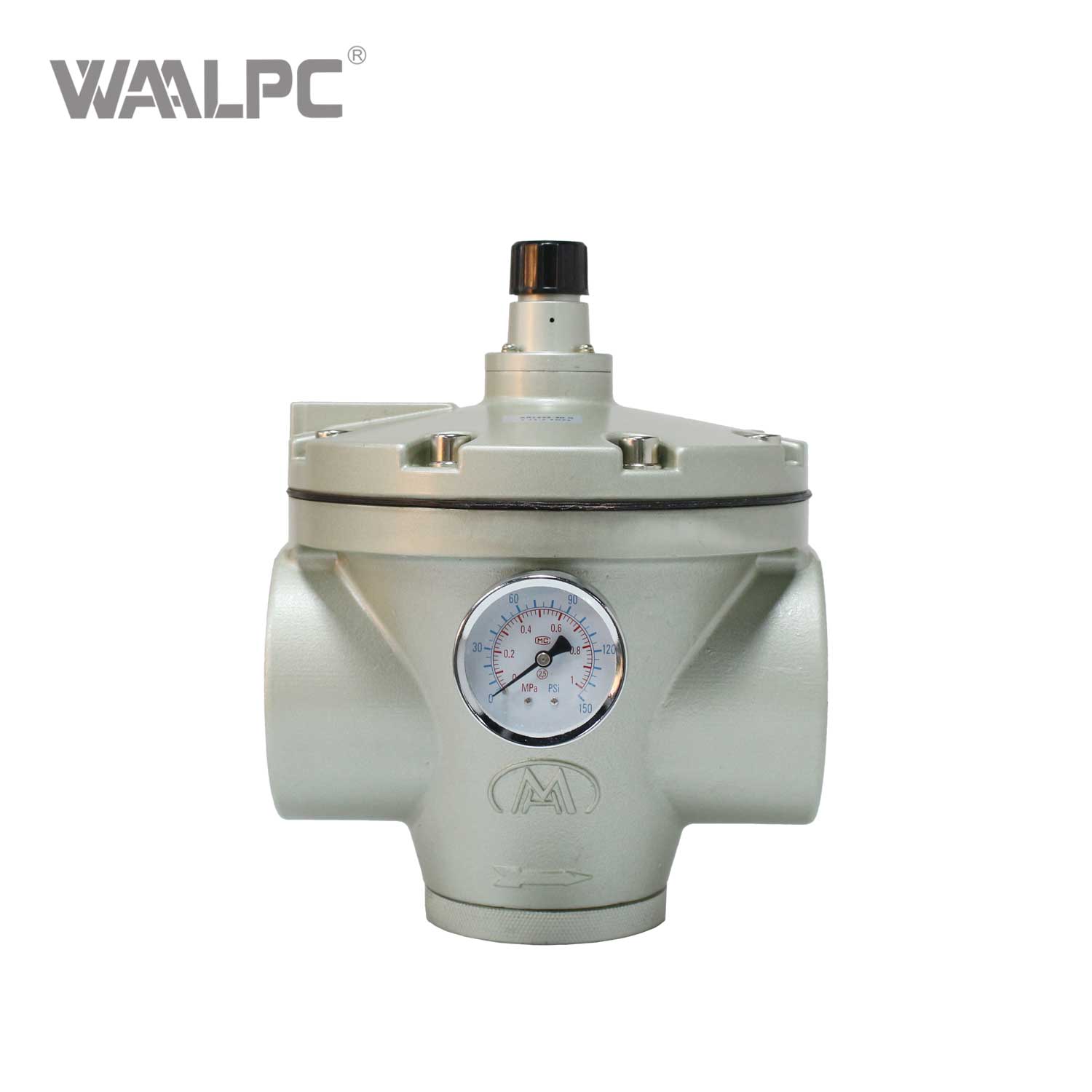

Silver High Flow Air Source Components Pneumatic Supply for Manufacturing & Automation

Silver High Flow Air Source Components Pneumatic Supply for Manufacturing & Automation


Size:	1 2
Availability:

Quantity:



Inquiry Add to Basket

High-Flow Air Source AR Series is a cutting-edge solution engineered to meet the most demanding compressed air requirements across industrial sectors. Tailored for applications that demand a continuous, high-volume air supply, the AR Series combines advanced technology with robust construction, ensuring reliable performance under heavy loads. Whether powering large-scale manufacturing lines, complex automation systems, or high-speed pneumatic tools, the AR Series delivers unparalleled efficiency and stability.

Model:

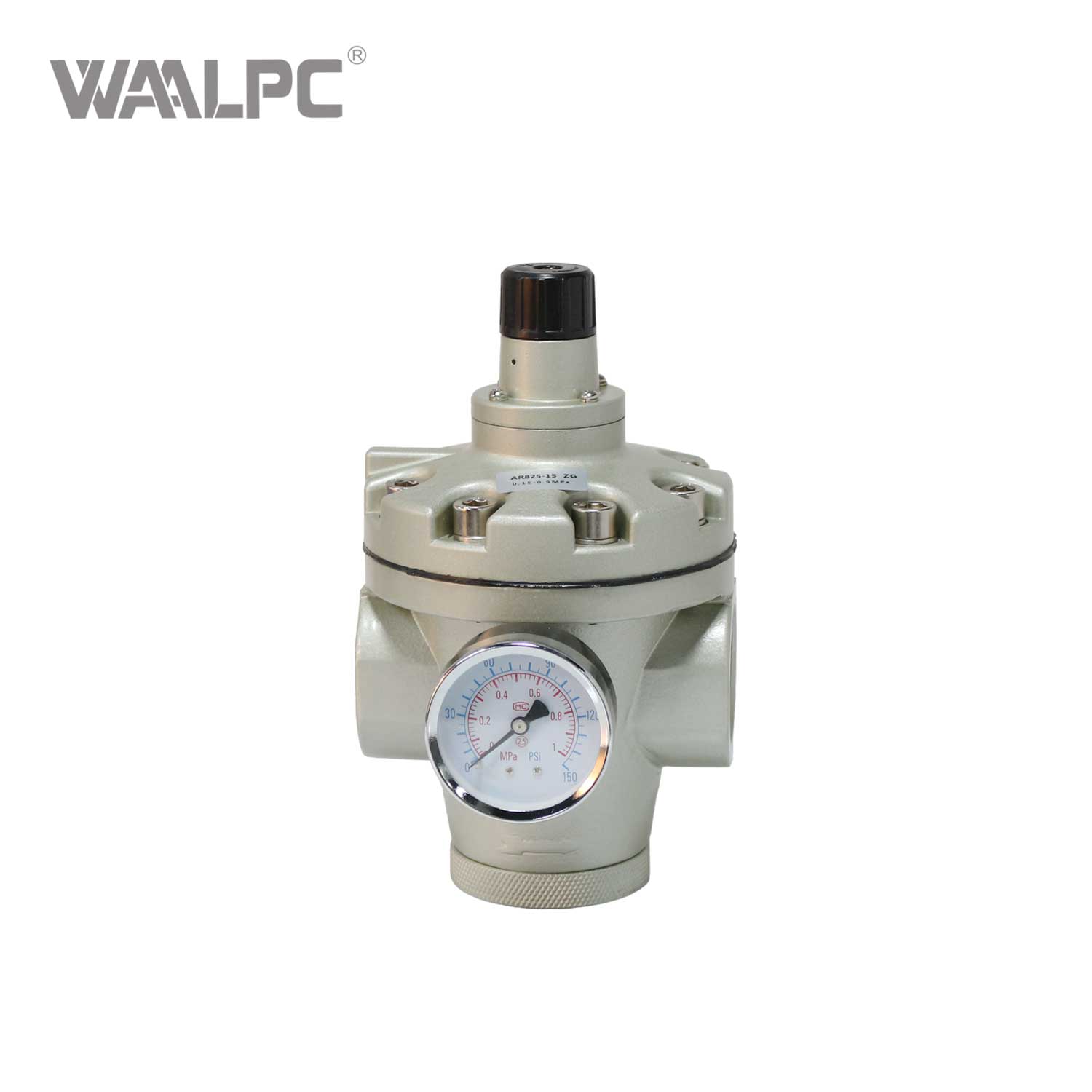

AR825-15
Brand:
WAALPC
Code:
8421999000

Product Description

High-Flow Air Source Advantages

High-Flow Air Source

1. Precision Pressure Control

Integrated digital controllers enable precise pressure regulation within ±0.5 PSI accuracy, optimizing performance for sensitive applications like electronics manufacturing or medical device assembly. The AR Series supports customizable pressure profiles, adapting effortlessly to fluctuating workloads and enhancing the precision of downstream pneumatic equipment.

2. Versatile Industry Applications

Designed to serve diverse sectors, the AR Series excels in:

Automotive Manufacturing: Powering robotic arms, paint spraying systems, and assembly line tools.

Aerospace: Providing clean, high-pressure air for component testing and aircraft ground support.

Food & Beverage: Ensuring hygienic, oil-free air for packaging, bottling, and processing.

Renewable Energy: Supporting pneumatic systems in wind turbine maintenance and solar panel production.

High-Flow Air Source Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type name	Air Regulator

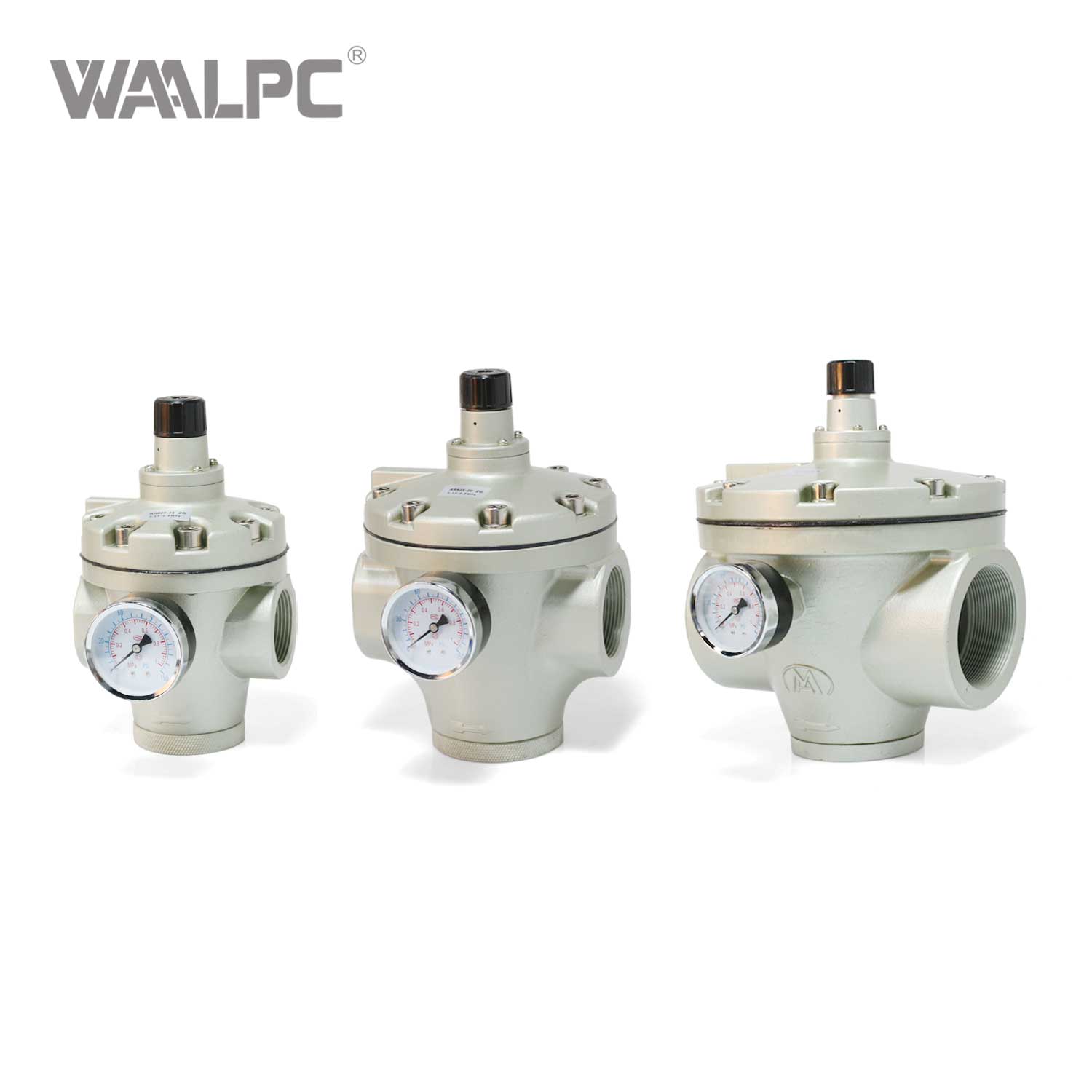

Model	AR825-15	AR925-20	AR1200-30
Port Size	G1½	G2	G3
Working medium	Air
Max. operating pressure	1.0MPa
Pressure Resistance	1.5MPa
Air consumption (for bleed hole)	5 L/min (ANR) (at maximum pressure)
Operating temperature range	-5~60℃ (No freezing)
Construction	Internal pilot relieving type (Pilot air is always bleeding)
Pressure gauge port size	1/4
Pressure regulating range	0.05~0.85Mpa
Pressure gauge	G46-10-02
Related flow	12000L/min	20000L/min	28000L/min
Weight	2500g	4500g	8000g

STRUCTURE

DIMENSION(MM)

Model	Port size		Pressure gauge port size	Dimension(mm)
Model	Port size		Pressure gauge port size	A B C D E F
AR825-15		1½	1/4	126	216	75	110	94.5	5
AR925-20		2	1/4	160	241	90	140	109.5	10
AR1200-30		3	1/4	210	274	125	190	140	25

Specification Download

High Flow Air Source Treatments.pdf
