| Size: | |
|---|---|
| Availability: | |
SFR600
WAALPC
8481804090

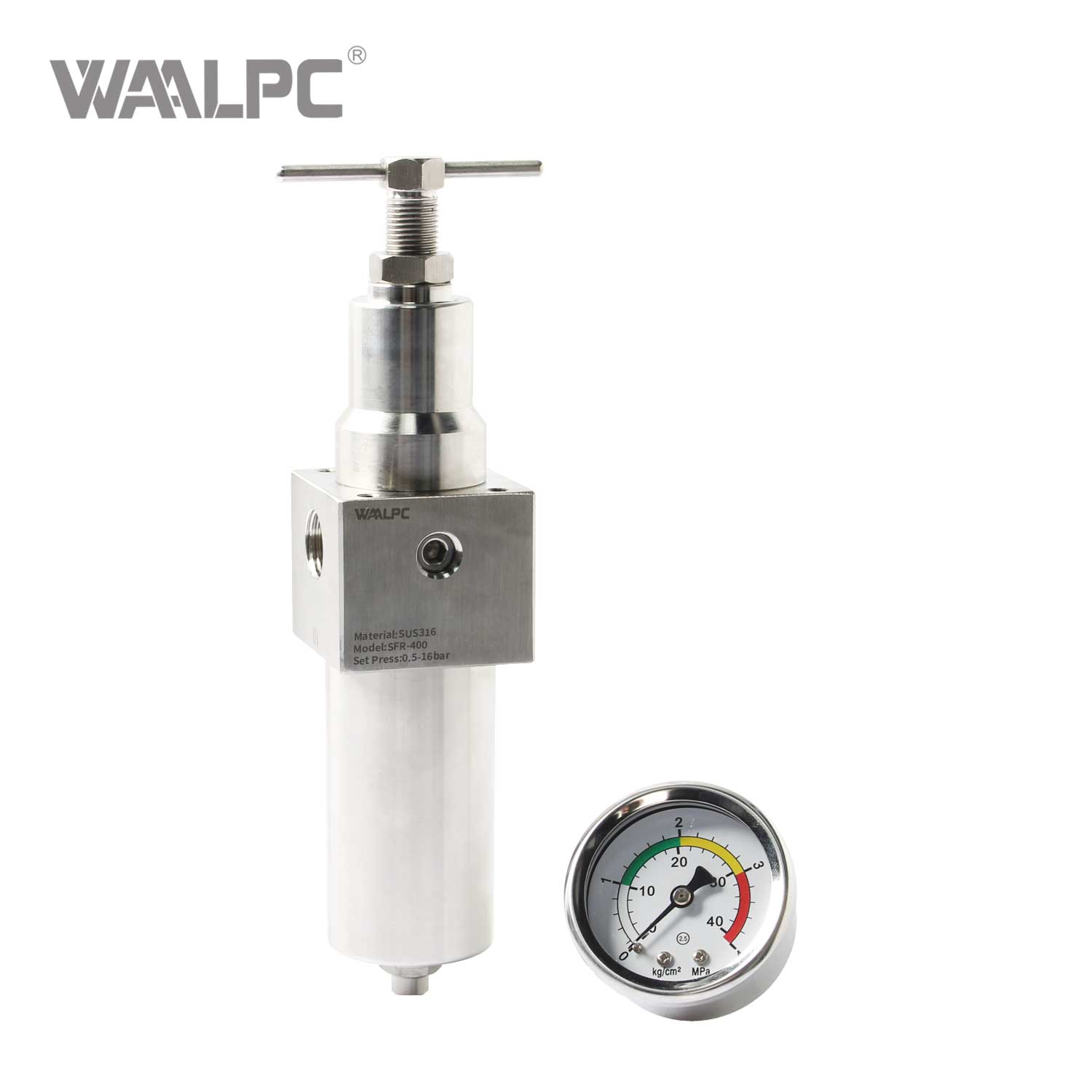

![]() | 1. Superior Corrosion ResistancePremium 316L Stainless Steel Construction: Built with 316L stainless steel, the SFR series resists chemical corrosion, saltwater exposure, and oxidation. This makes it the ideal choice for marine environments, chemical processing plants, and pharmaceutical facilities, where aggressive substances pose a constant threat to component integrity. Long-Term Reliability: With a lifespan 50% longer than conventional models, SFR filter regulators reduce maintenance frequency and replacement costs. Their durable build ensures uninterrupted operation even in the harshest conditions, safeguarding productivity. 2. Precision Filtration and Pressure RegulationHigh-Efficiency Filtration: Equipped with advanced filtration elements, the SFR series removes particles as small as 5μm, ensuring clean, contaminant-free air supply. This level of filtration is crucial for protecting downstream pneumatic components like valves, actuators, and cylinders from premature wear. |
Industrial Production
Automation Equipment
Mechanical Equipment
Food Industry
Medical and Health Care
Electronic Industry
Textile Machinery
Packaging Machinery
DATA SHEET
Type-Name | Air Filter & Regulator | ||||
Model | SFR200 | SFR400 | SFR400 | SFR600 | SFR600 |
Port Size (G) | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Max Flow Rate (L/Min) | 1850 | 2200 | 2500 | 7600 | 8000 |
| Filter Cup Capacity | 105cc | 110cc | 110cc | 200cc | 200cc |
| Regulator Construction | 5 um, 40um | ||||
| Working Medium | Air | ||||
| Pressure Regulating Range | 0.15~2MPa | ||||
| Pressure Resistance | 6MPa (870Psi) | ||||
| Operating Temperature Range | -40~100℃ | ||||
| Drain type | Differential pressure drain (Drain below 0.05MPa) | ||||
| Material | SUS316 stainless steel | ||||
| Accessories | Pressure gauge, mounting bracket, screw x2 | ||||
| Weight | 1340g | 1960g | 1940g | 4520g | 4500g |

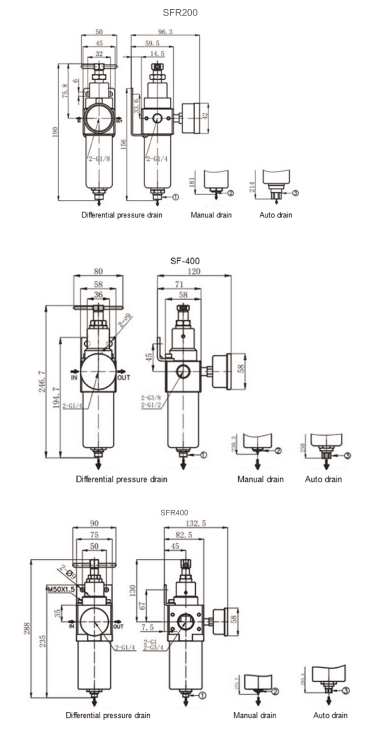

STRUCTURE
