When a pneumatic cylinder moves too fast or too slow, most maintenance leads first blame the air supply. But nine times out of ten, the real culprit sits quietly between the filter and the lubricator: the pressure regulator.
At Waalpc, we have seen factories waste thousands of dollars on oversized compressors while ignoring a poorly chosen or failing regulator. A good regulator does not just reduce pressure—it stabilizes output regardless of inlet swings or downstream demand.
Let us walk through how a pneumatic regulator actually works, why “just a reducing valve” is a dangerous myth, and how to choose and maintain one for years of trouble-free service.

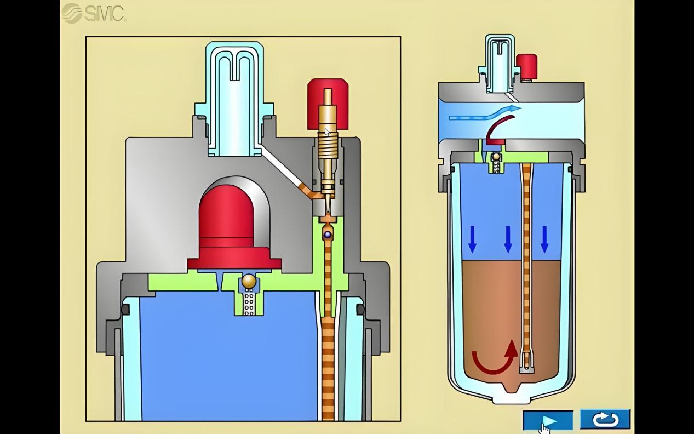

A modern pneumatic pressure regulator is not a simple needle valve. It is a feedback control device. The core principle is a constant battle between mechanical spring force and air pressure force acting on a rubber diaphragm.
State 1 – Setting the pressure
You turn the adjustment knob clockwise. This compresses the main spring, pushing the diaphragm down. The valve stem opens, allowing high-pressure inlet air to flow to the outlet. The output pressure rises.
State 2 – Stable output
Output air feeds back to the chamber below the diaphragm. When the upward pressure force equals the downward spring force, the valve stem balances at a certain position. The output pressure stays constant – even if you open or close downstream valves.
State 3 – Automatic correction
If the inlet pressure suddenly rises (or a downstream valve closes), the output pressure tries to increase. The extra pressure pushes the diaphragm upward, the valve stem moves to close the inlet, and a relief port opens to bleed excess air. Pressure returns to the setpoint – automatically.
This is why a regulator for air compressor can keep your cylinder speed consistent even when other machines on the same line start or stop.
Many buyers choose a regulator by port size: “I need 1/2 inch.” That is like buying a car only by its door handle.
The real spec is flow rate at a given pressure drop. A good quality air pressure regulator will pass, for example, 3000 L/min at 0.7 MPa inlet with only 0.05 MPa drop. A cheap one with the same port size might drop 0.2 MPa at the same flow – starving your tools.
Every 0.1 MPa of unnecessary pressure drop forces your compressor to work 7% harder. If your regulator is undersized, you are paying that penalty every single day.
Quick rule of thumb:
Pick a regulator whose rated flow is 1.5x to 2x your maximum system air consumption.
When in doubt, go one size larger – the efficiency gain pays back in months.
Even a well-chosen regulator will wear out. Here are the four most frequent failure modes we see in the field.
You set it to 0.5 MPa in the morning. By afternoon, it reads 0.55 MPa or 0.6 MPa.
Cause: The internal valve seat or seal is worn. High-pressure air leaks past the closed valve when the downstream side is idle.
Fix: Replace the regulator repair kit (diaphragm + valve seal). Do not ignore it, or your actuators may over-stress.
At rest, the pressure looks fine. As soon as a cylinder moves, the pressure crashes by 0.1–0.2 MPa.
Cause: The regulator is undersized, or the internal spring is fatigued, or a dirty filter upstream is restricting flow.
Fix: First check the upstream air filter. If clean, upgrade to a high-flow regulator model.
A small vent hole on the regulator body (often near the bottom) continuously leaks air.
Cause: The diaphragm has ruptured, or dirt is holding the relief valve slightly open.
Fix: Disassemble and clean. Replace the diaphragm if cracked or hardened.
Hard to turn: rust or debris inside. Spins freely: the adjusting screw has stripped.
Fix: Disassemble, clean, and apply light grease to threads. Replace stripped parts.
Do not wait for failure. A quick monthly check takes less than five minutes.
Look at the pressure gauge – does it flicker or drift? Stable is good.
Listen for hissing – especially when no downstream device is moving.
Test the relief – after setting pressure, close the downstream valve and slowly increase the regulator setting. You should hear air briefly vent when you go above setpoint.
Shut off inlet air and vent downstream pressure completely.
Remove the bonnet (cover) and inspect the regulator diaphragm for pinholes, hardening, or oil swelling.
Check the valve stem and seat – if you see a groove or nicks, replace them.
Clean all internal passages with clean, dry compressed air. Never use solvents on rubber parts.
Critical safety rule: Never disassemble a regulator under pressure. The diaphragm can fly out and cause injury.
Skip the guesswork. Answer three simple questions.
What is your maximum inlet pressure?
Most standard units handle 1.0 MPa. If your compressor feeds a receiver at 1.2 MPa, choose a higher-range model.
What flow do you need?
Add up the air consumption of all devices that could run at the same time. Multiply by 1.5. Look for a regulator that exceeds that number at 0.05 MPa drop.
Do you need relieving (溢流) or non-relieving?
Relieving (most common): automatically vents excess downstream pressure. Good for most industrial machines.
Non-relieving: no venting, used for special circuits like air bearings or medical devices.
For 90% of factories, a standard FRL pressure regulator unit with relieving function, metal bowl guard, and 40μm filter upstream is the right choice.
A pressure regulator looks simple. It is not. It constantly fights to keep your output stable against upstream spikes and downstream surges. When it fails, you see erratic cylinder motion, jammed valves, wasted energy, and poor product quality.
Spend the extra ten minutes to size it correctly, check it monthly, and replace the diaphragm before it leaks. Your whole pneumatic system will thank you.

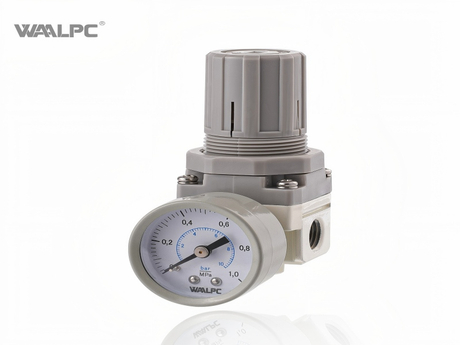

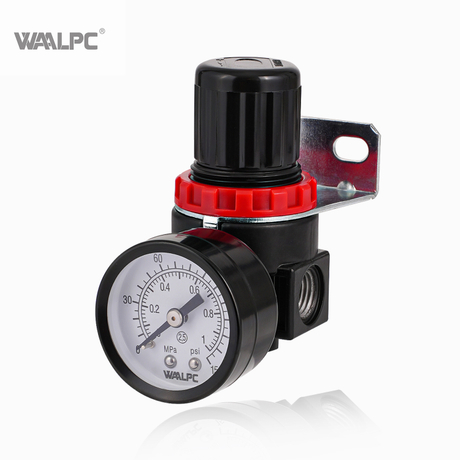

If you need a reliable, high-flow, low-pressure-drop regulator for your industrial line, take a look at the Waalpc AR Series regulators. We build them with reinforced diaphragms and polished valve seats for long-term stability.
