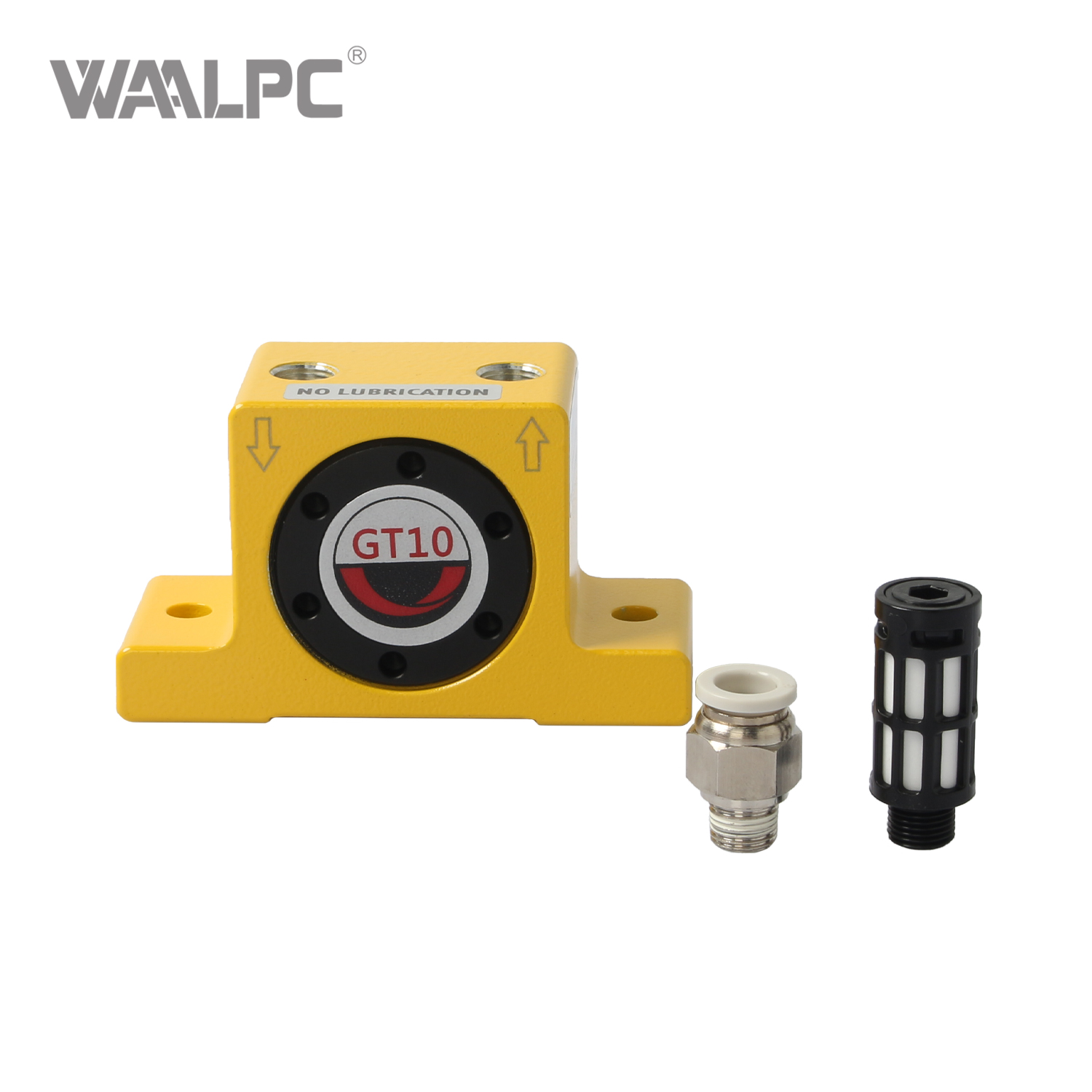

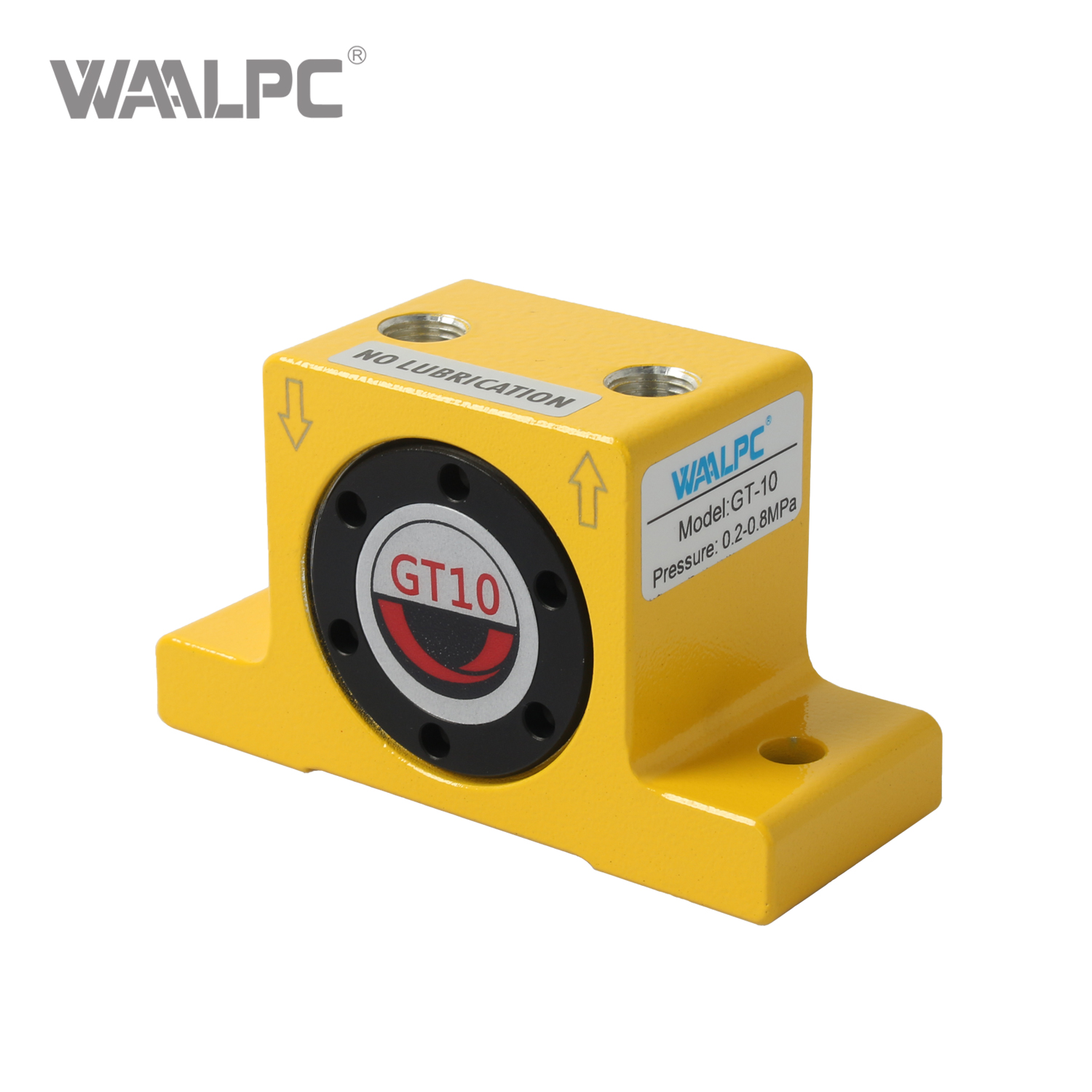

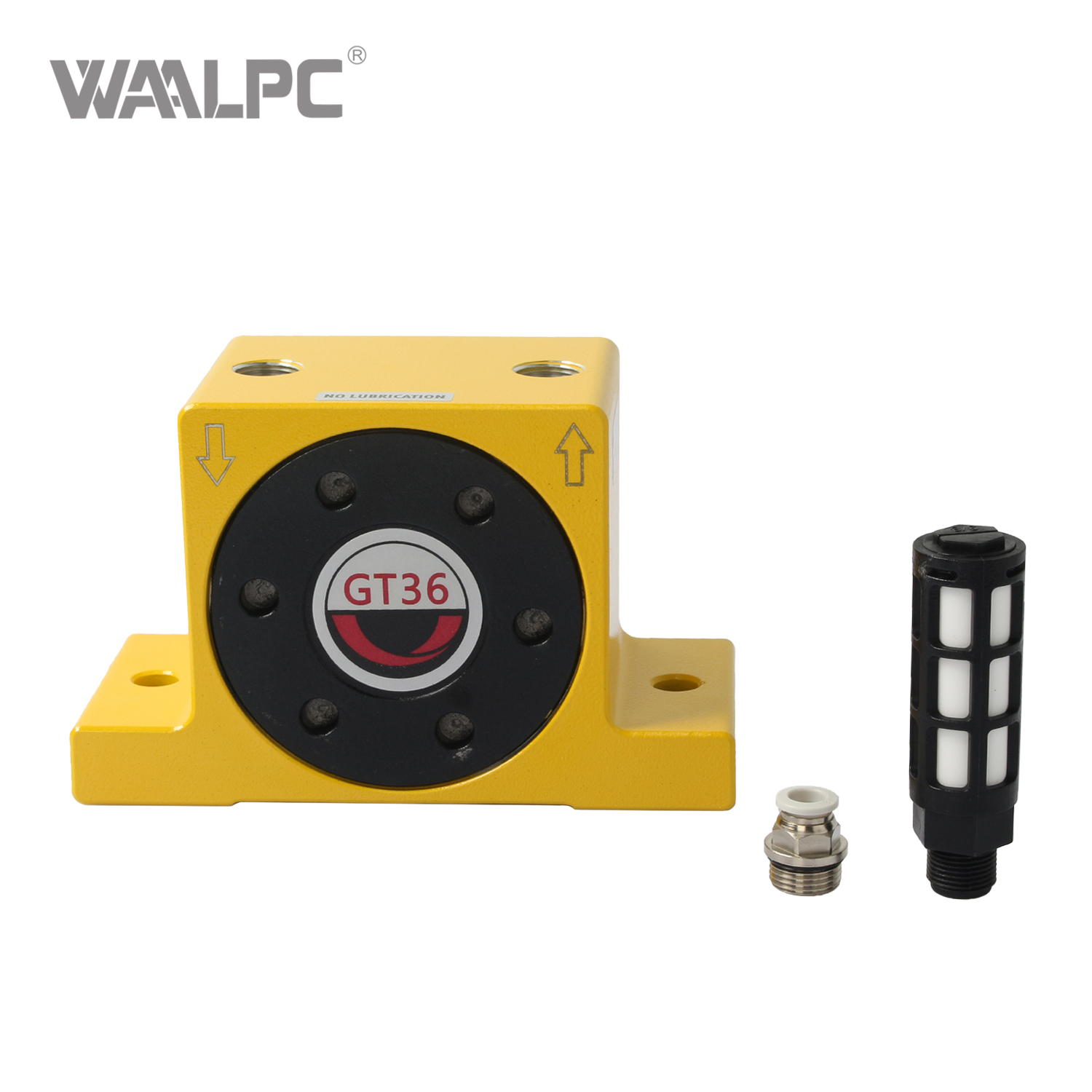

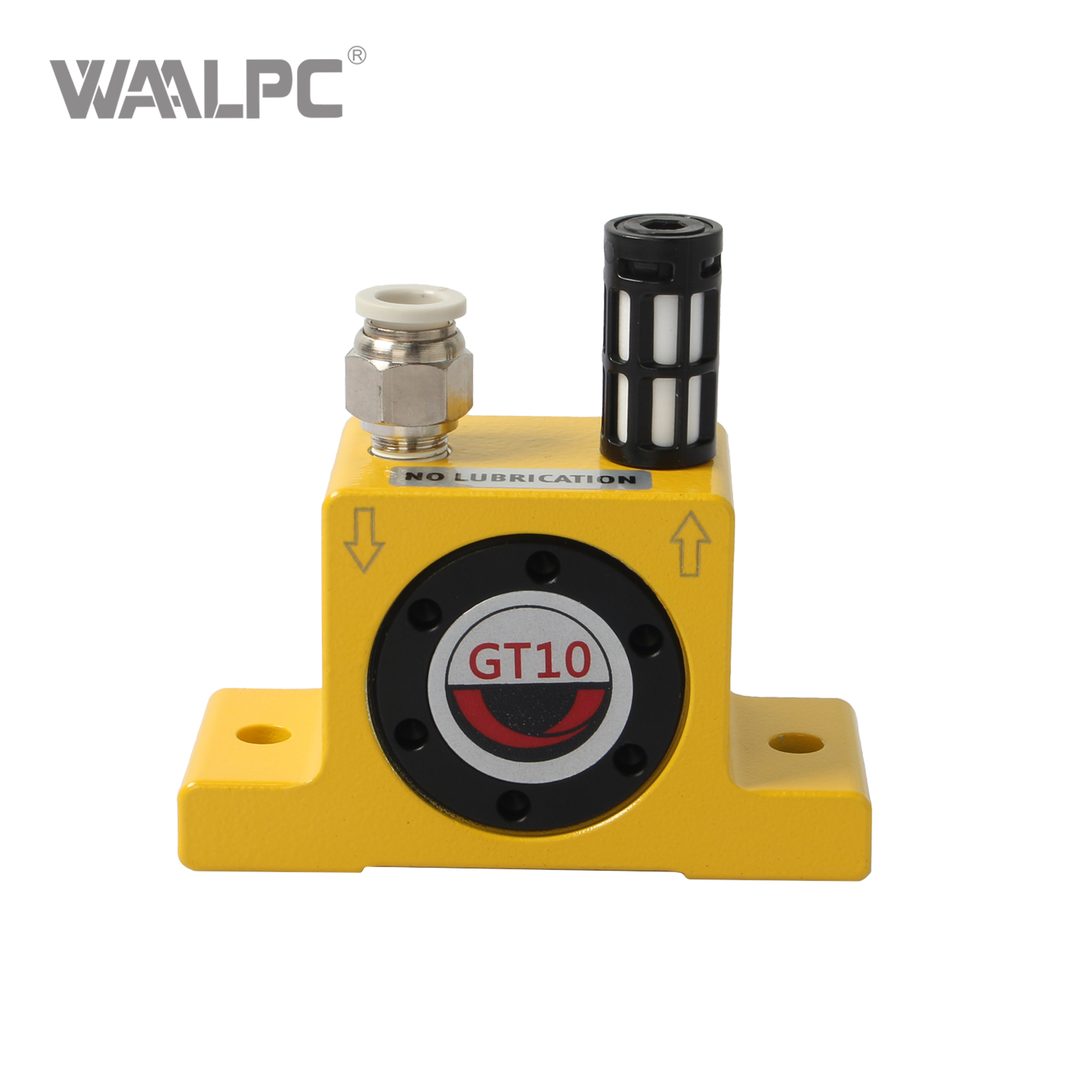

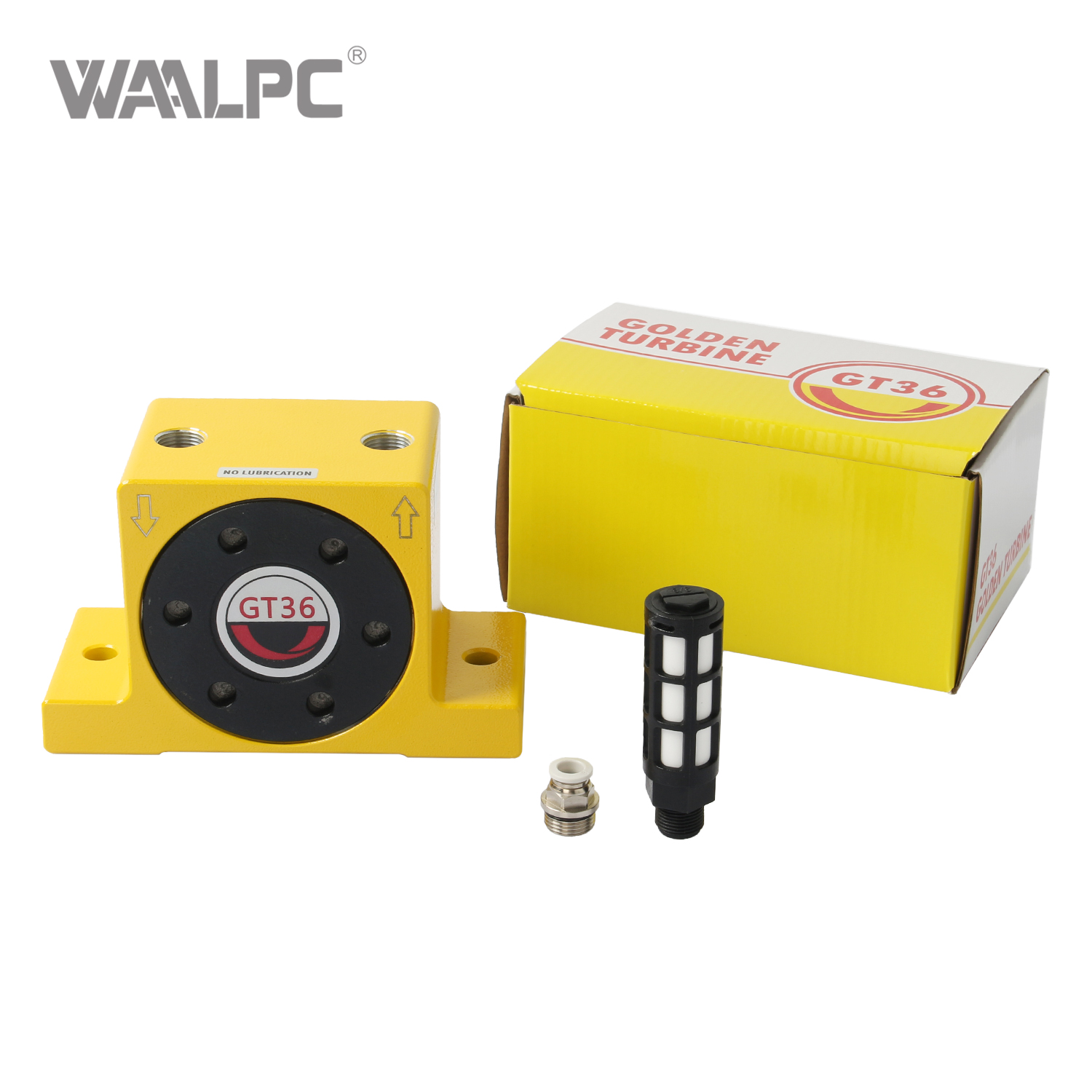

WAALPC GT Series Turbine Pneumatic Vibrator


Availability:

Quantity:



Inquiry Add to Basket

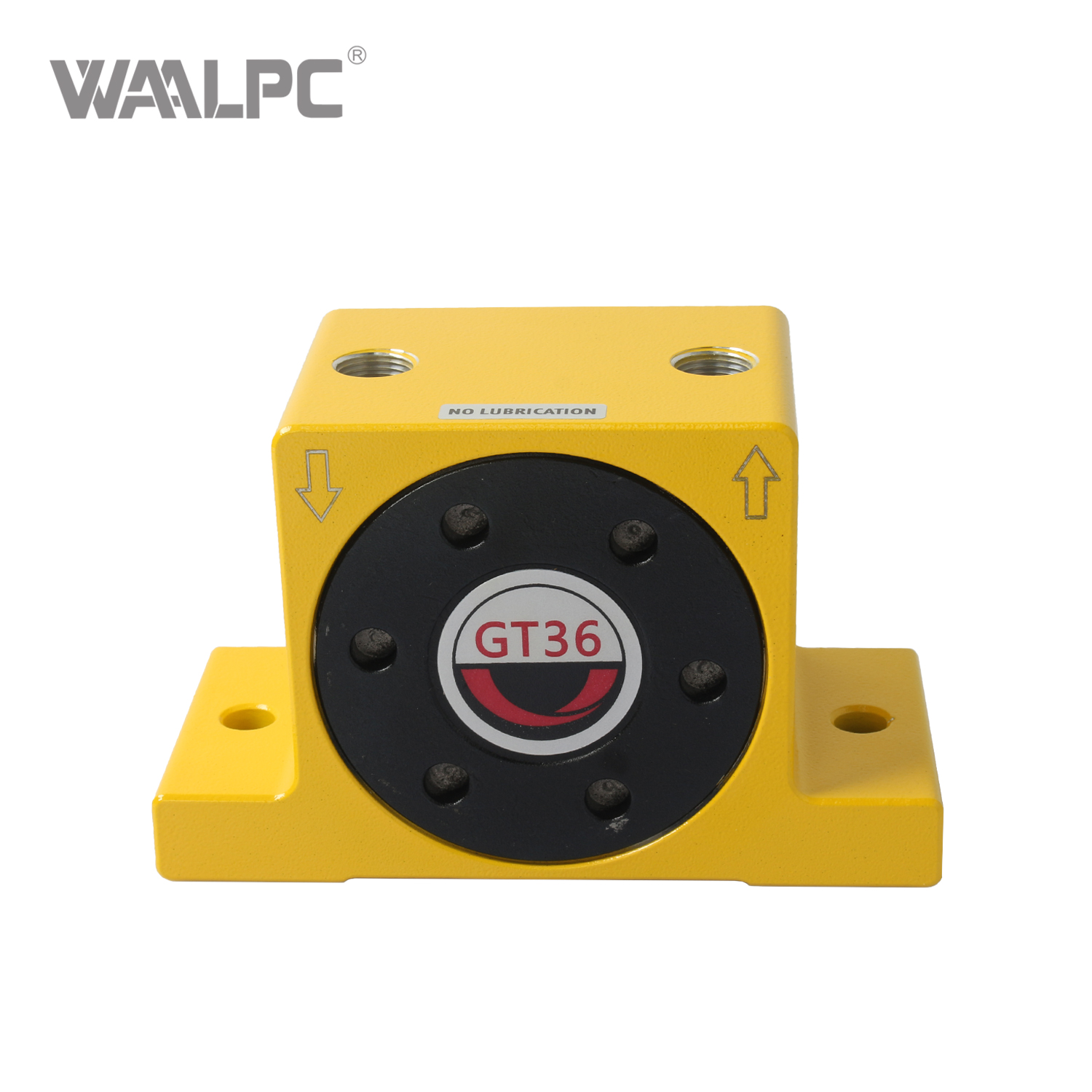

GT series turbine pneumatic vibrator (GT36) works with compressed air, no lubrication required, prevents powder/granule material blockage in hoppers, silos and chutes.

Model:
GT
Brand:
WAALPC
Code:
8501109990

Product Description

Turbine type design, low noise and stable vibration output
No lubrication required, simple maintenance
Powered by compressed air, safe for explosive and dust environments
High vibration frequency, effectively eliminate material bridging and blockage in silos, hoppers and chutes
Compact aluminum alloy body, lightweight and easy to mount
Wide vibration force adjustment range by regulating air pressure
Long service life, wear-resistant turbine structure

Technical Parameters

DATA SHEET

Model	Frequency/minute			Measured centrifugal force						Air consumption/minute
	0.2MPa	0.4MPa	0.6MPa	0.2MPa		0.4MPa		0.6MPa		0.2MPa	0.4MPa	0.6MPa
	0.2MPa	0.4MPa	0.6MPa	N	KG	N	KG	N	KG	L	L	L
GT-4	40100	60100	78500	710	72	1800	184	2225	227	30	40	50
GT-6	37400	50000	60900	600	61	1000	102	2000	204	30	40	50
GT-8	35850	43000	45900	980	100	2100	214	2950	301	48	75	152
GT-10	26950	34800	37600	850	87	1400	142	2450	250	48	75	152
GT-13	25950	30050	39800	1450	148	2450	250	3700	407	125	210	280
GT-16	16950	21800	24100	1250	128	2100	214	3150	321	125	210	280
GT-20	16950	19800	23100	2180	222	4050	413	5500	561	188	315	465
GT-25	11980	15600	17100	2150	219	3550	362	5600	571	188	315	465
GT-30	12990	14010	16100	3400	347	5450	556	7550	770	335	520	755
GT-36	7990	10100	13000	3300	337	5380	549	7180	733	335	520	755
GT-40	7650	8850	9550	4350	444	7350	750	9850	1005	428	680	960
GT-48	5800	7550	9750	4950	505	7750	691	10600	1081	428	680	960
GT-60	4750	6550	8600	5800	592	9900	1010	12000	1224	520	800	1100

[Note]The data in this table was taken from a Kistler 3-axis dynamometer on a heavy-dutyexperimental platform. When the installation rigidity is poor, the frequency and force values will decrease.

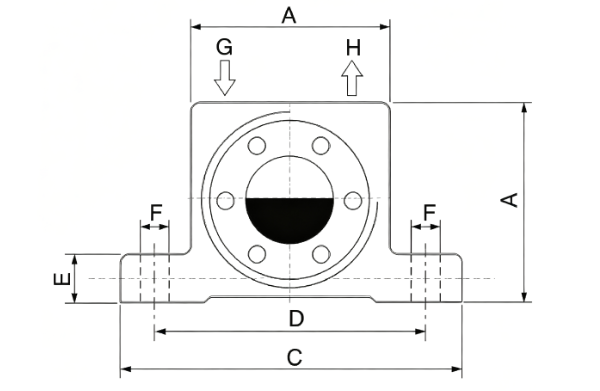

OVERALLDIMENSION&STRUCTURE

GT vibrator

Model	A	Width	C	D	E	F	G	H	Weight
	mm	mm	mm	mm	mm	mm	IN	OUT	KG	Lbs
GT-4	40	28	70	56	10	6	G1/8''	G1/8''	0.185	0.45
GT-6									0.185	0.45
GT-6-S									0.210	0.51
GT-8	50	35	86	68	12	7	G1/8''	G1/8''	0.255	0.56
GT-10									0.256	0.66
GT-10-S									0.265	0.68
GT-13	65	42	113	90	16	9	G1/4''	G1/4''	0.566	1.34
GT-16									0.582	1.38
GT-16-S									0.615	1.45
GT-20	80	56	128	104	16	9	G1/4''	G1/4''	1.095	2.50
GT-25									1.121	2.56
GT-25-S									1.205	2.74
GT-30	100	73	160	130	20	11	G3/8''	G3/8''	2.220	4.75
GT-36									2.320	5.20
GT-36-S									2.540	5.47
GT-40	120	83	194	152	24	17	G3/8''	G3/8''	3.680	8.13
GT-48									3.880	8.67
GT-48-S									4.280	9.55
GT-60	140	96	240	195	30	21	G1/2''	G1/2''	5.600	12.35

Specification Download

GT Series Turbine Vibrators.pdf
