Camozzi M Series Self-Relieving Micro Regulator G1/8′′ G1/4′′ Pneumatic Pressure Reducing Valve with Overflow Hole Re-Flux Function

Camozzi Type M Series Self-Relieving Micro Regulator G1/8′′ G1/4′′ Pneumatic Pressure Reducing Valve with Overflow Hole Re-Flux Function


Availability:

Camozzi Self-Relieving Micro Regulator M Series small pressure reducing valve is a pressure control valve that can adjust the outlet pressure of the pneumatic system to a set value lower than the inlet pressure and maintain a stable pressure.
It can be connected by pipe, mounted by bracket or panel.

Model:
M008-R01
Brand:
WAALPC
Code:
8481100090

Product Description

1. Precise Pressure Control

Wide Pressure Range: Regulates inlet pressures from 0.5–10 bar with high accuracy, making it versatile for diverse applications.

Tool-Free Adjustment: Allows quick and easy pressure setting without additional tools, reducing downtime during maintenance or reconfiguration.

Low Pressure Drop: Ensures efficient operation with minimal energy loss, enhancing system performance and reducing operational costs.

2. Compact & Flexible Installation

G1/8 Port Size: Fits seamlessly into space-constrained systems, while the in-line or panel-mounting design (any orientation) simplifies integration.

Lightweight Design: Weighing just 0.235 kg, it minimizes strain on pneumatic lines and supports portable equipment.

Pressure Gauge Port: Optional G1/8 port for direct pressure monitoring, enabling real-time adjustments.

Technical Parameters

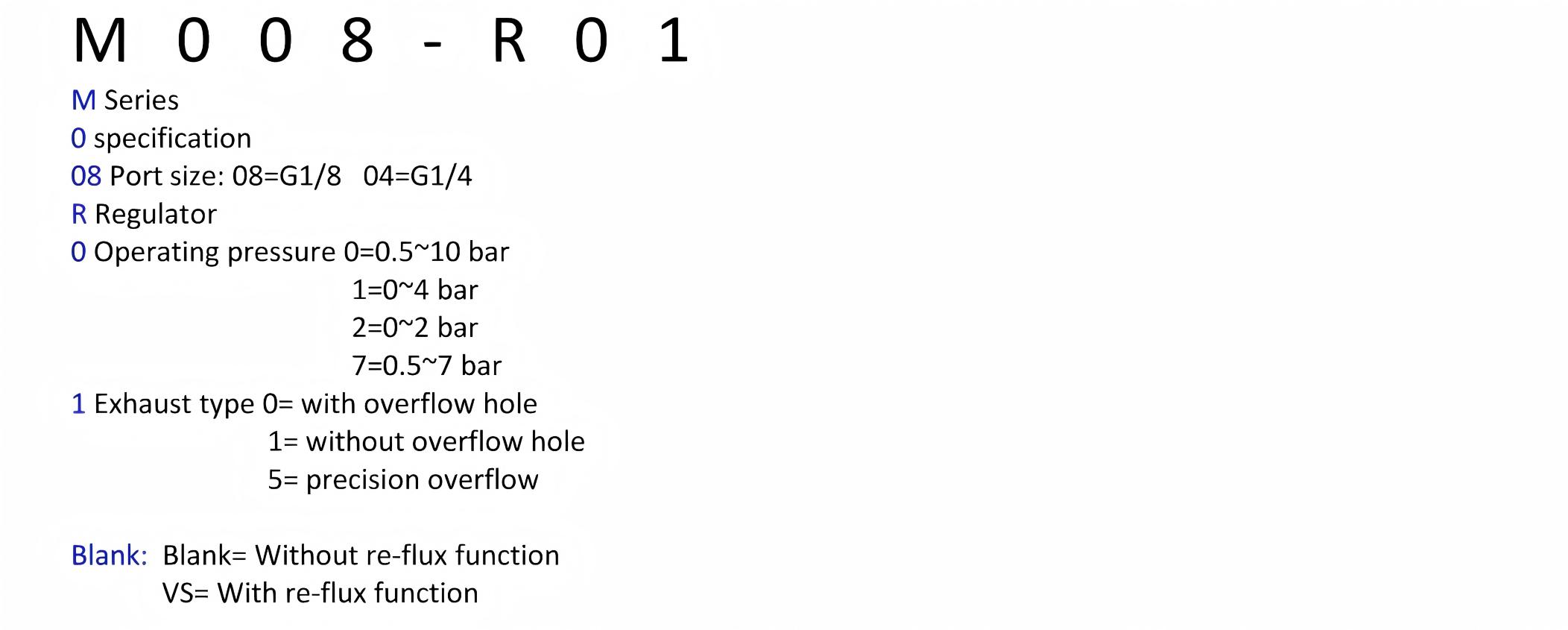

ORDEING CODE

DATA SHEET

Specification	Diaphragm type
Material	Brass body, stainless steel spring, nitrile rubber seal
Port Size	G1/8, G1/4
Weight	0.235kg
Pressure Gauge Port Size	G1/8
Installation type	Pipe connection, bracket installation, panel installation
Operating Temperature	-5℃~50℃
Input Pressure	0~16 bar
Output Pressure	0.5~10 bar (standard) 0~2 bar 0~4 bar (standard) 0.5~7 bar (standard)
Nominal Flow	See the flow characteristic curve of the pressure reducer
Overflow Characteristics	With overflow hole (standard), without overflow hole
Working Medium	Compressed air

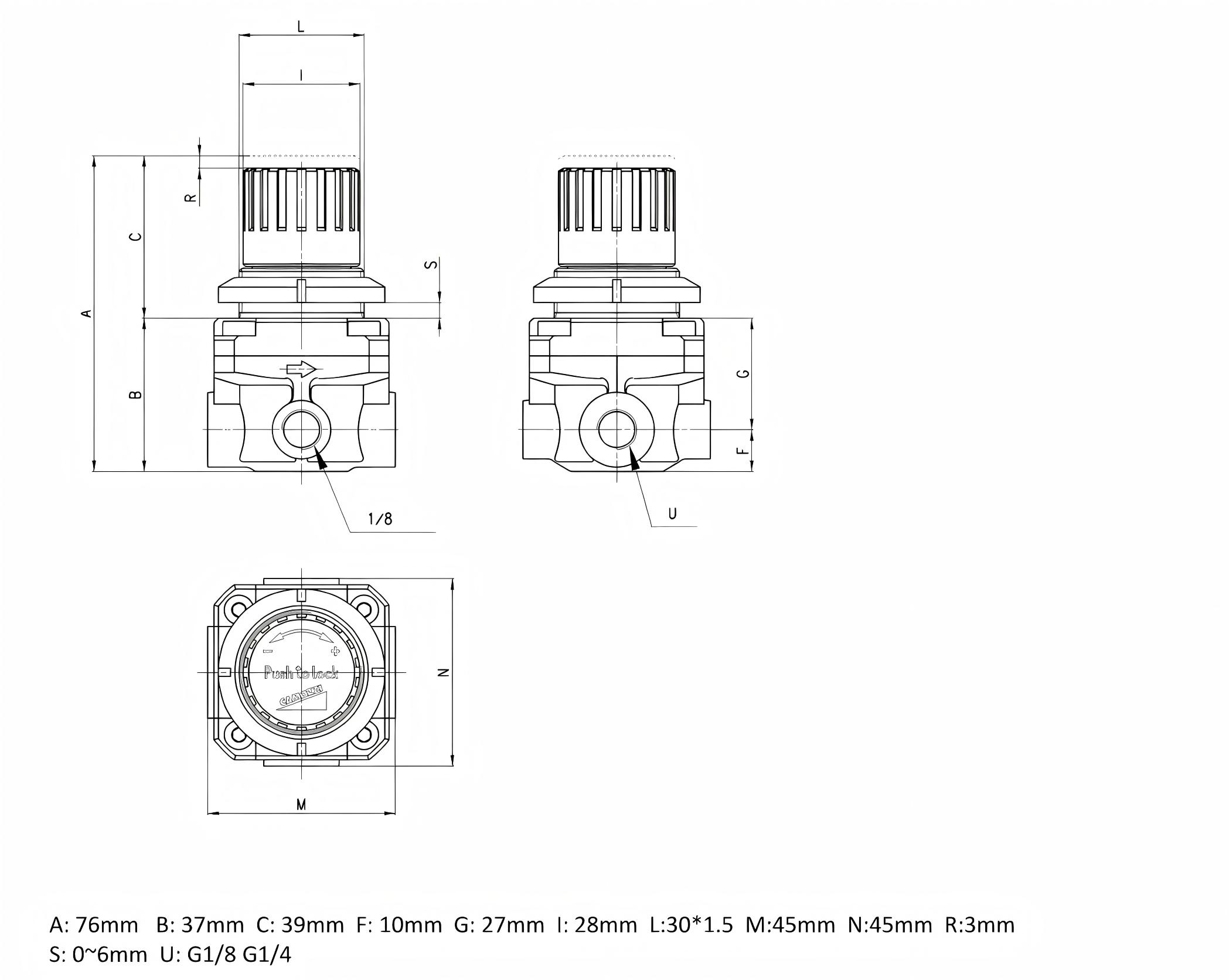

STRUCTURE

Commazi regulator

Specification Download

WAALPC Pressure Reducing Valve M008-R01 .pdf
