You are here: Home » Products » Pneumatic Accessories » Other Accessories » Copper Filter Element 5um 25um 40um Hydraulic Oil Filter Element Pneumatic Accessories Air Filter Element

Product Category

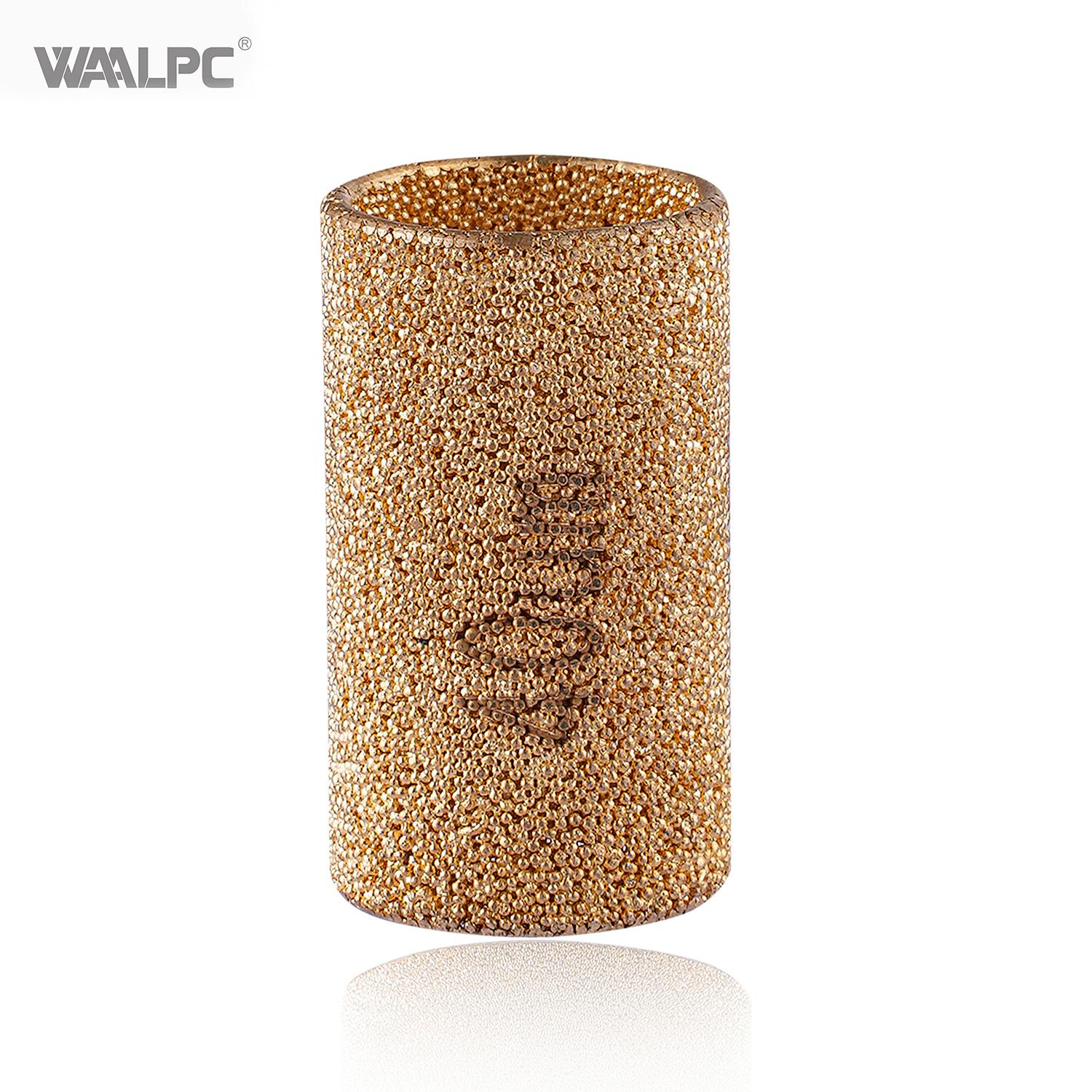

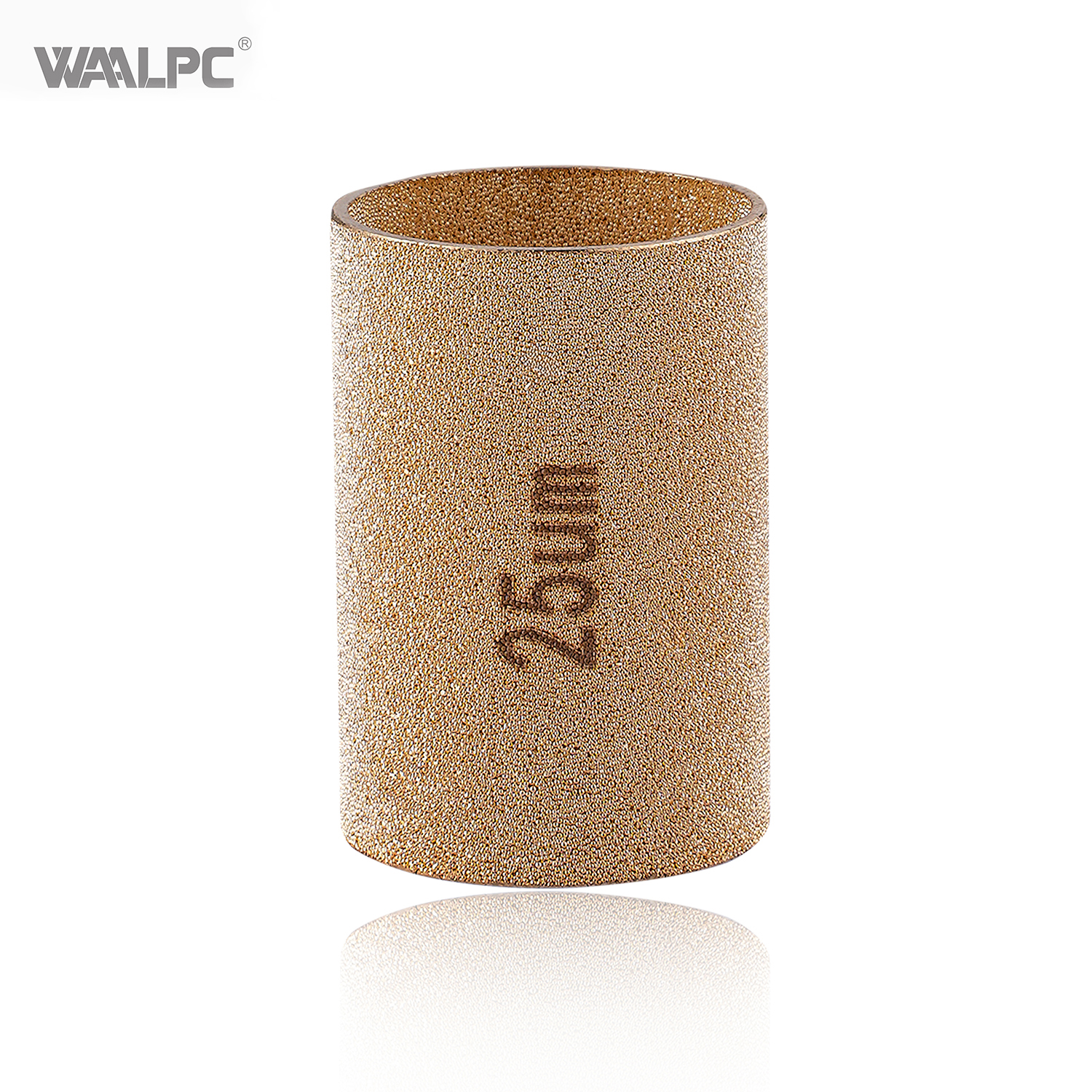

Copper Filter Element 5um 25um 40um Hydraulic Oil Filter Element Pneumatic Accessories Air Filter Element

Copper Filter Element 5um 25um 40um Hydraulic Oil Filter Element Pneumatic Accessories Air Filter Element


Size:	25um 40um
Availability:

Quantity:



Inquiry Add to Basket

Filters are the first line of defense in Air Source Treatment. Their function is to remove impurities such as dust, debris, and moisture from the compressed air. These contaminants can damage pneumatic components, reduce efficiency, and lead to system failures.

Model:
Copper Filter Element
Brand:
WAALPC

Product Description

Product Advantages

Filter Element

1. Stable permeability and high filtration precision.

2. Good ability to withstand thermal pressure and impact.

3. High self-strength,good plasticity, good antioxidant assembly.

4. Strong regeneration ability and long lifetime.

5. Withstand thermal stress and shock can work at higher temperatures and corrosive media can be

weldedand bonded and mechanical processing better.

6. High filtration efficiency, high tensile strength, high temperature resistance, corrosion resistance.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Working Medium	Air
Grade of Fitration	5um, 25um,40um
Operating Pressure Range	0~1.0Mpa
Pressure Resistance	1.0Mpa
Operating Temperature Range	0~60℃
Material	Brass/ Plastic
Application	Pneumatic and hydraulic components

Model No.	Size(mm)			Color	Material	Remark
Model No.	Diameter/Outer	Diameter/Inner	Height	Color	Material	Remark
	16.3	14	23	Brass	Brass	For AFR2000
	17	14.5	30	Brass	Brass	For AF2000
	22.7	20	33	Brass	Brass	For AF3000
	28.7	26.5	43	Brass	Brass	For AF4000
	29	26	43	Brass	Brass	For AF4000
	28.7	26.5	60	Brass	Brass	For AF4000
	37	34.5	67	Brass	Brass	For AF5000
	20	14.5	23	White/Blue	PE	For AFR2000
	18.5	14.3	29.8	White/Blue	PE	For AF2000
	25	20	34	White/Blue	PE	For AF3000
	31	25	43	White/Blue	PE	For AF4000
	31	25	60	White/Blue	PE	For AF4000
	40	34	65	White/Blue	PE	For AF5000
	23	8	46	Black+blue /Black+red	Plastic	For AF2000
	25	7.8	52	Black+blue /Black+red	Plastic	For AF3000
	29	10.8	59	Black+blue /Black+red	Plastic	For AF4000
	16.3	14	23	Grey	stainless steel	For AFR2000
	17	14.5	30	Grey	stainless steel	For AF2000
	22.7	20	33	Grey	stainless steel	For AF3000
	28.7	26.5	43	Grey	stainless steel	For AF4000
	29	26	43	Grey	stainless steel	For AF4000
	28.7	26.5	60	Grey	stainless steel	For AF4000
	37	34.5	67	Grey	stainless steel	For AF5000

Specification Download

WAALPC Filter Element.pdf

Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
