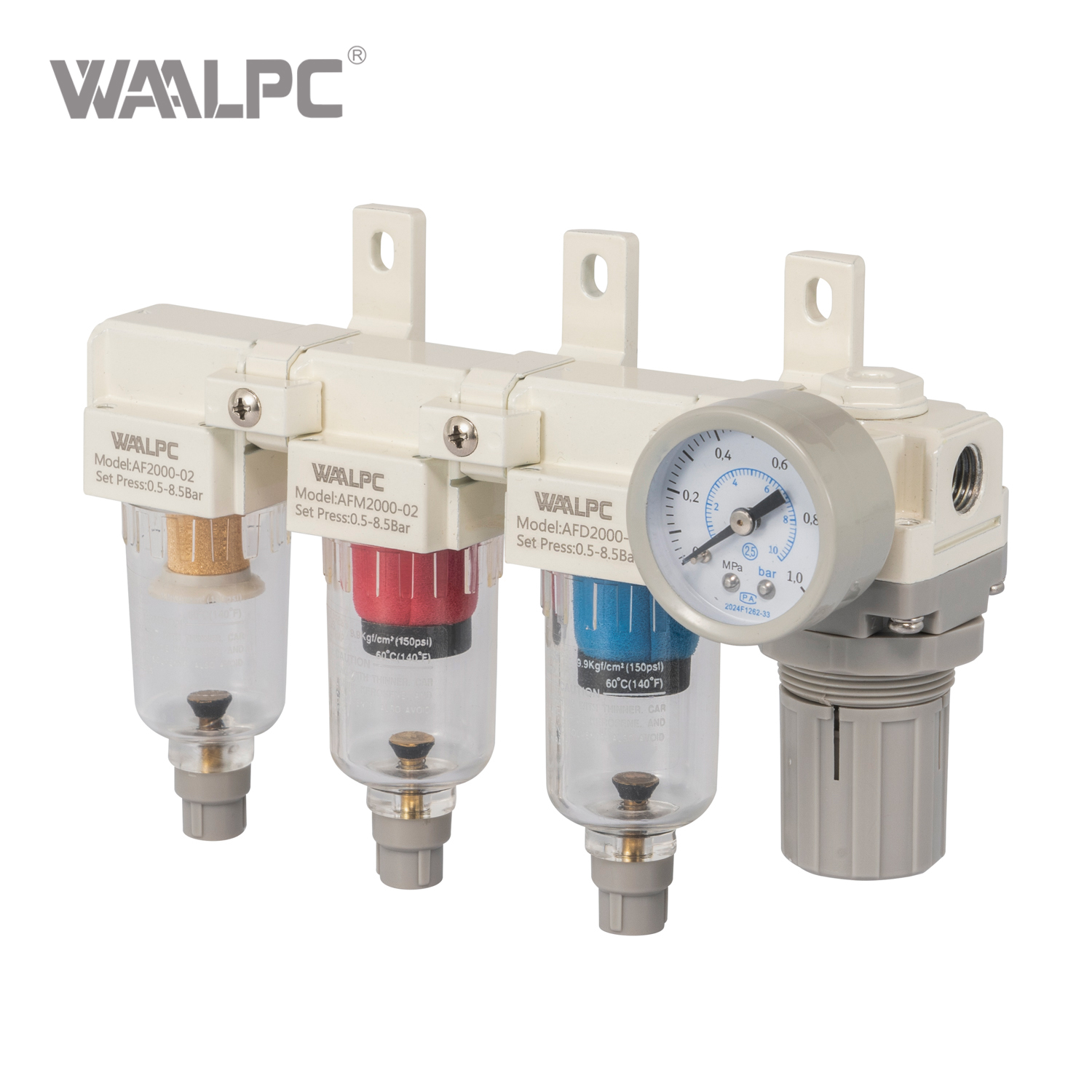

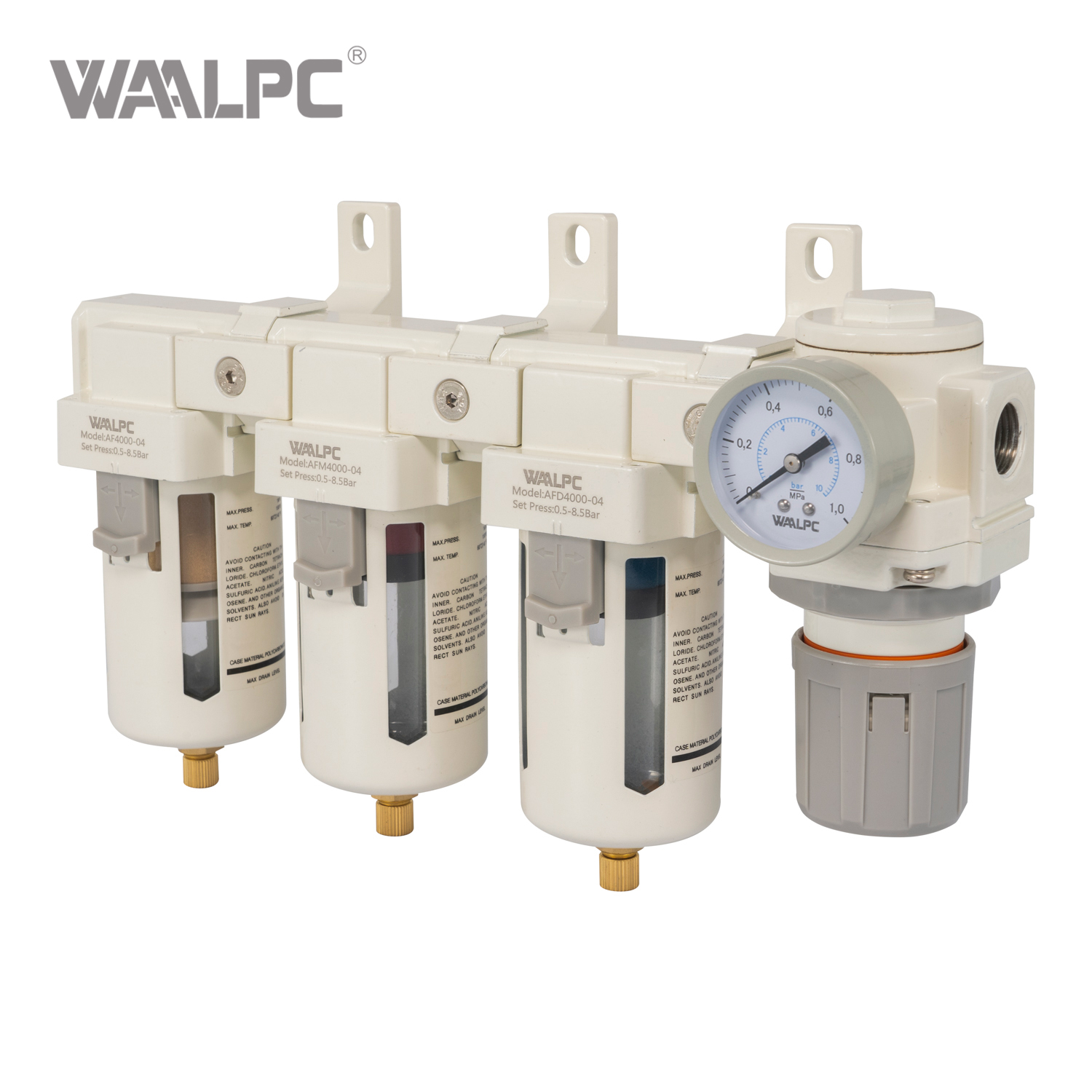

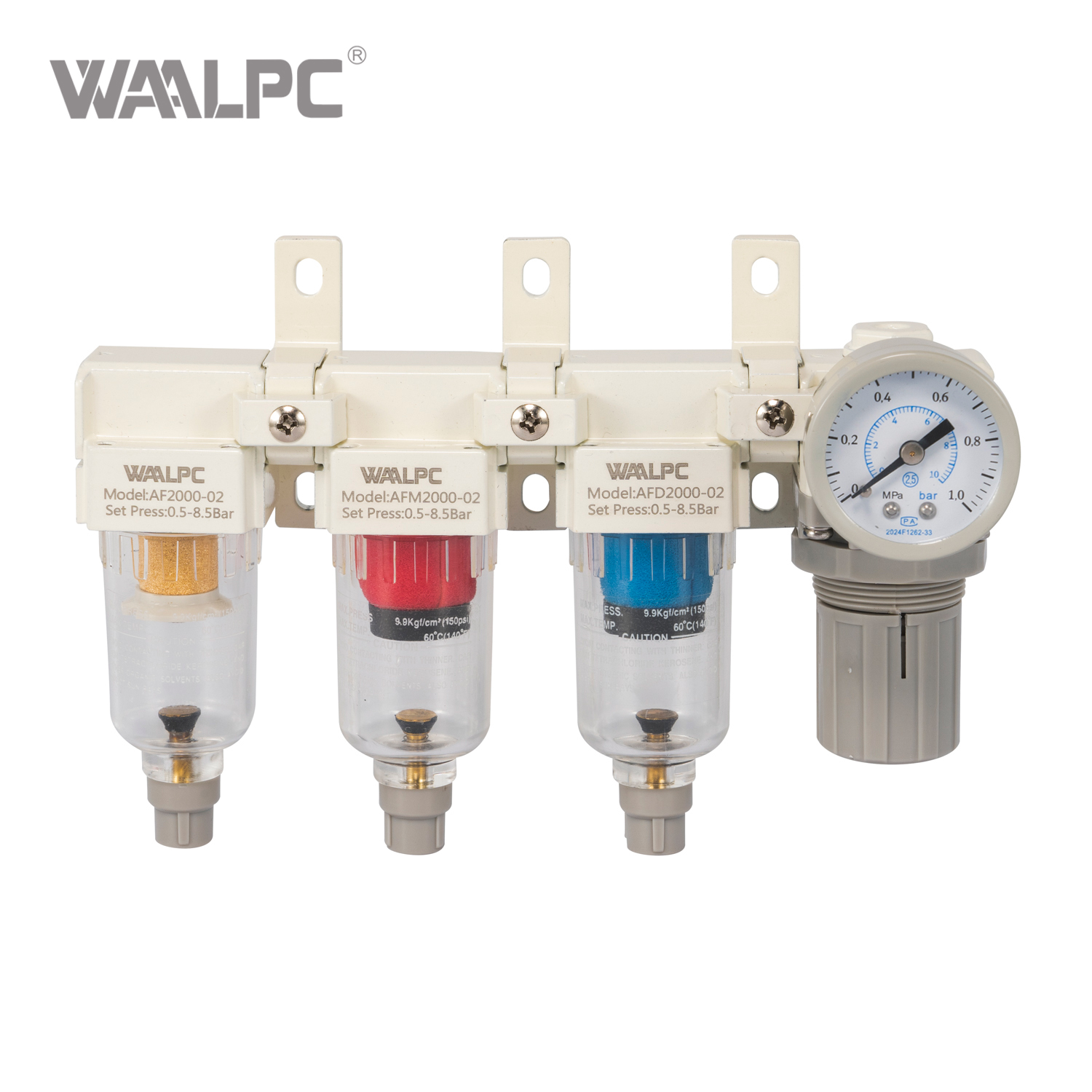

AFFFR Series
WAALPC
8419399090
Three-Stage Purification: Achieves near-zero contamination levels by systematically removing liquids, micro-mists, and vapors that single-stage filters cannot capture.
Maximized Equipment Lifespan: Protects valuable downstream equipment (pneumatic valves, cylinders, air tools, and instruments) from wear, corrosion, and failure caused by contaminated air, significantly reducing downtime and maintenance costs.
Low Pressure Drop: Our optimized filter element design and housing geometry ensure minimal pressure drop across all three stages, maintaining system pressure and reducing the energy consumption of your air compressor.
High Dirt-Holding Capacity: The multi-stage design, especially the pre-filter stage, extends the service life of the more expensive final activated carbon filter, reducing the frequency of element changes and lowering long-term operational expenses.

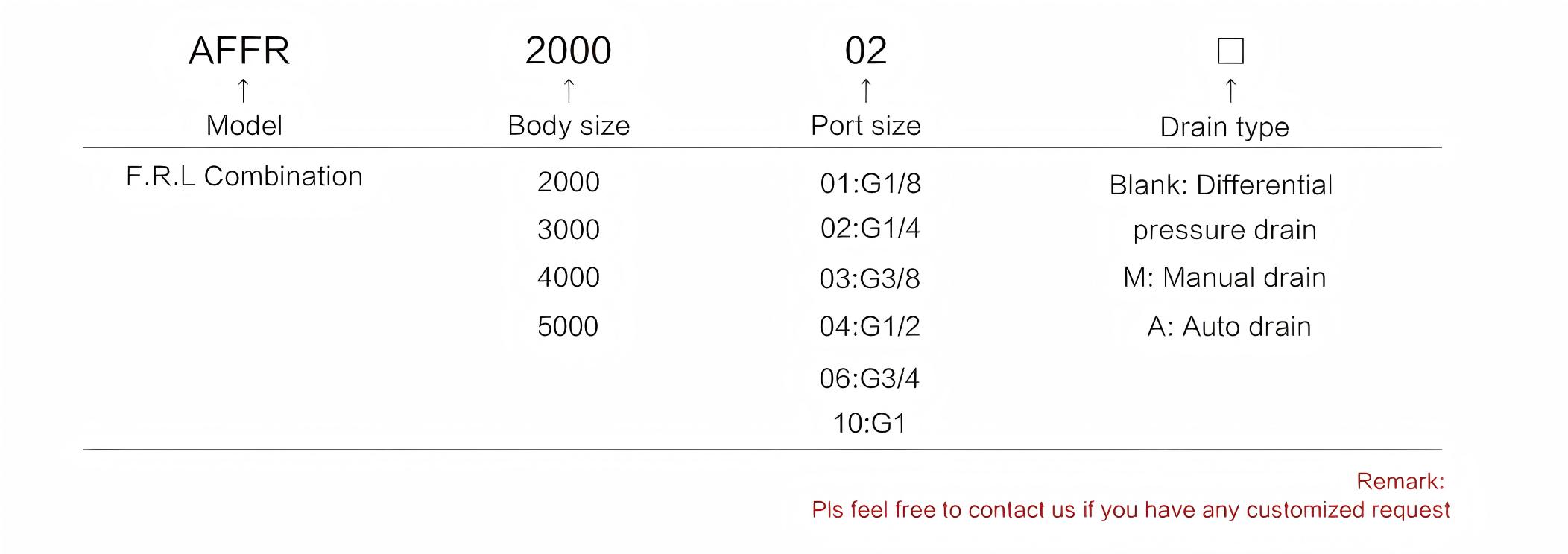

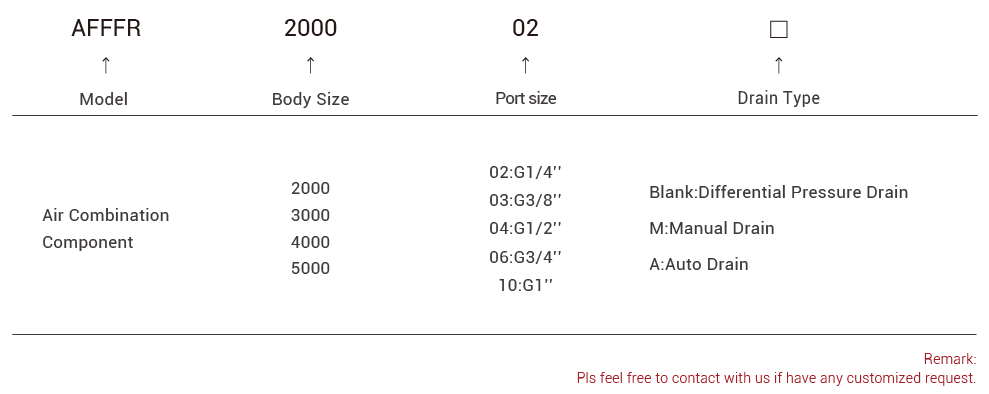

ORDERING CODE
DATA SHEET
Type-name | F.R.L combination | ||||||||
Model | AFFFR2000-01 | AFFFR2000-02 | AFFFR3000-02 | AFFFR3000-03 | AFFFR4000-03 | AFFFR4000-04 | AFFFR4000-06 | AFFFR5000-06 | AFFFR5000-10 |
Port Size(G) | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
Drain Type | Manual drain, auto drain and differential pressure drain (optional) | ||||||||
Grade of Filtration | 0.01um, 0.3um, 5um, 40um | ||||||||
Working Medium | Air | ||||||||
Pressure Regulating Range | 0.05~0.85MPa(125Psi) | ||||||||
Max. Operating Pressure | 1.0MPa(145Psi) | ||||||||
Pressure Resistance | 1.2MPa(215Psi) | ||||||||
Operating Tempreture Range | -5~60℃ | ||||||||
Pressure Gauge | Y40-01 | Y50-02 | |||||||
Material | Housing: Aluminum die-casting molding; Container cup: PE; Bowl guard: iron |
Components | |||||||||
Filter | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 |
Regulator | AR2000-01 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |

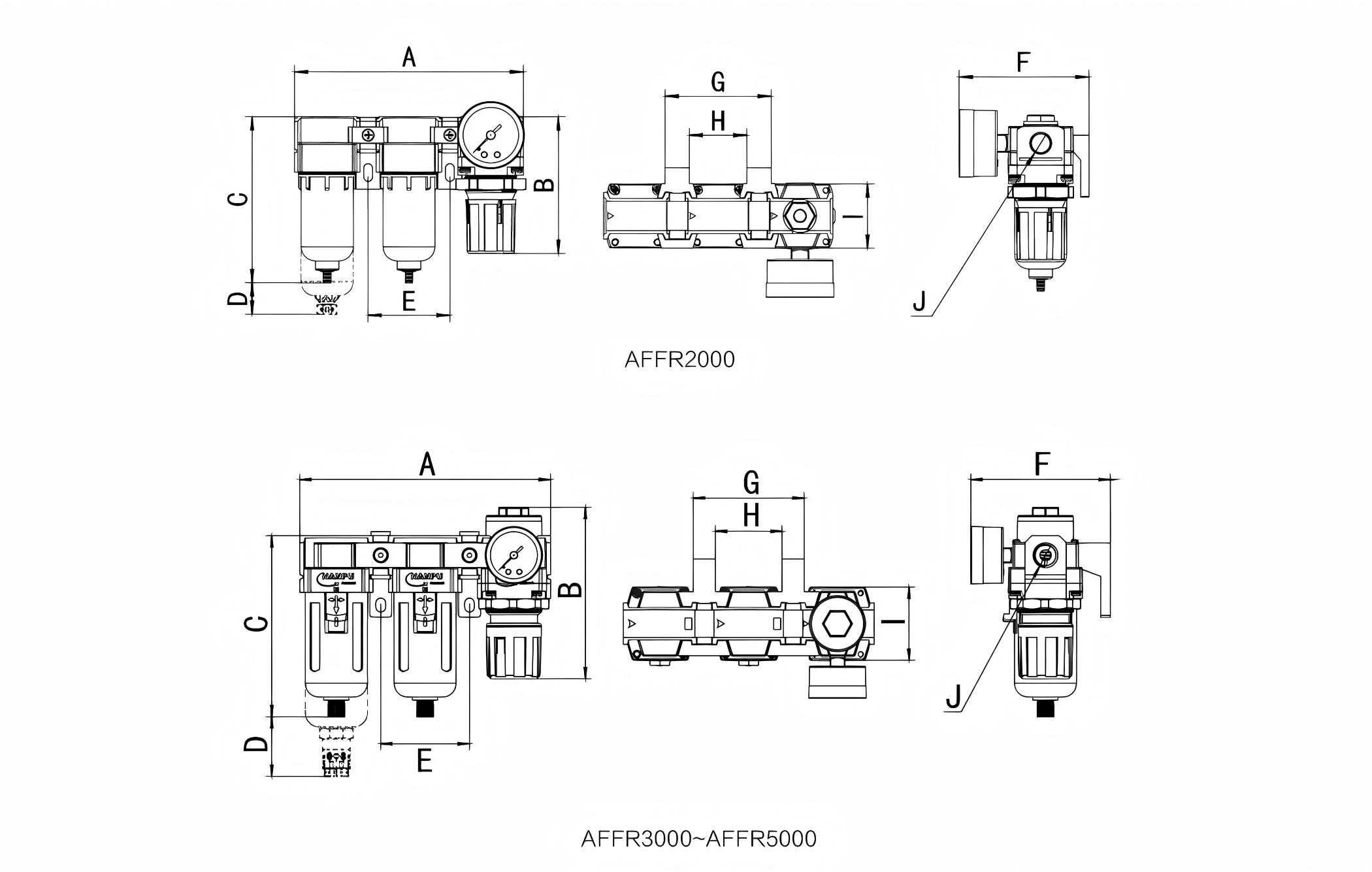

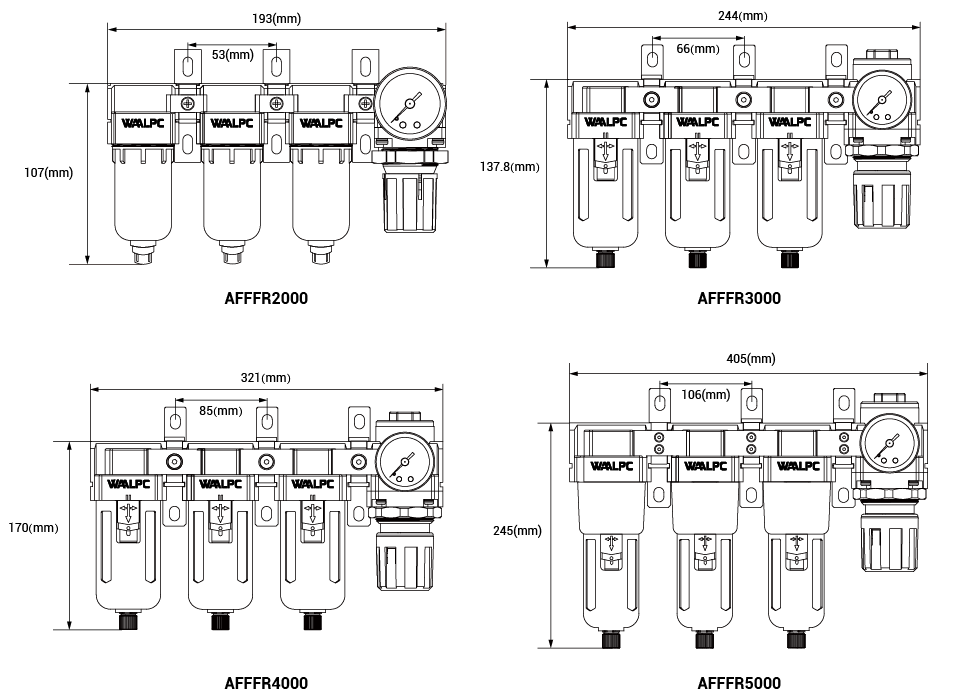

STRUCTURE
Model | Port Size | Dimension(mm) | ||||||||
A | B | C | D | E | F | G | H | I | ||
AFFR2000-02 | 1/4 | 14 | 9 | 10 | 1.9 | 5 | 8 | 6.5 | 3.5 | 4 |
AFFR3000-03 | 3/8 | 18 | 12 | 16 | 4.3 | 6.3 | 9.5 | 8 | 4.7 | 5.3 |
AFFR4000-04 | 1/2 | 24 | 15 | 16.5 | 4.4 | 8.5 | 10.5 | 10.5 | 6.3 | 7 |
AFFR4000-06 | 3/4 | 25.3 | 15.5 | 17 | 4.4 | 8.5 | 11 | 11 | 6.7 | 7 |
AFFR5000-10 | 1 | 30 | 17 | 24.5 | 4.4 | 10.5 | 15 | 12.5 | 8 | 9 |
